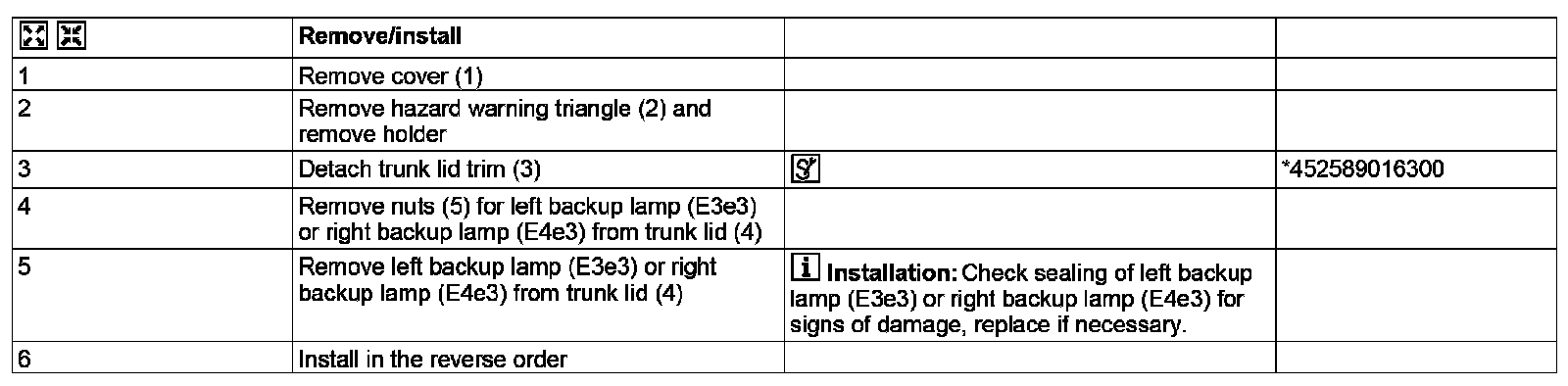

AR82.10-P-4915SC Remove/Install Taillamp, Trunk Lid

AR82.10-P-4915SC Remove/install Taillamp, Trunk Lid
- MODEL 216 as of model year 2011

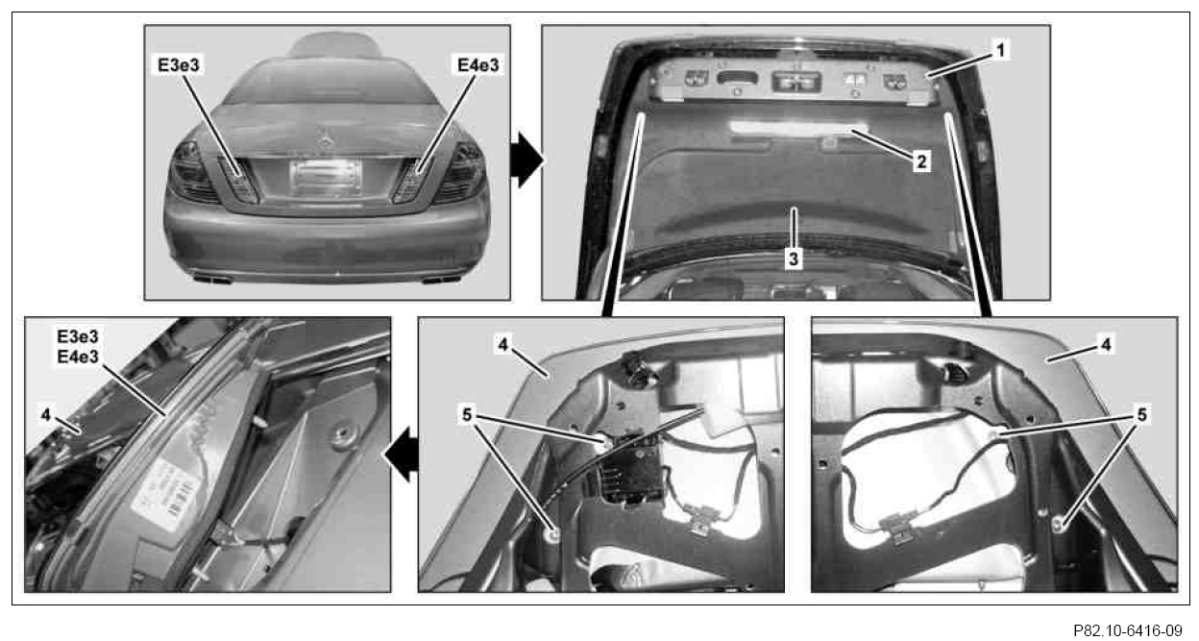

1 Cover
2 Hazard warning triangle
3 Trunk lid paneling
4 Trunk lid
5 Nut
E3e3 Left backup lamp
E4e3 Right backup lamp











452 589 01 63 00, Snap-release tool
