AR82.10-P-4905SX Remove/Install Taillamp
AR82.10-P-4905SX Remove/Install Taillamp
AR82.10-P-4905SX Remove/Install Taillamp
Component Identification:

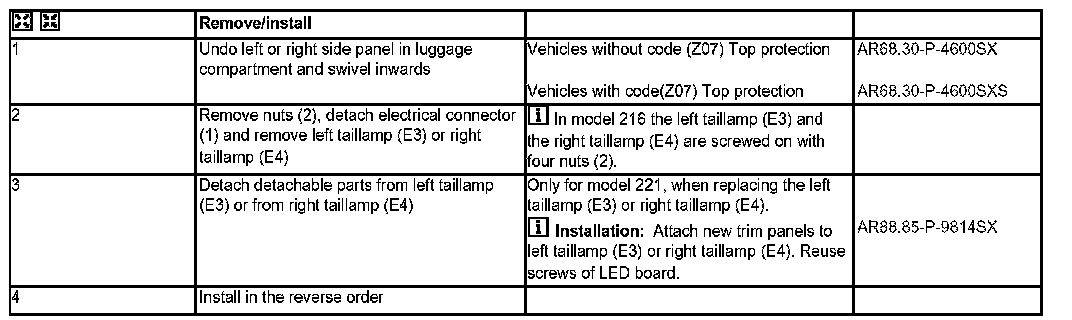

Steps 1 - 4:
