Headlamp Bulb: Service and Repair

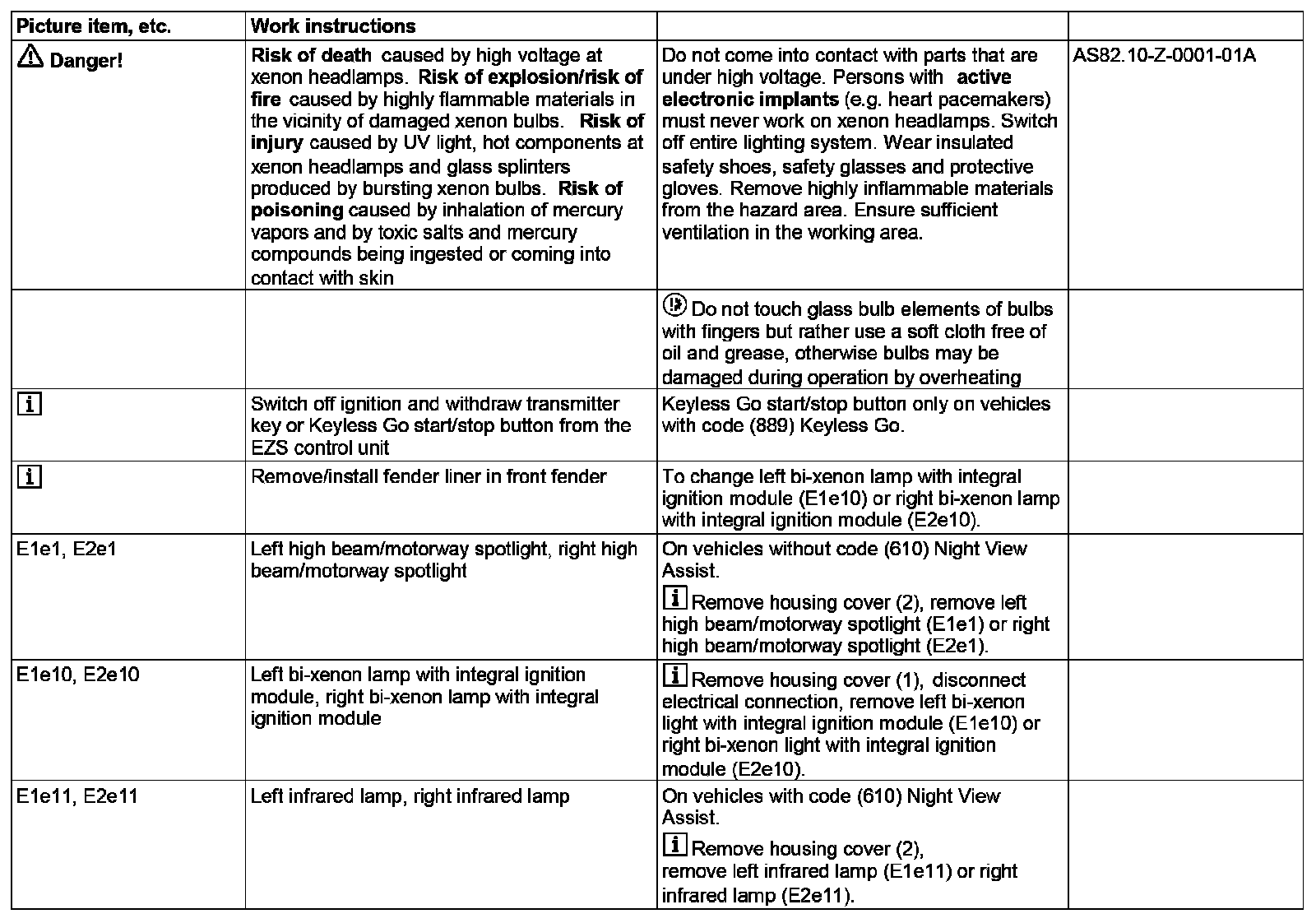

AR82.10-P-1201SCS Remove/install Bulbs Of Headlamp Unit
- MODEL 216.3 as of model year 2011






E1e10 Left bi-xenon lamp with integral ignition module
E2e10 Right bi-xenon lamp with integral ignition module
1 Housing cover
2 Housing cover
E1 Left front headlamp unit
E2 Right front headlamp unit
E1e1 Left high beam/motorway spotlight (without code (610) Night View Assist)
E1e11 Left infrared lamp (with code (610) Night View Assist)
E2e1 Right high beam/motorway spotlight (without code (610) Night View Assist)
E2e11 Right infrared lamp (with code (610) Night View Assist)
