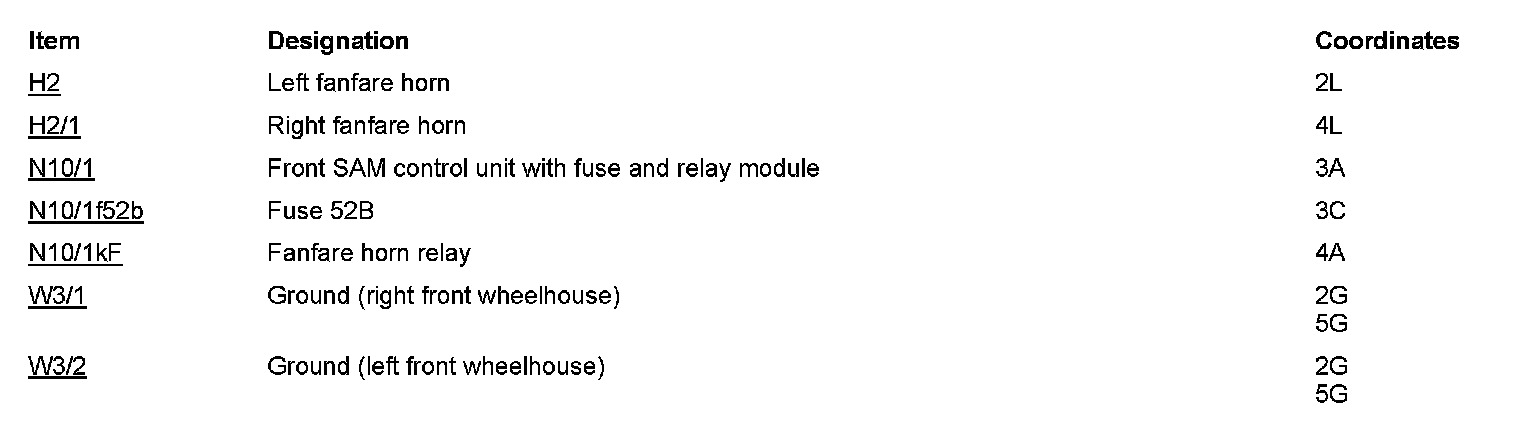

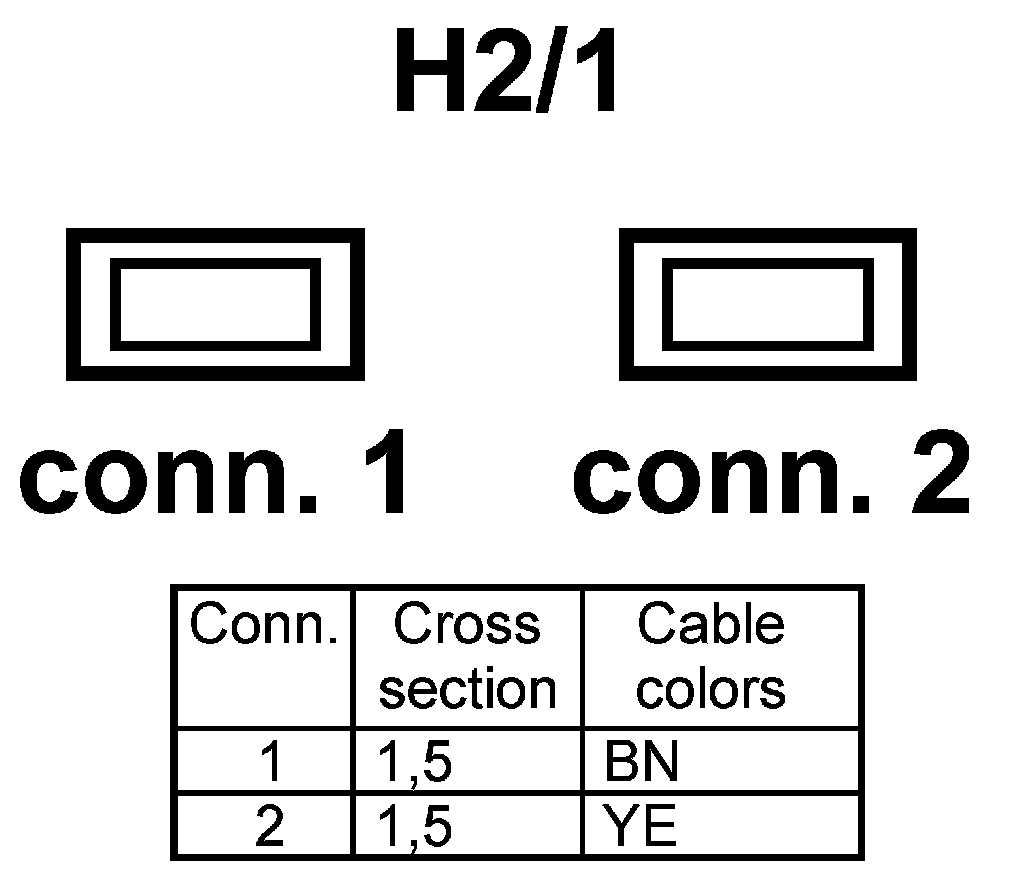

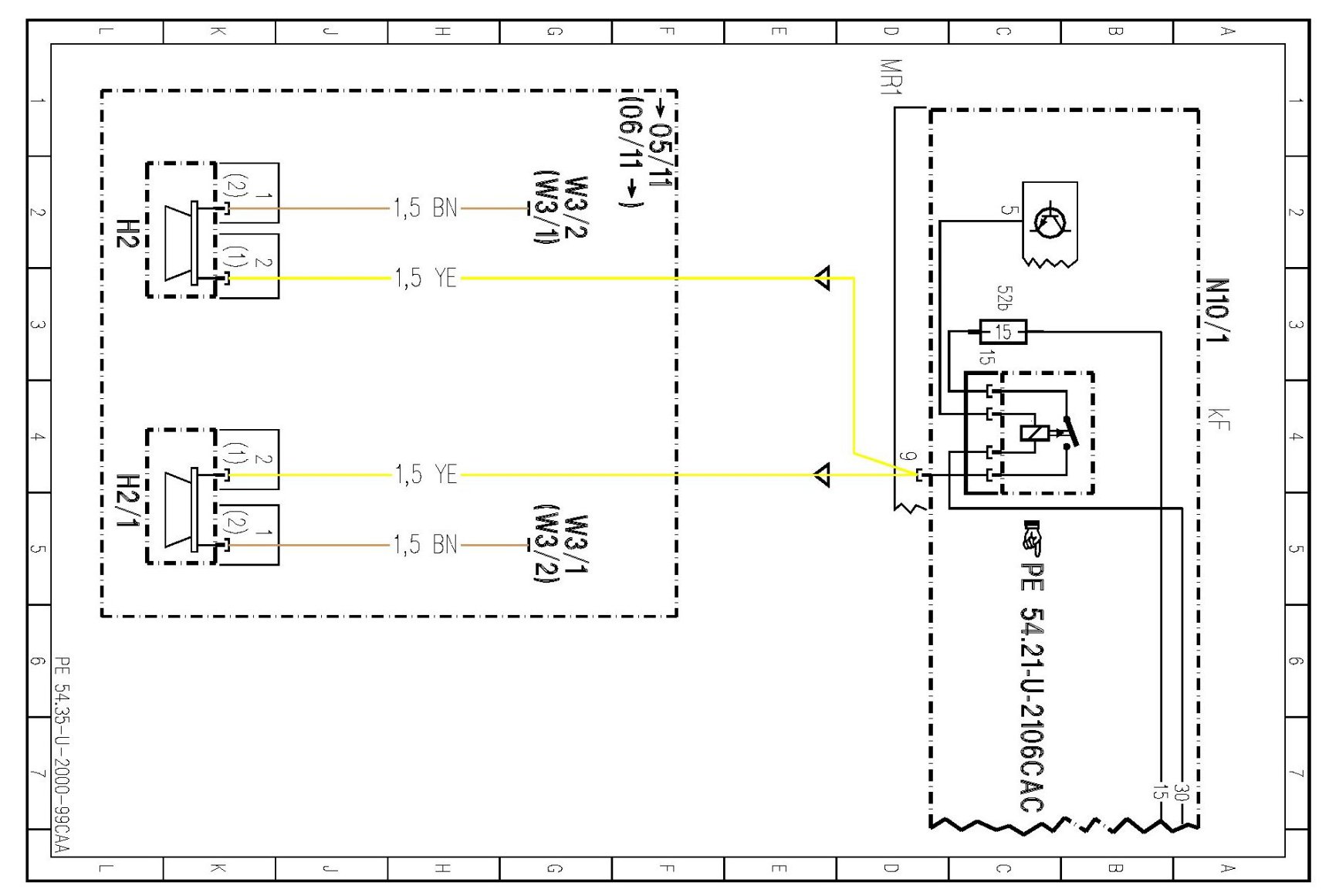

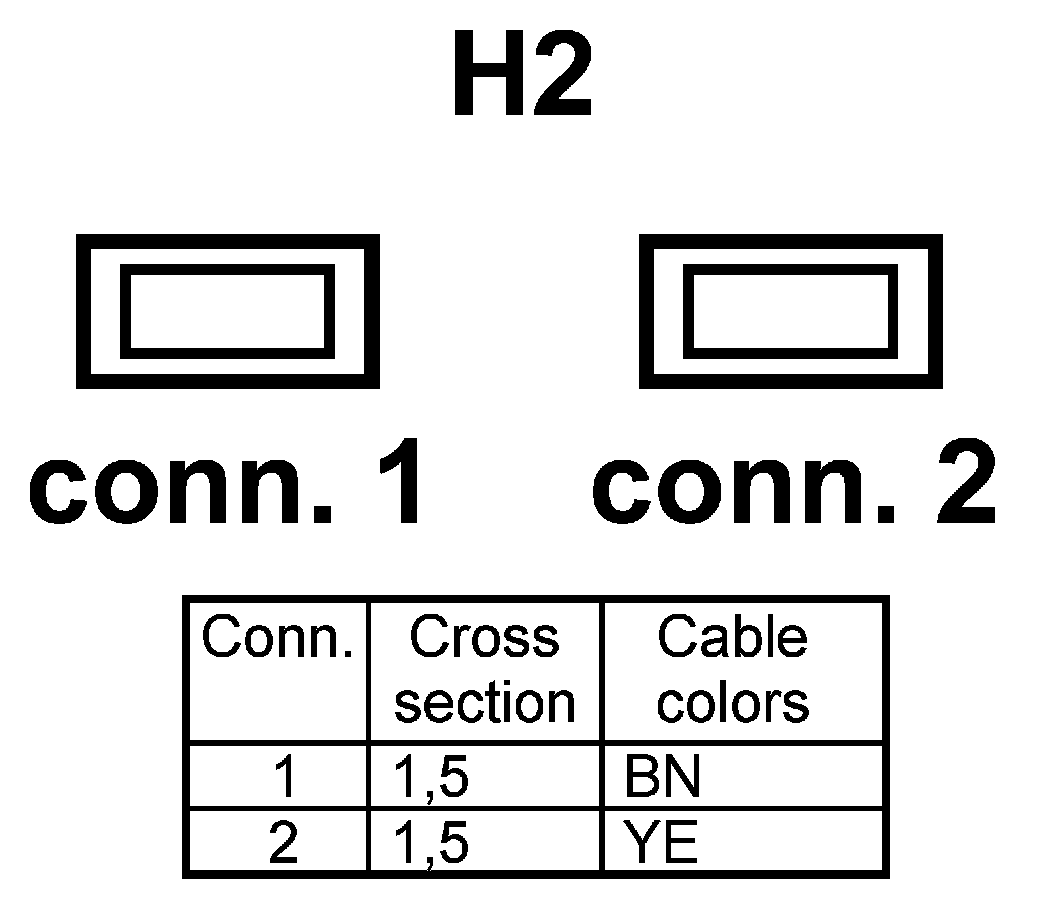

PE54.35-U-2000CAA Signal System



PE54.35-U-2000CAA Signal System

MODEL 216























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
