Daytime Running Lamp: Service and Repair

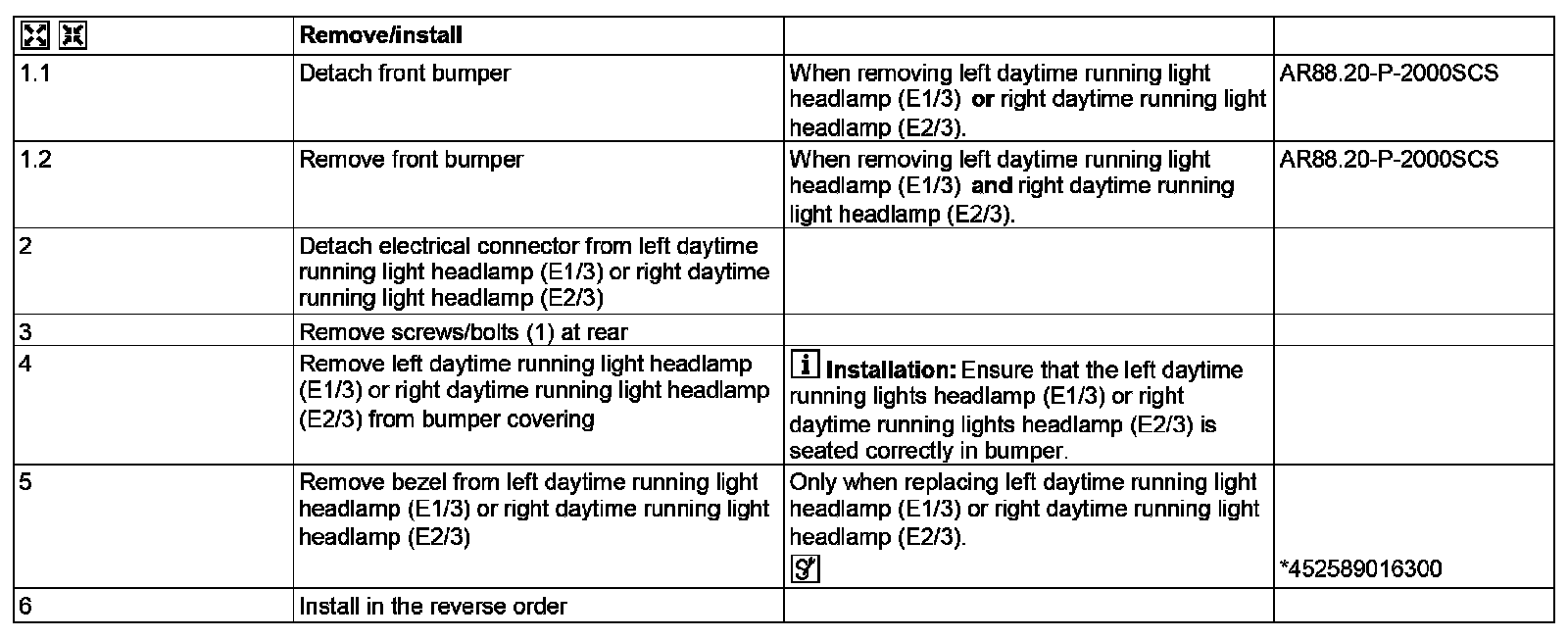

AR82.10-P-2300SC Removing And Installing Headlamp For Daytime Running Light
- MODEL 216 as of model year 2011

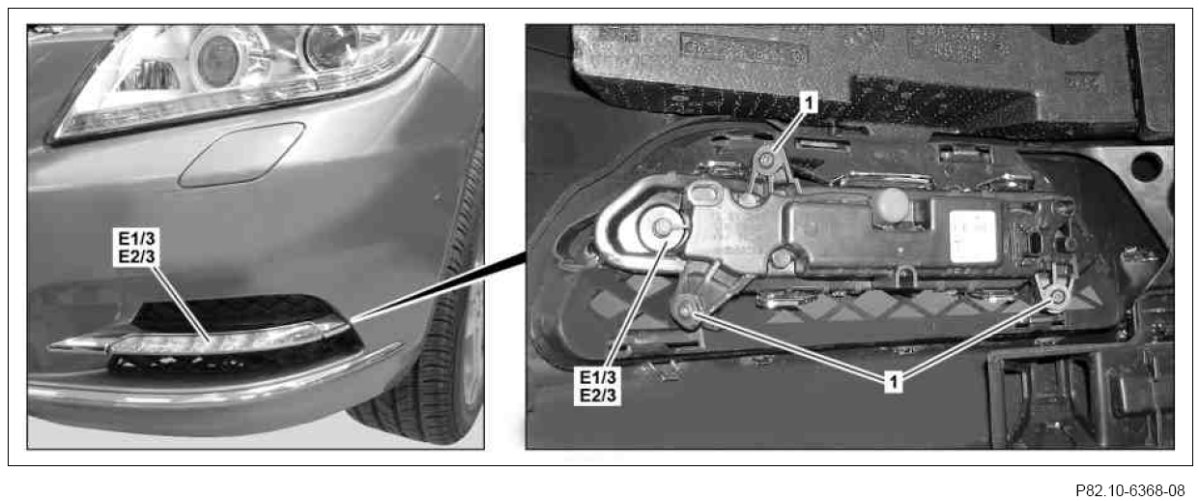

1 Screw
E1/3 Left daytime running lamps headlamp
E2/3 Right daytime running lamps headlamp











452 589 01 63 00,Snap-release tool
