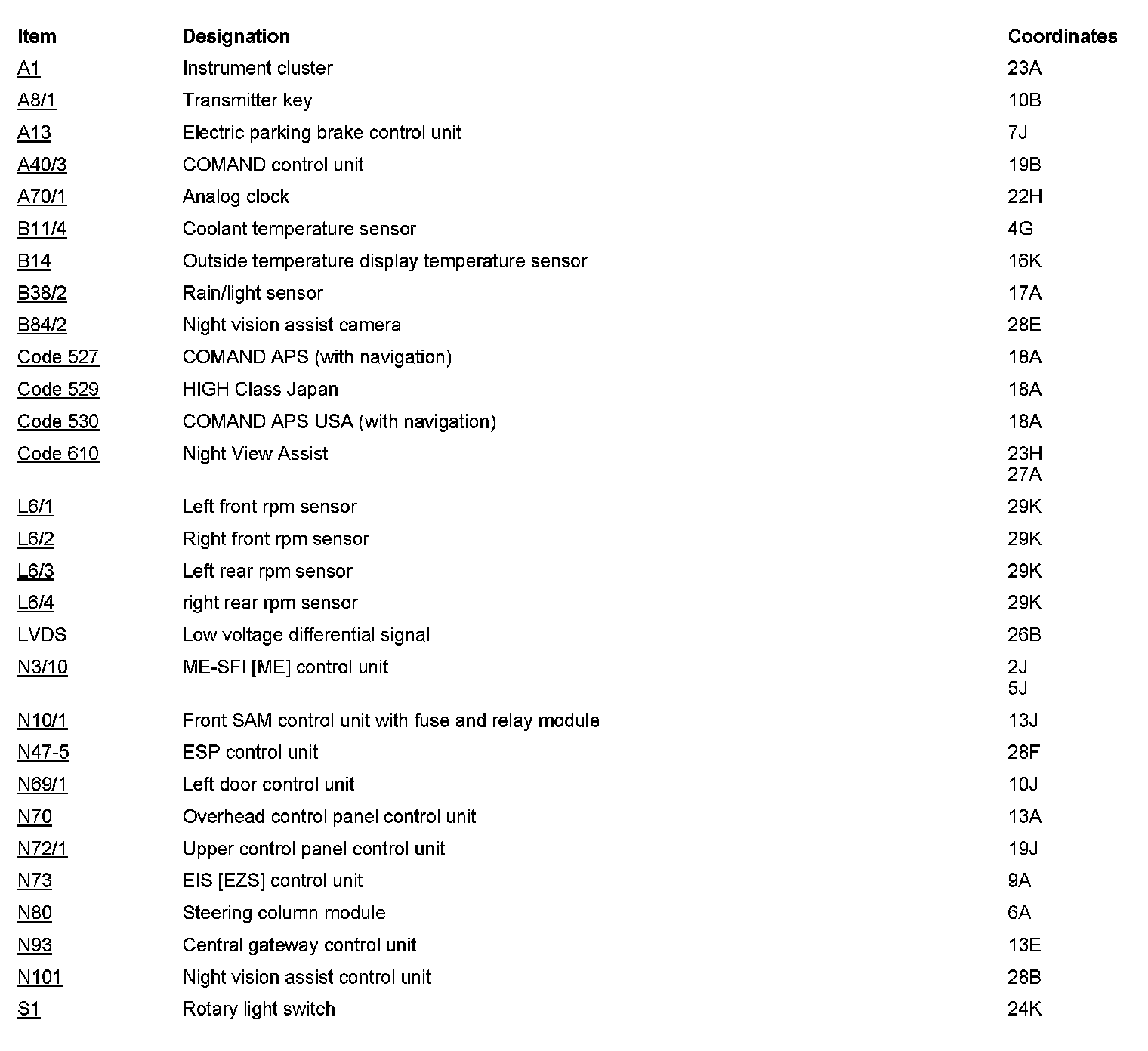

PE54.30-U-2056CAA Electrical Function Diagram For Instrument Cluster Comfort Display

PE54.30-U-2056CAA Electrical Function Diagram For Instrument Cluster Comfort Display

MODEL 216
- as of Model Year 2009























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
