CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>

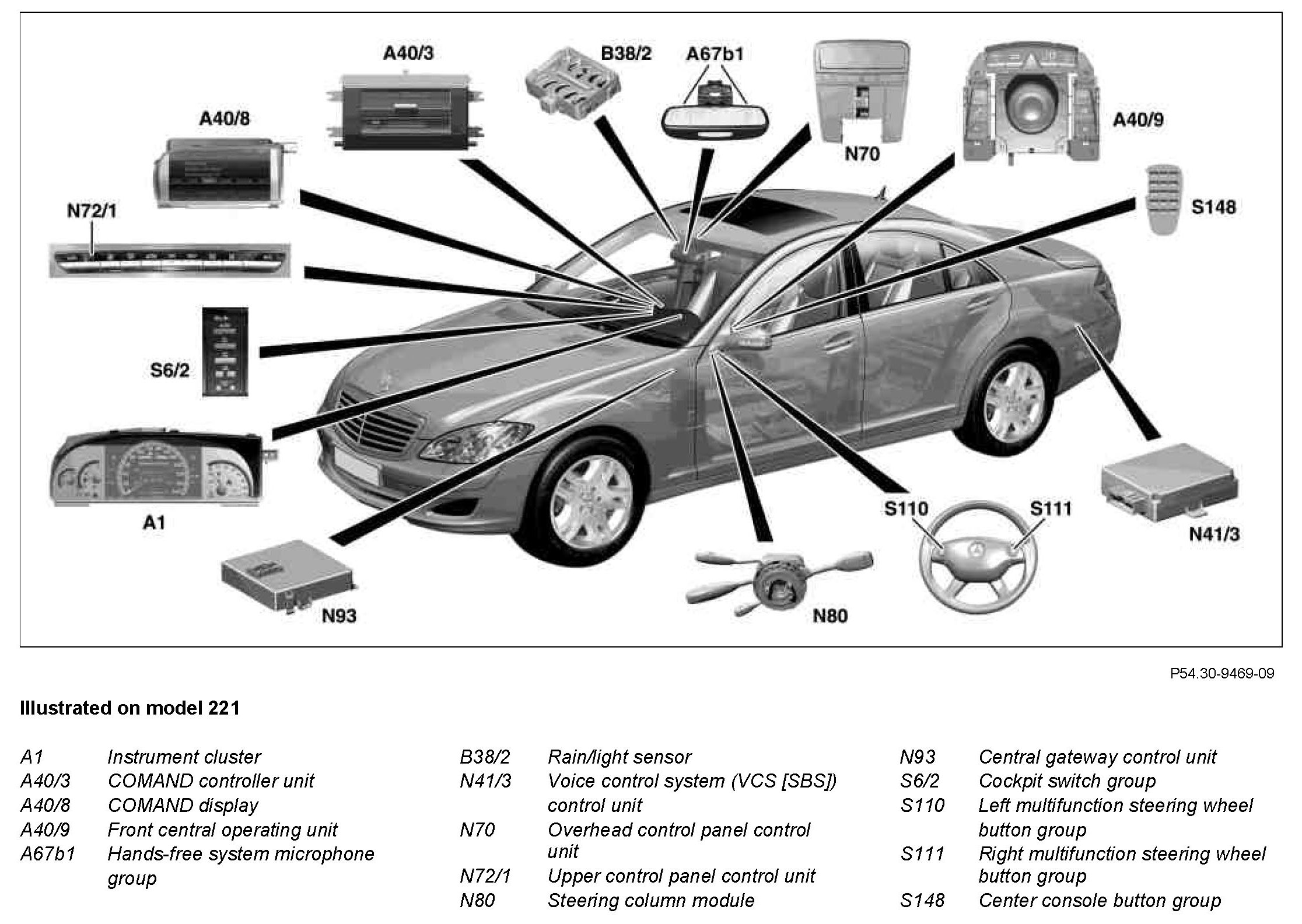

GF54.30-P-0004-01SXC Cockpit Central Display, Location of Components
GF54.30-P-0004-01SXC Cockpit Central Display, Location of Components
GF54.30-P-0004-01SXC Cockpit Central Display, Location Of Components
Component Identification:
