Blower Motor Resistor: Service and Repair
AR83.10-P-1200SX Remove/Install Blower Regulator

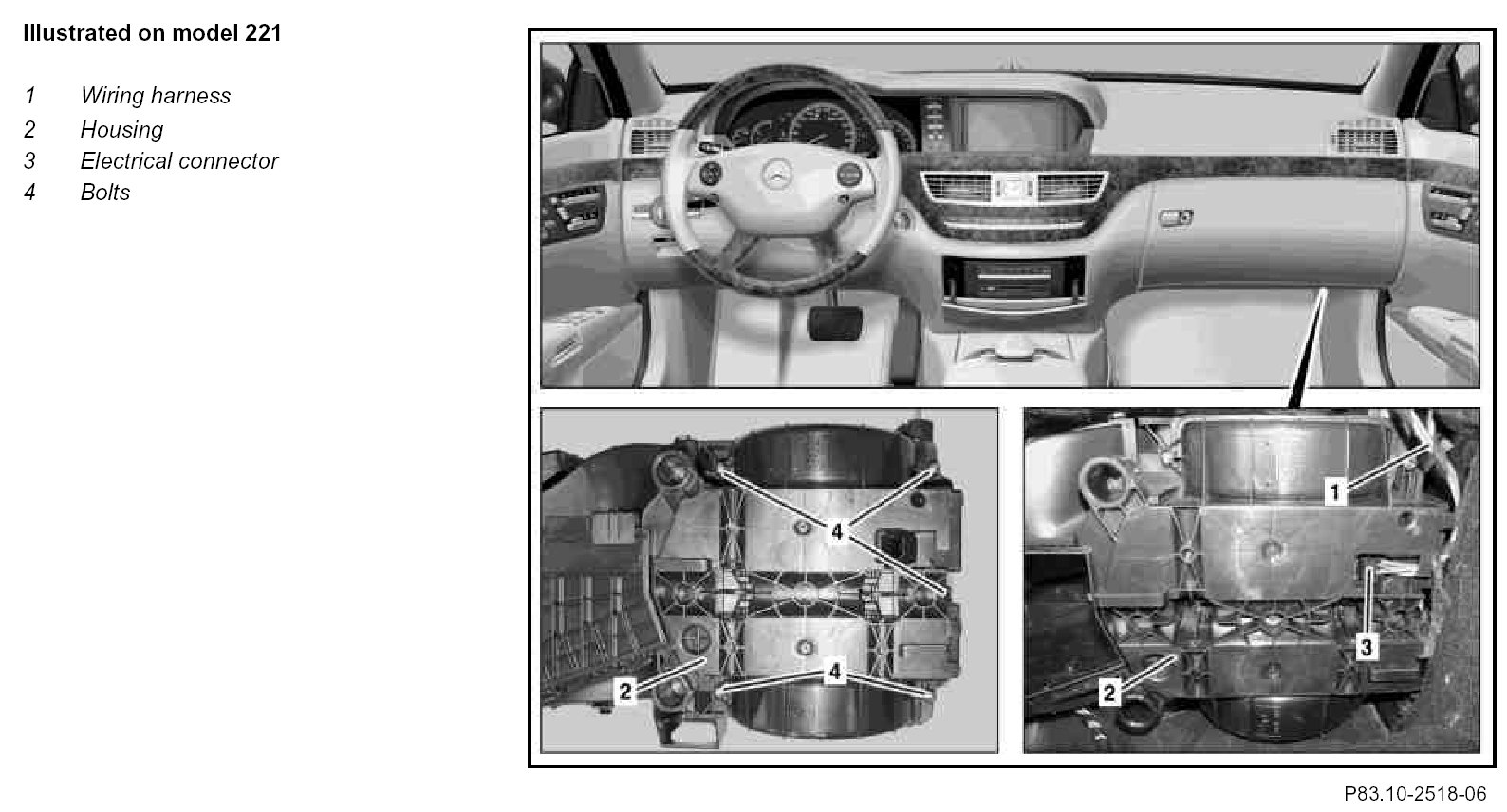

Component Identification:

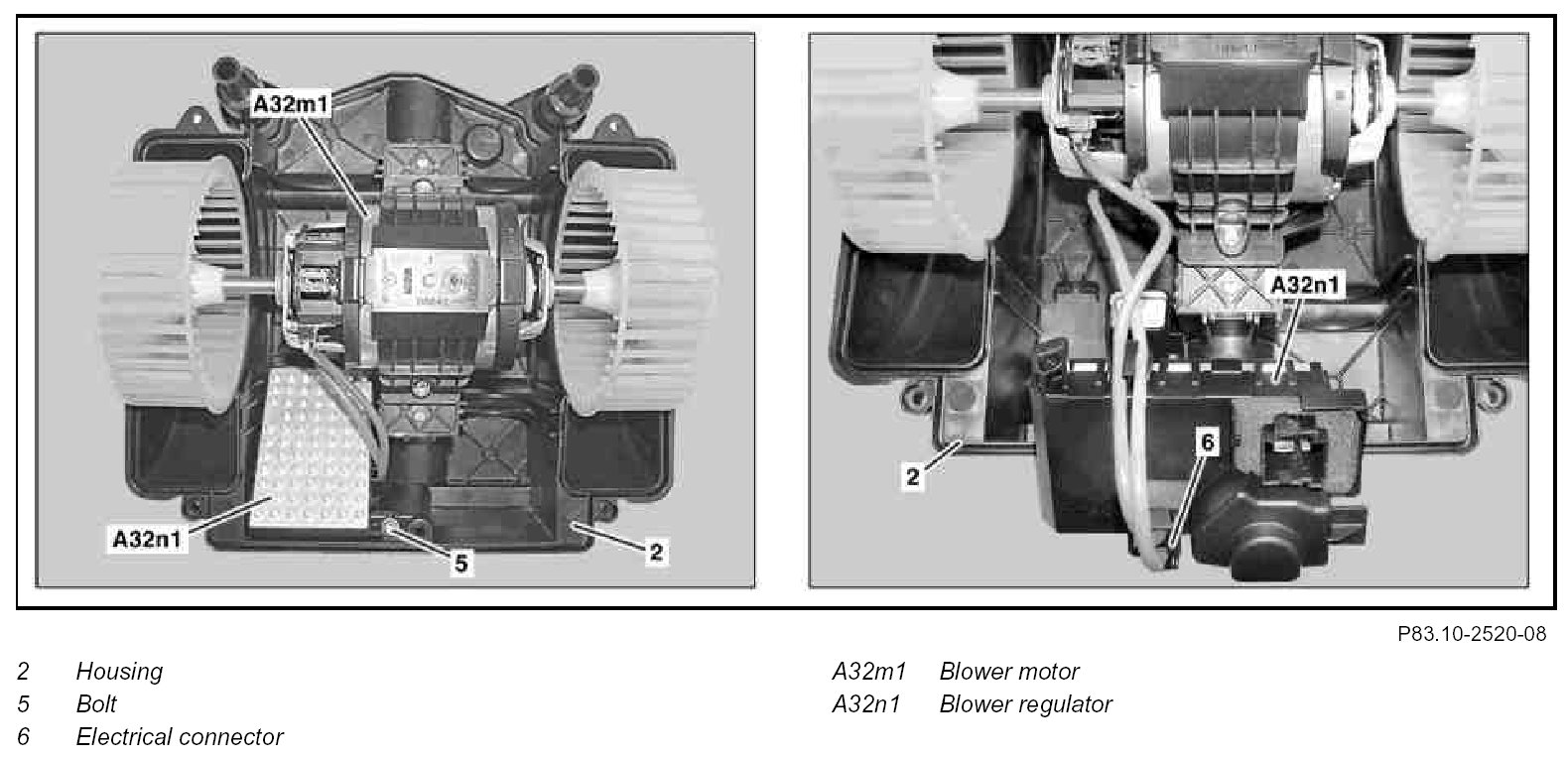

Component Identification:

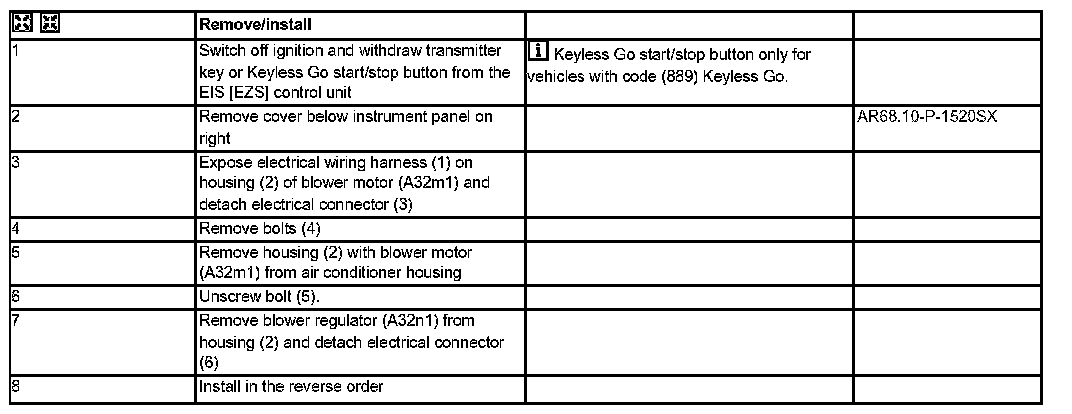

Steps 1 - 8:
