Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Description and Operation >> GF83.70-P-0006-01LA Stationary Heater (STH), Location of Components

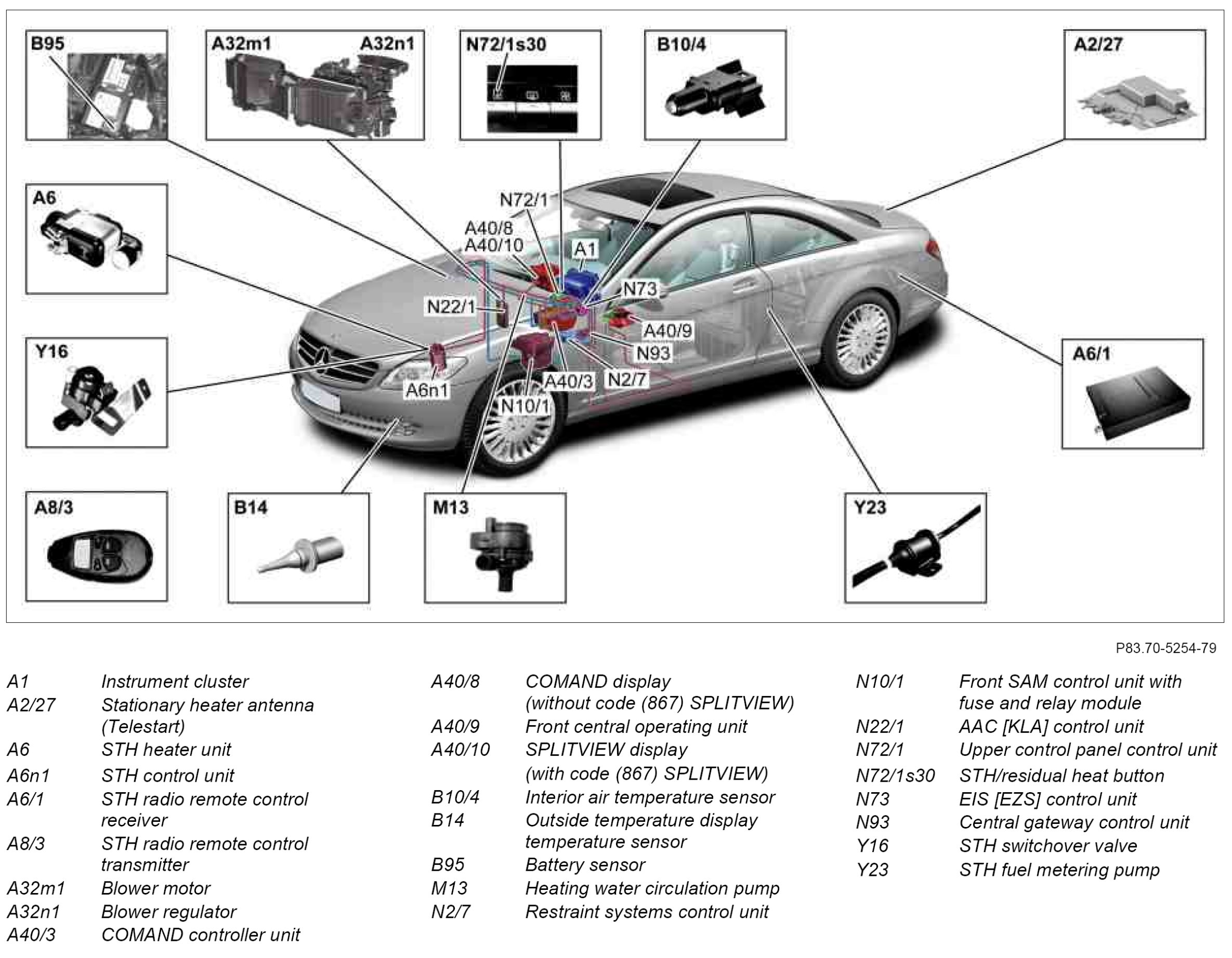

GF83.70-P-0006-01LA Stationary Heater (STH), Location of Components



GF83.70-P-0006-01LA Stationary Heater (STH), Location Of Components
- with CODE (228) Stationary heater


Component Identification:
