Removal and Replacement

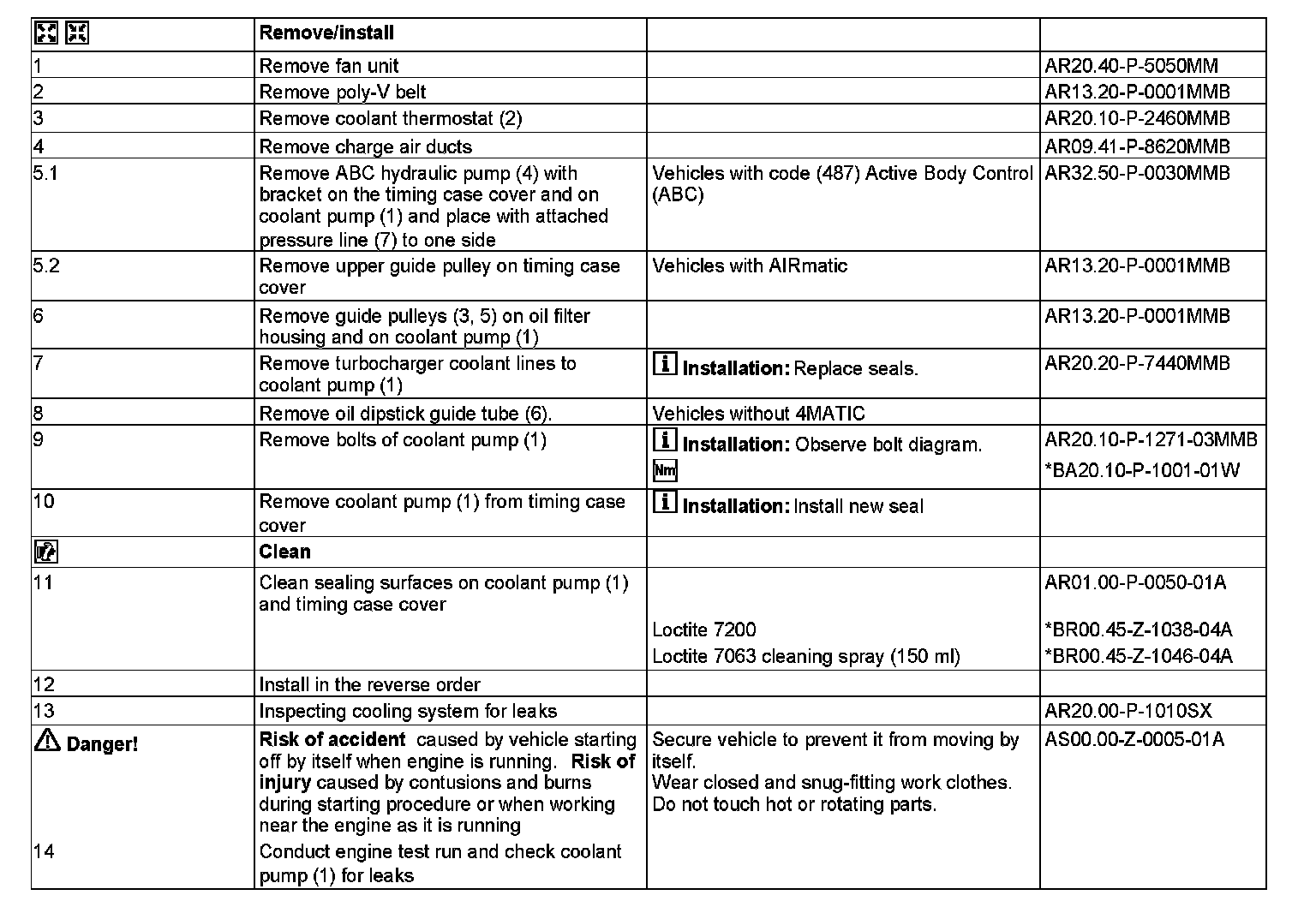

AR20.10-P-1271MMB Remove/Install Coolant Pump
ENGINES 157, 278 in MODEL 216, 221

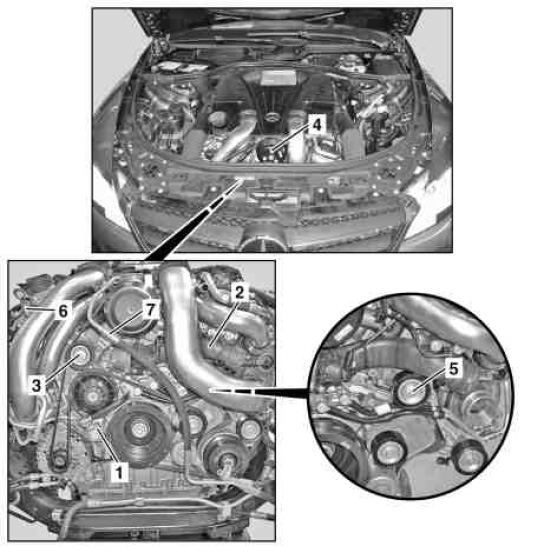

Shown on model 216.373 with code (487)
Active Body Control (ABC)

1 Coolant pump
2 Coolant thermostat
3 Pulley
4 ABC hydraulic pump
5 Pulley
6 Oil dipstick guide tube
7 Pressure line
