AR01.40-P-8000MMB Remove/Install Timing Case Cover

AR01.40-P-8000MMB Remove/Install Timing Case Cover
ENGINES 157, 278 in MODEL 216, 221

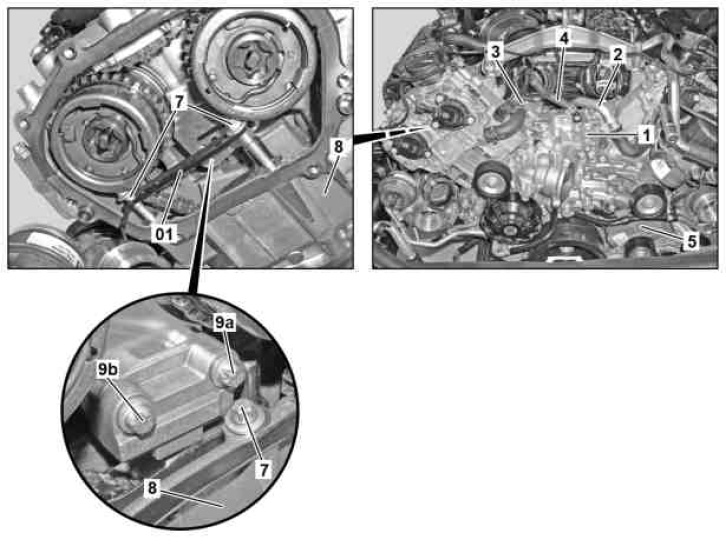

01 Cable tie
1 Timing case cover
2 Coolant line
3 Coolant line
4 Coolant hose
5 Oil cooler
7 Screw/bolts
8 Cylinder head
9a Screw/bolt
9b Screw/bolt























112 589 00 25 00
Squeeze gun
