AR05.10-P-7800MMB Remove/Install Chain Tensioner




AR05.10-P-7800MMB Remove/Install Chain Tensioner
ENGINES 157, 278 in MODEL 216, 221





Shown on right chain tensioner

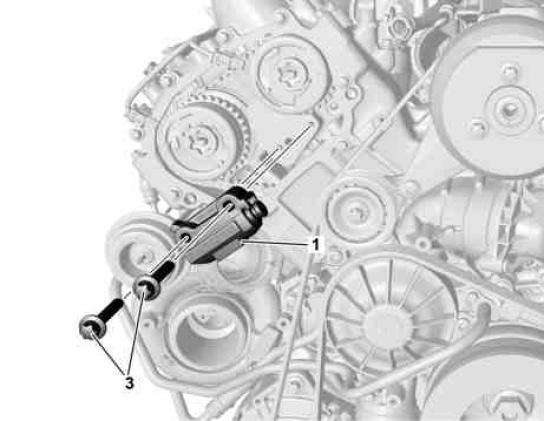

1 Chain tensioner
3 Bolts
