AR01.10-P-2500MMB Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500MMB Remove/Install Engine With Front Axle Carrier
ENGINES 157, 278 in MODEL 216, 221
ENGINES 276 in MODEL 221.082 /182

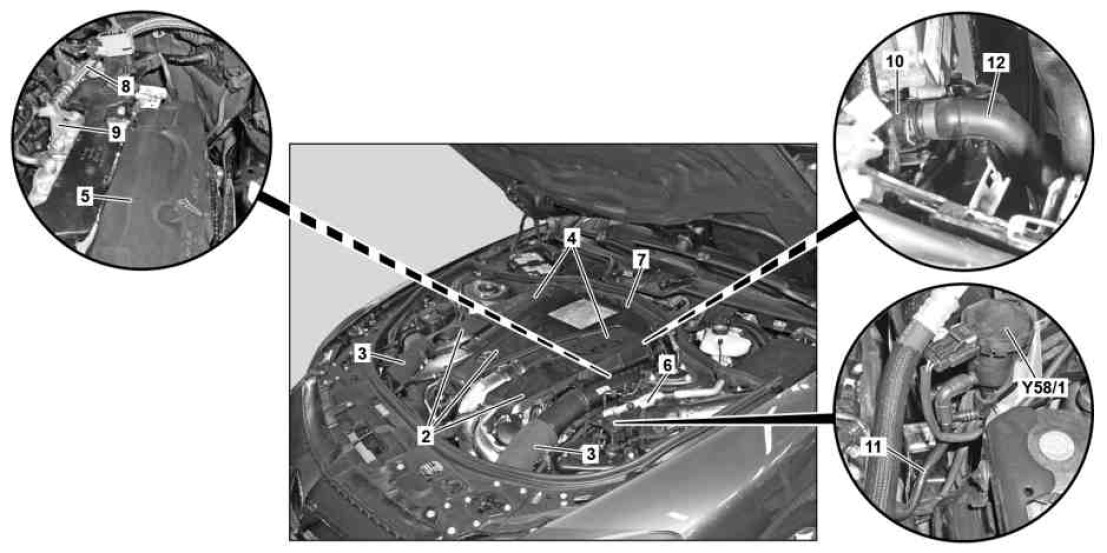

Shown on model 216.373 with code (487)
Active Body Control (ABC)

2 Engine trim panels
3 Engine suction fan ducts
4 Air cleaner housing
5 Insulation
6 Refrigerant line
7 Center bulkhead
8 Fuel line
9 Fuel distributor
10 Heater shutoff valve
11 Purge line
12 Coolant hose

Y58/1 Purge control valve

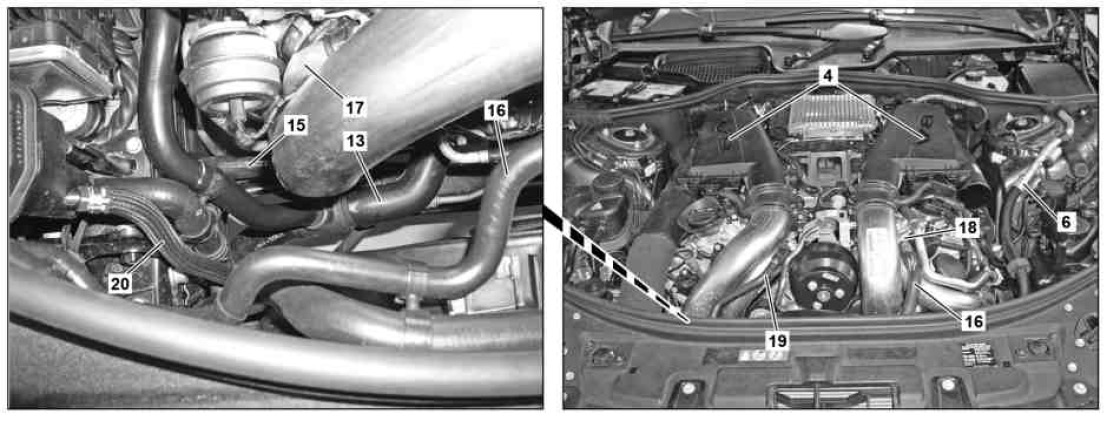

Shown on model 216.373 with code (487)
Active Body Control (ABC)

4 Air cleaner housing
6 Refrigerant line
13 Coolant hose
15 Coolant hose
16 Coolant hose
17 Coolant line
18 Coolant line
19 Vent line
20 Return flow pipe

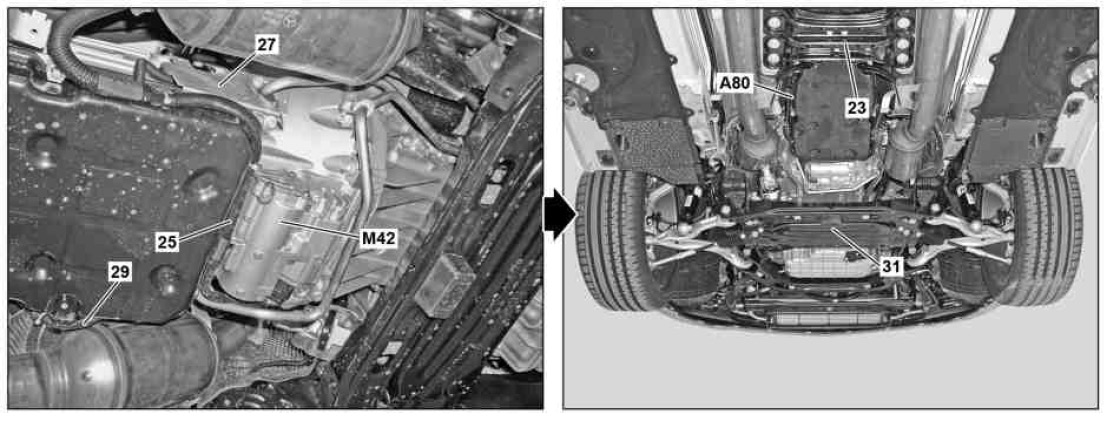

Shown on model 221.074 with code (487)
Active Body Control (ABC)

23 Rear engine crossmember
25 Electrical line
27 Shield
29 Electrical line
31 Front axle carrier

A80 Intelligent servo module for DIRECT SELECT
M42 Electric transmission oil pump

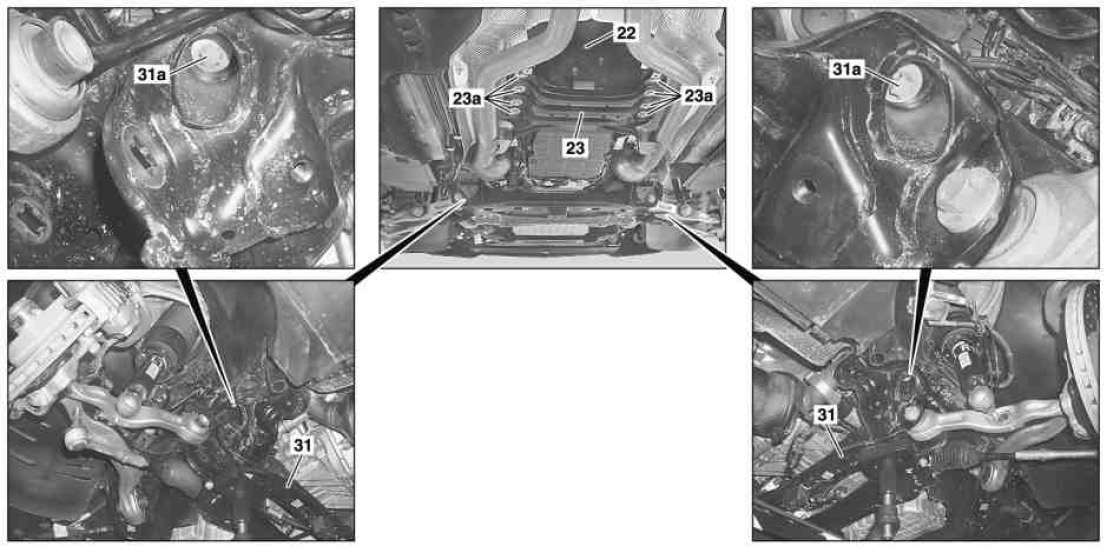

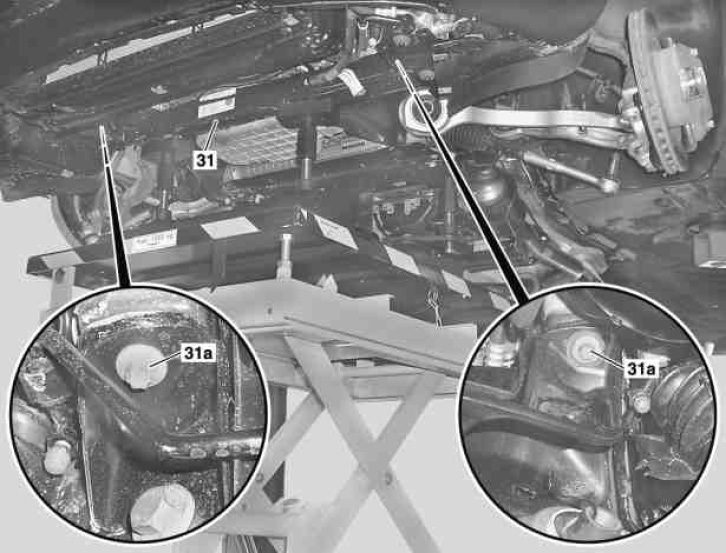

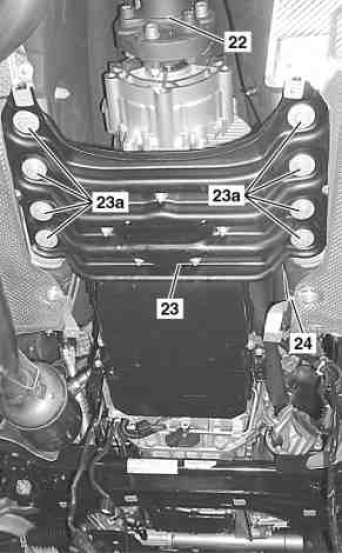

Shown on model 216.373 with code (487)
Active Body Control (ABC)

22 Propeller shaft
23 Rear engine crossmember
23a Screw/bolts
31 Front axle carrier
31a Screw/bolts
