Front Crankshaft Seal: Service and Repair

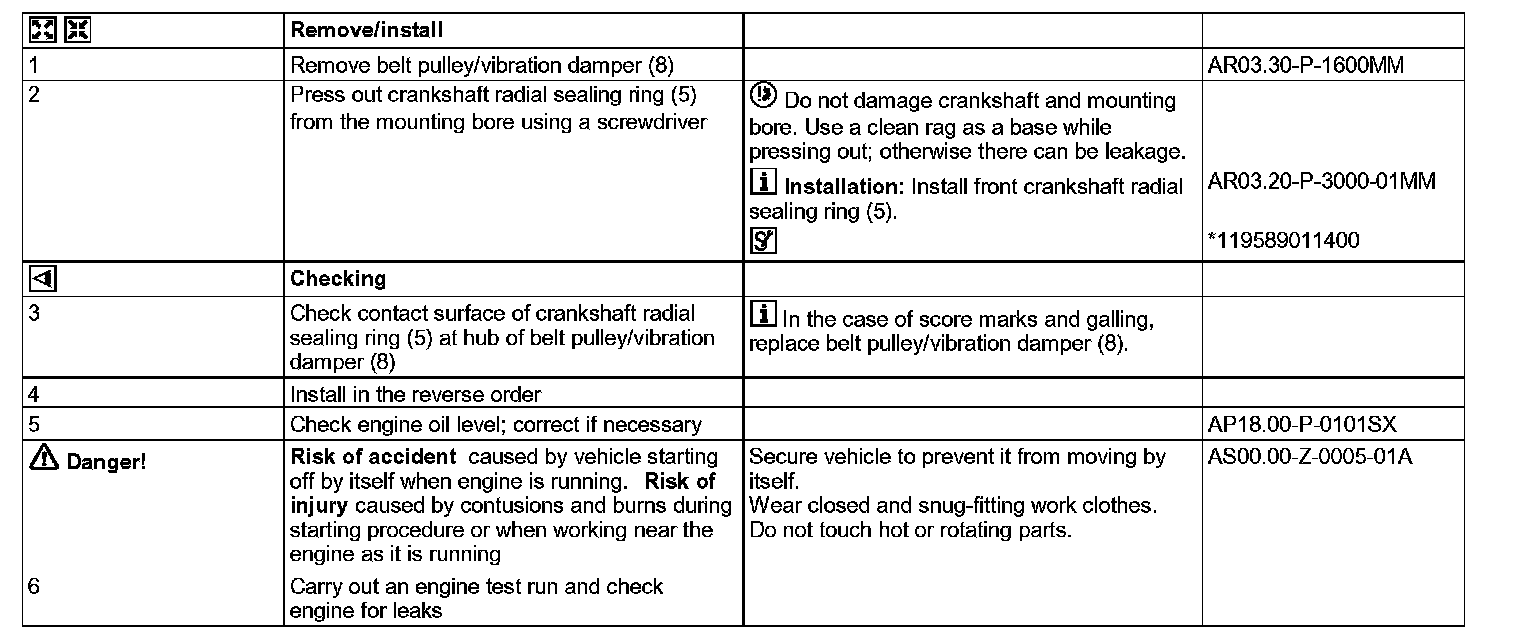

AR03.20-P-3000MM Replace Front Crankshaft Radial Sealing Ring

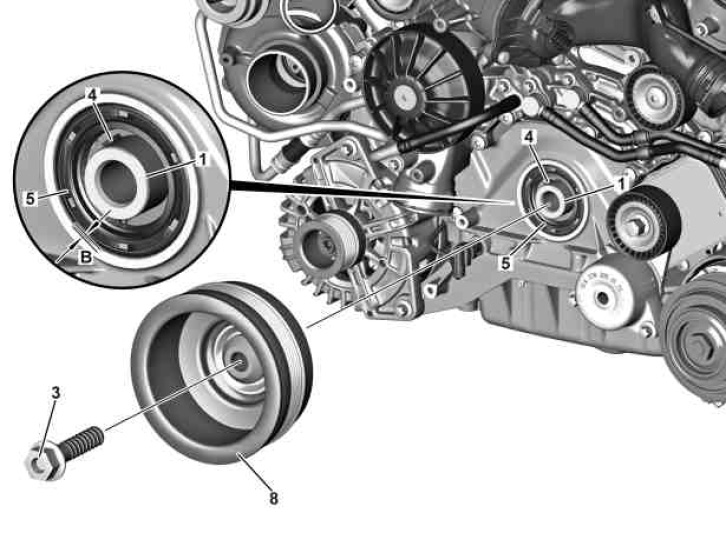

1 Crankshaft
3 Crankshaft center bolt
4 Woodruff key
5 Crankshaft radial seal
8 Belt pulley/vibration damper

B Installation depth








119 589 01 14 00
Sleeve
