Intake Manifold: Service and Repair

AR09.20-P-1310MMB Remove/Install Intake Manifold
ENGINES 157, 278 in MODEL 216, 221





1 Intake manifold
3 Bulkhead
4 Electrical line
5 Air cleaner housing
6 Vacuum line
7 Vacuum line
8 Vacuum line
9 Electrical line
20 Vent line
21 Coolant return line

N3/10 ME-SFI [ME] control unit

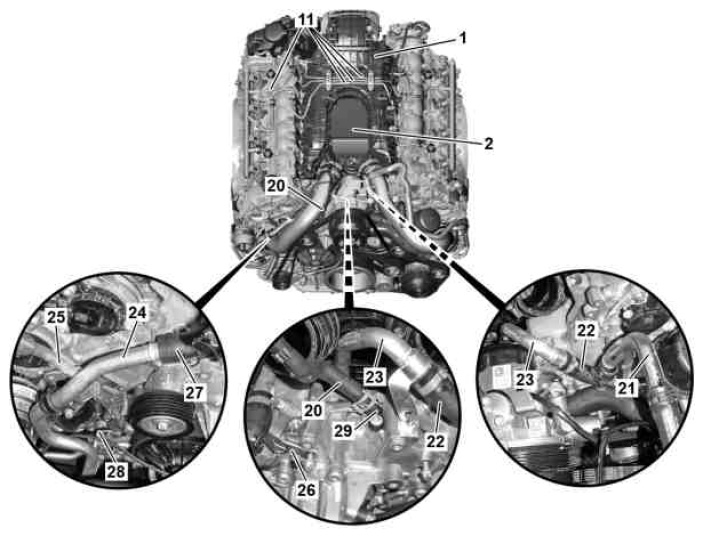

1 Intake manifold
2 Charge air cooler
11 High-pressure lines
20 Vent line
21 Coolant return line
22 Coolant hose
23 Coolant return line
24 Coolant feed line
25 Oil dipstick guide tube
26 Bracket
27 Coolant hose
28 Bracket
29 Hose connection

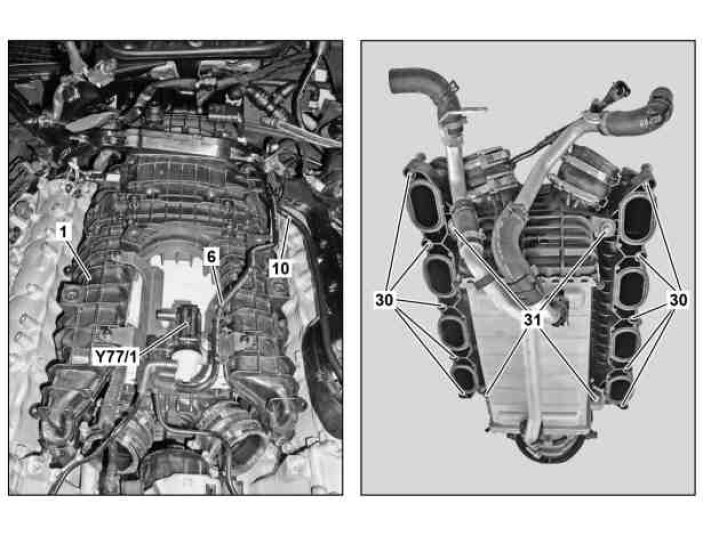

1 Intake manifold
6 Vacuum line
10 Purge line
30 Bolts
31 Bolts

Y77/1 Charge pressure positioner
