AR18.10-P-2000MM Remove/Install the Tensioning Device For the Oil Pump Chain




AR18.10-P-2000MM Remove/Install the Tensioning Device For the Oil Pump Chain
-ENGINES 157, 278 in MODEL 216
-ENGINES 157, 276, 278 in MODEL 221





Shown on engine 278

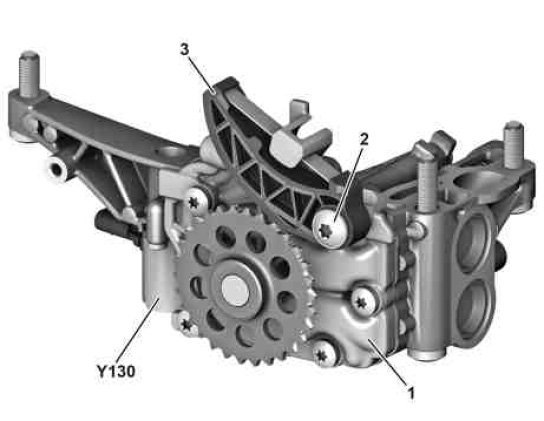

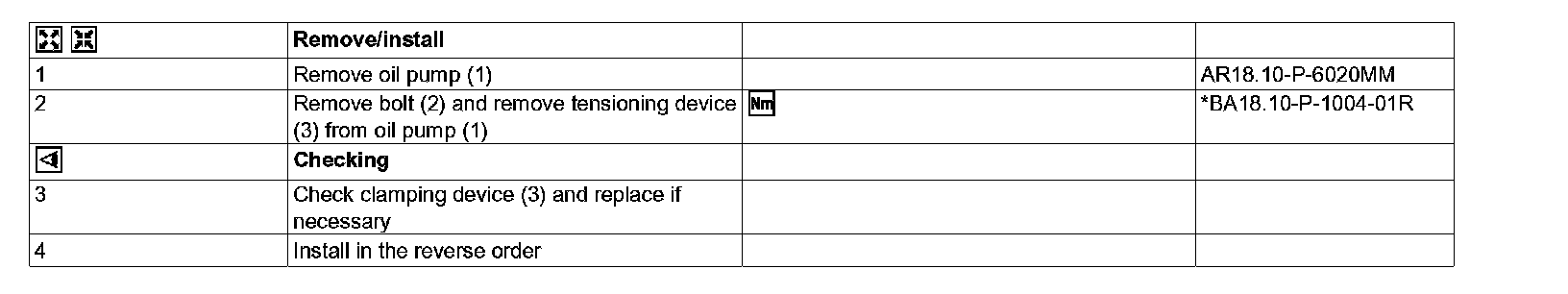

1 Oil pump
2 Bolt
3 Oil pump chain tensioning device

Y130 Engine oil pump valve
