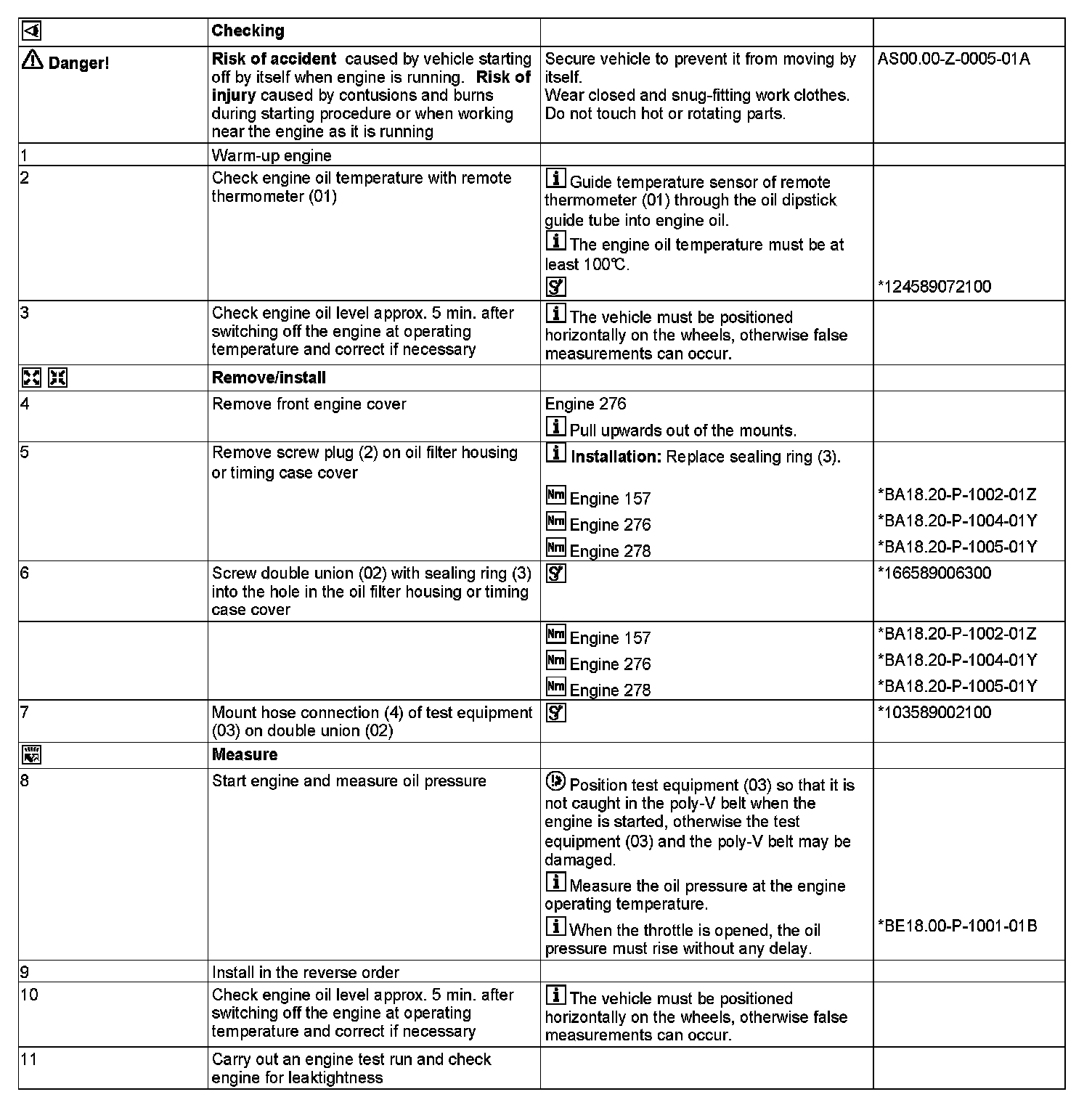

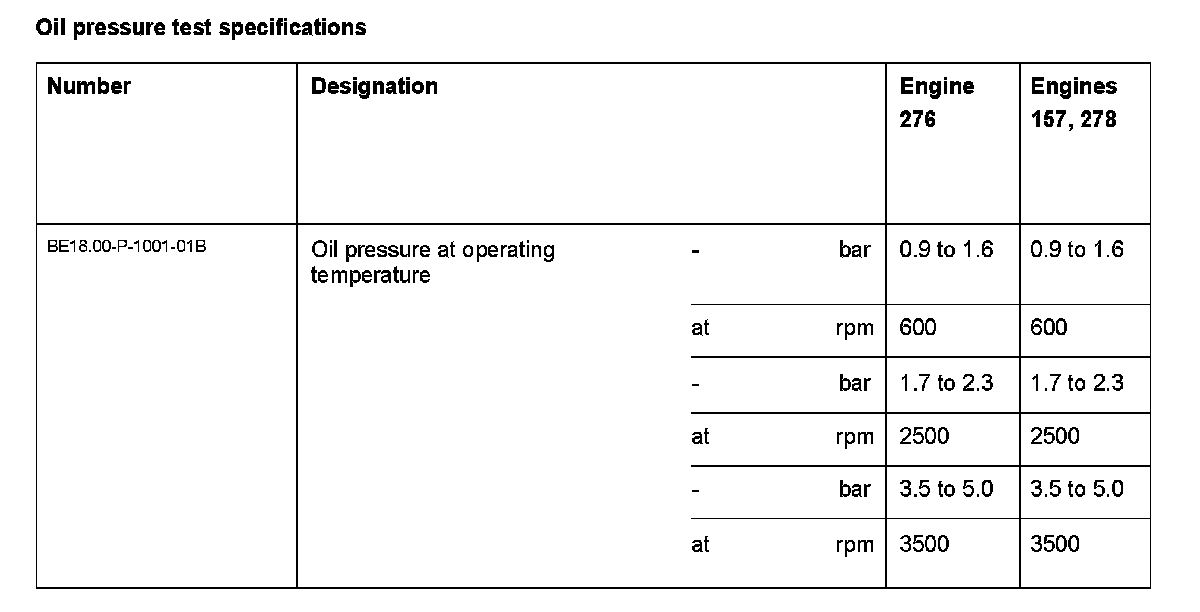

Engine Oil Pressure: Testing and Inspection

AR18.00-P-1250MM Check Oil Pressure
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221

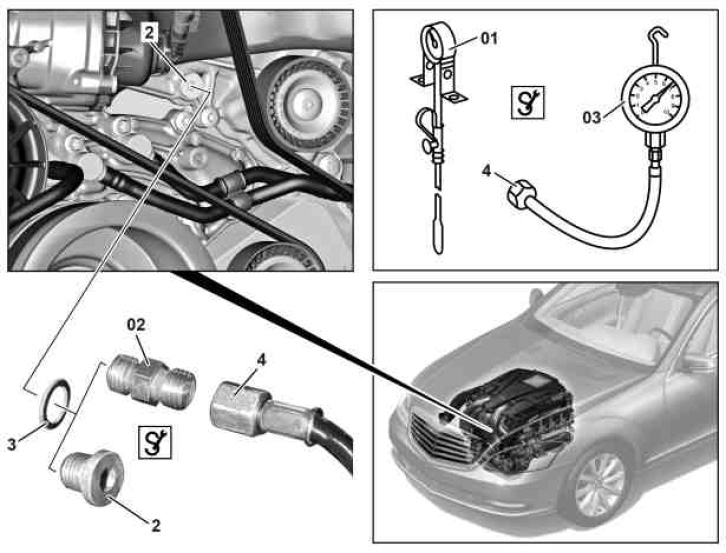

Shown on engine 278

01 Remote thermometer
02 Double union
03 Test equipment

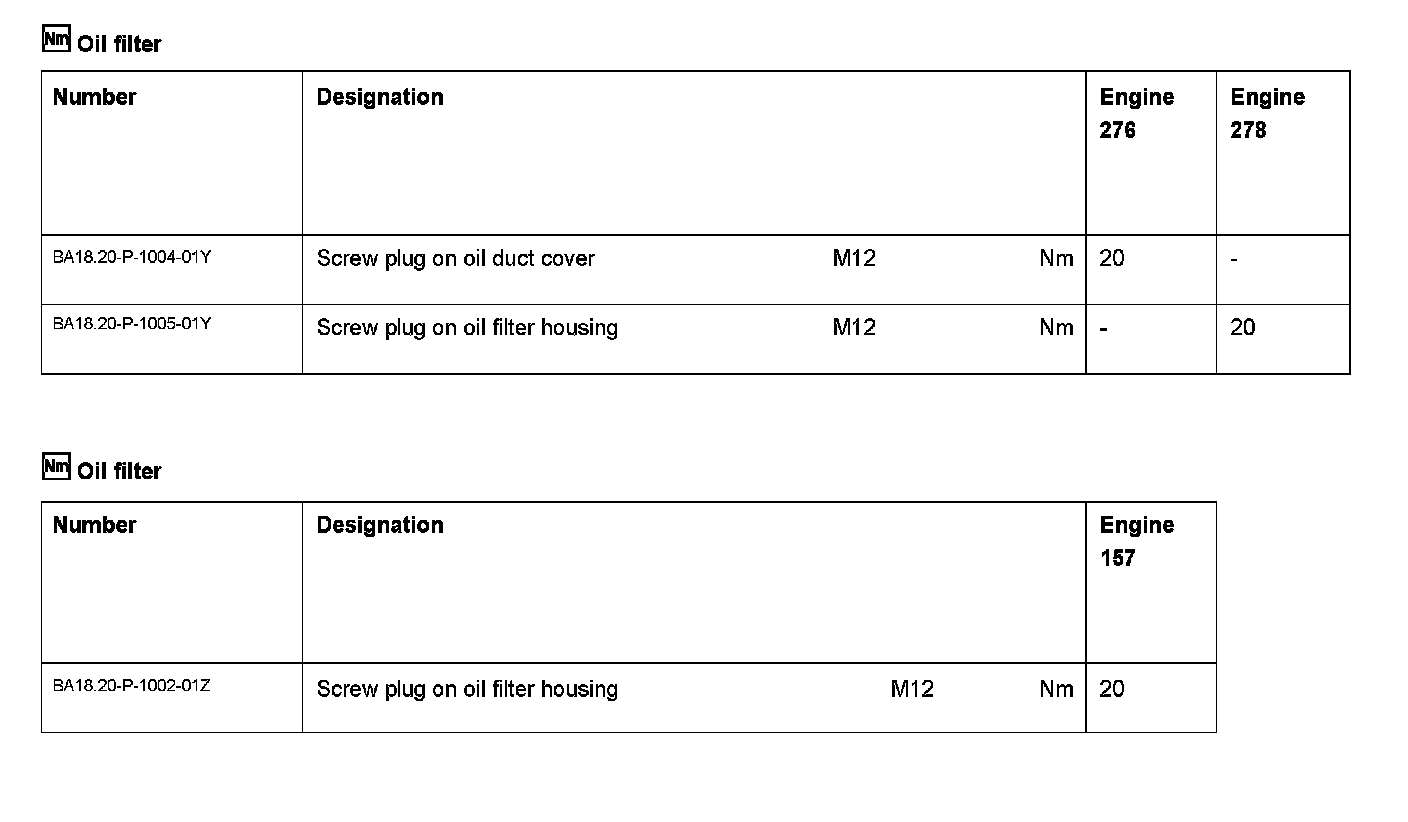

2 Screw plug
3 Sealing ring
4 Hose connection

















103 589 00 21 00
Test equipment





124 589 07 21 00
Remote thermometer





166 589 00 63 00
Double union
