Oil Pan: Service and Repair

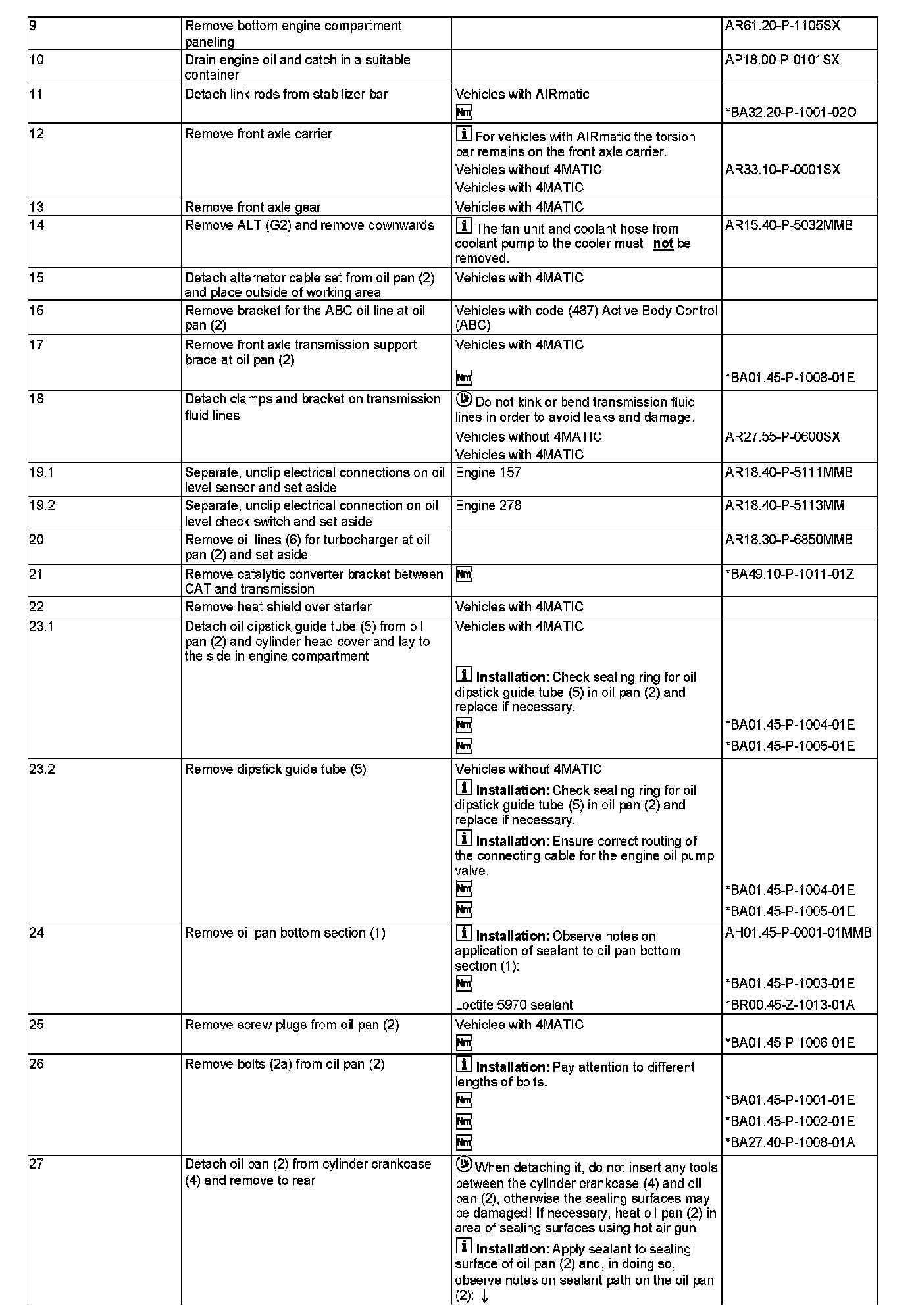

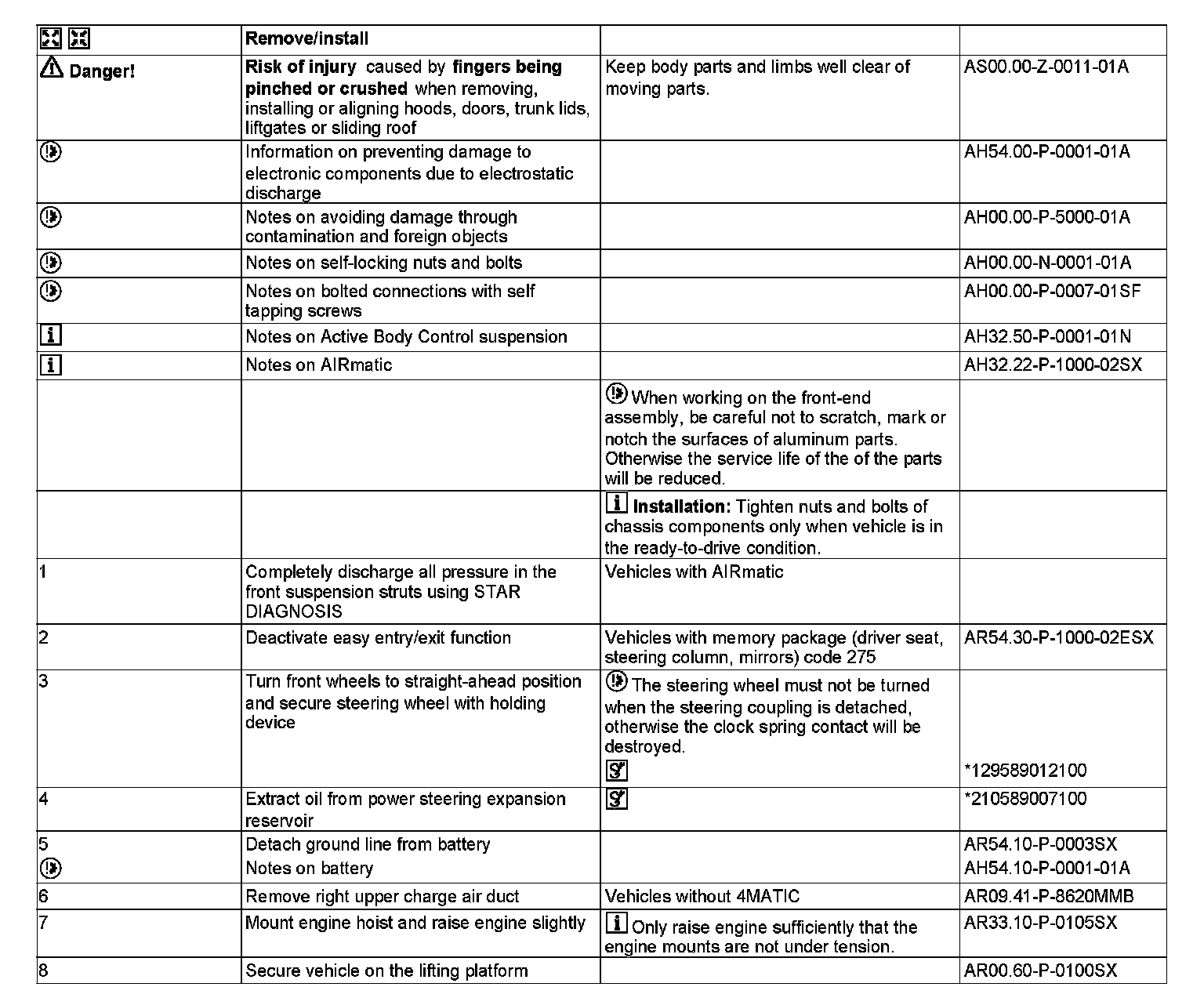

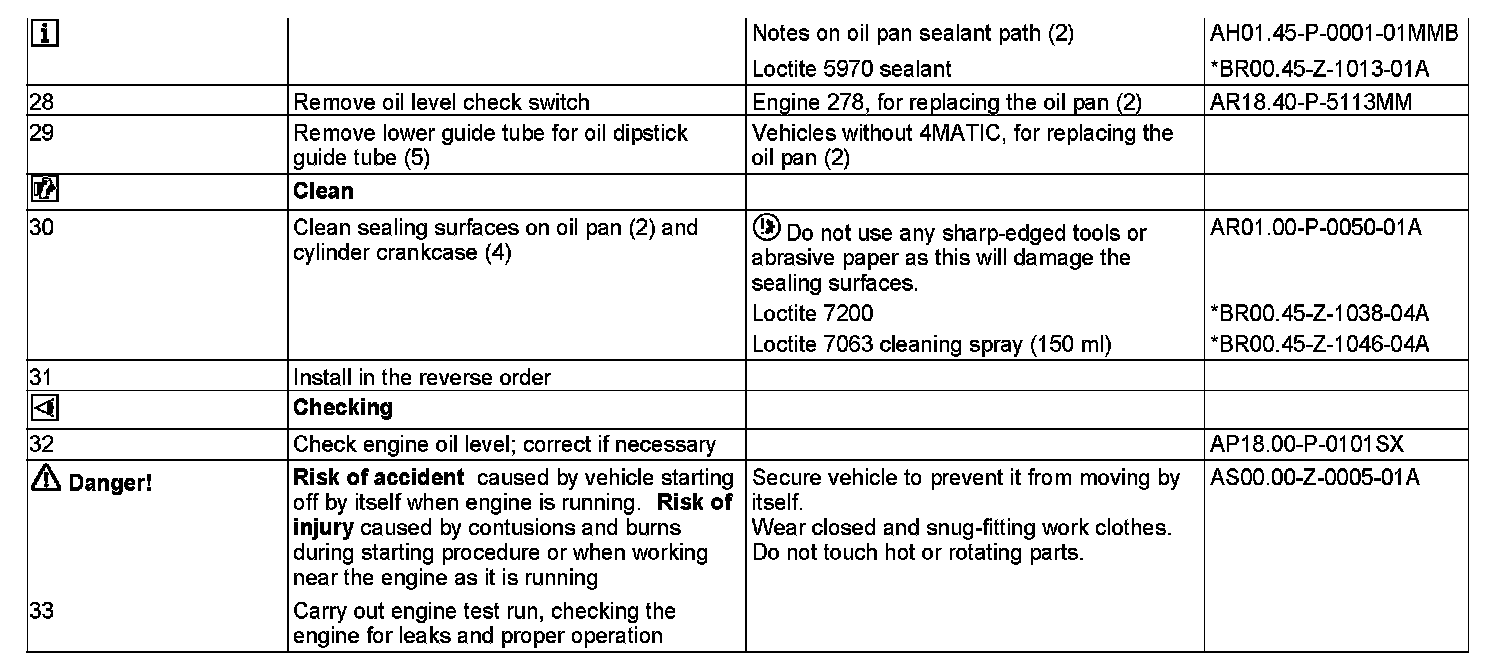

AR01.45-P-7500MMB Remove/Install Oil Pan
ENGINES 157, 278 in MODEL 216, 221

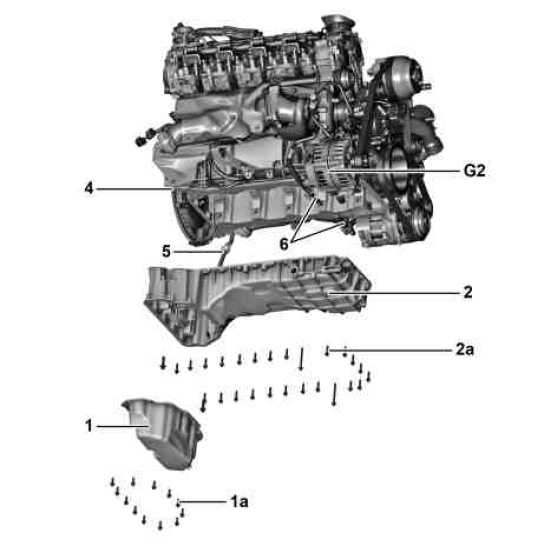

Shown on engine 278.932

1 Oil pan bottom section
1a Screw

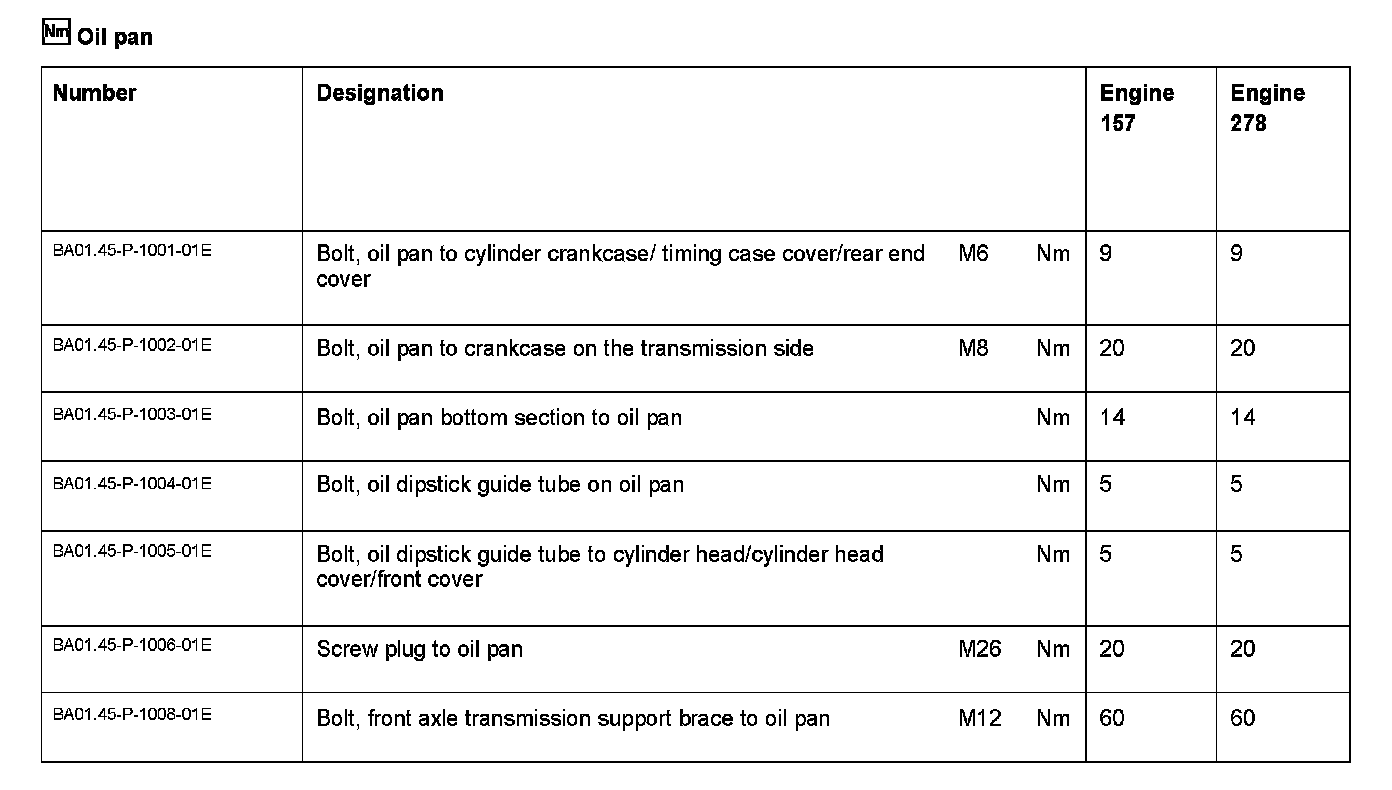

2 Oil pan
2a Screw
4 Cylinder crankcase
5 Oil dipstick guide tube
6 Oil line

G2 Generator


























129 589 01 21 00
Holding device





210 589 00 71 00
Hand pump
