Oil Line: Service and Repair

AR18.30-P-6850MMB Oil Line Removal and Installation
-ENGINES 157, 278 in MODEL 216, 221

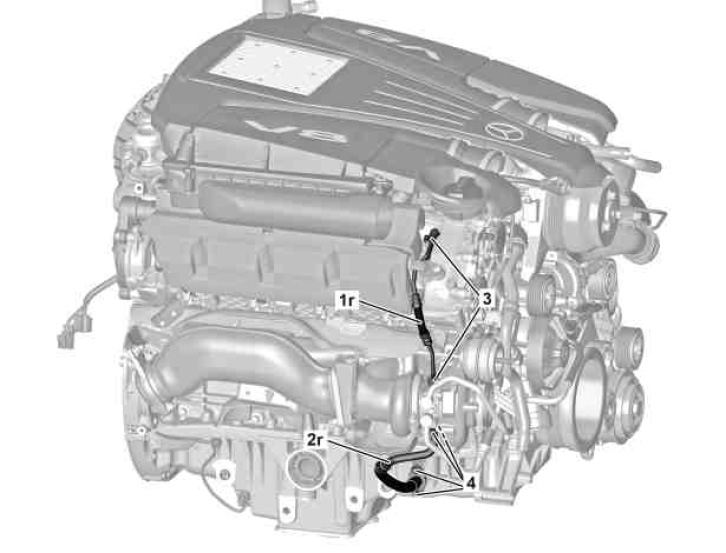

Shown on ENGINE 278

1r Upper oil line on the right (feed line)
Lower oil line on the right (return line)
3 Screw
4 Screw

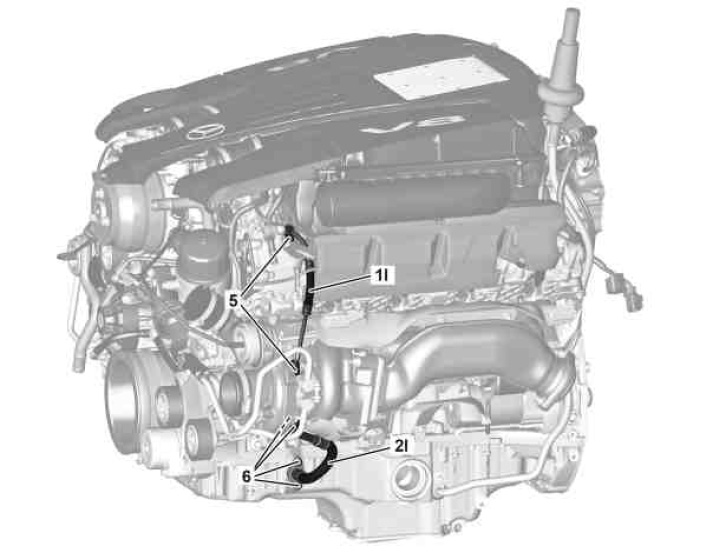

Shown on ENGINE 278

1l Upper oil line on the left (feed line)
2l Lower oil line on the left (return line)
5 Screw
6 Screw

















129 589 00 91 00
Set of stop plugs
