FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Engine Oil
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AP18.00-P-0101SX Engine oil and filter change

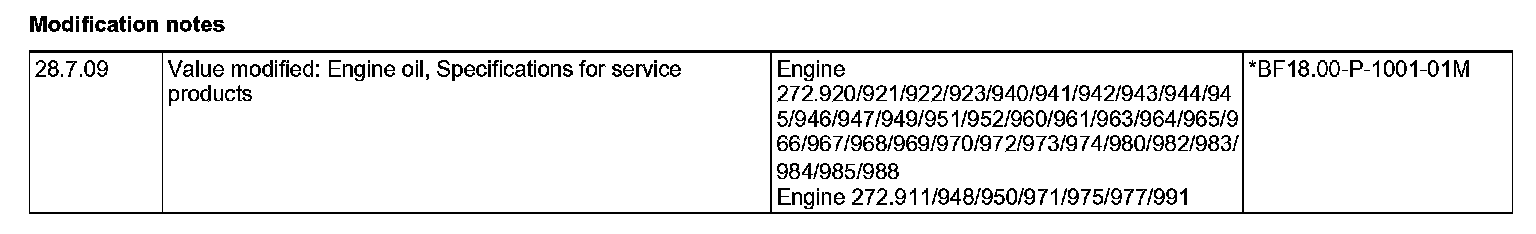

Modification notes:

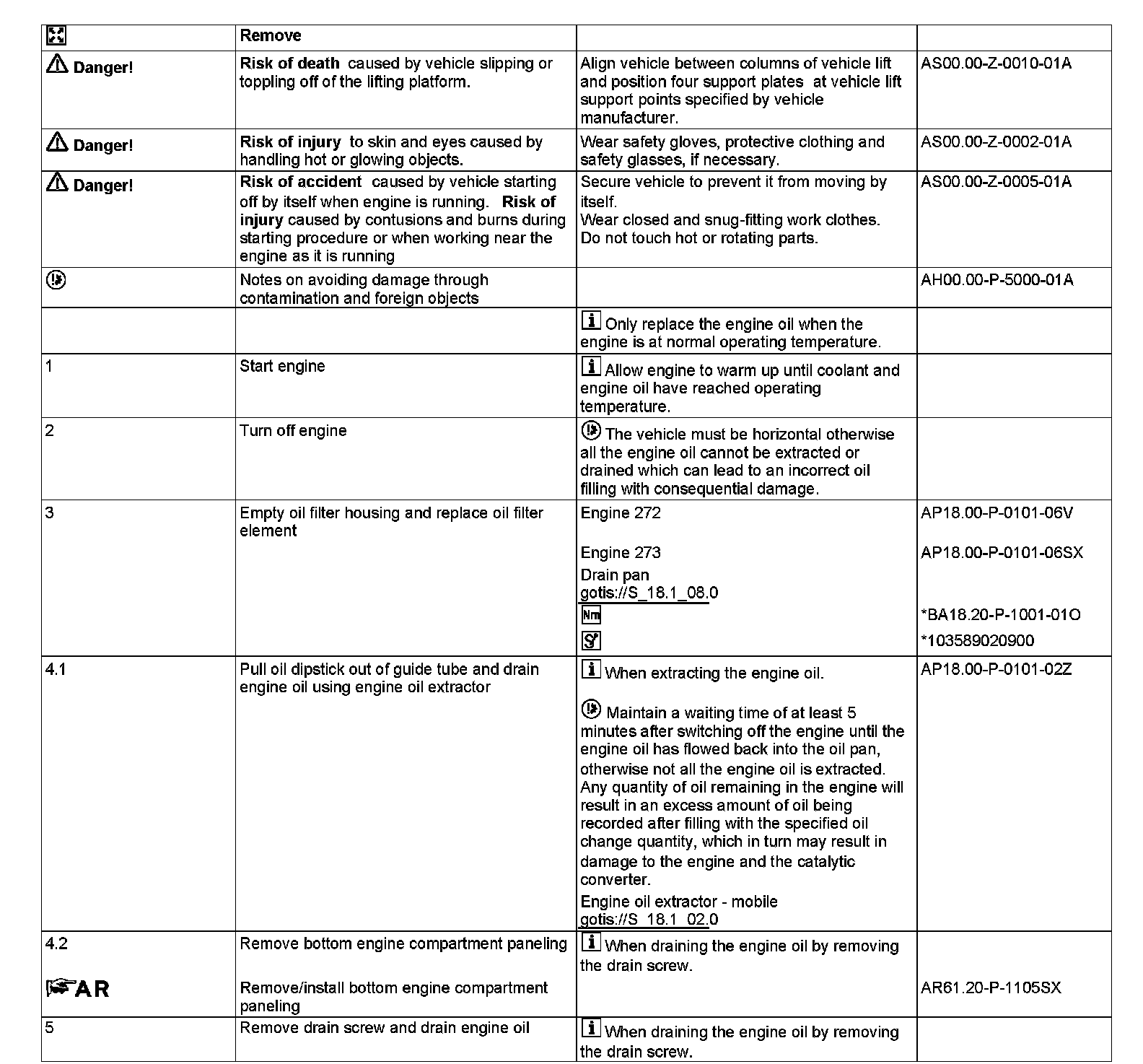

Steps 1-5:

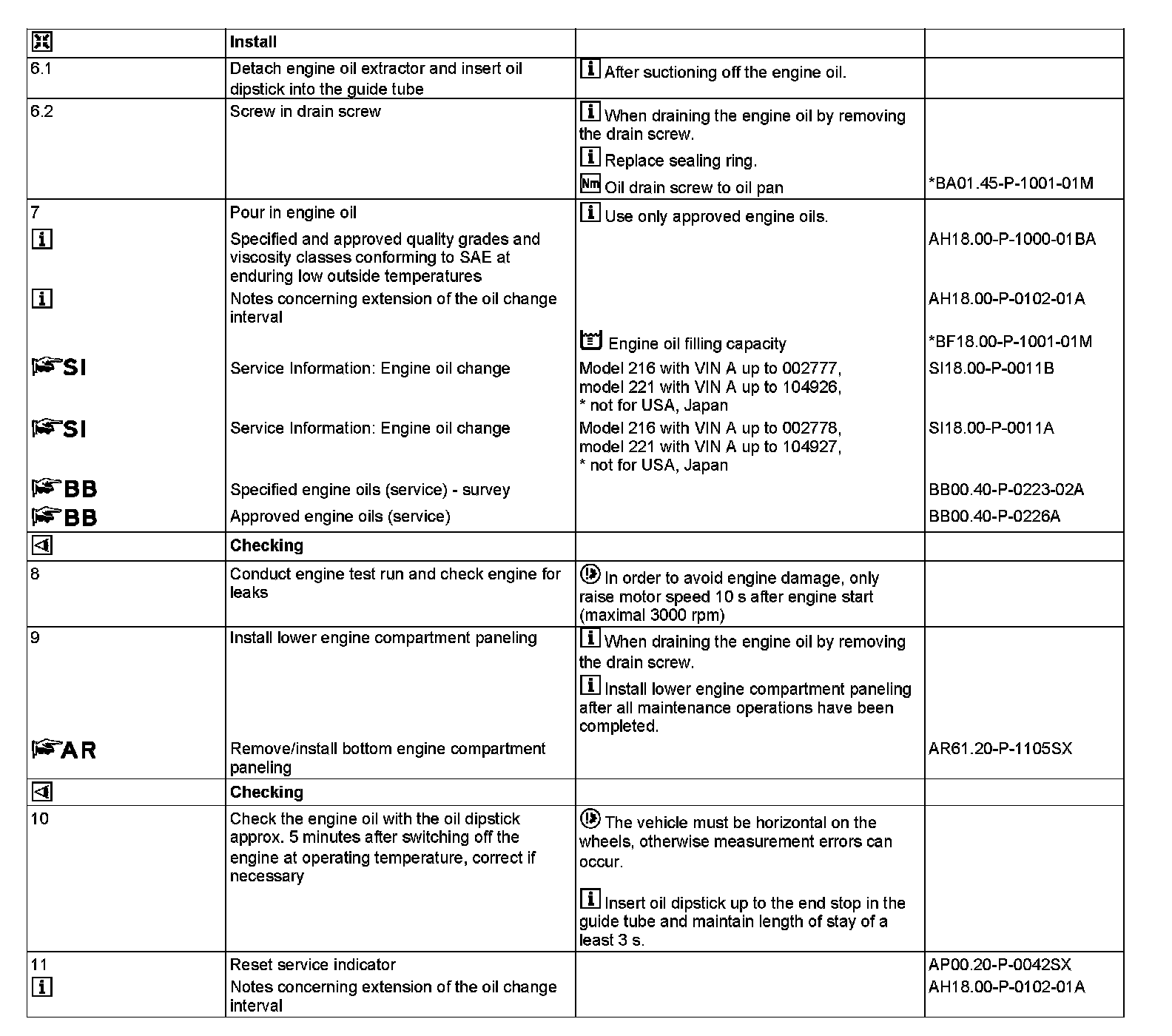

Steps 6.1-11:

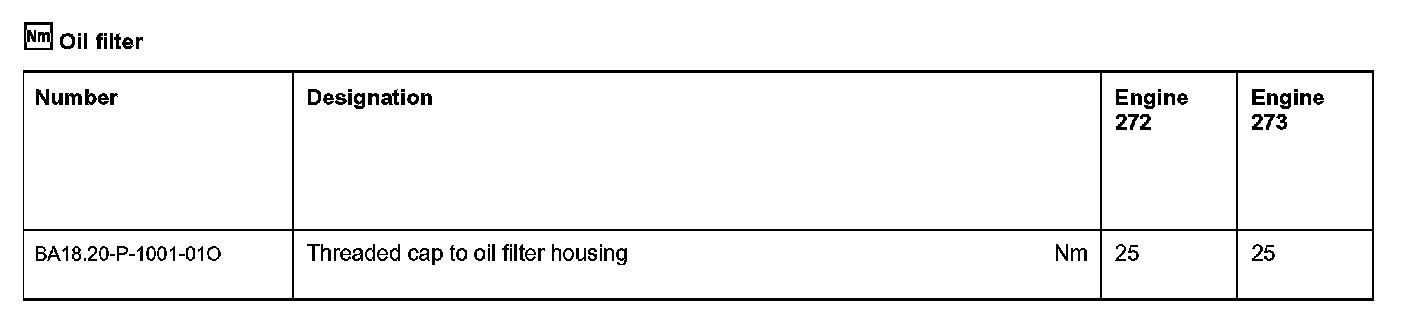

Oil filter:

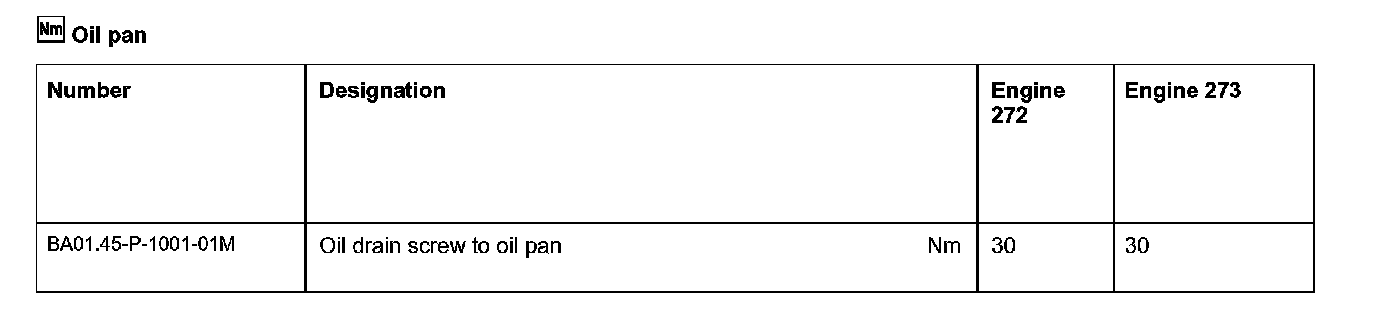

Oil pan:

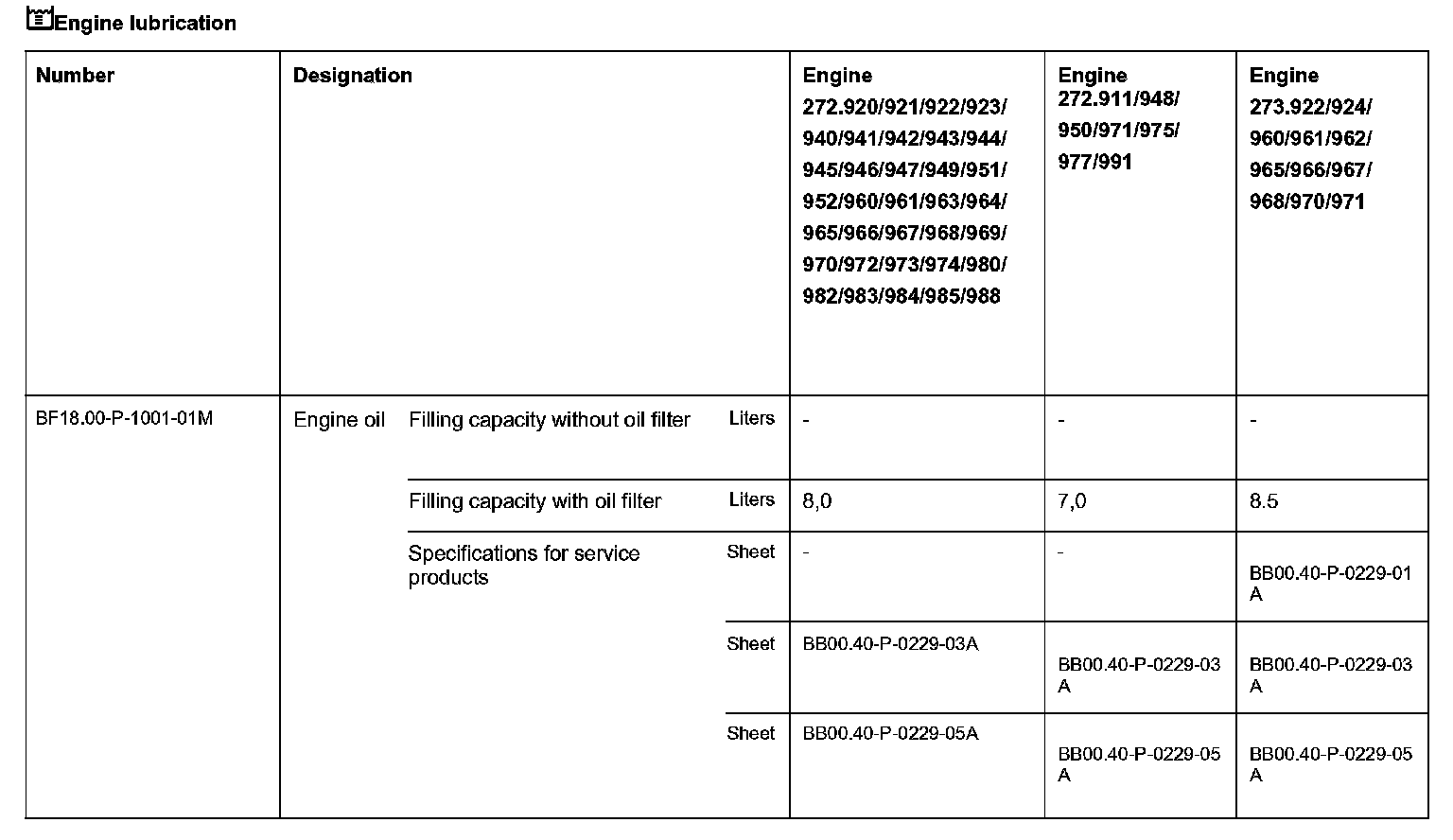

Engine lubrication:

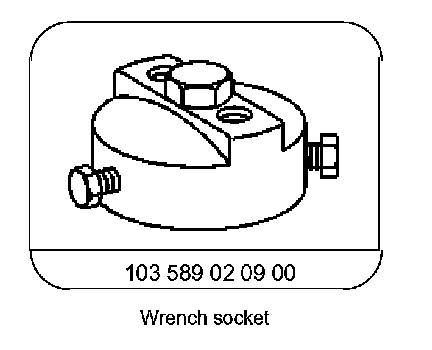

Special Tools:
