AR22.10-P-1260MMB Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260MMB Remove/Install Front Engine Mounts and/or Engine Support
-ENGINES 157, 278 in MODEL 216, 221

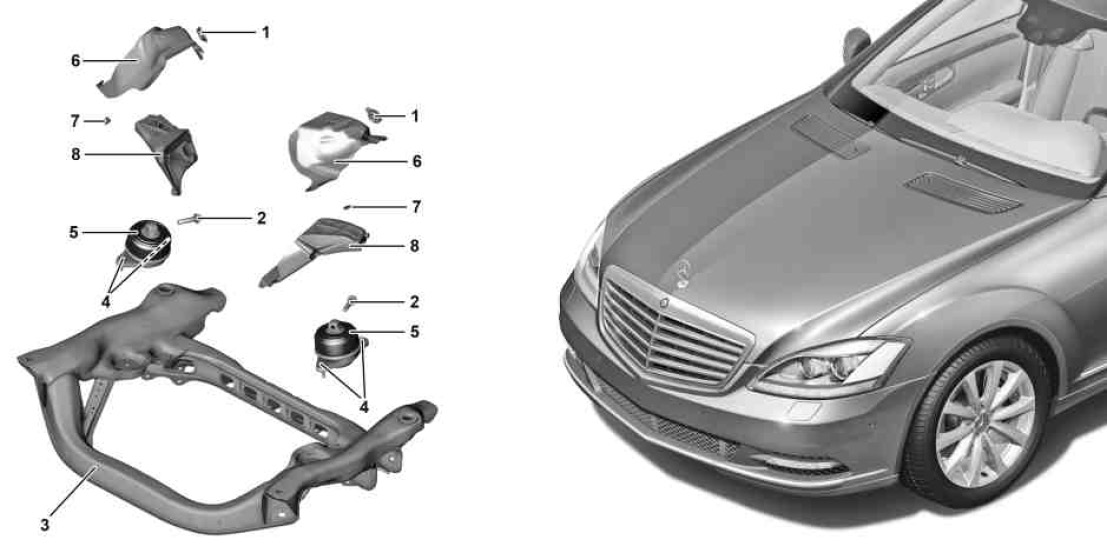

Shown on vehicle with 4MATIC

1 Rubber cover
2 Bolt
3 Front axle carrier
4 Bolt
5 Engine mount
6 Heat shield
7 Retaining clamp
8 Engine support























001 589 81 09 00
Flexible head wrench set





129 589 00 91 00
Set of stop plugs
