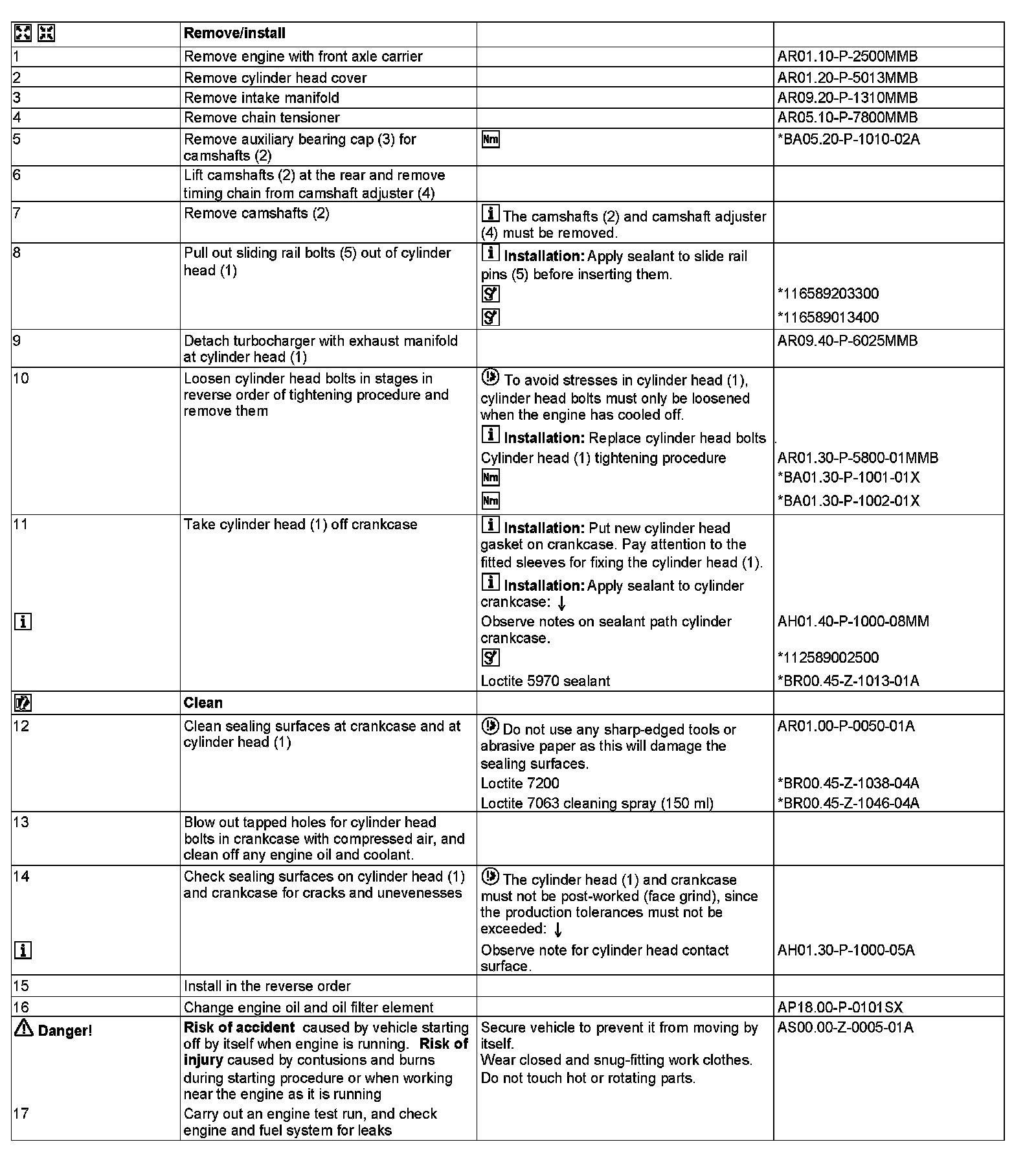

AR01.30-P-5770MMB Remove/Install the Cylinder Head

AR01.30-P-5770MMB Remove/Install The Cylinder Head
ENGINES 157, 278 in MODEL 216, 221

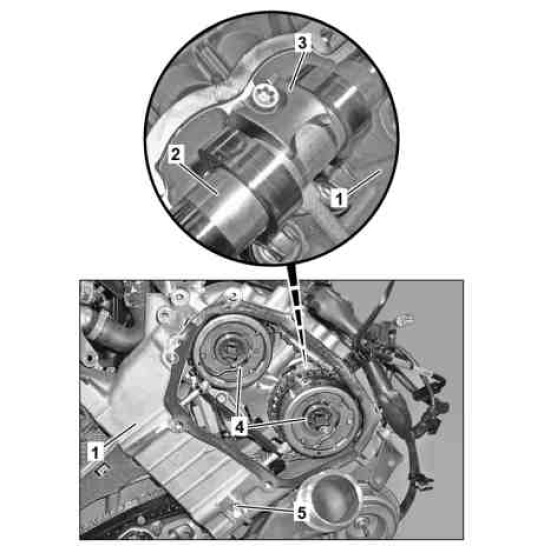

1 Cylinder head
2 Camshaft
3 Auxiliary bearing cap
4 Camshaft adjuster
5 Slide rail pins














116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun





116 589 20 33 00
Impact extractor
