AR01.30-P-5700MBR Remove/Install Front Cover on Cylinder Head

AR01.30-P-5700MBR Remove/Install Front Cover On Cylinder Head
ENGINES 157, 278 in MODEL 216, 221

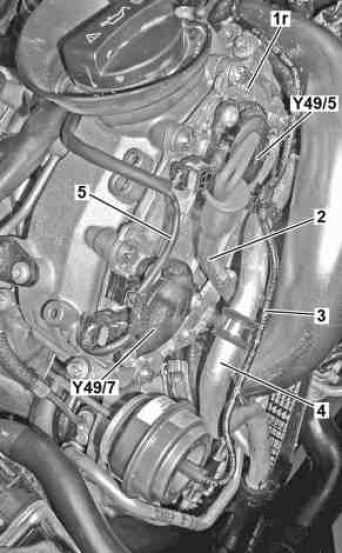

On the right cylinder head

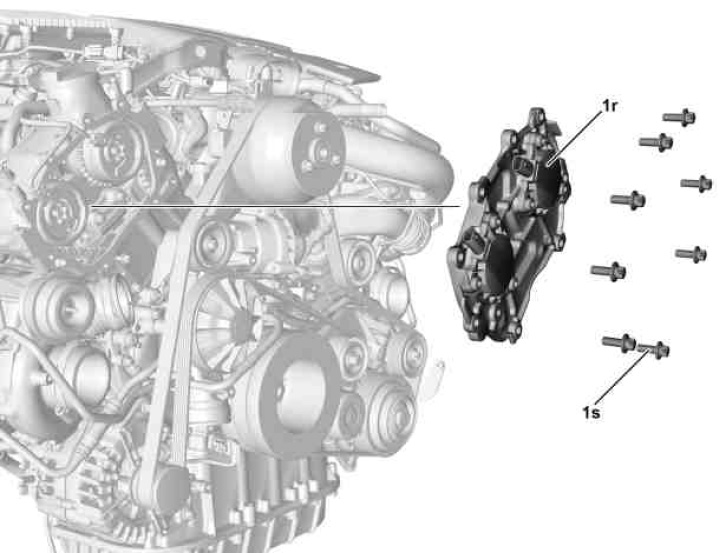

1r Front cover
1s Bolts





1r Front cover
3 Vacuum line
4 Coolant line
5 Electrical line

Y49/5 Right intake camshaft solenoid
Y49/7 Right exhaust camshaft solenoid











112 589 00 25 00
Squeeze gun
