Harmonic Balancer - Crankshaft Pulley: Service and Repair

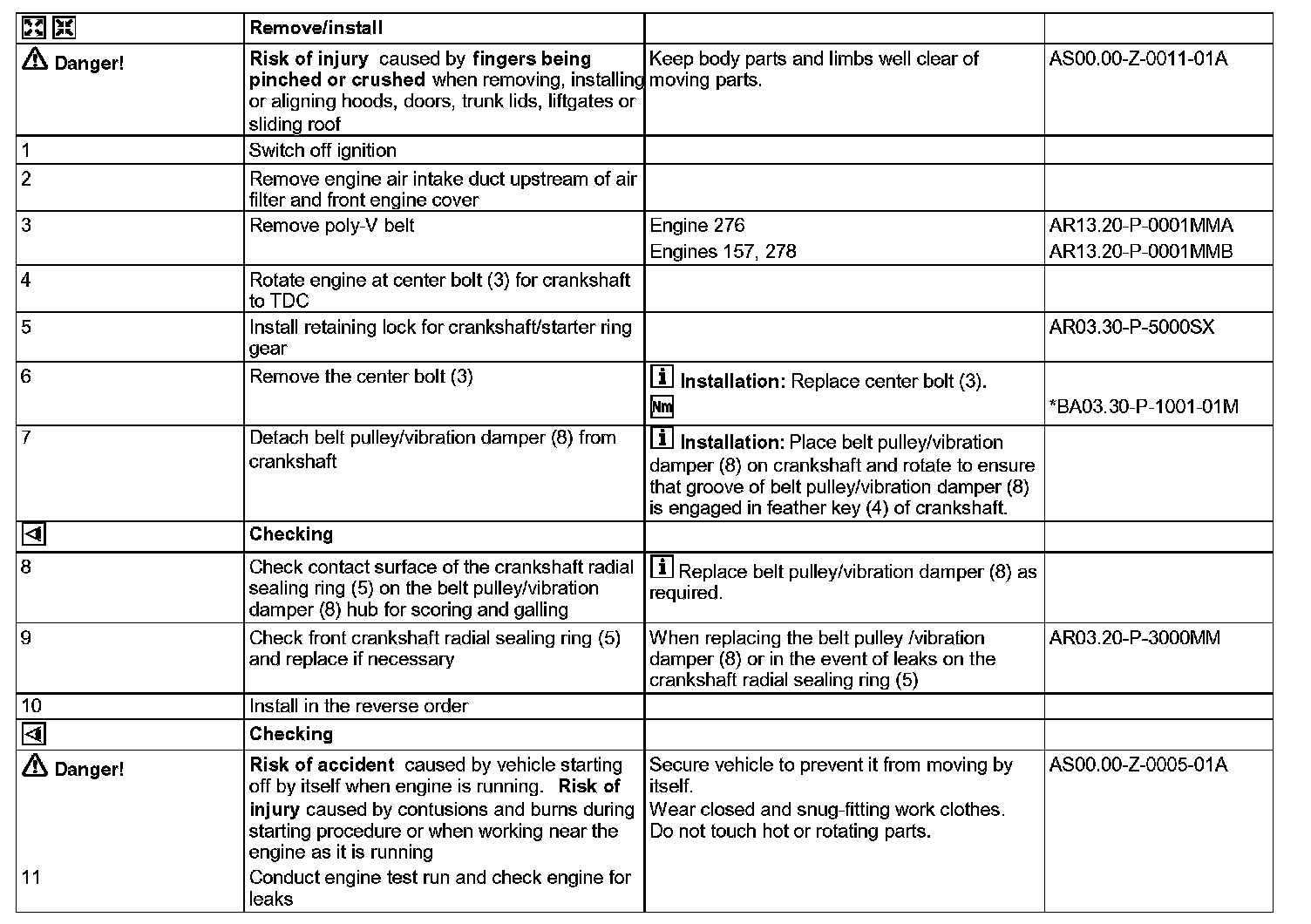

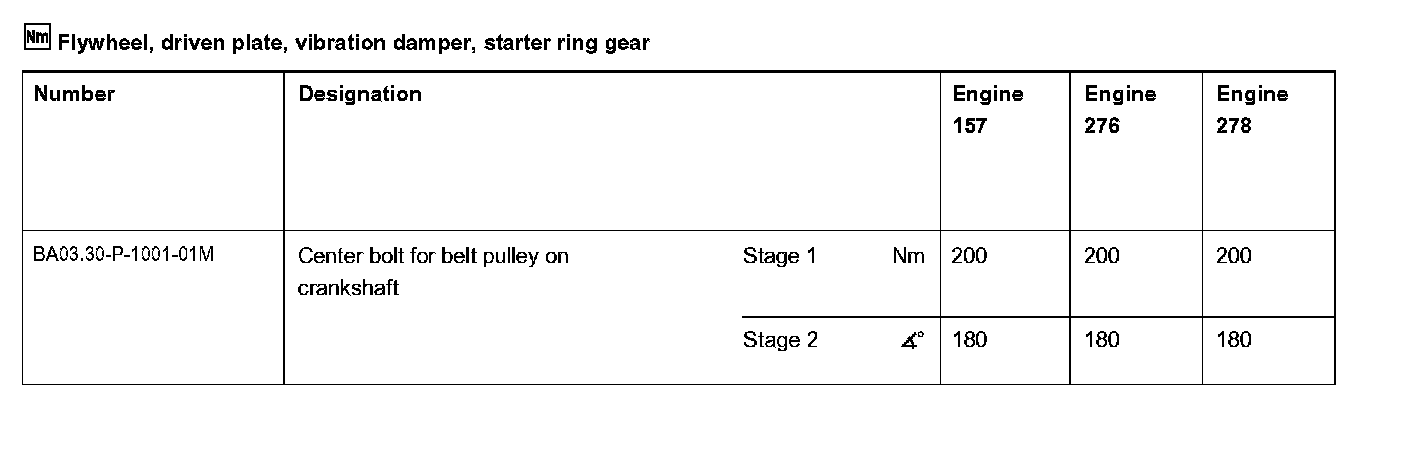

AR03.30-P-1600MM Remove/Install Belt Pulley/Vibration Damper

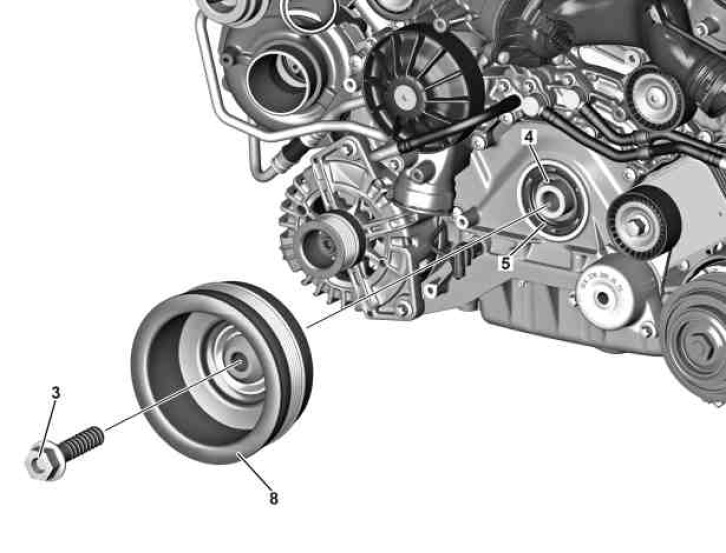

3 Center bolt
4 Key
5 Crankshaft radial seal
8 Belt pulley/vibration damper
