Lifter / Lash Adjuster: Testing and Inspection

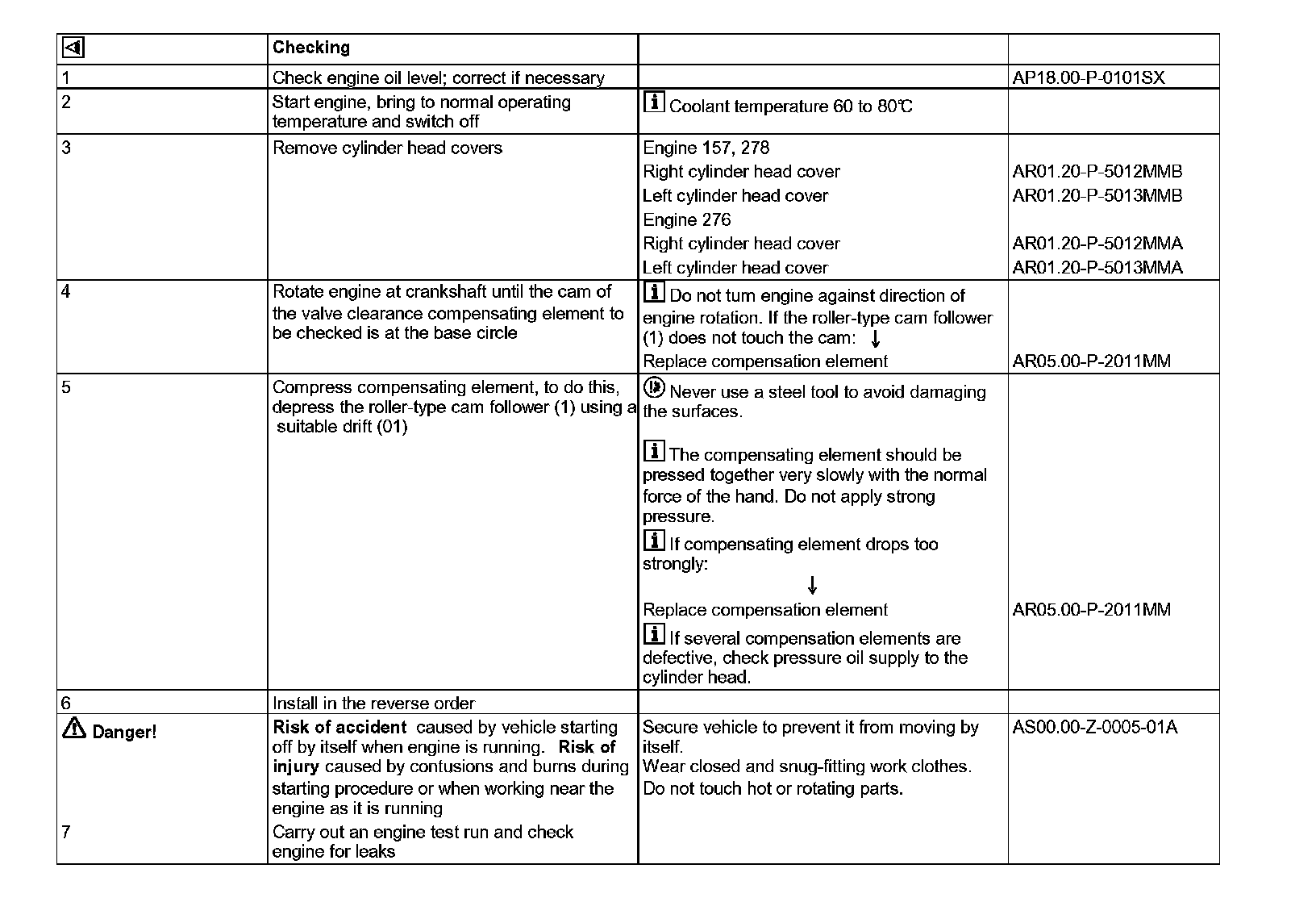

AR05.00-P-2010MM Check Hydraulic Valve Clearance Compensating Elements

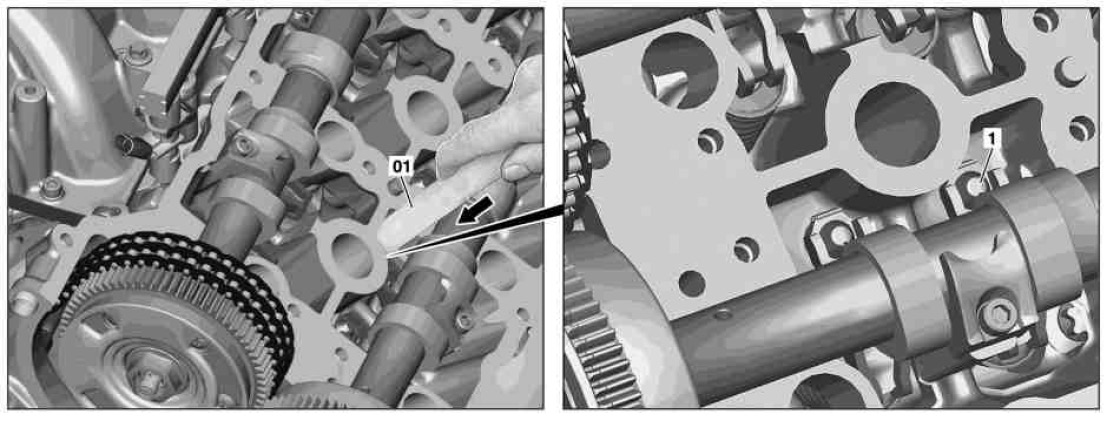

01 Drift
1 Roller-type cam follower
