Removal and Replacement

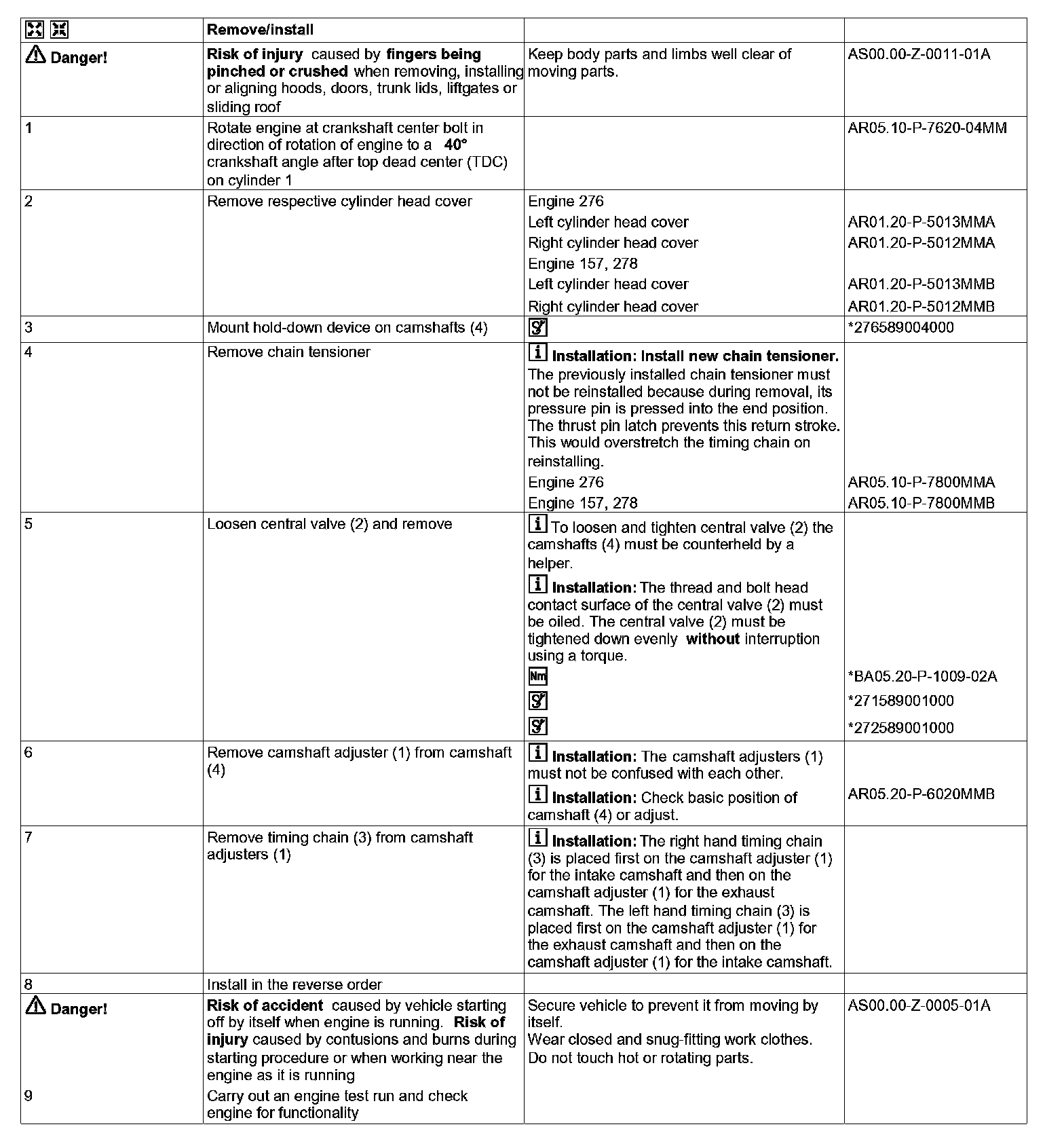

AR05.20-P-7201MMB Remove/Install Camshafts
-ENGINES 157, 278 in MODEL 216
-ENGINES 157, 276, 278 in MODEL 221





Shown on ENGINE 278

1 Camshaft adjuster
2 Central valve
3 Timing chain
4 Camshafts











271 589 00 10 00
Wrench socket





272 589 00 10 00
Torx screwdriver bit T60





276 589 00 40 00
Holddown device
