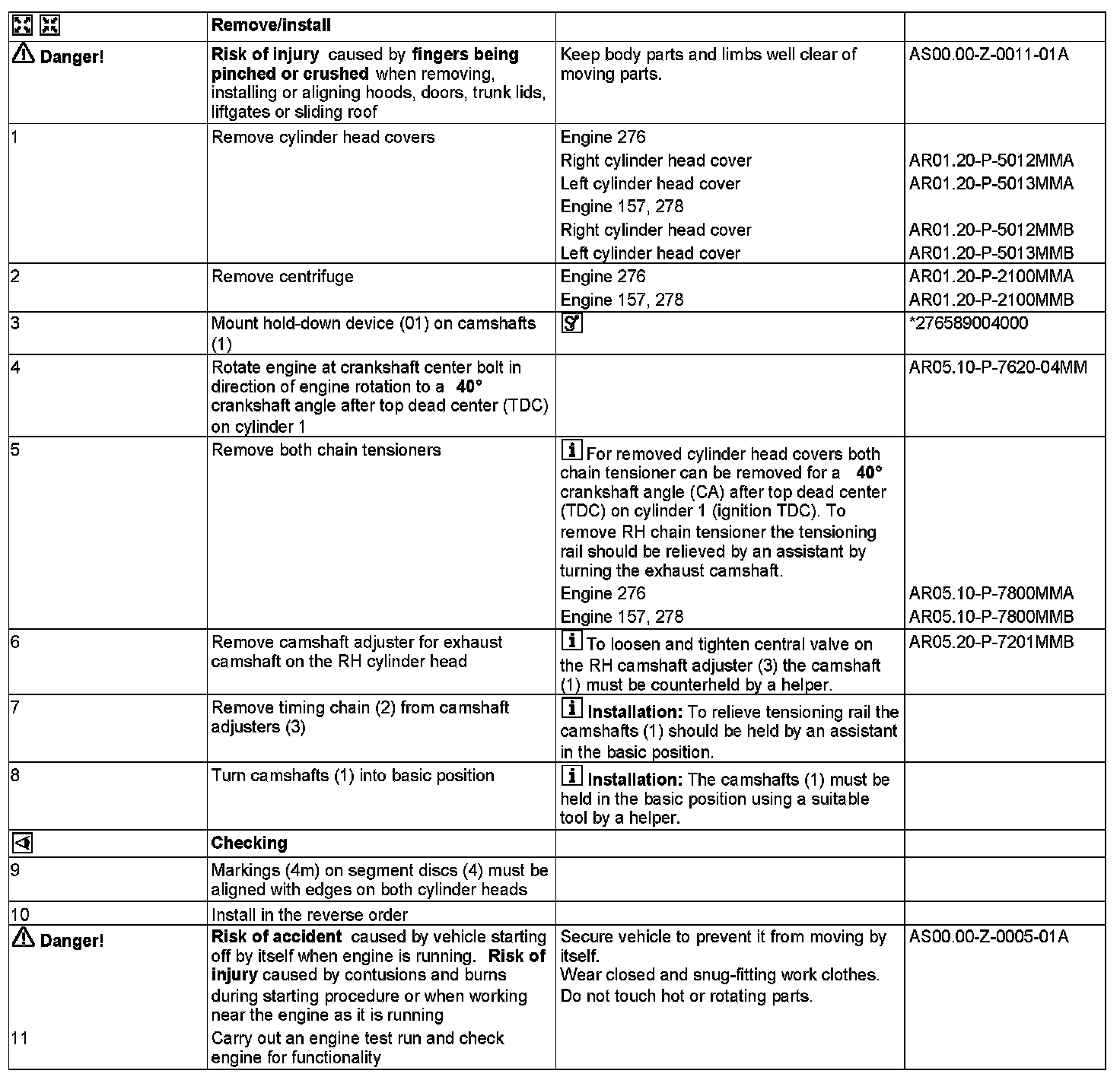

Procedures

AR05.20-P-6020MMB Set Basic Position Of Camshafts
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221

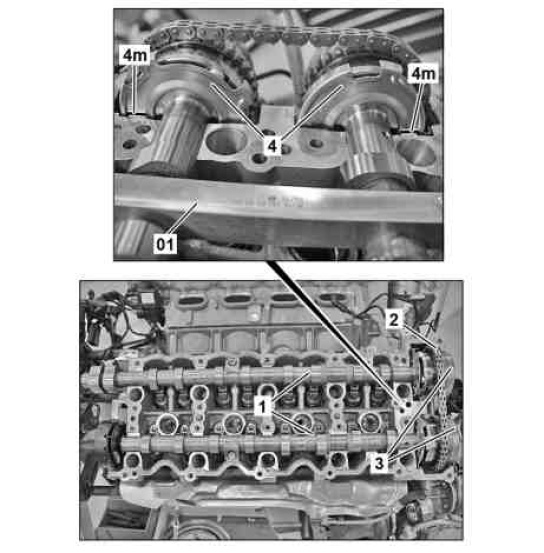

Shown on engine 278

01 Holddown device
1 Camshafts
2 Timing chain
3 Camshaft adjuster
4 Segmental disks
4m Markings








276 589 00 40 00
Holddown device
