Turbocharger Coolant Pump: Service and Repair

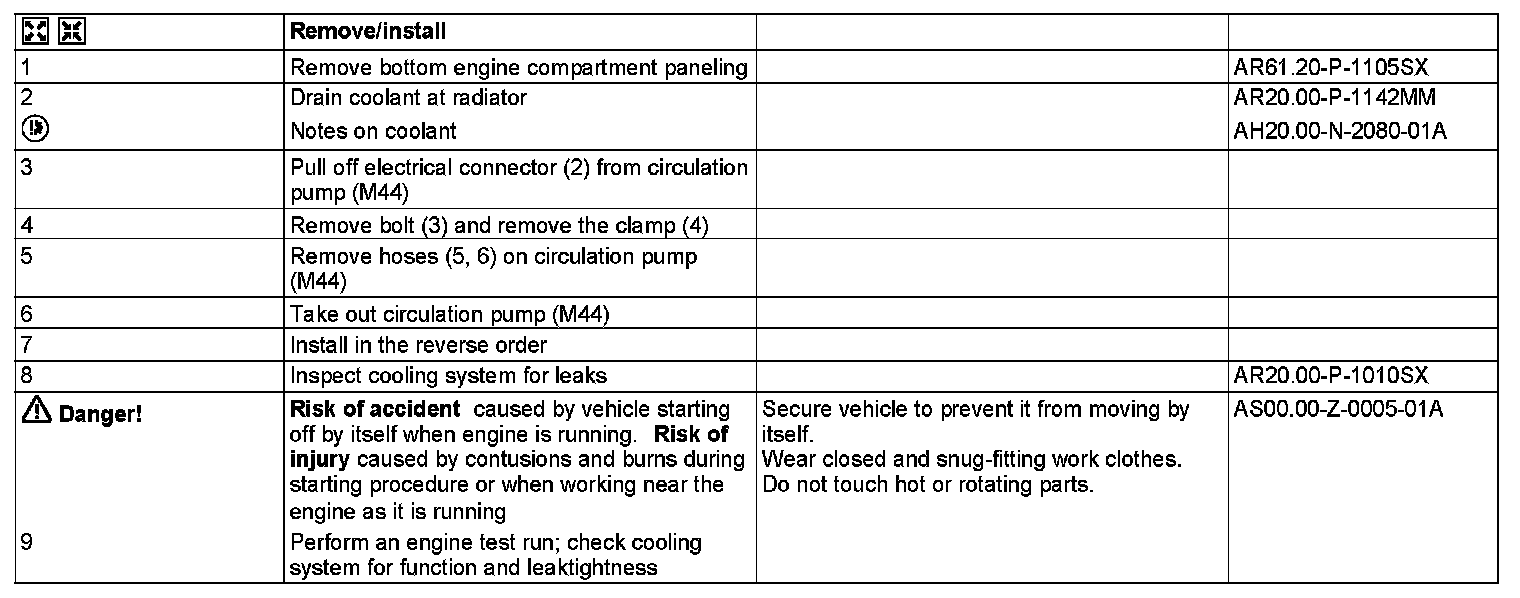

AR09.41-P-6925MMB Remove/install Circulation Pump For Low-temperature Water Circuit
- ENGINES 157, 278 in MODEL 216, 221

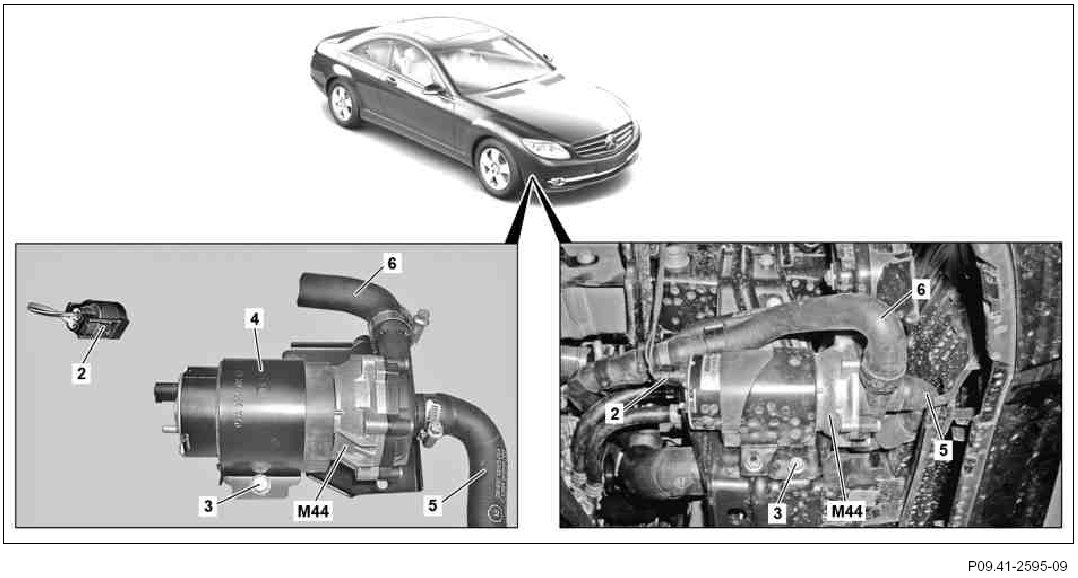

Shown on model 216 with engine 278







2 Electrical connector
3 Bolt
4 Bracket
5 Hose
6 Hose
M44 Charge air cooler circulation pump
