Radiator: Service and Repair

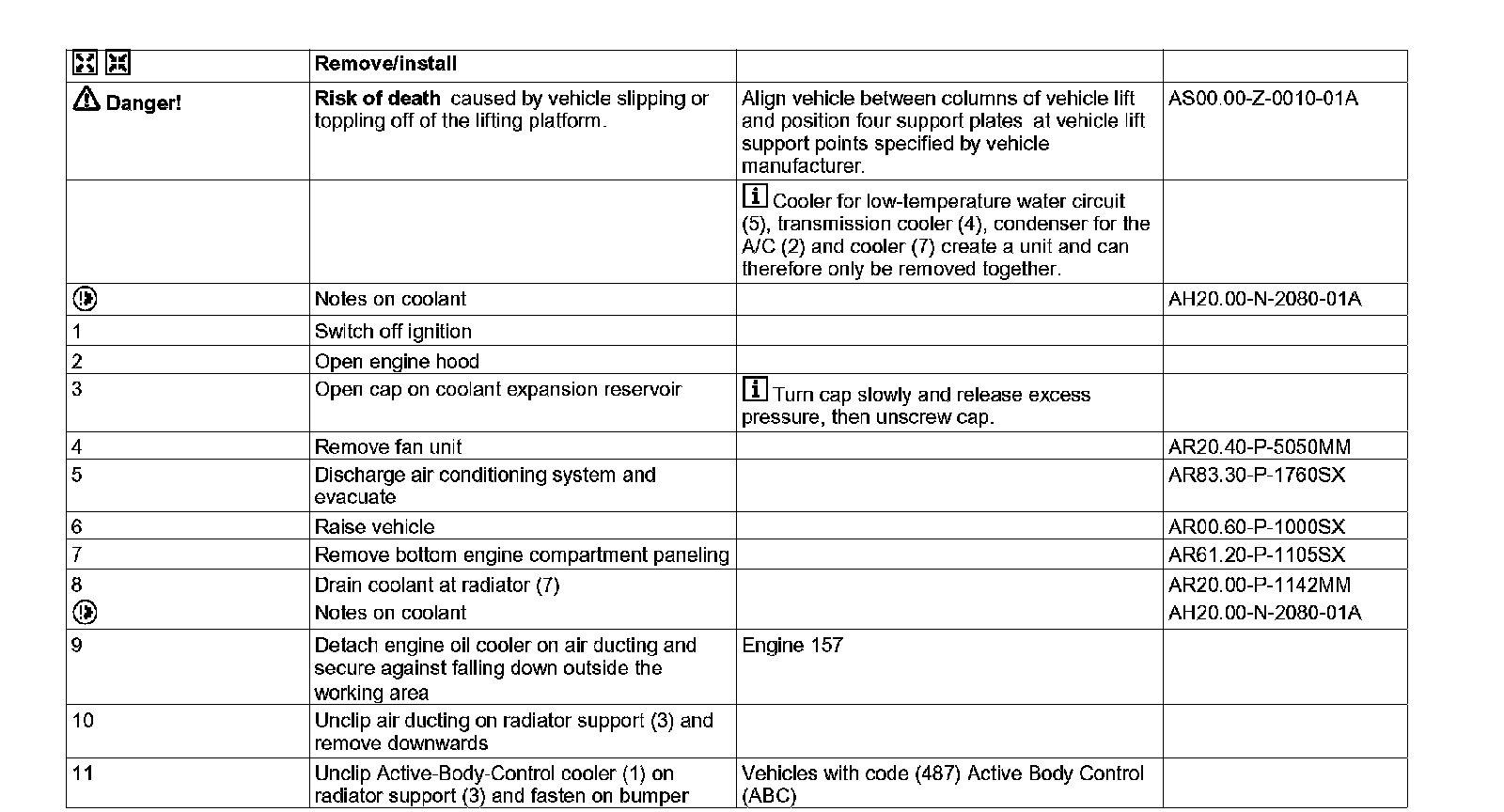

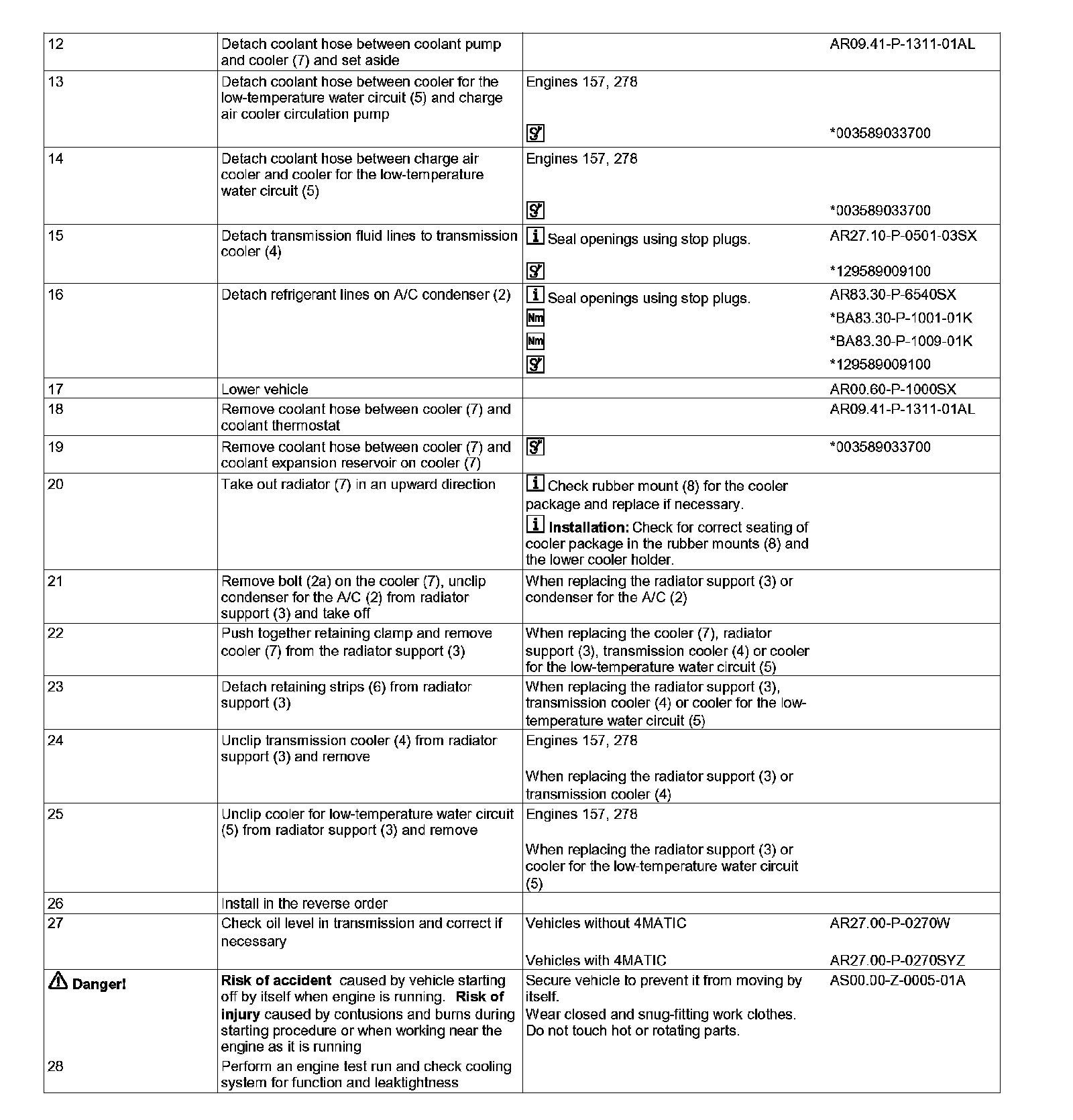

AR20.20-P-3865MMB Remove/Install Radiator
-ENGINES 157, 278 in MODEL 216
-ENGINES 157, 278, 276 in MODEL 221

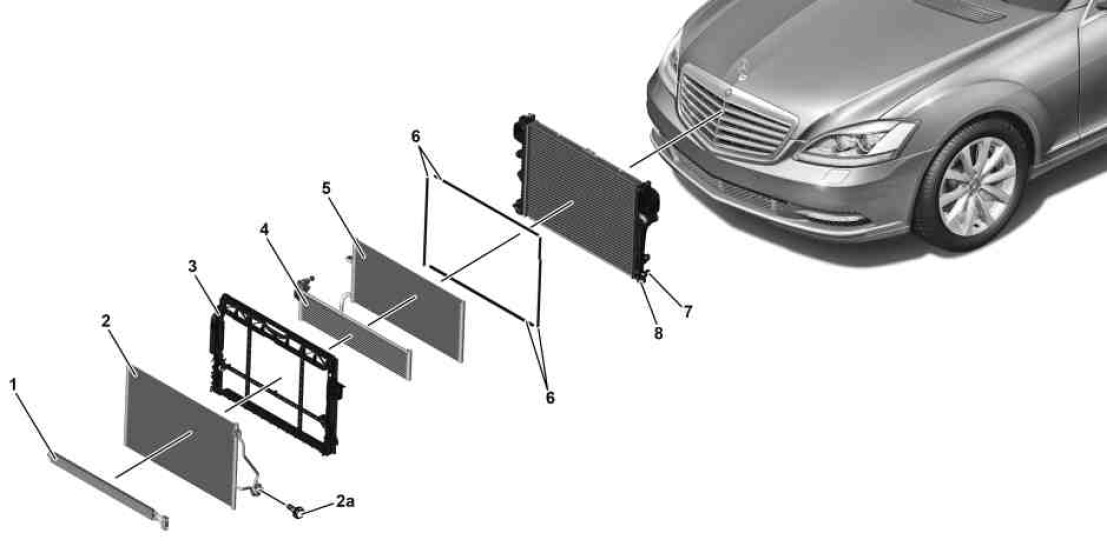

Shown on engine 278

1 Active-Body-Control cooler
2 Condenser of air conditioning
2a Bolt
3 Radiator support
4 Transmission oil cooler
5 Cooler for low-temperature water circuit
6 Retaining strips
7 Radiator
8 Rubber bushing














129 589 00 91 00
Set of stop plugs





003 589 03 37 00
Hose clamp pliers
