Coolant Line/Hose: Service and Repair

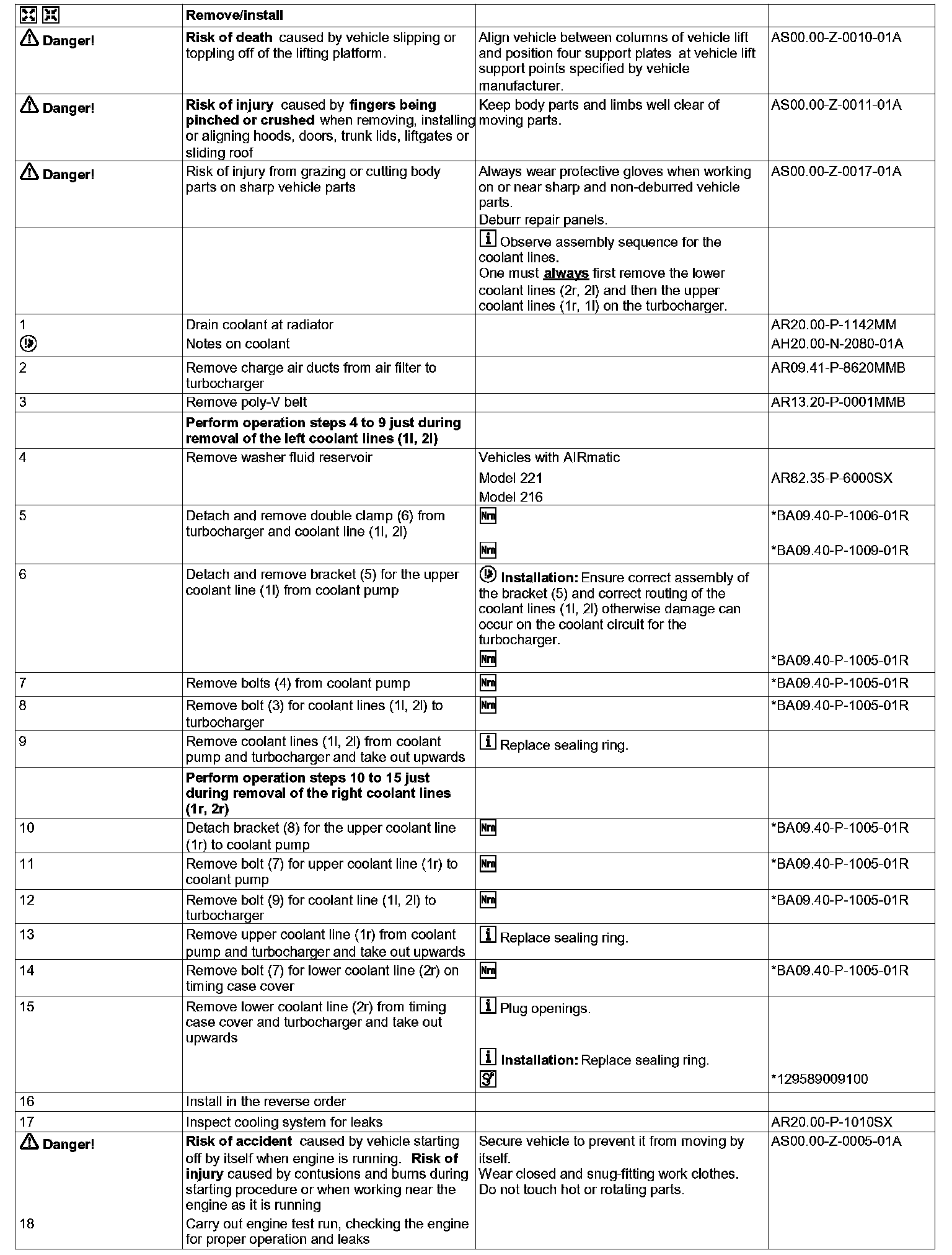

AR20.20-P-7440MMB Remove/Install Coolant Lines
-ENGINES 157, 278 in MODEL 216, 221

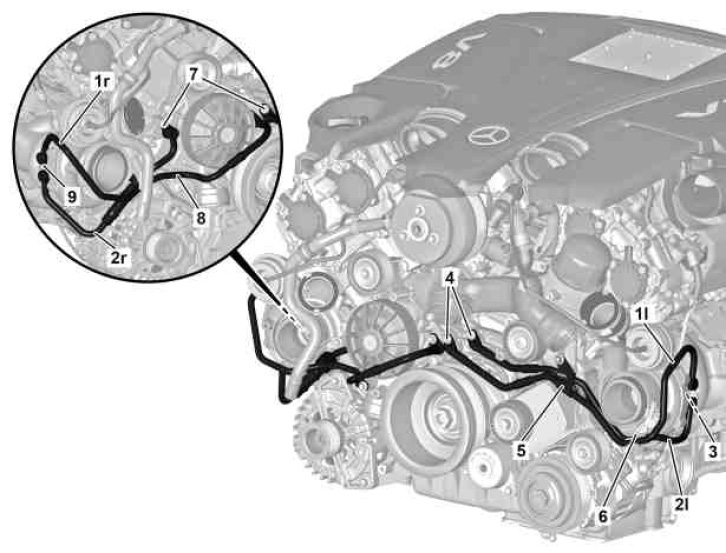

Engine 157, 278 up to 30. 07. 2010

1r Upper coolant line on the right
Lower coolant line on the right
3 Bolt
4 Bolt
5 Bracket
6 Double clamp
7 Bolt
8 Bracket
9 Bolt

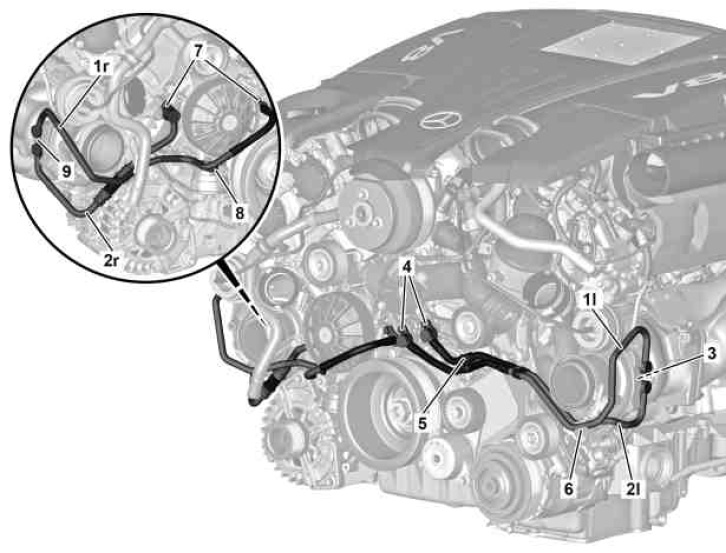

Engine 157, 278 as of 30. 07. 2010

1l Upper coolant line on the left
2l Lower coolant line on the left
3 Screw
4 Bolt
5 Bracket
6 Double clamp
7 Bolt
8 Bracket
9 Bolt











129 589 00 91 00
Set of stop plugs
