CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

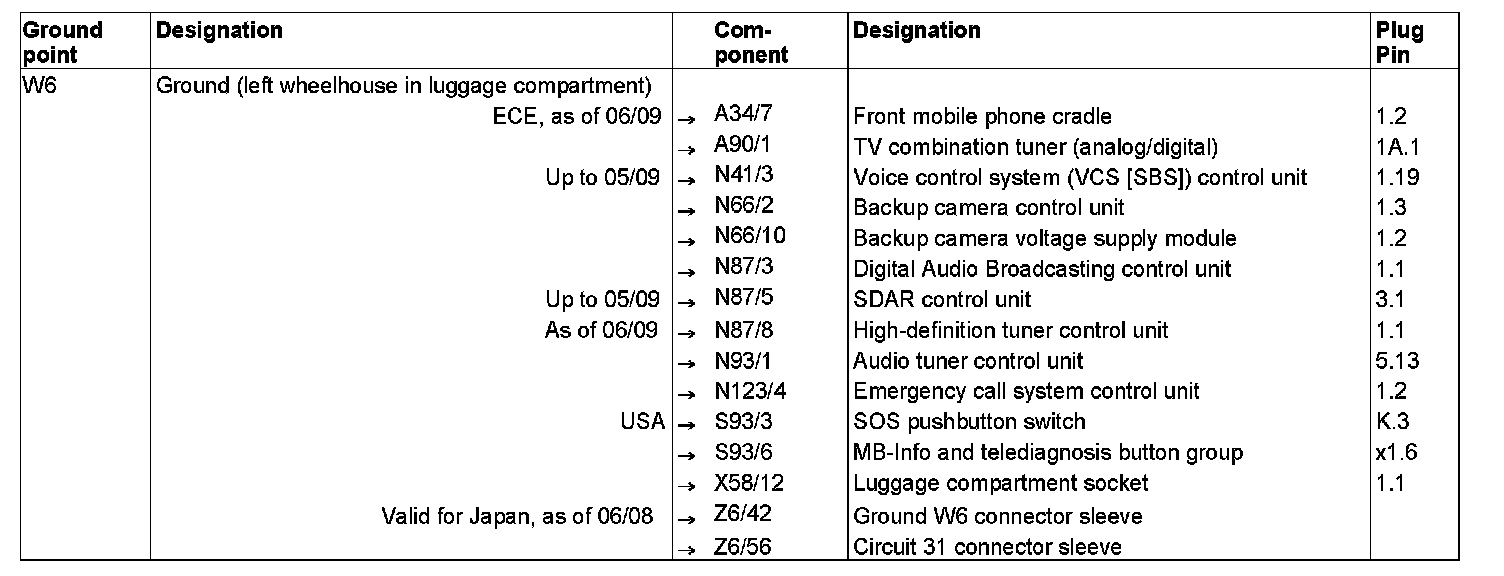

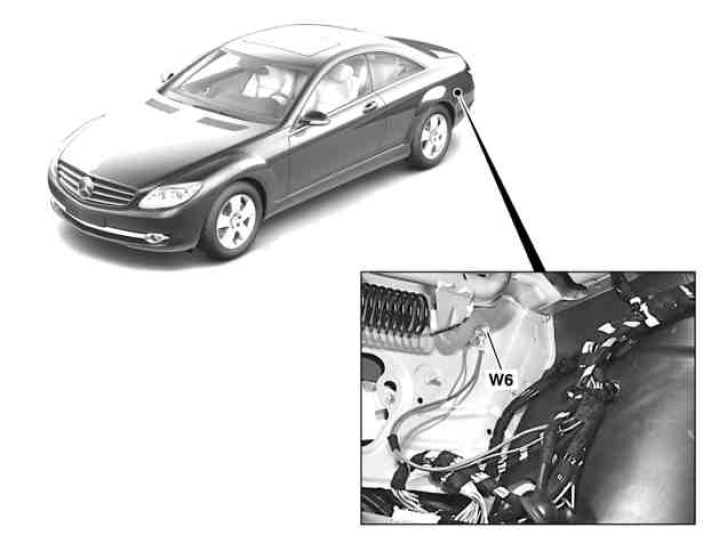

GF00.19-P-2000-06CAA Location and Assignment of Ground Points, Trunk, Left
GF00.19-P-2000-06CAA Location and Assignment of Ground Points, Trunk, Left
GF00.19-P-2000-06CAA Location and Assignment of Ground Points, Trunk, Left
Model 216
