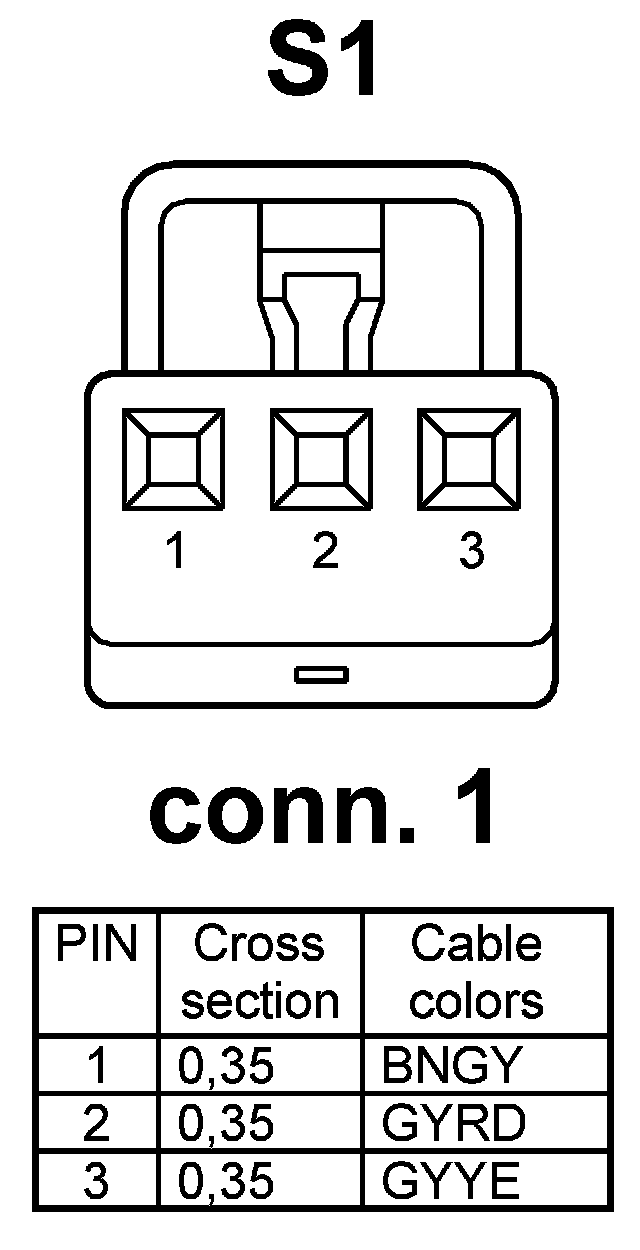

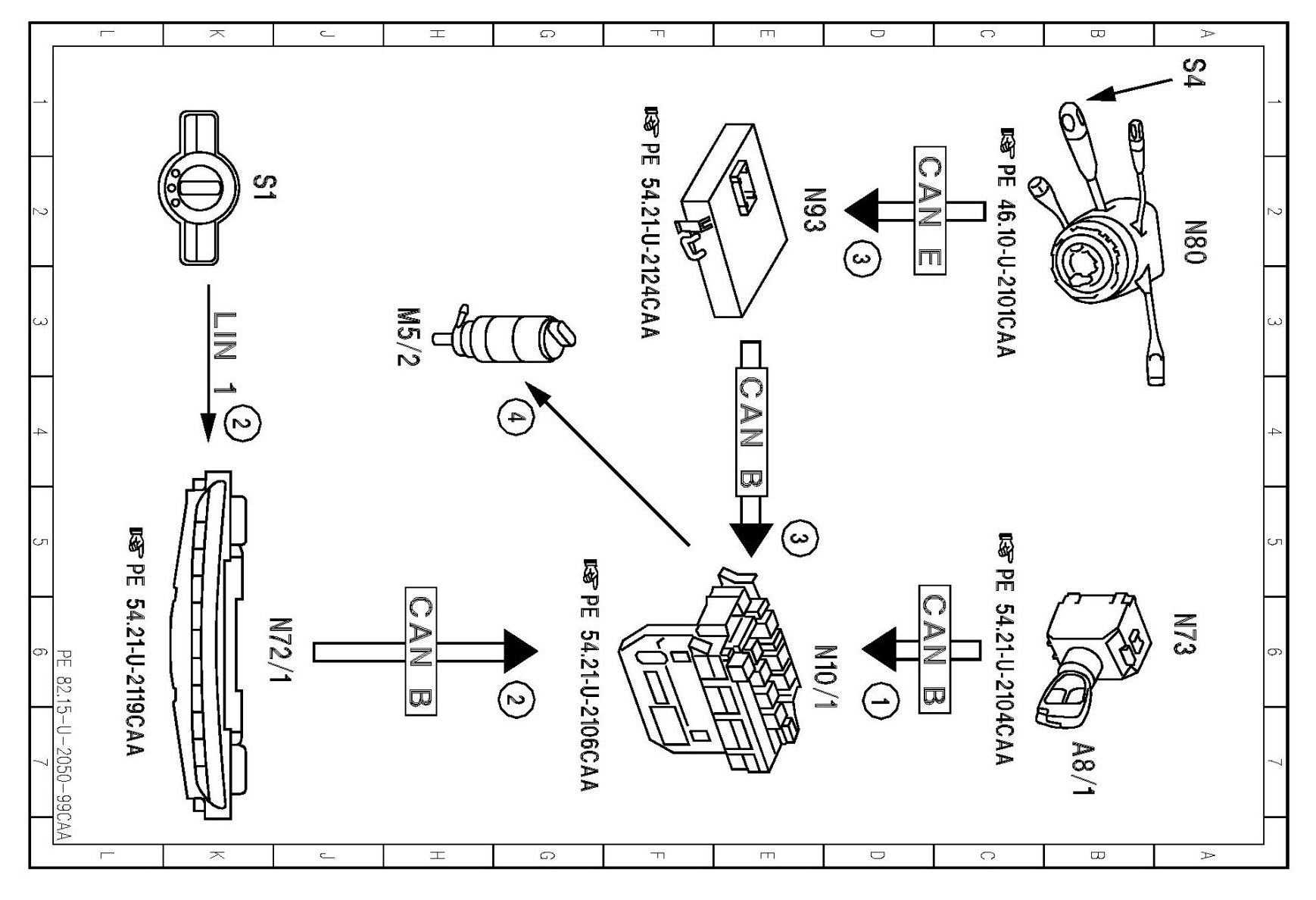

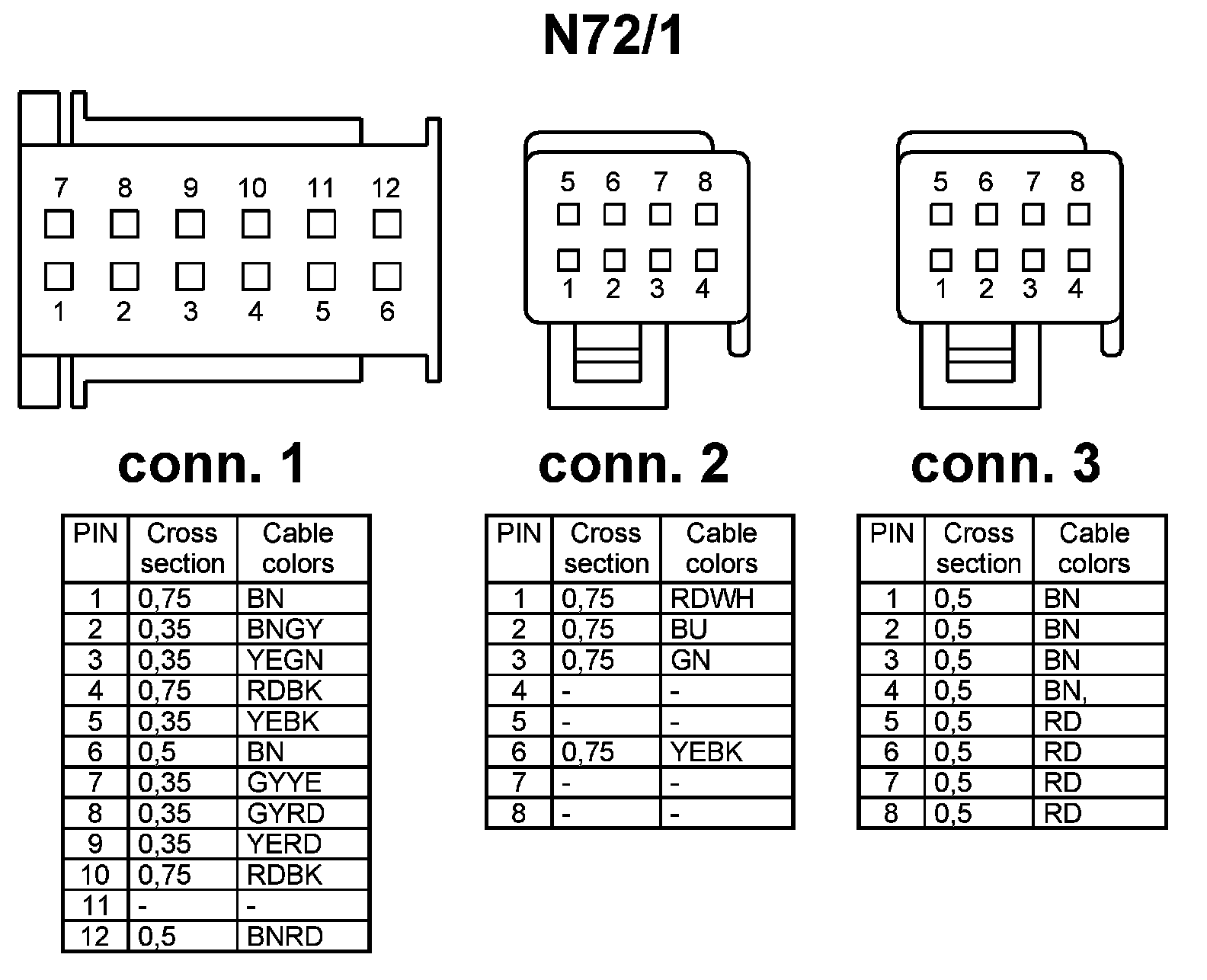

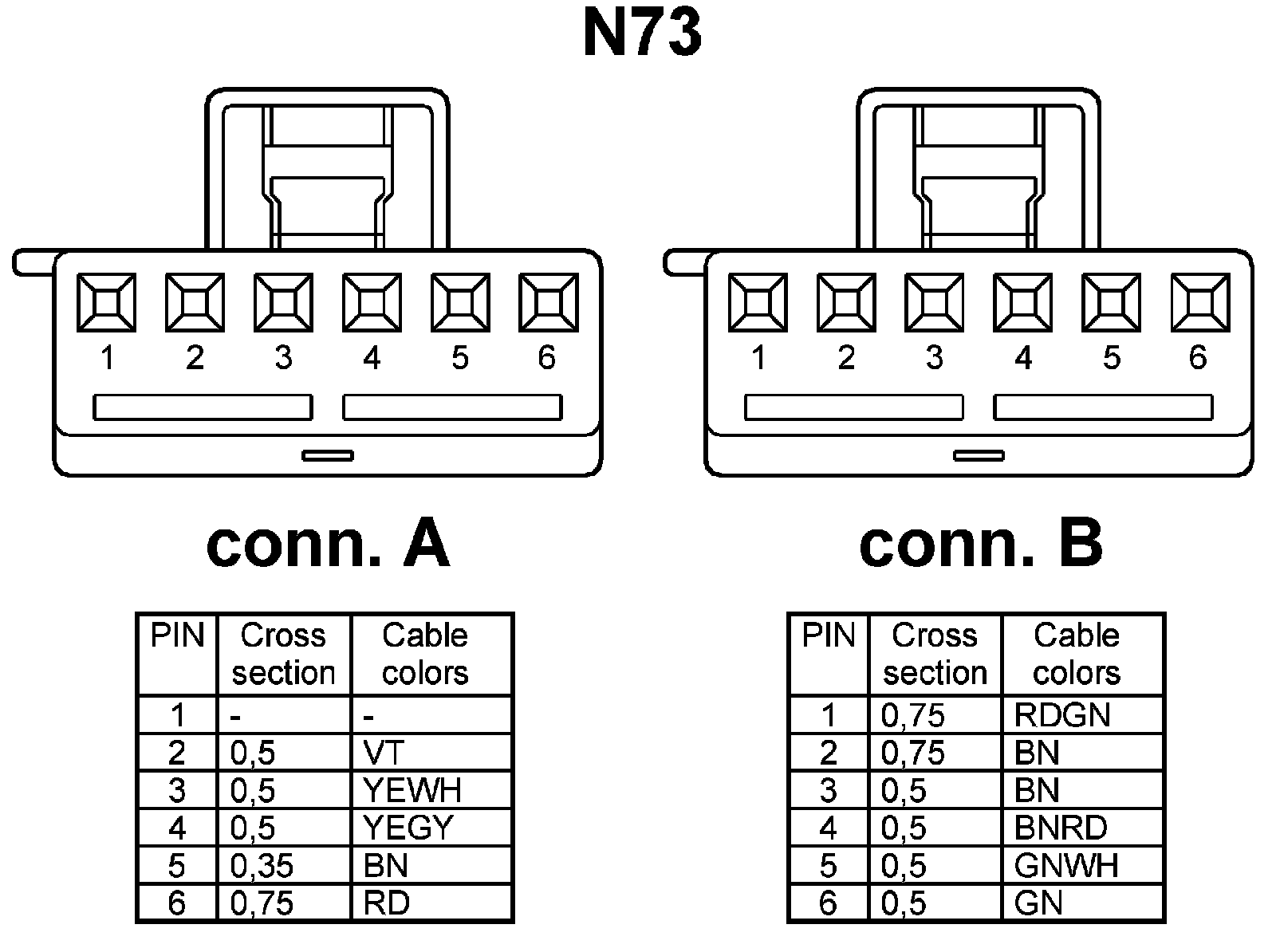

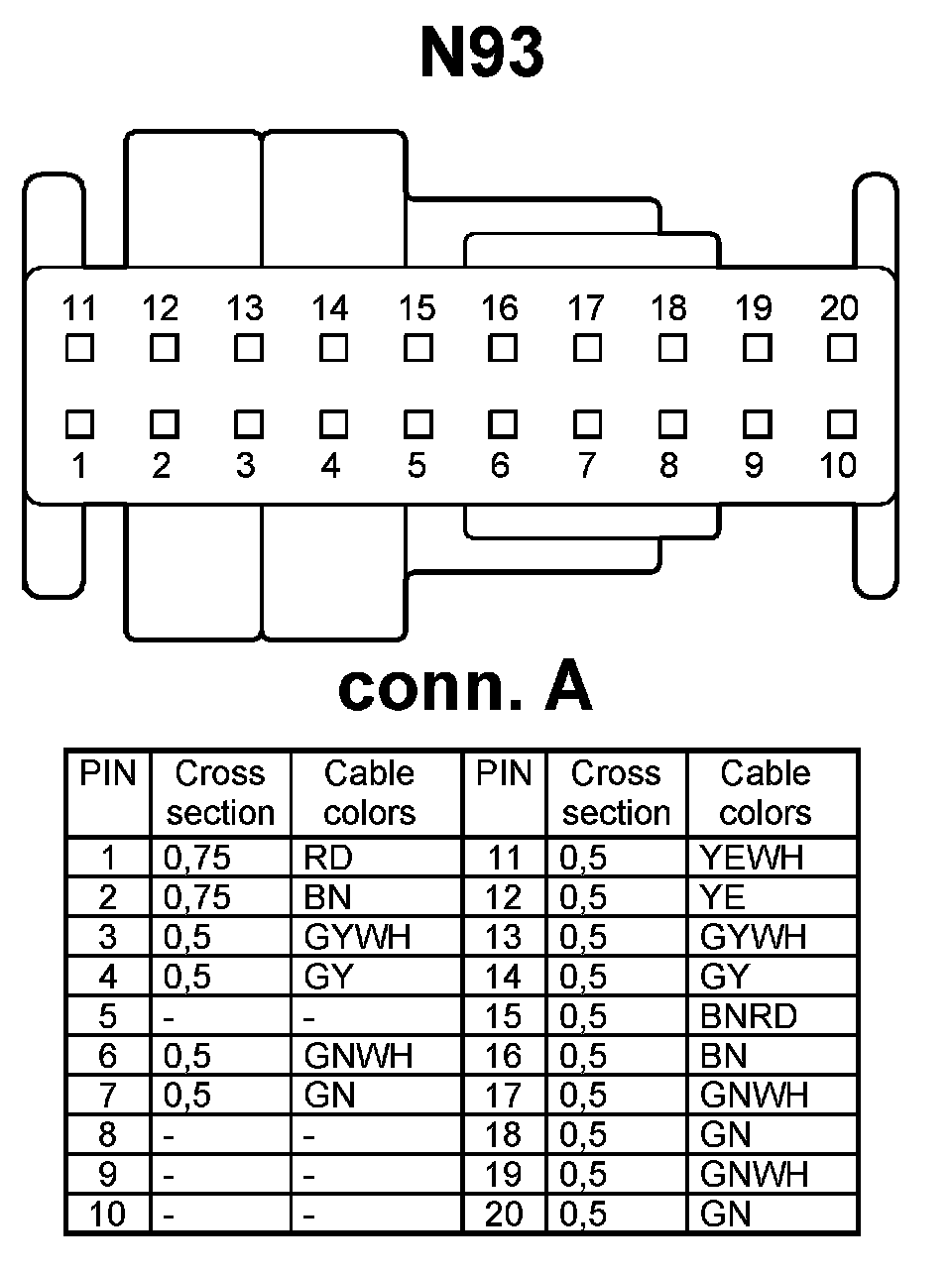

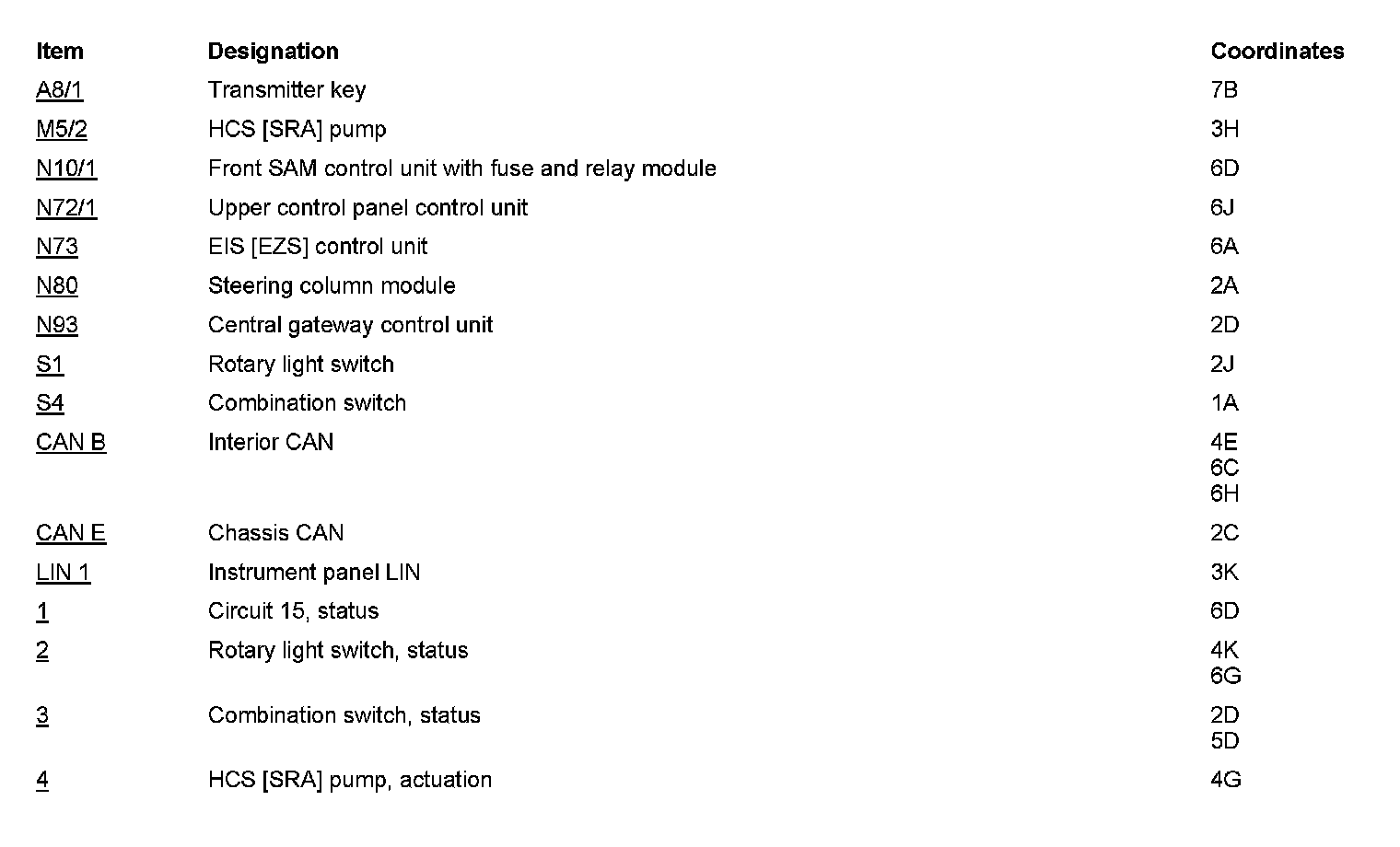

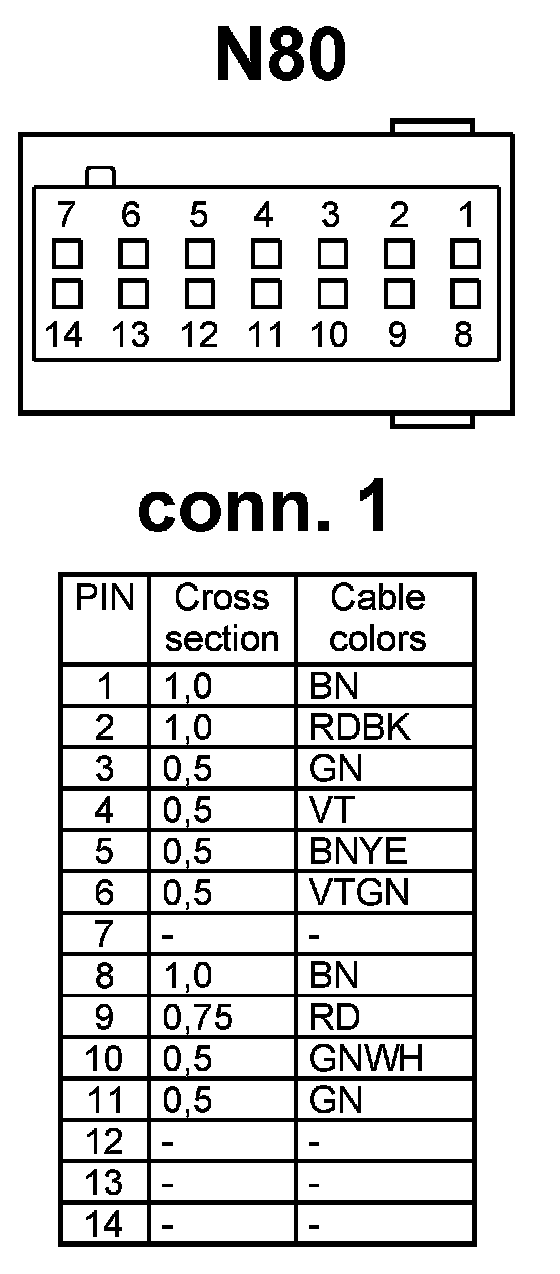

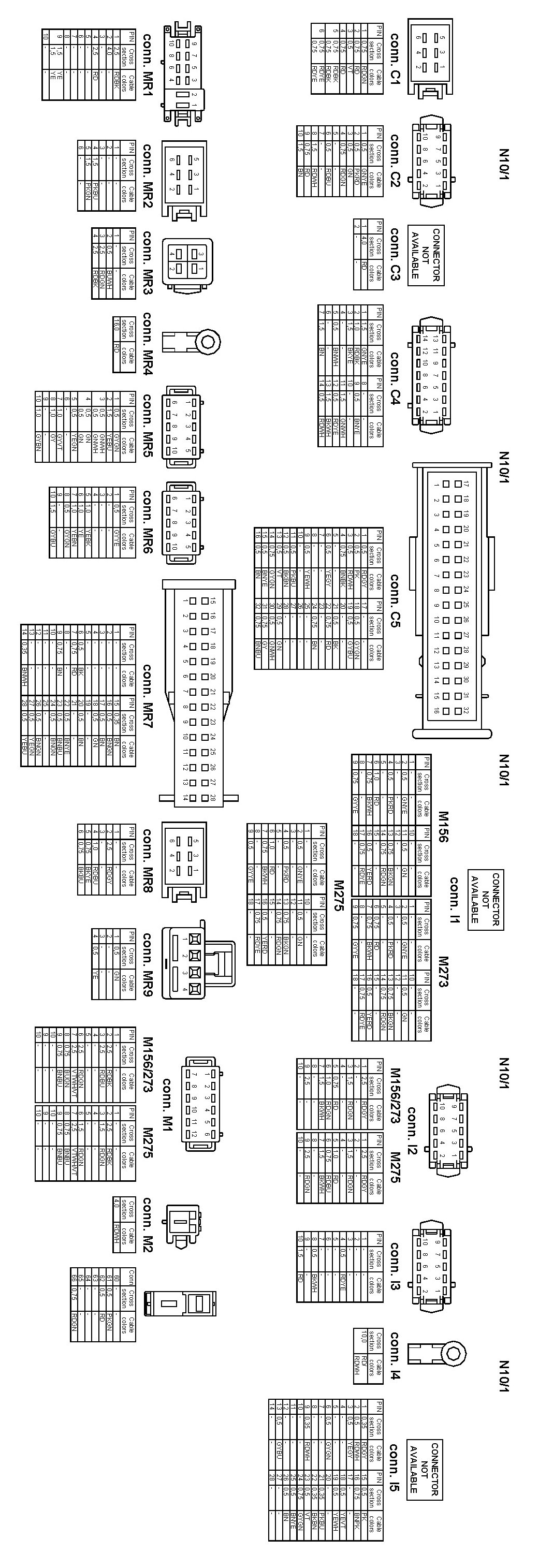

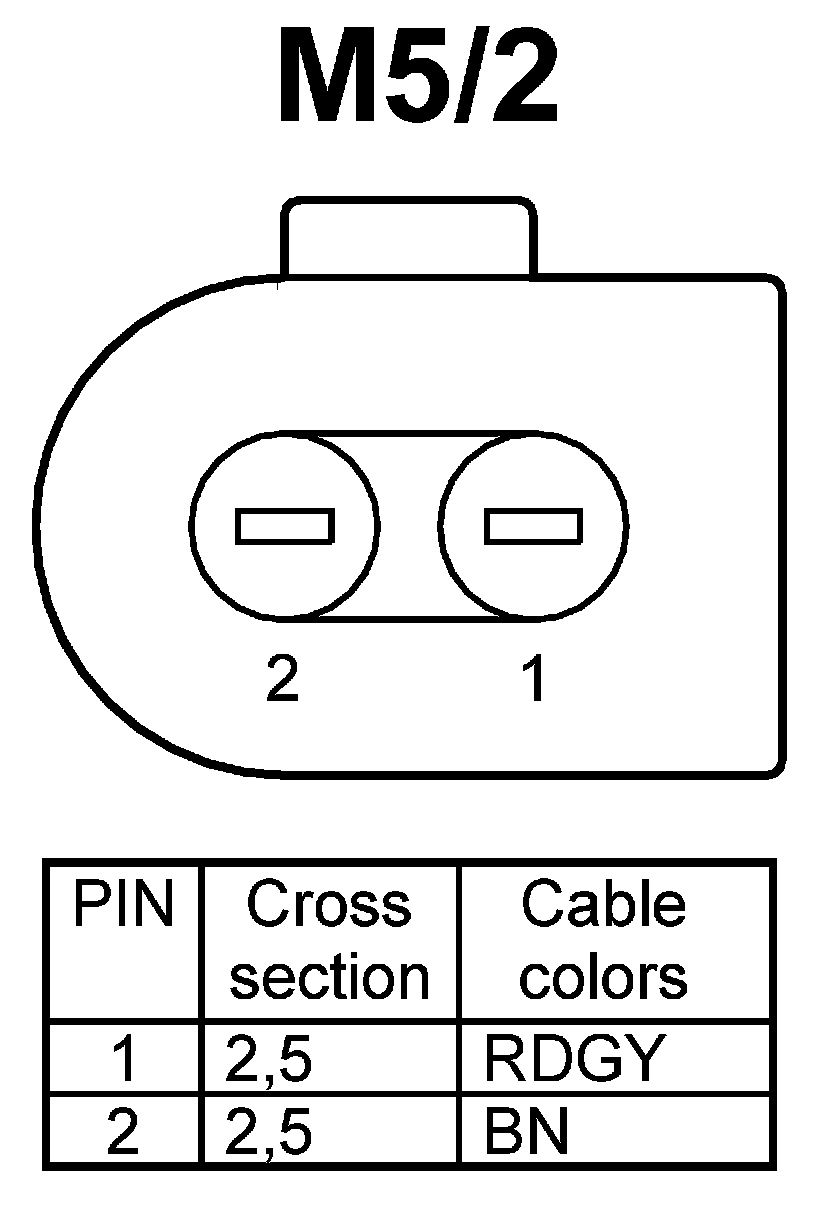

PE82.15-U-2050CAA Electrical System Function Diagram For Headlamp Cleaning System (HCS)



PE82.15-U-2050CAA Electrical System Function Diagram For Headlamp Cleaning System (HCS)

MODEL 216
- as of Model Year 2009







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
