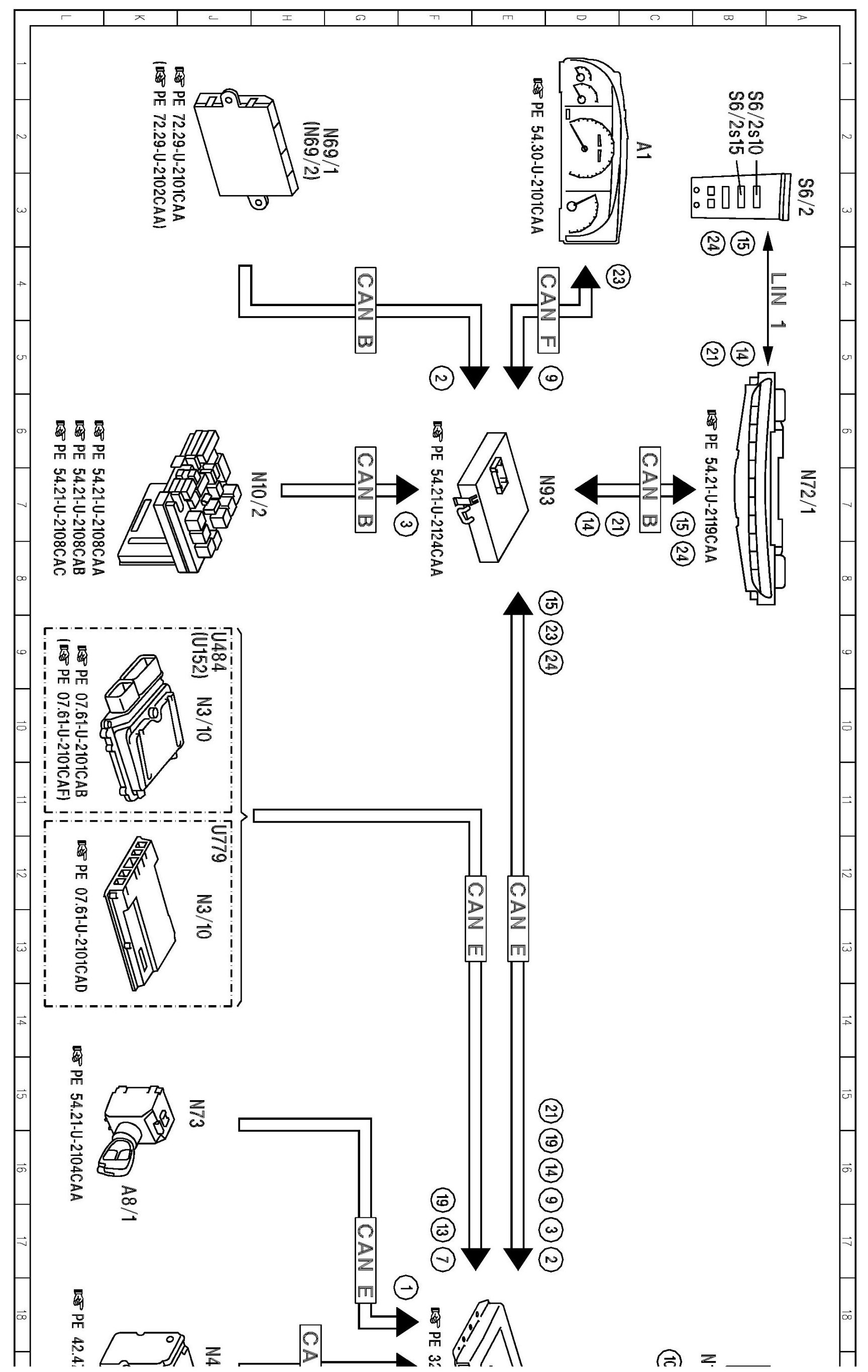

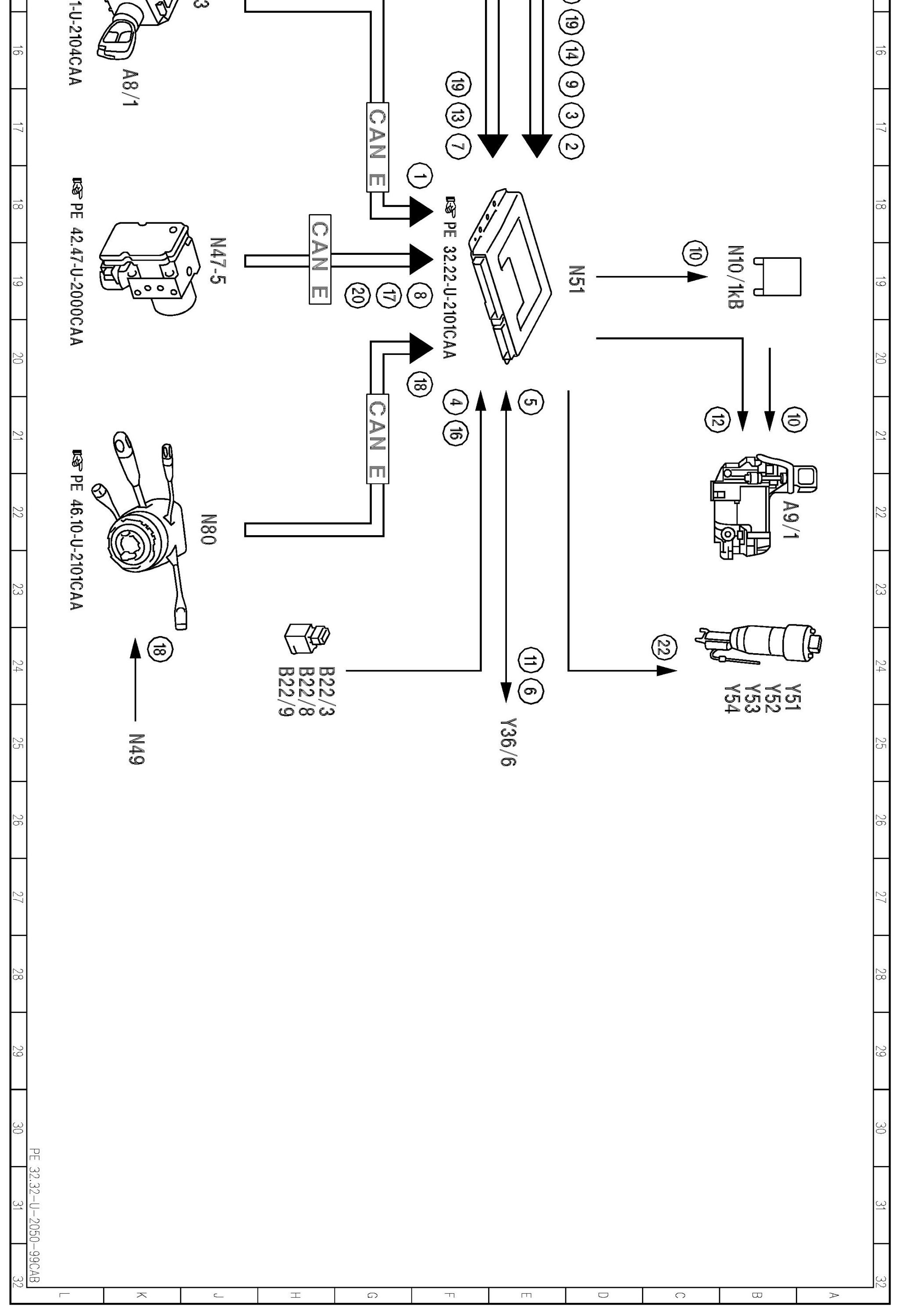

PE32.32-U-2050CAB Electrical Function Schematic For AIRmatic

PE32.32-U-2050CAB Electrical Function Schematic For AIRmatic

MODEL 216
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- as of Model Year 2010

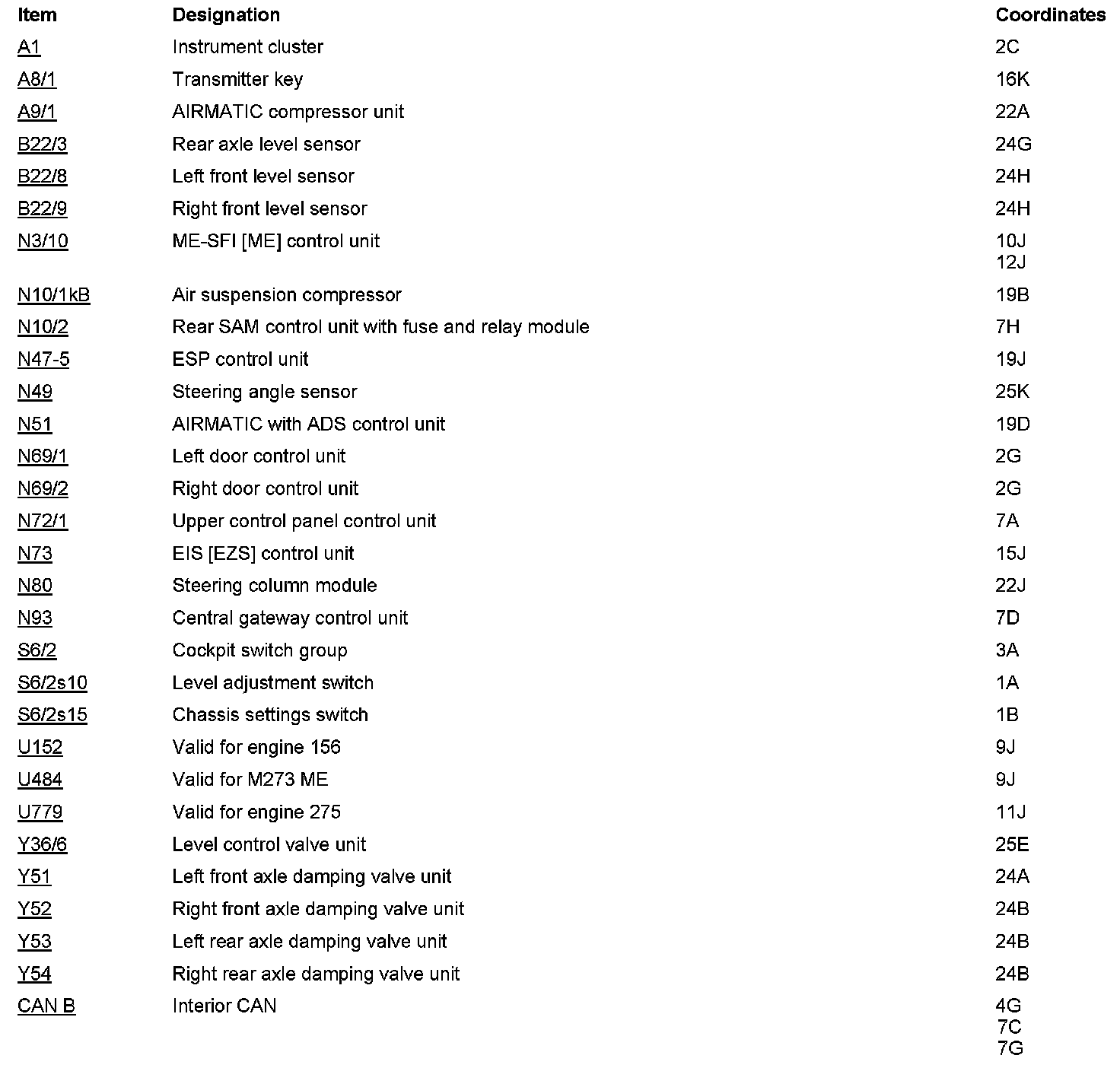

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
