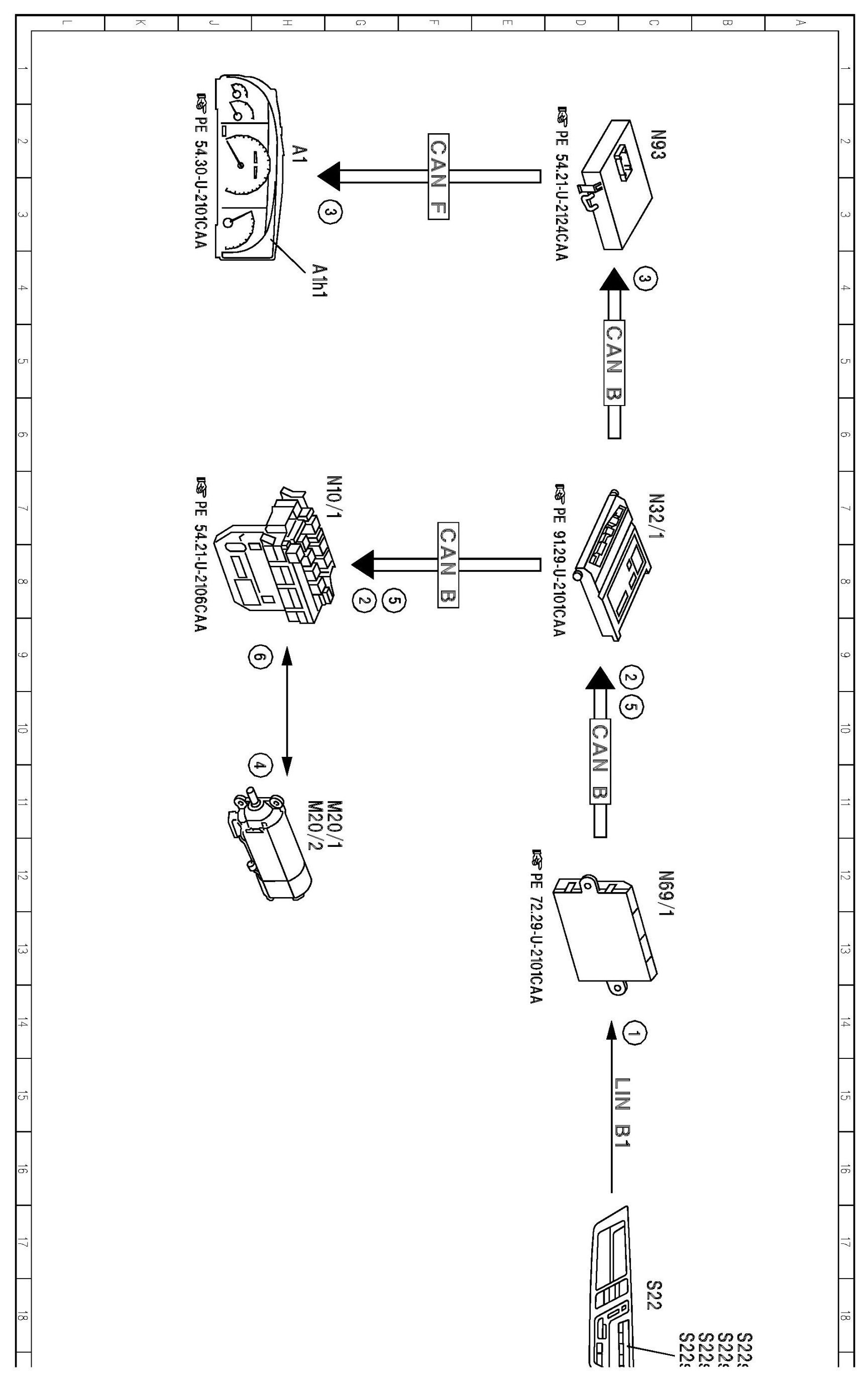

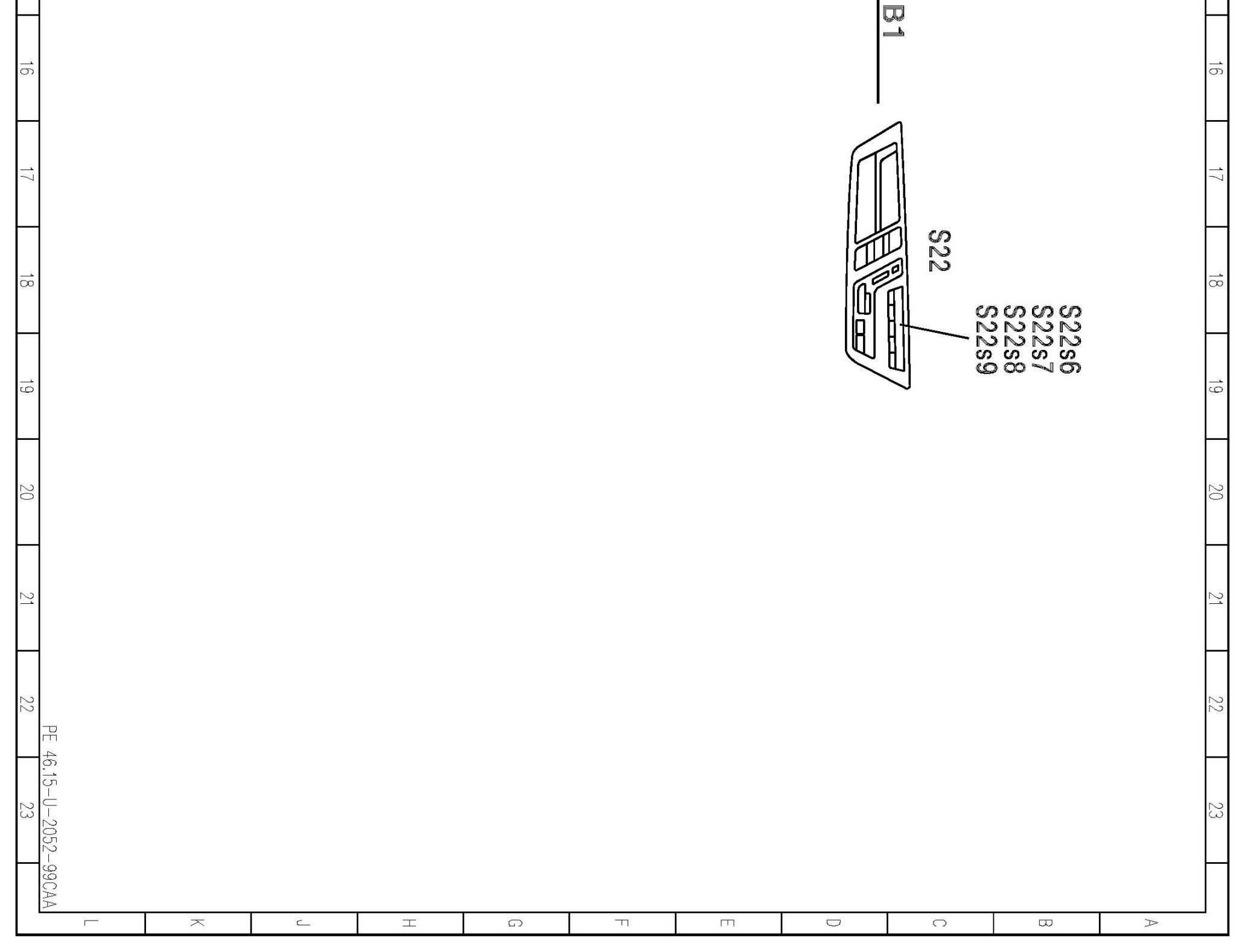

PE46.15-U-2052CAA Electrical Function Schematic For Storing/Calling Up Steering Column Position

PE46.15-U-2052CAA Electrical Function Schematic For Storing/Calling Up Steering Column Position

MODEL 216
- as of Model Year 2009











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
