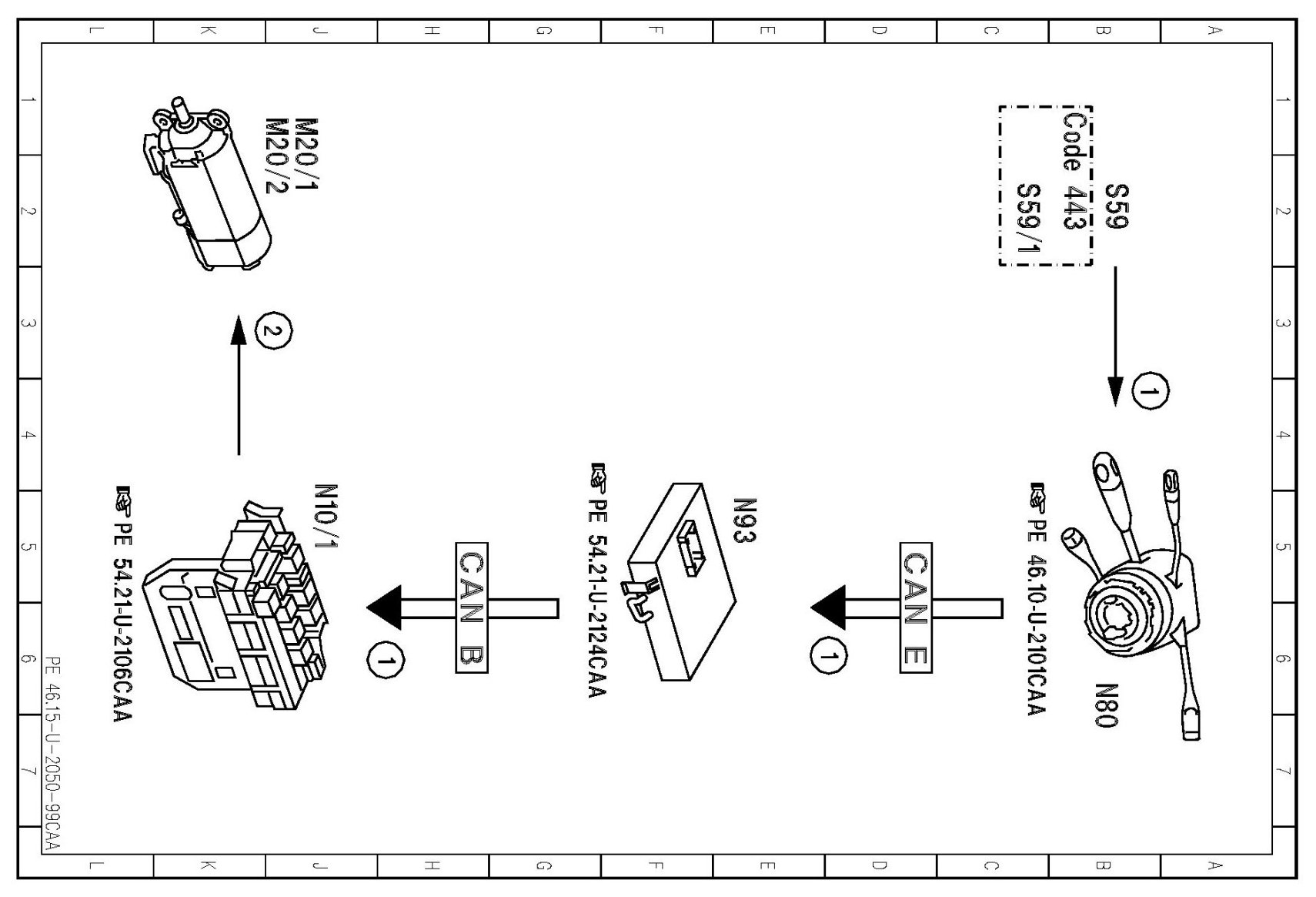

PE46.15-U-2050CAA Function Diagram of Electrical System For Steering Column Adjustment

PE46.15-U-2050CAA Function Diagram of Electrical System For Steering Column Adjustment

MODEL 216
- as of Model Year 2009































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
