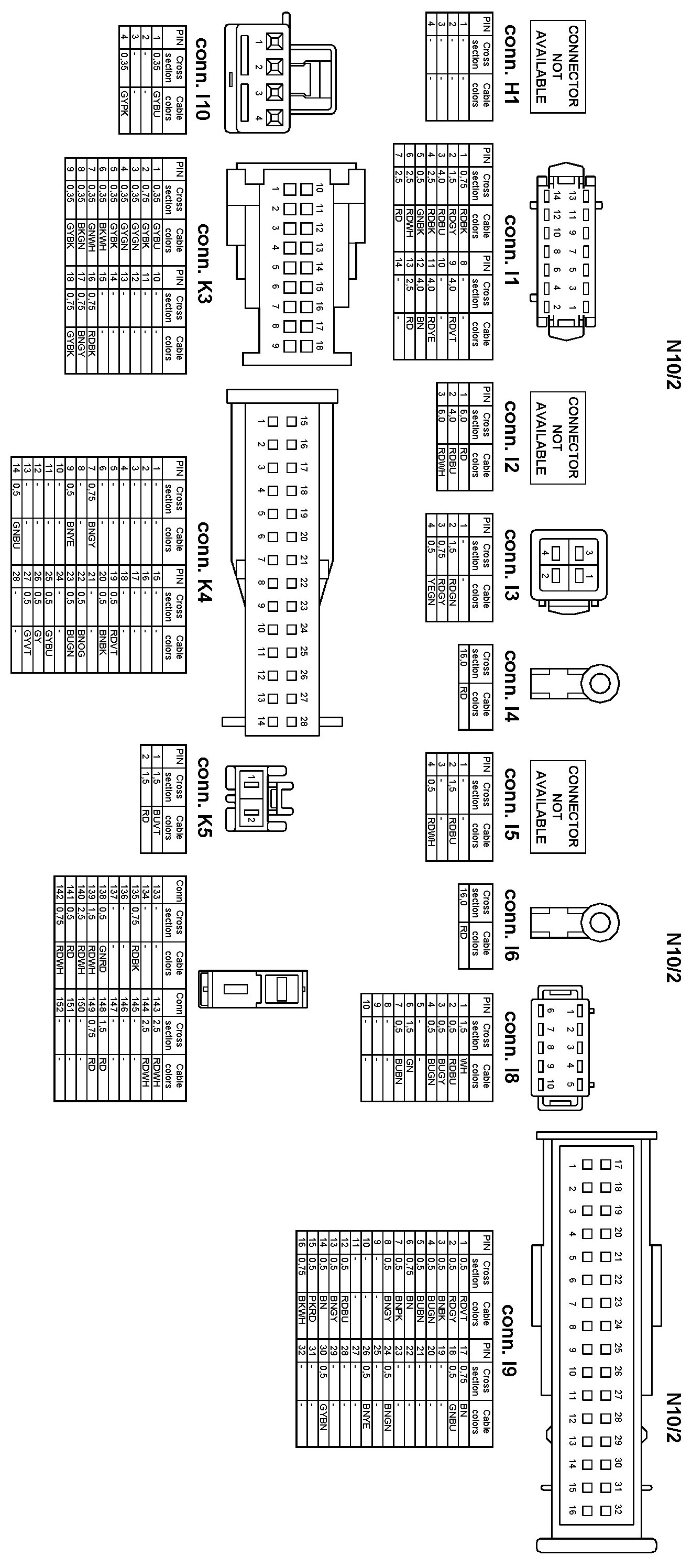

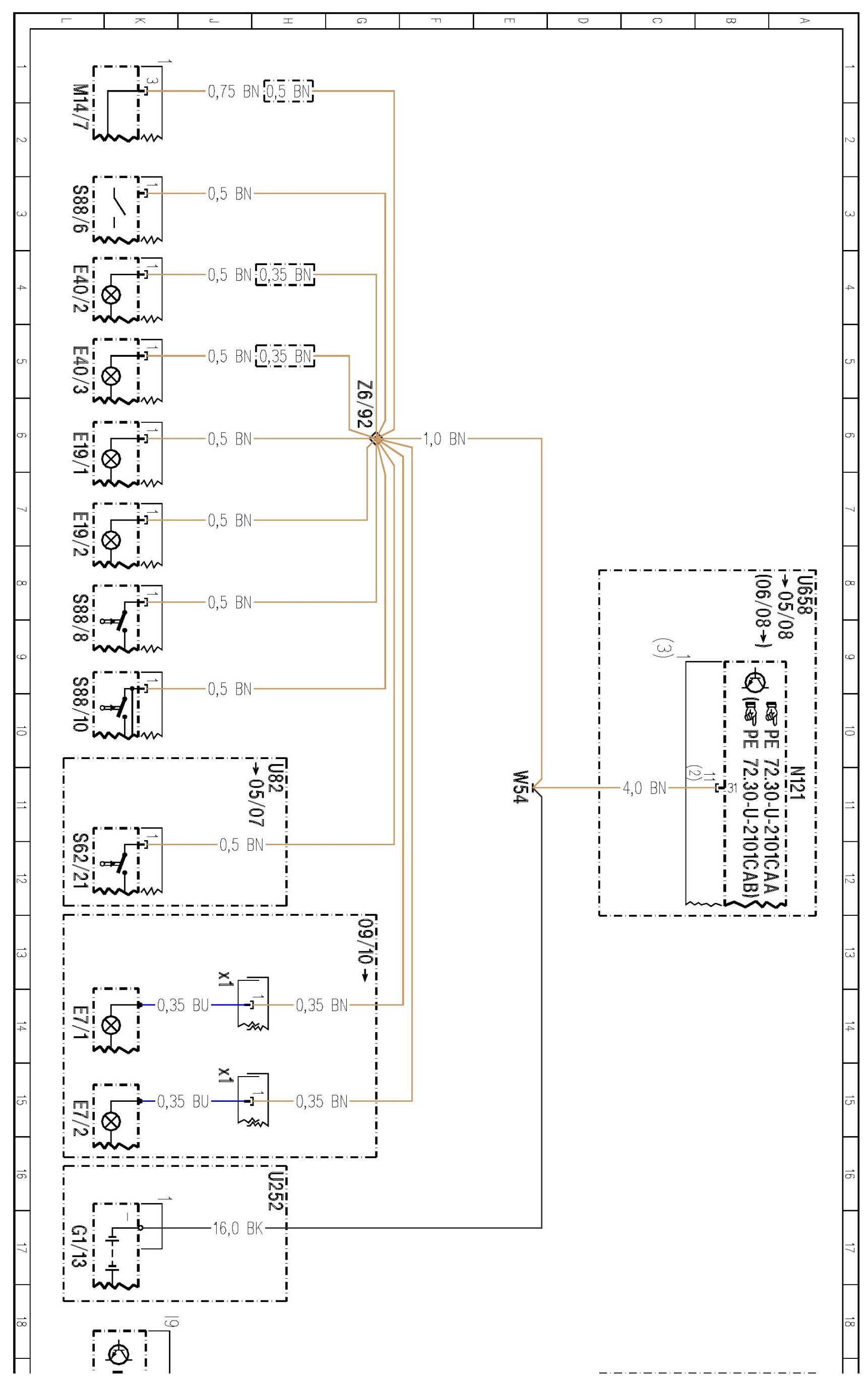

PE00.19-U-2800CAE Ground Wiring



PE00.19-U-2800CAE Ground Wiring

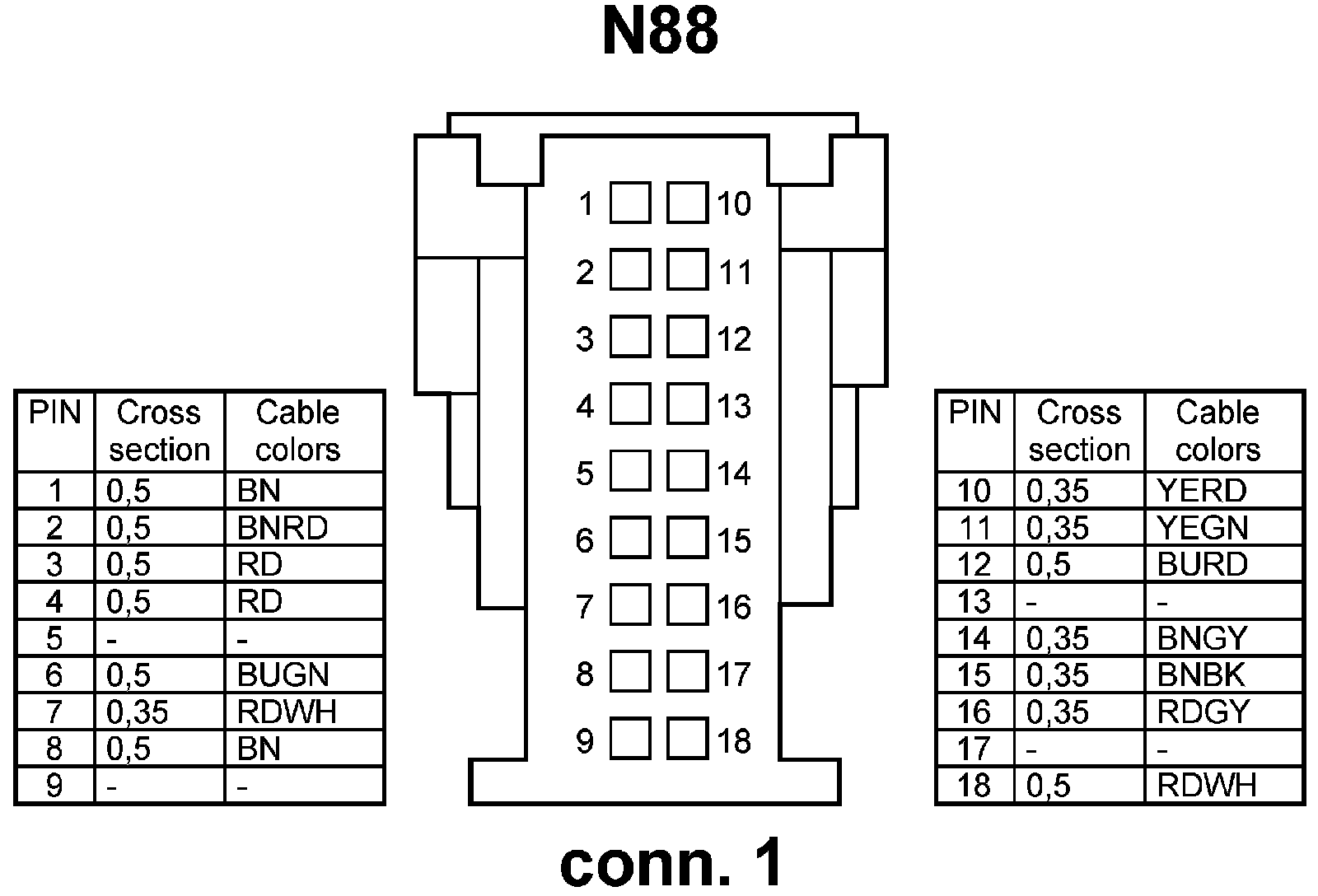

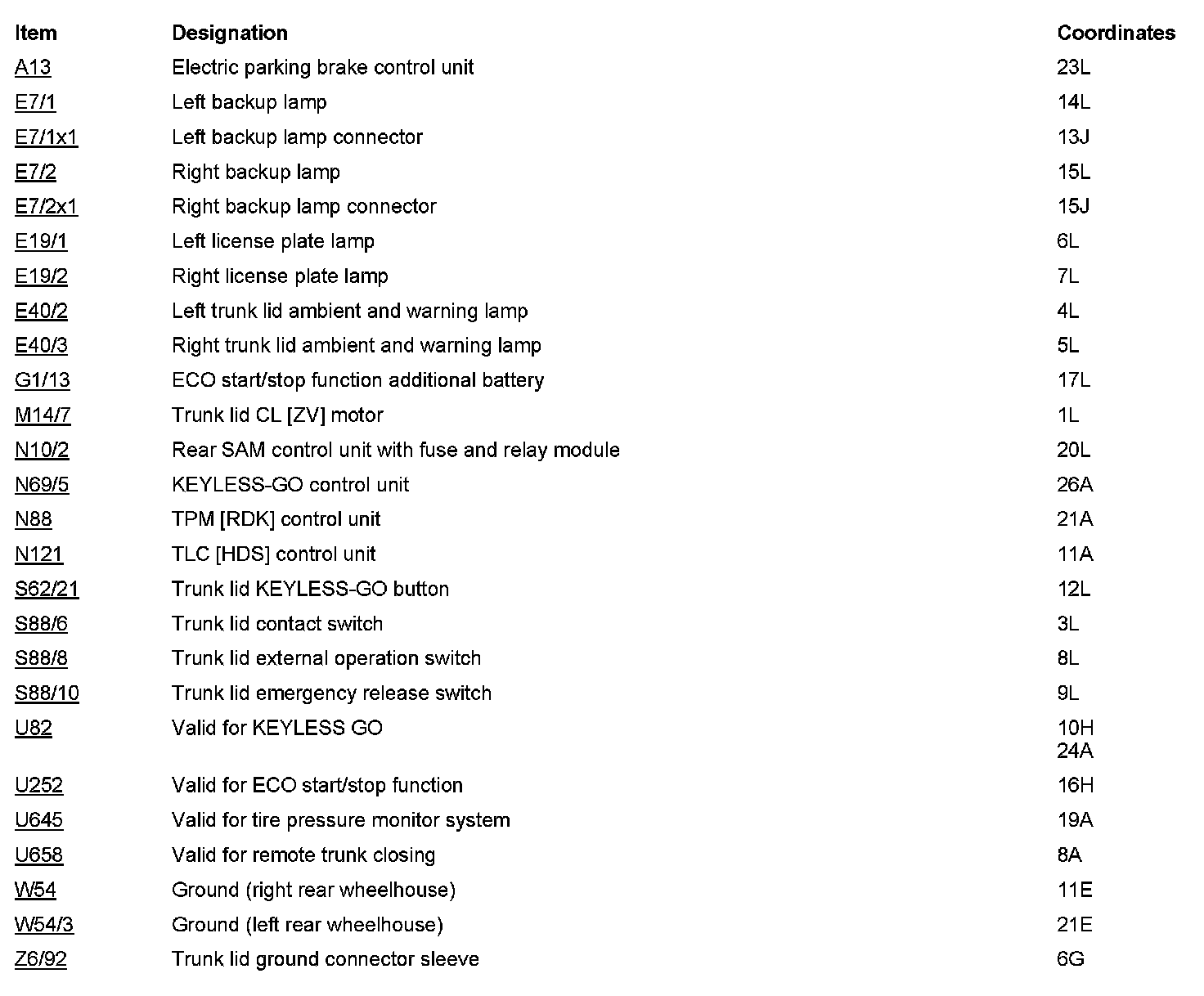

MODEL 216

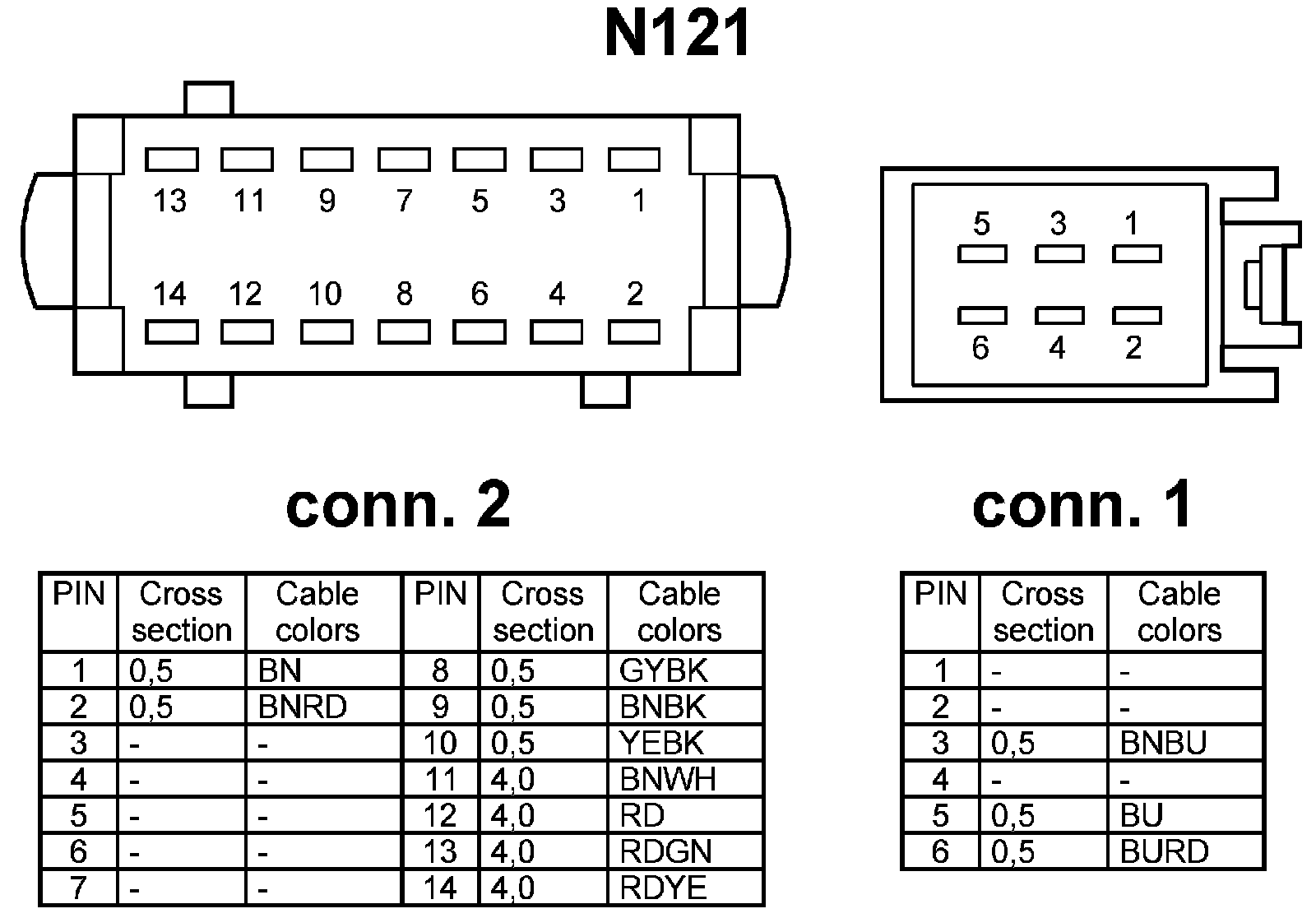

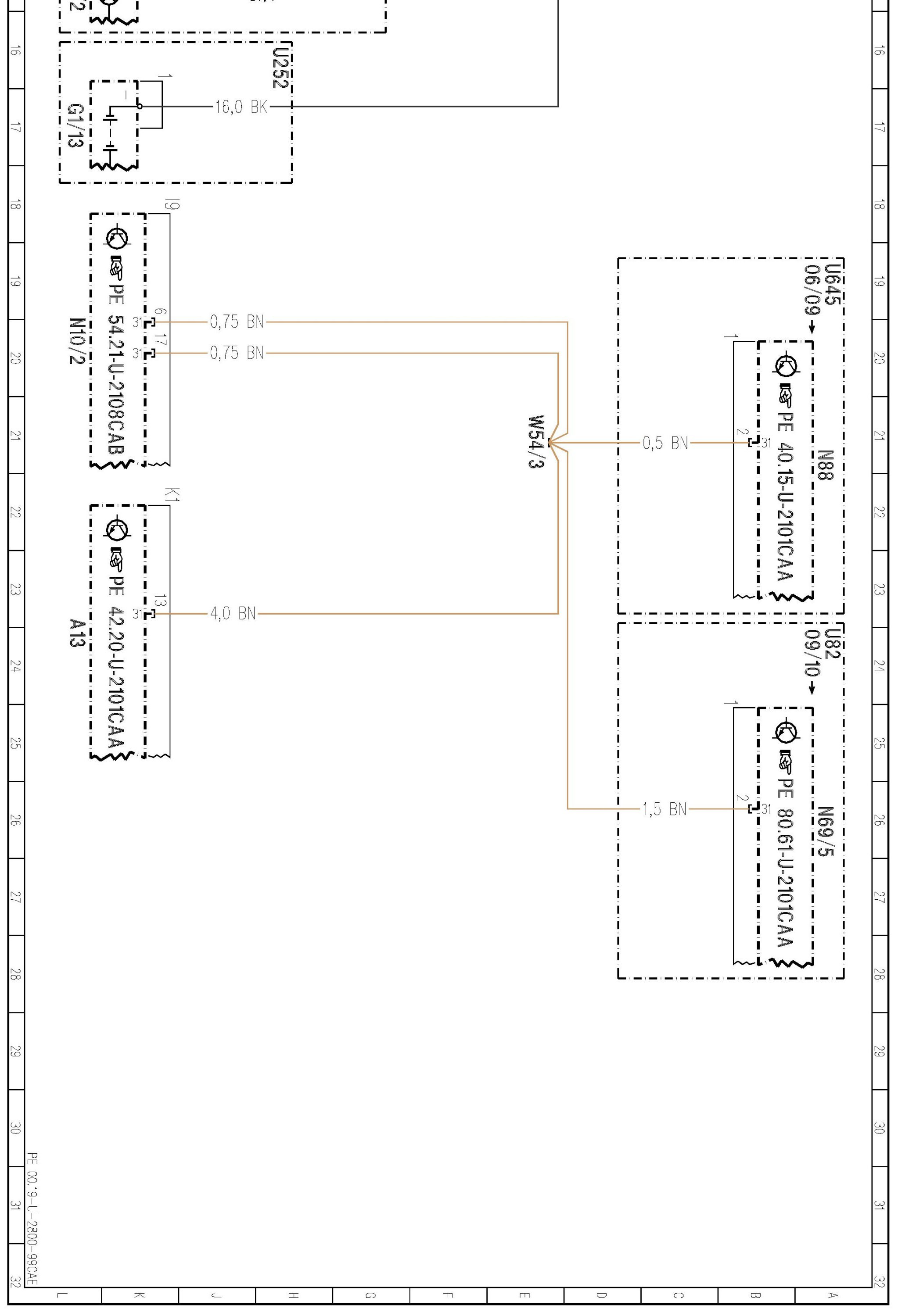

- W54, W54/3, sheet 5



























































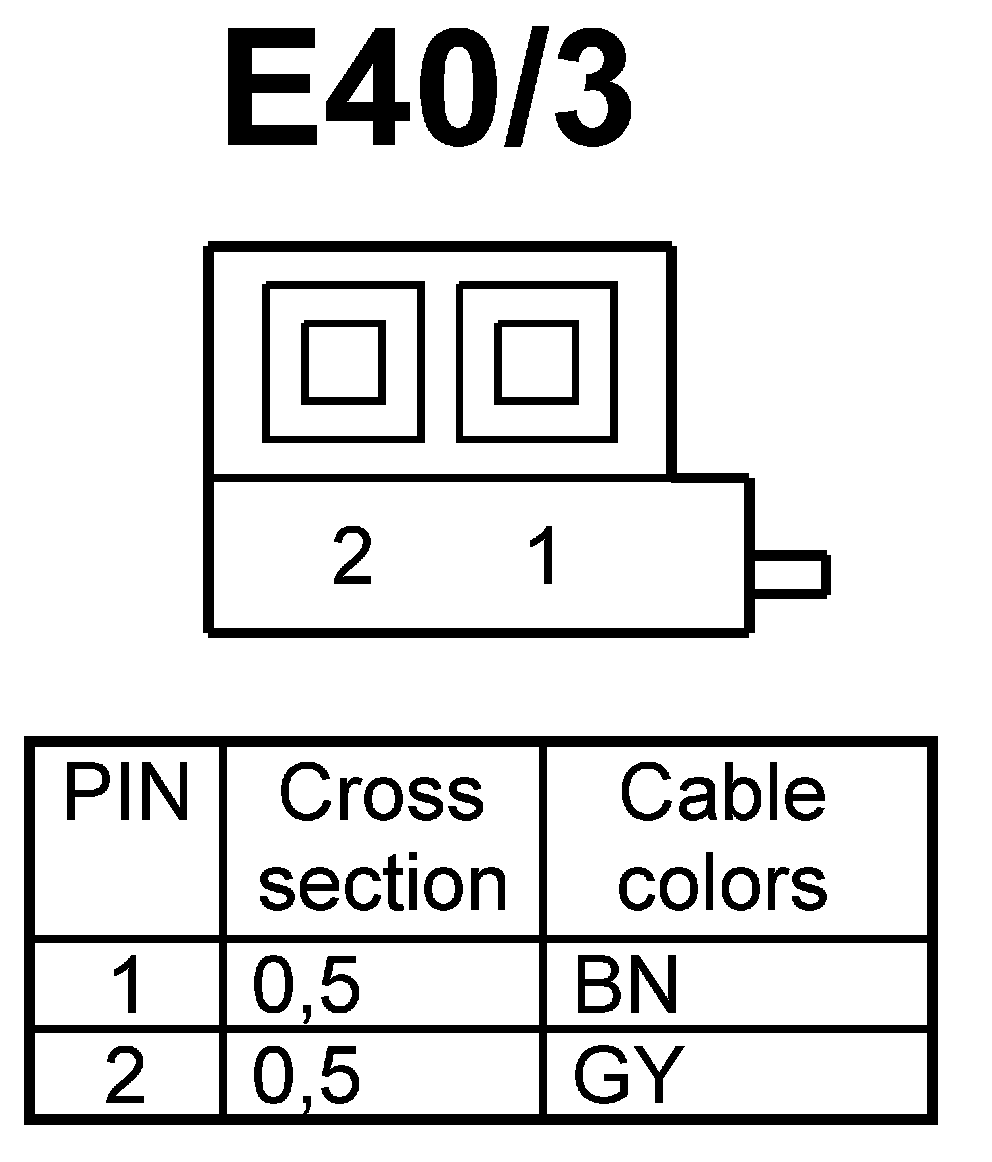

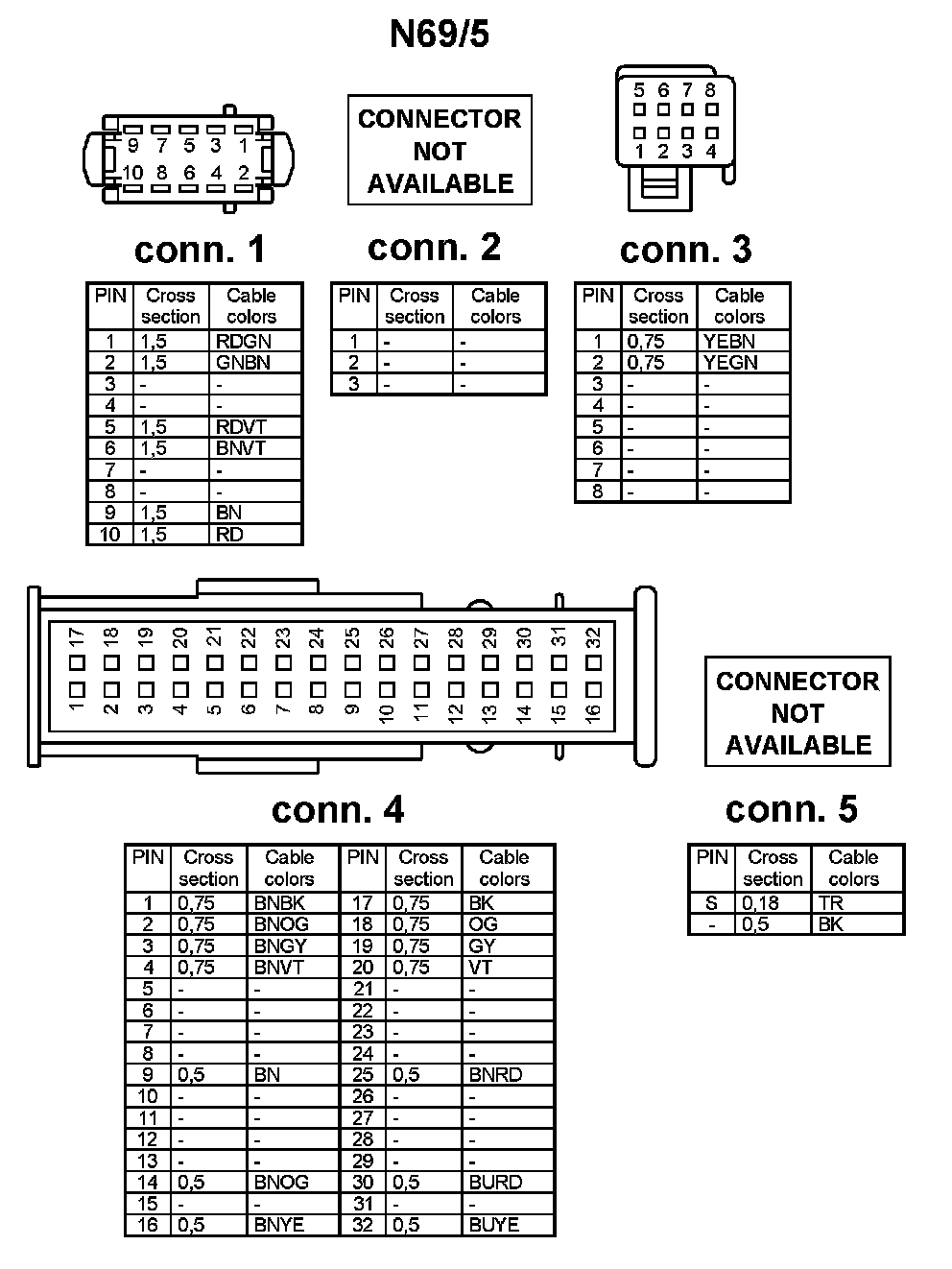

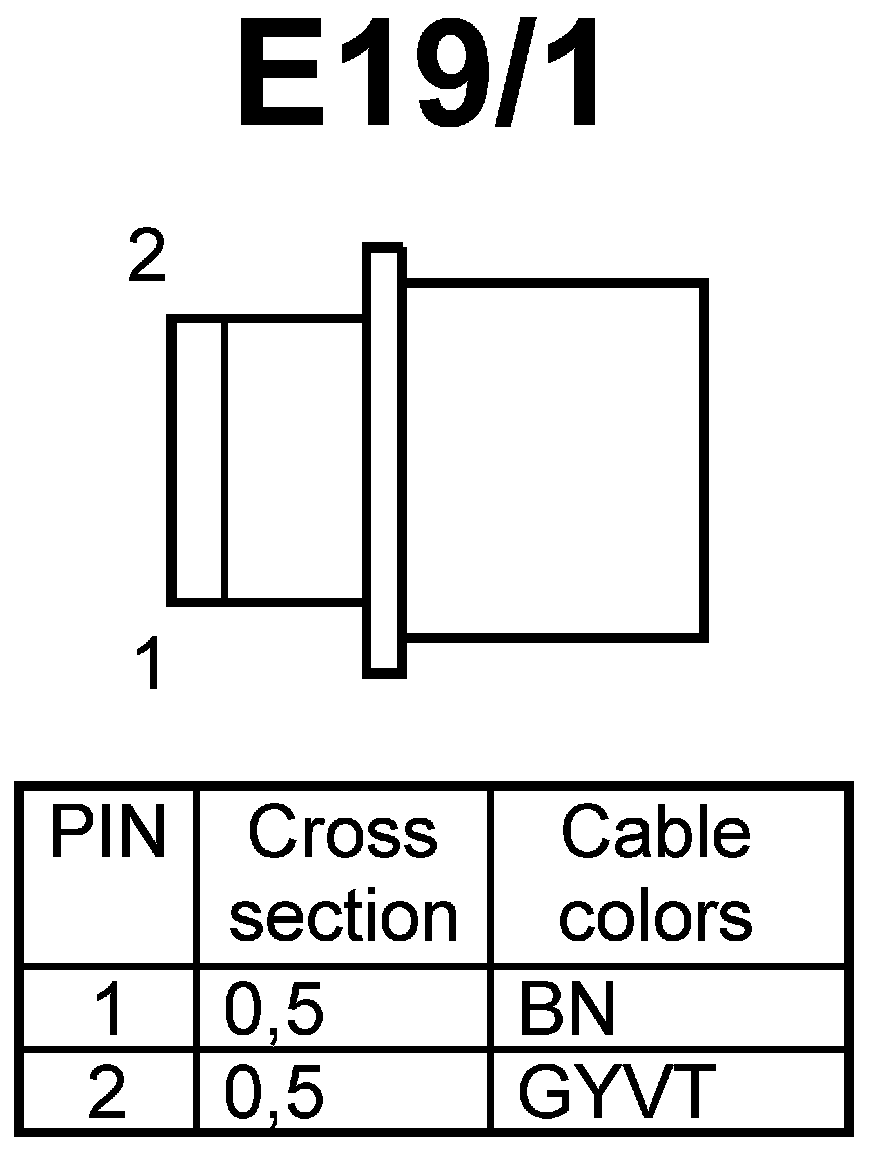

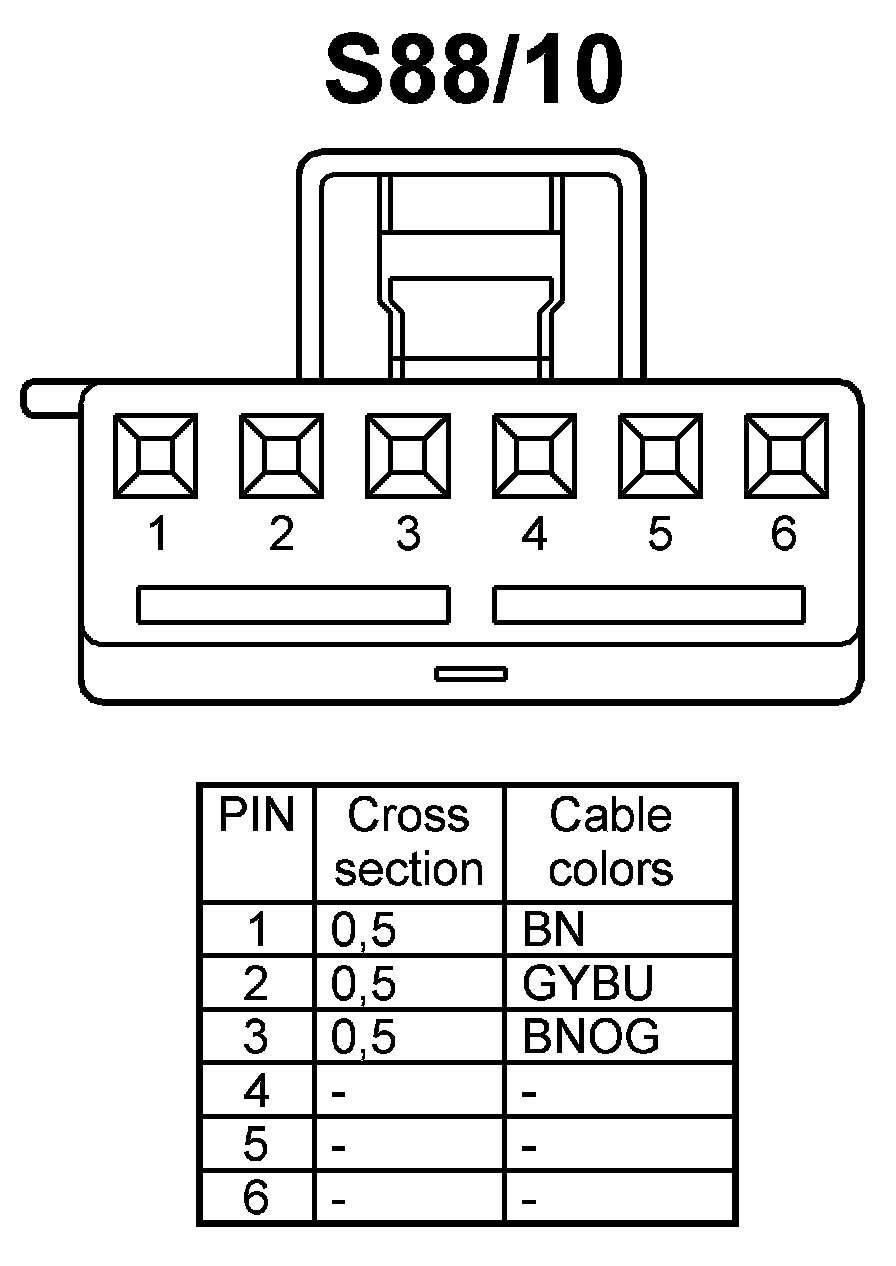

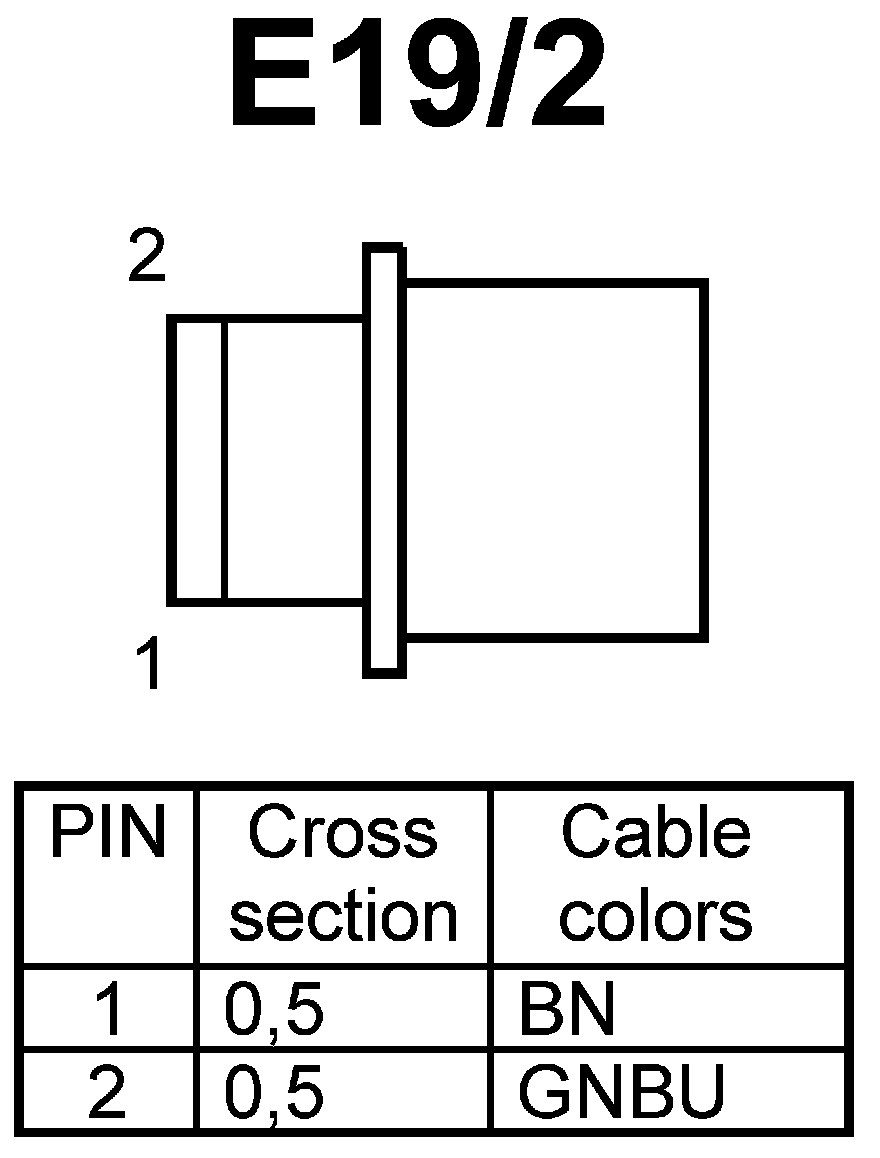

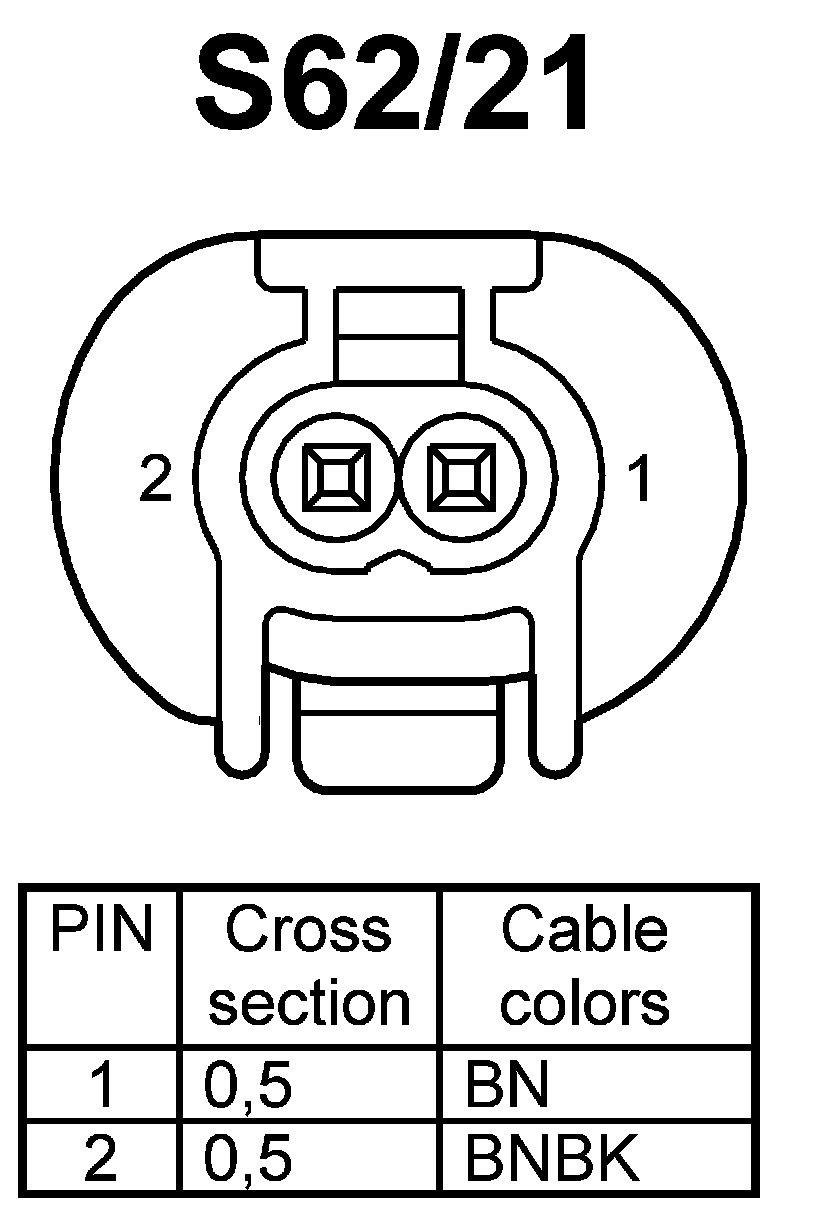

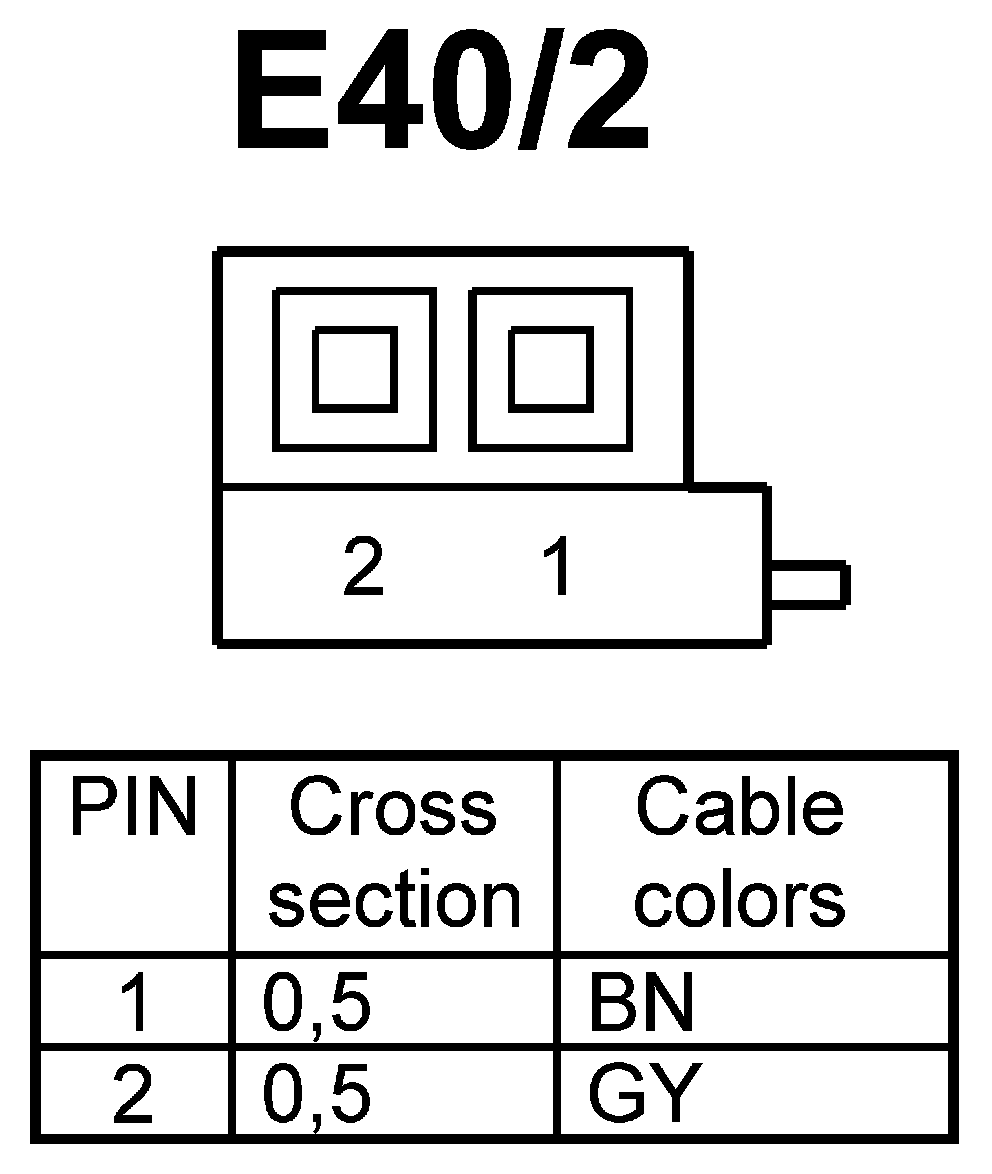

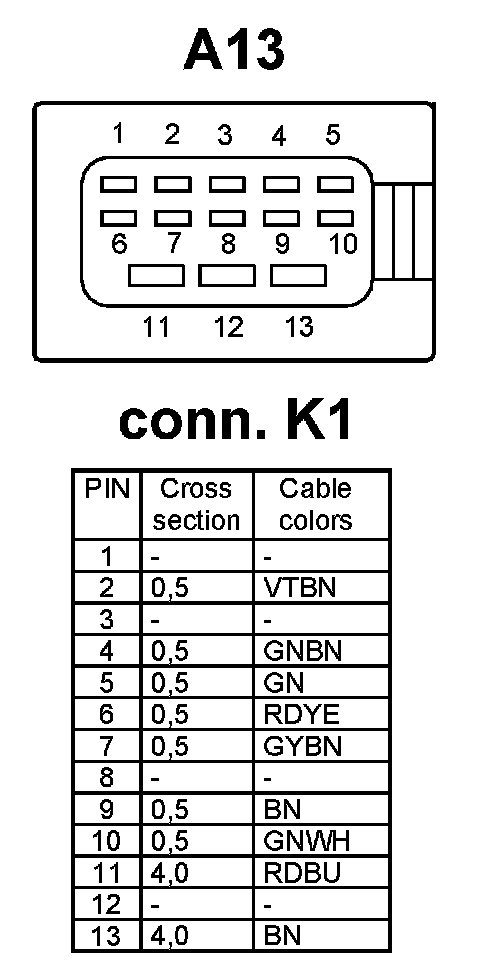

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
