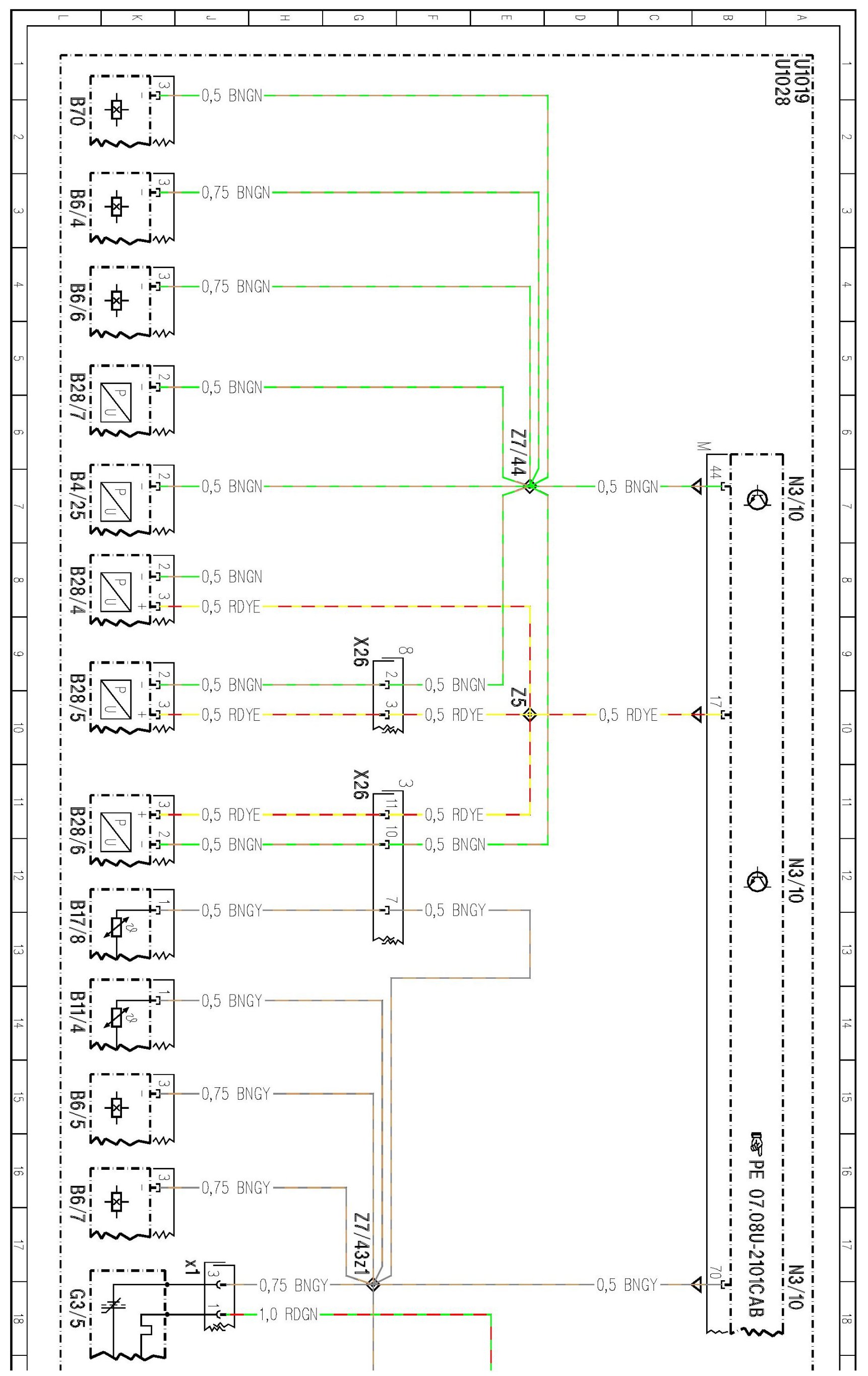

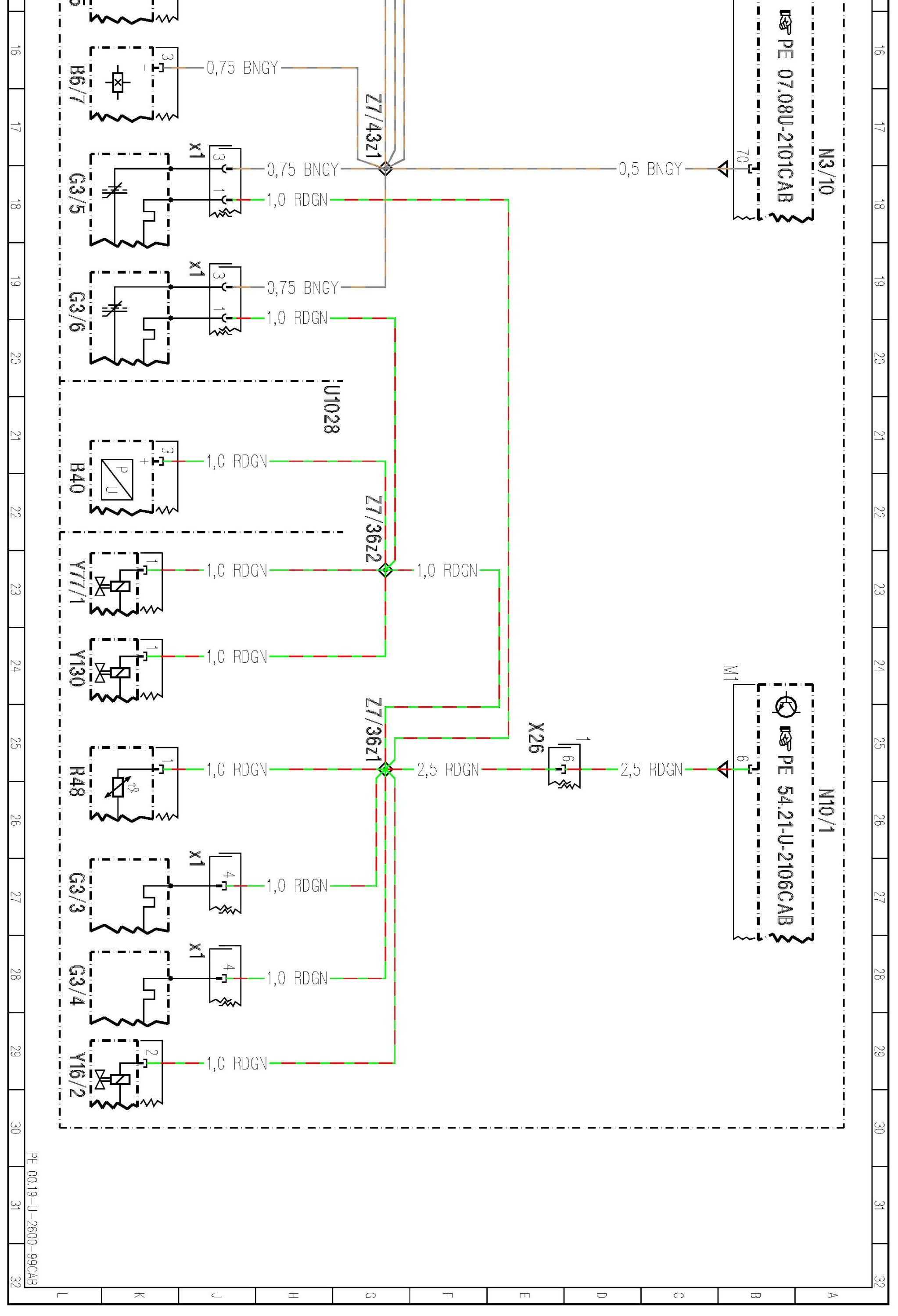

PE00.19-U-2600CAB Solder Joints/Z Connector Sleeves



PE00.19-U-2600CAB Solder Joints/Z Connector Sleeves

MODEL 216

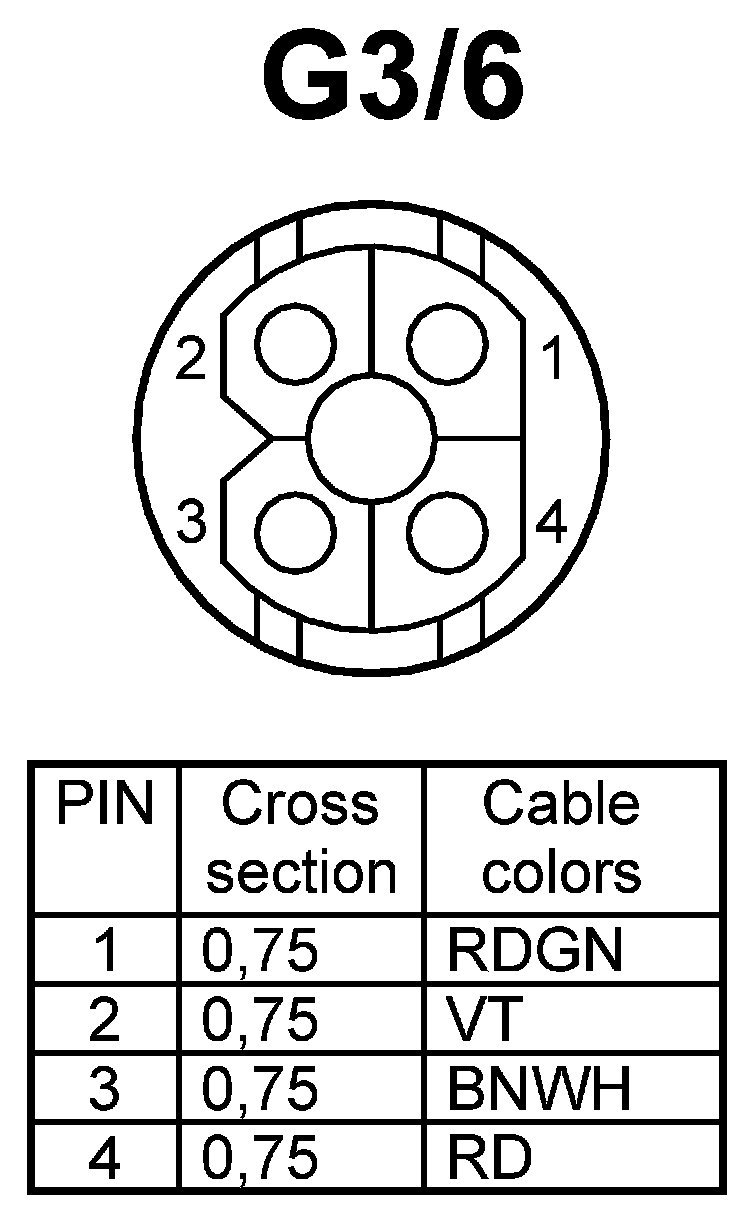

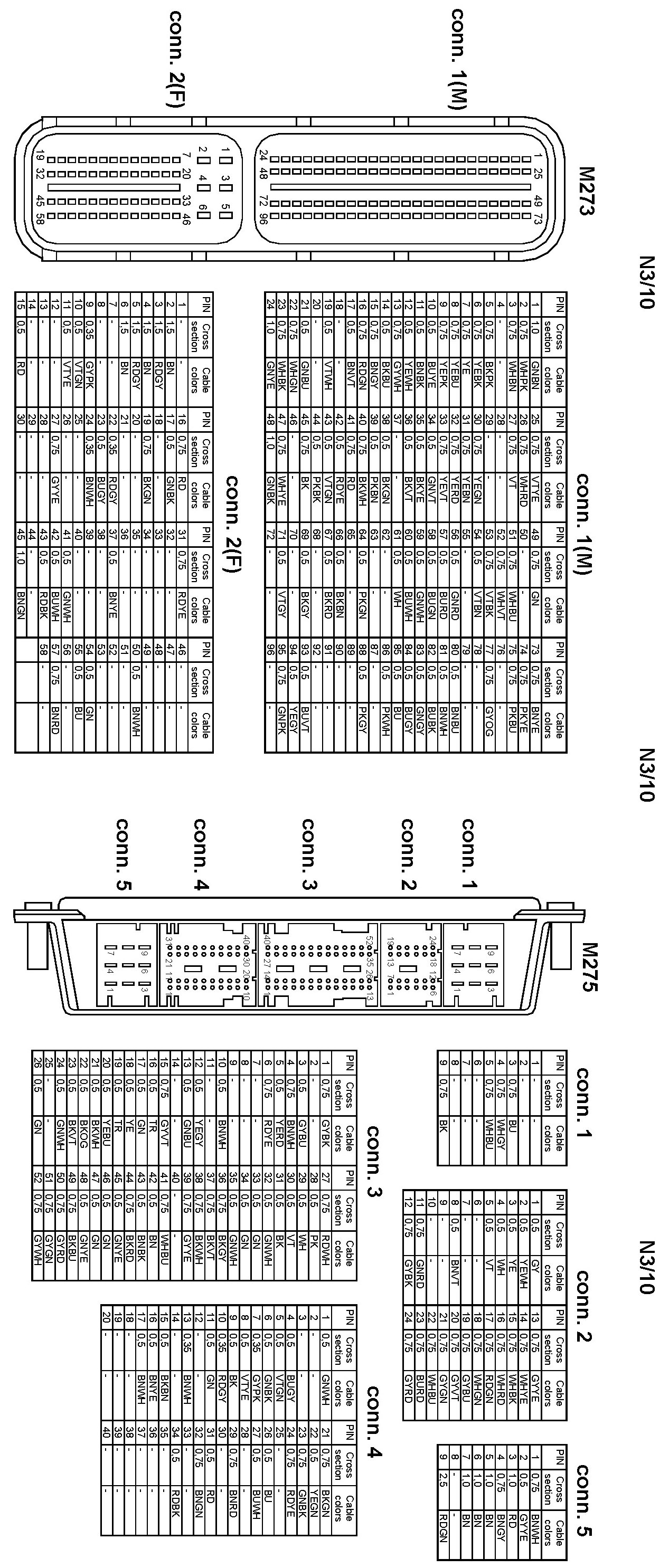

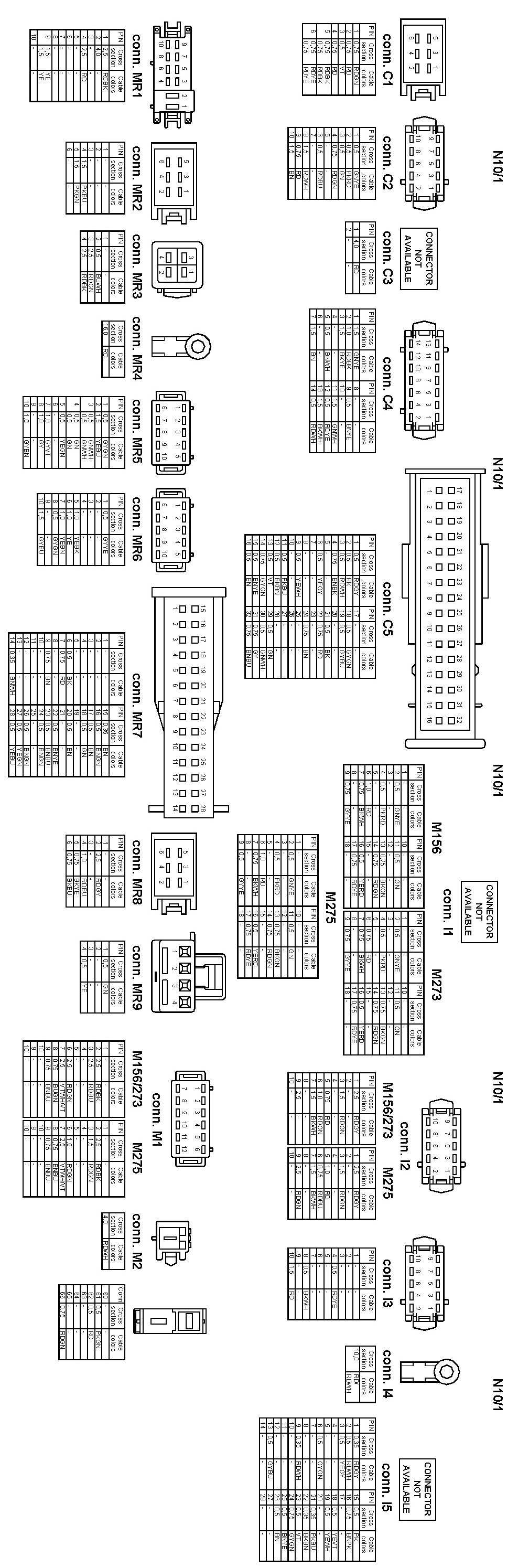

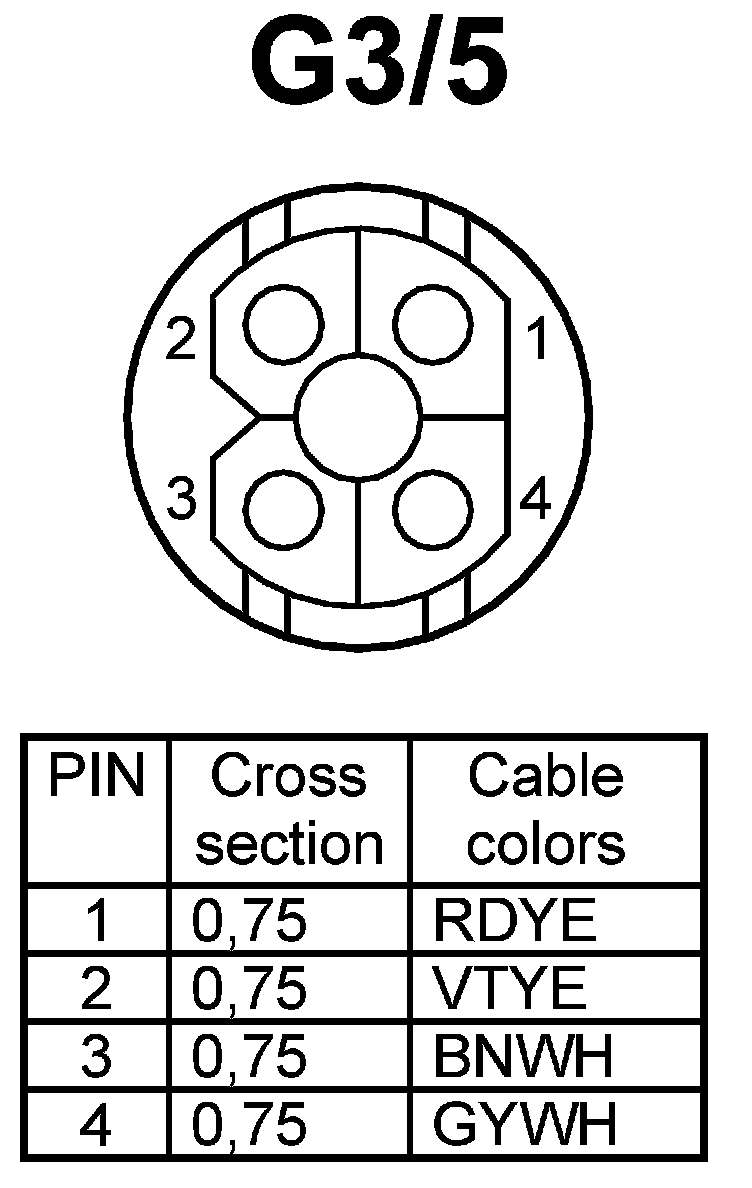

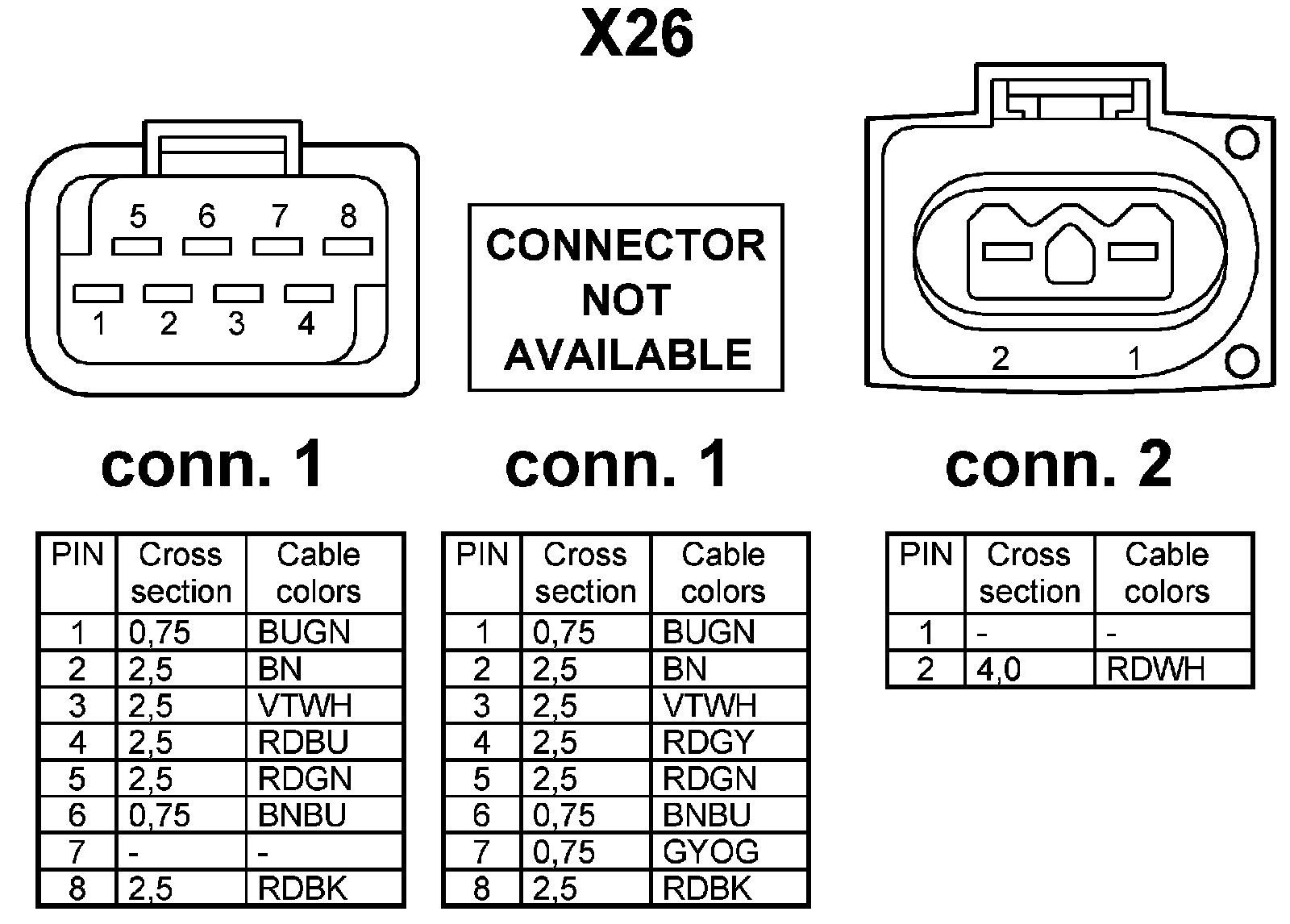

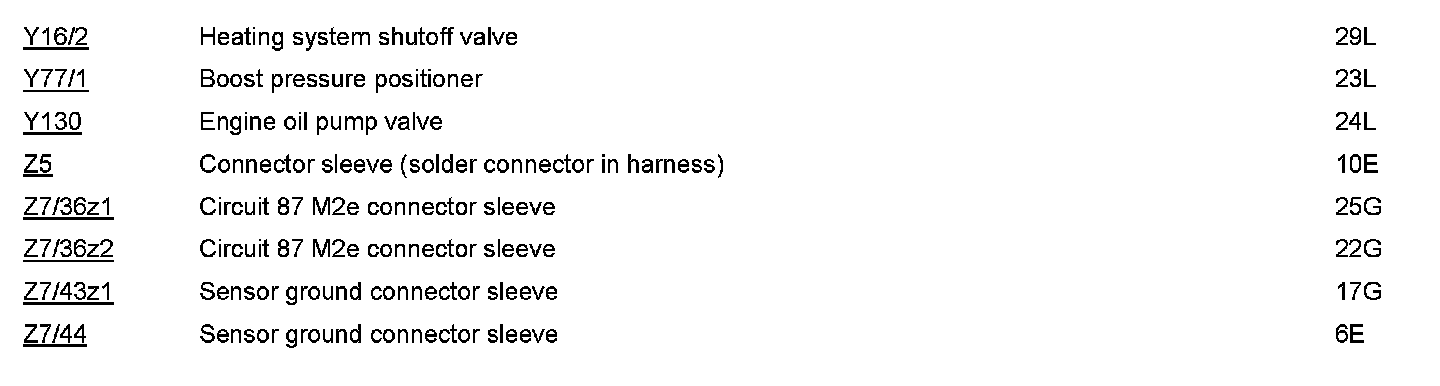

- Z5, Z7/36z1, Z7/36z2, Z7/43z1, Z7/44, sheet 2

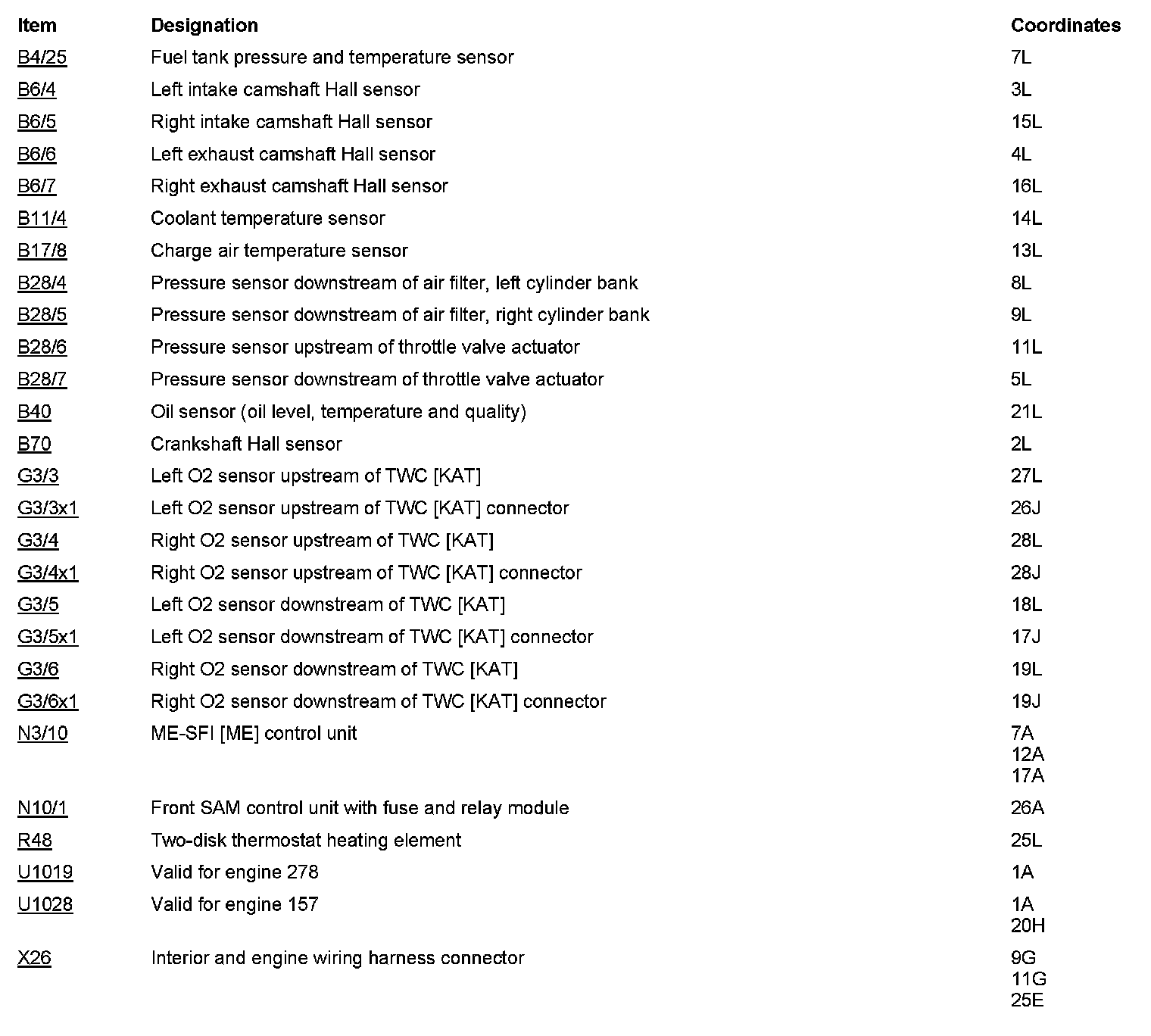

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
