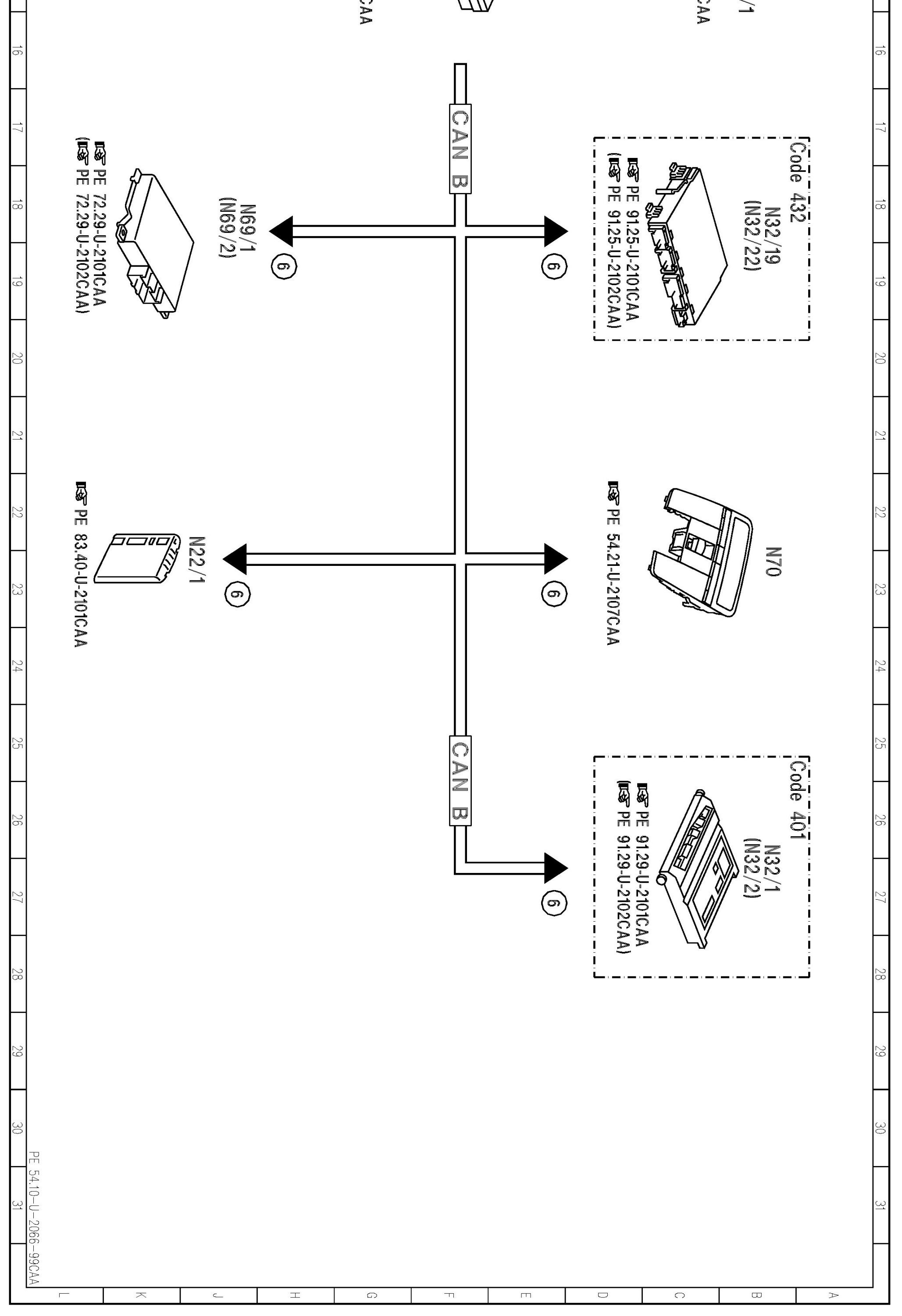

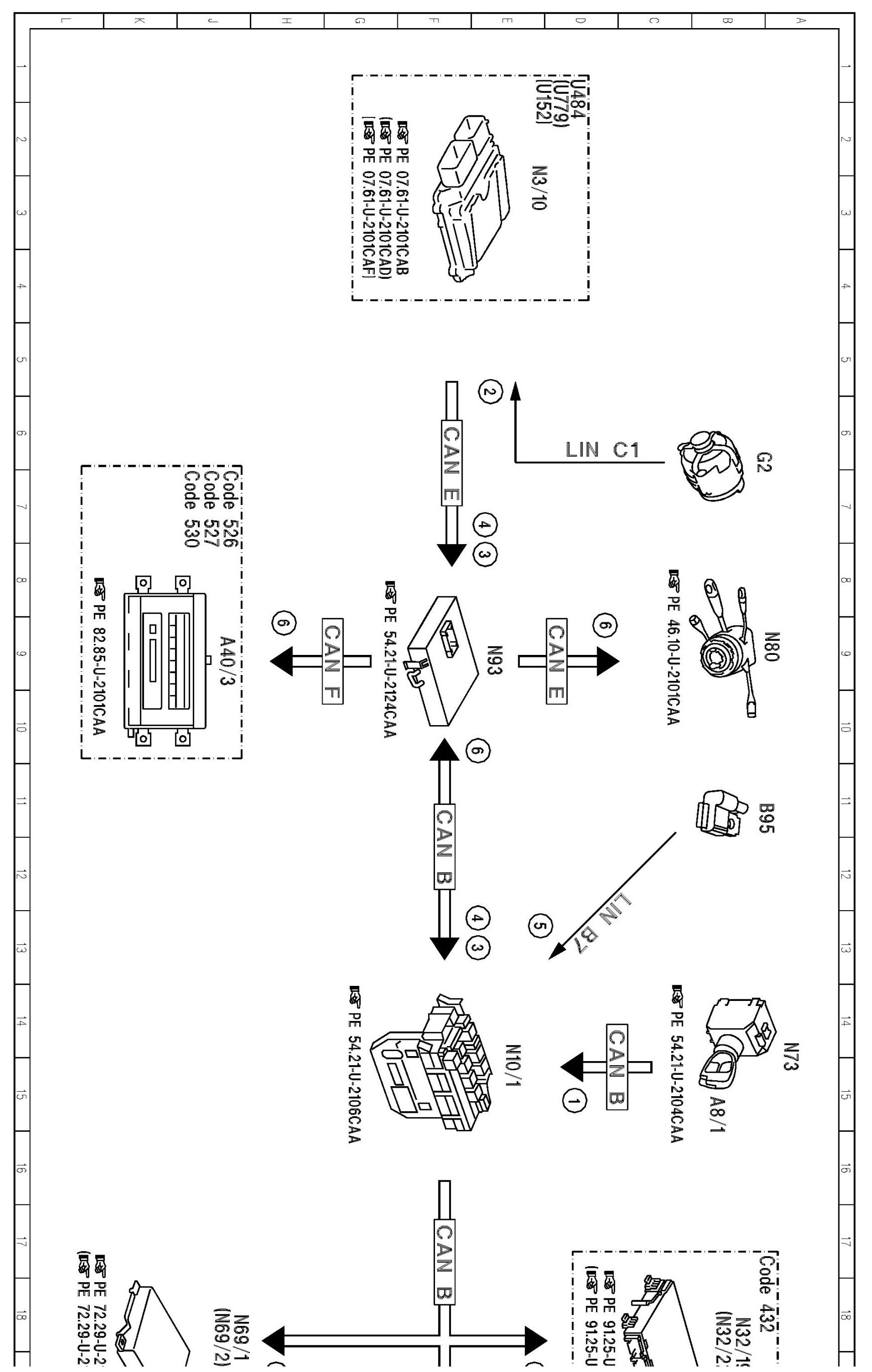

PE54.10-U-2066CAA Electrical Function Schematic For Consumer Shutoff

PE54.10-U-2066CAA Electrical Function Schematic For Consumer Shutoff

MODEL 216
- as of Model Year 2009

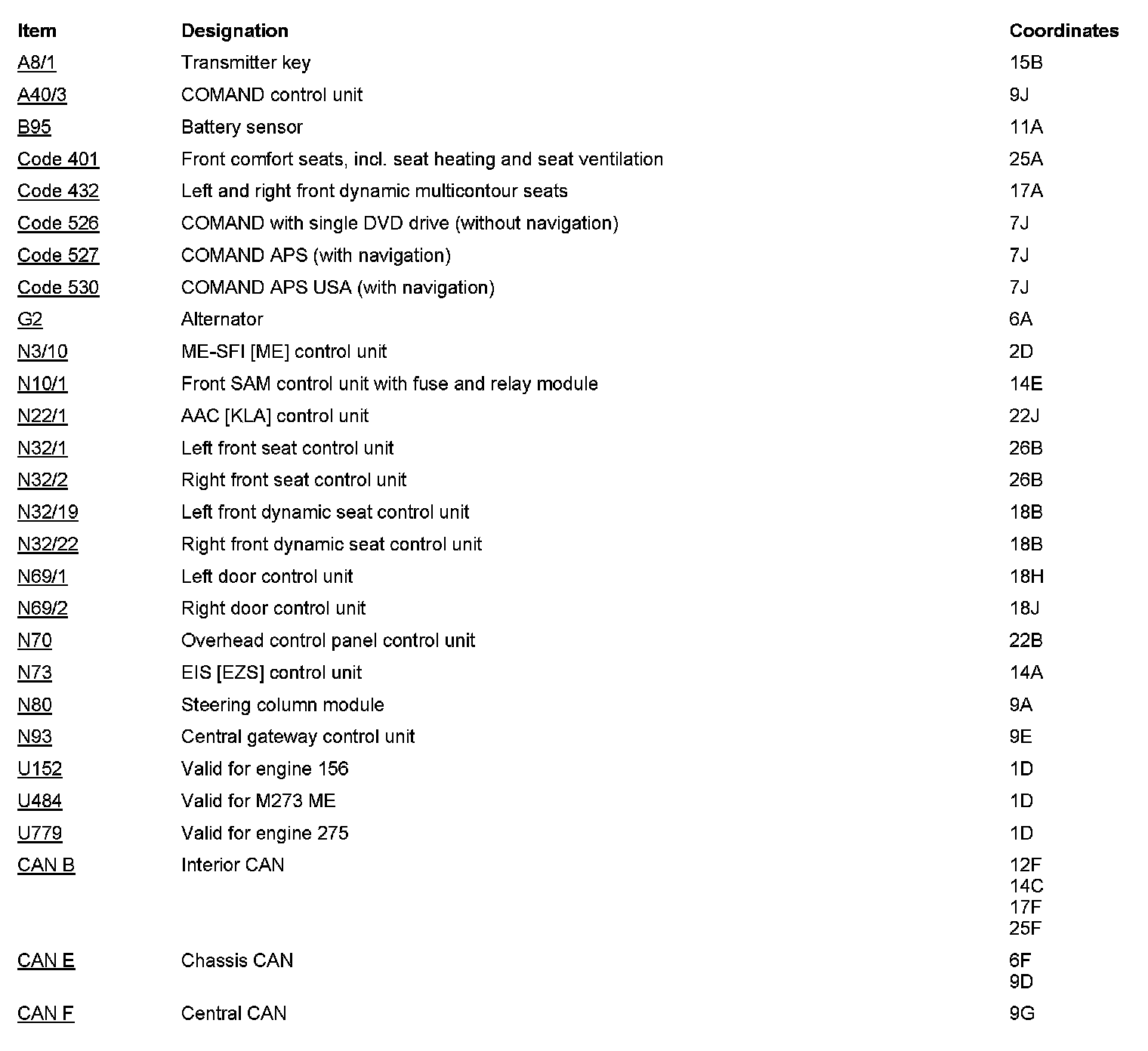

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
