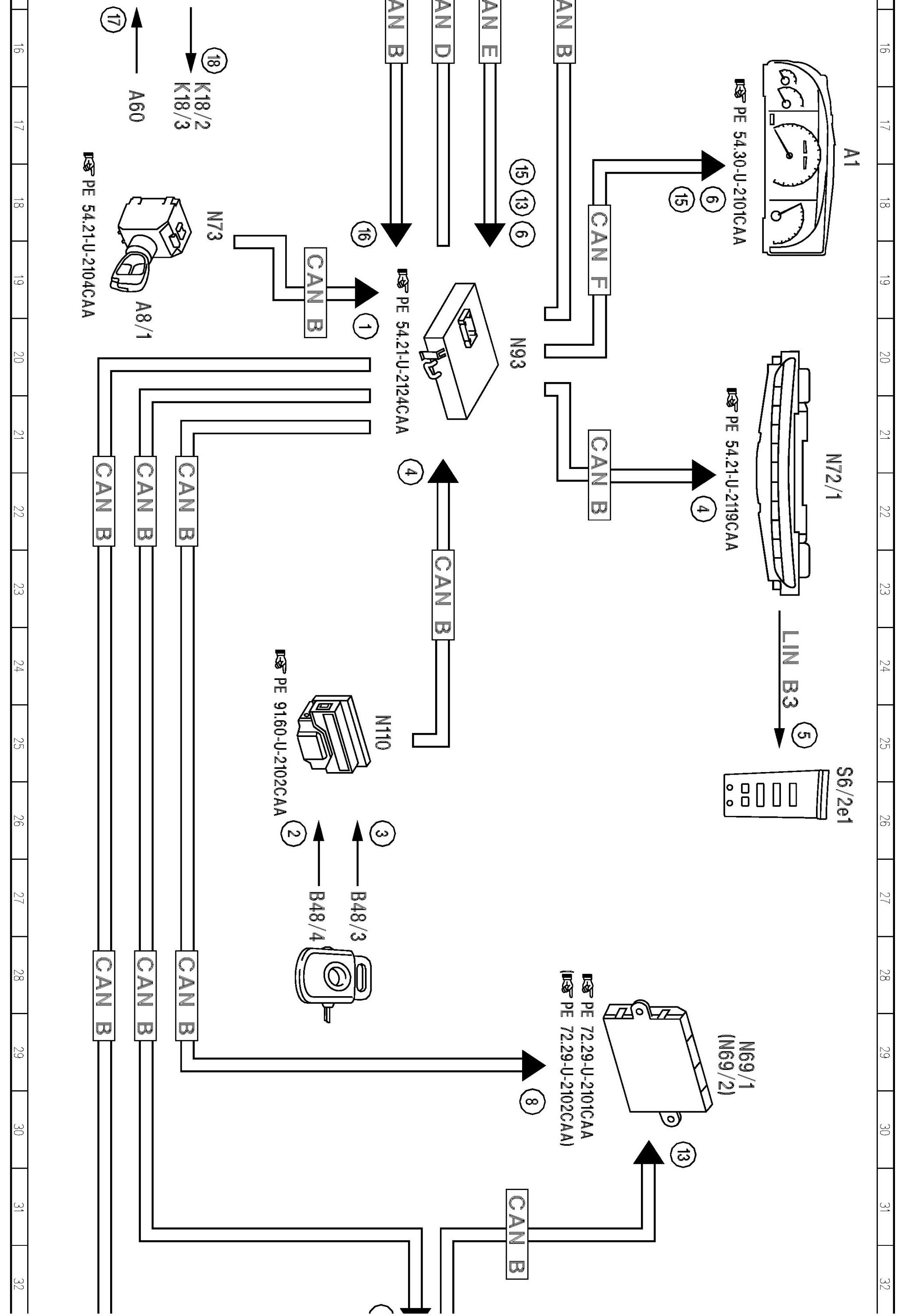

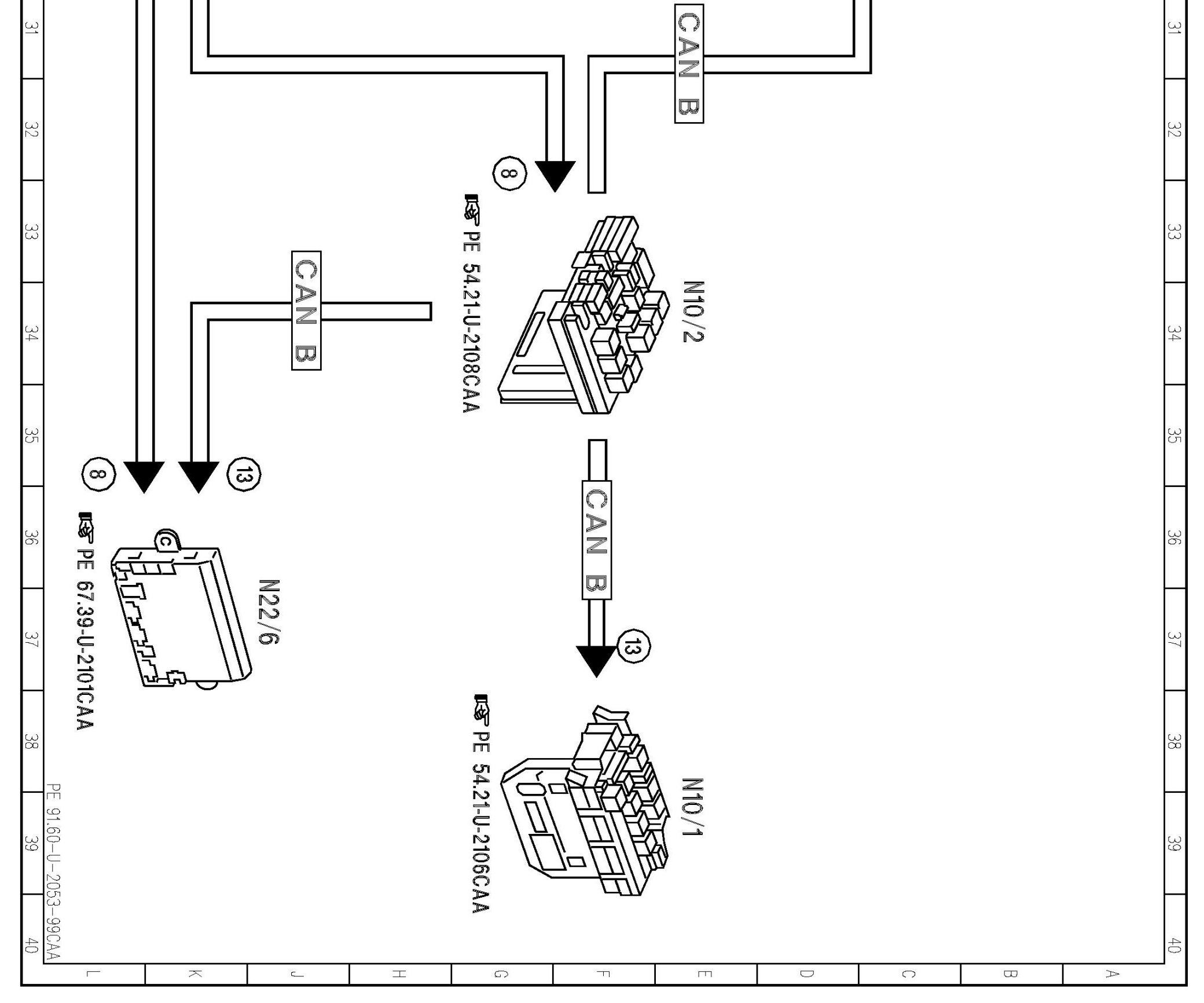

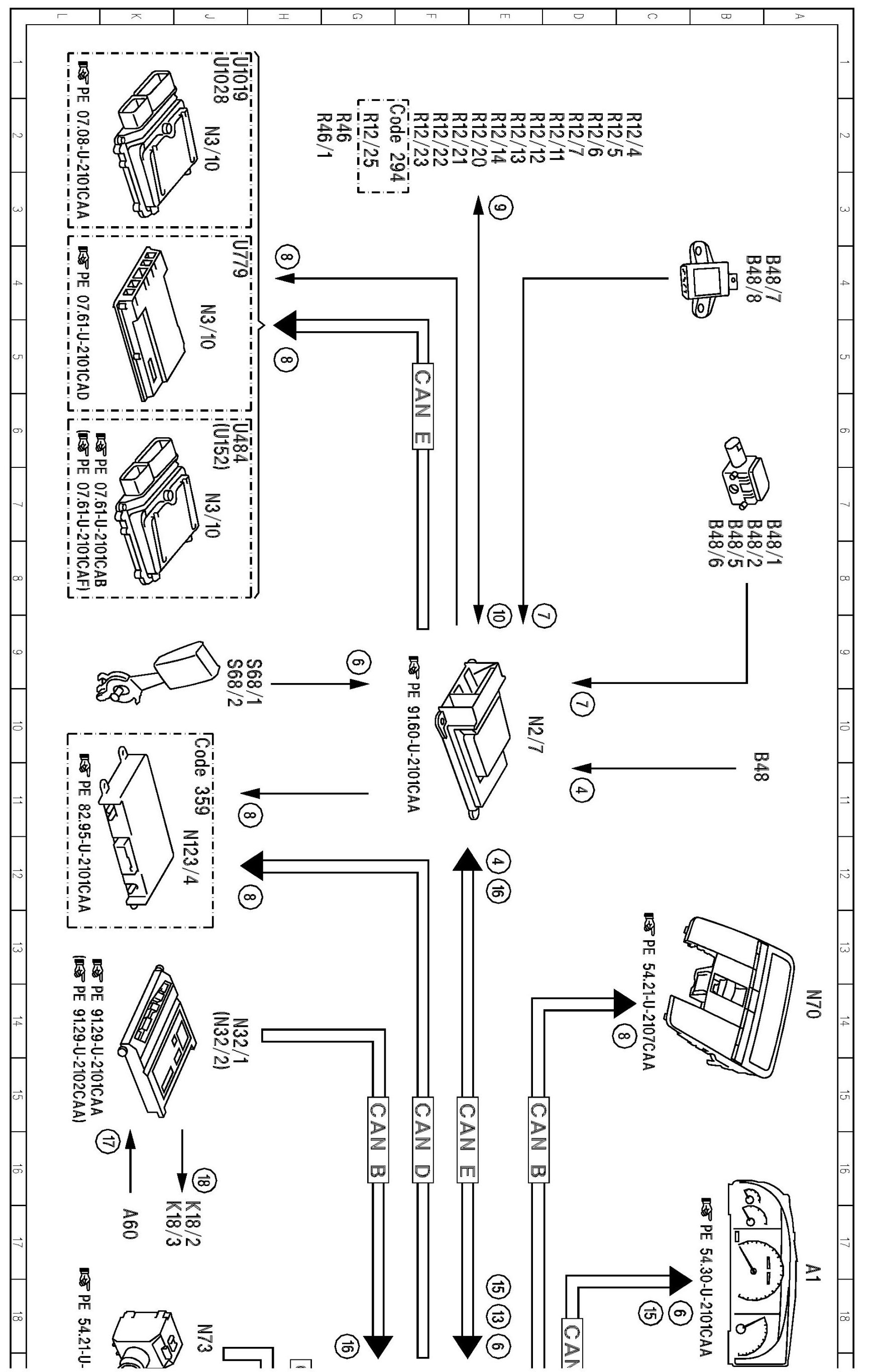

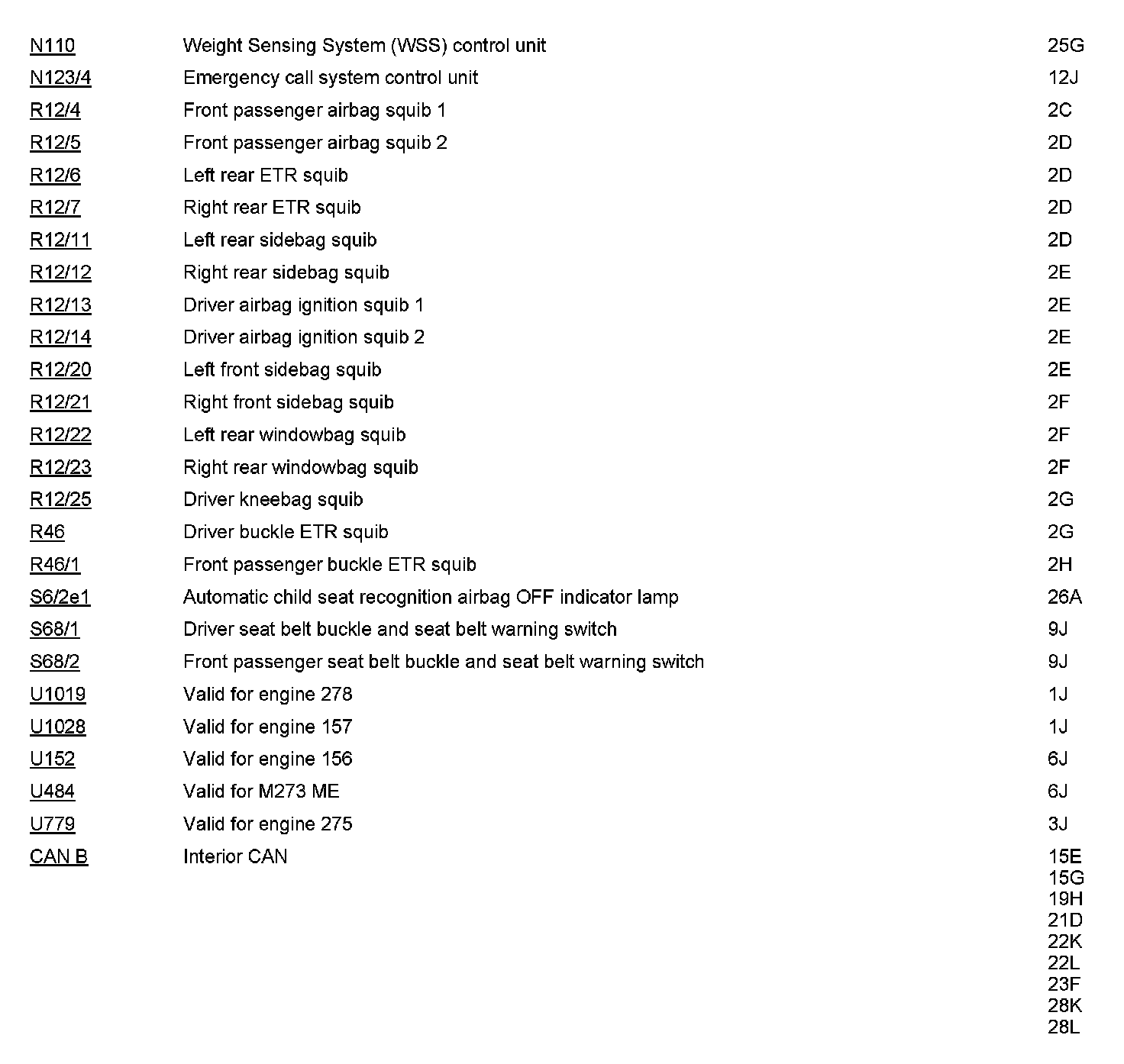

PE91.60-U-2053CAA Electrical Function Schematic For Deployment of Supplemental Restraint System (SRS)

PE91.60-U-2053CAA Electrical Function Schematic For Deployment of Supplemental Restraint System (SRS)

MODEL 216
- as of Model Year 2009

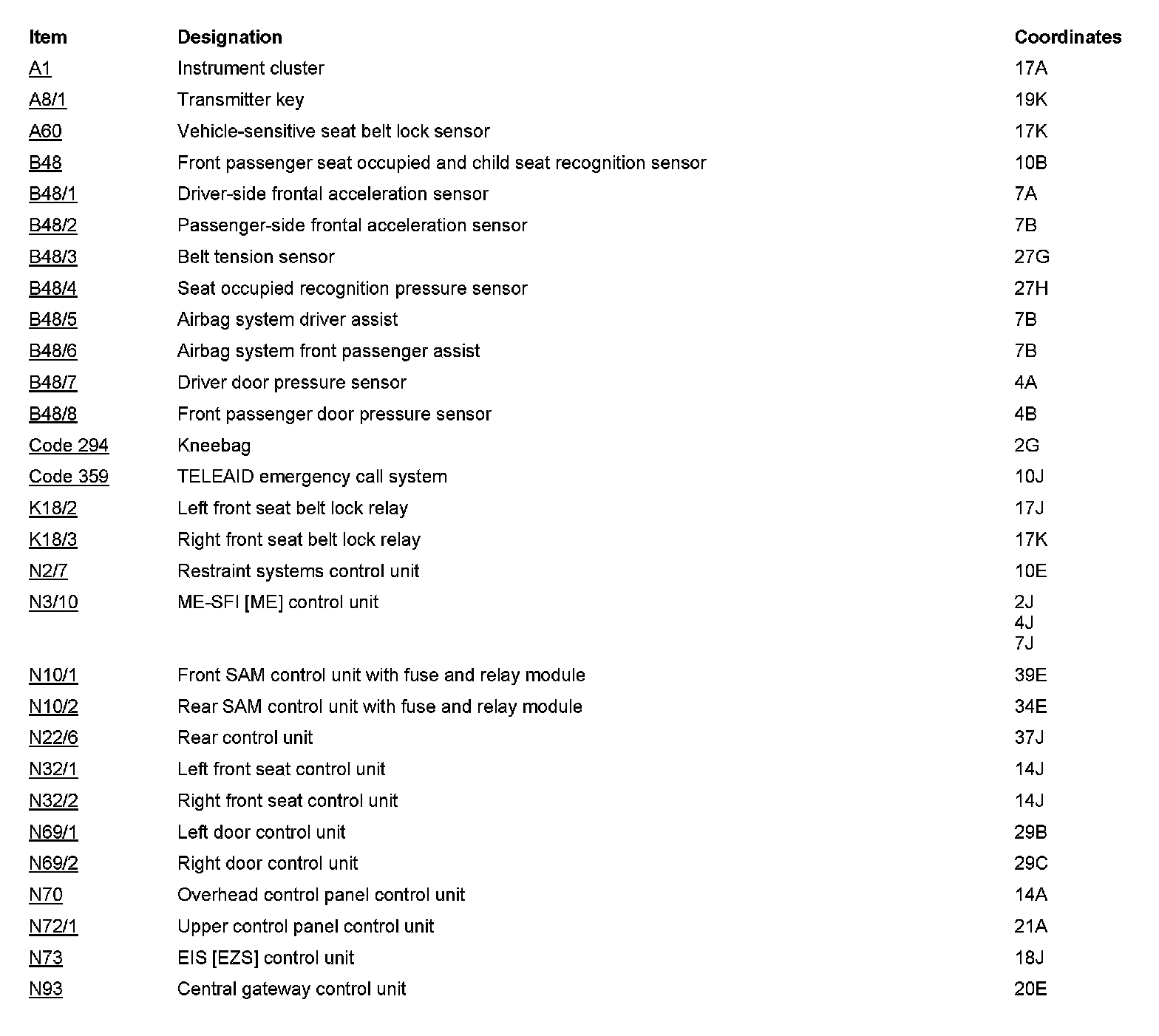

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
