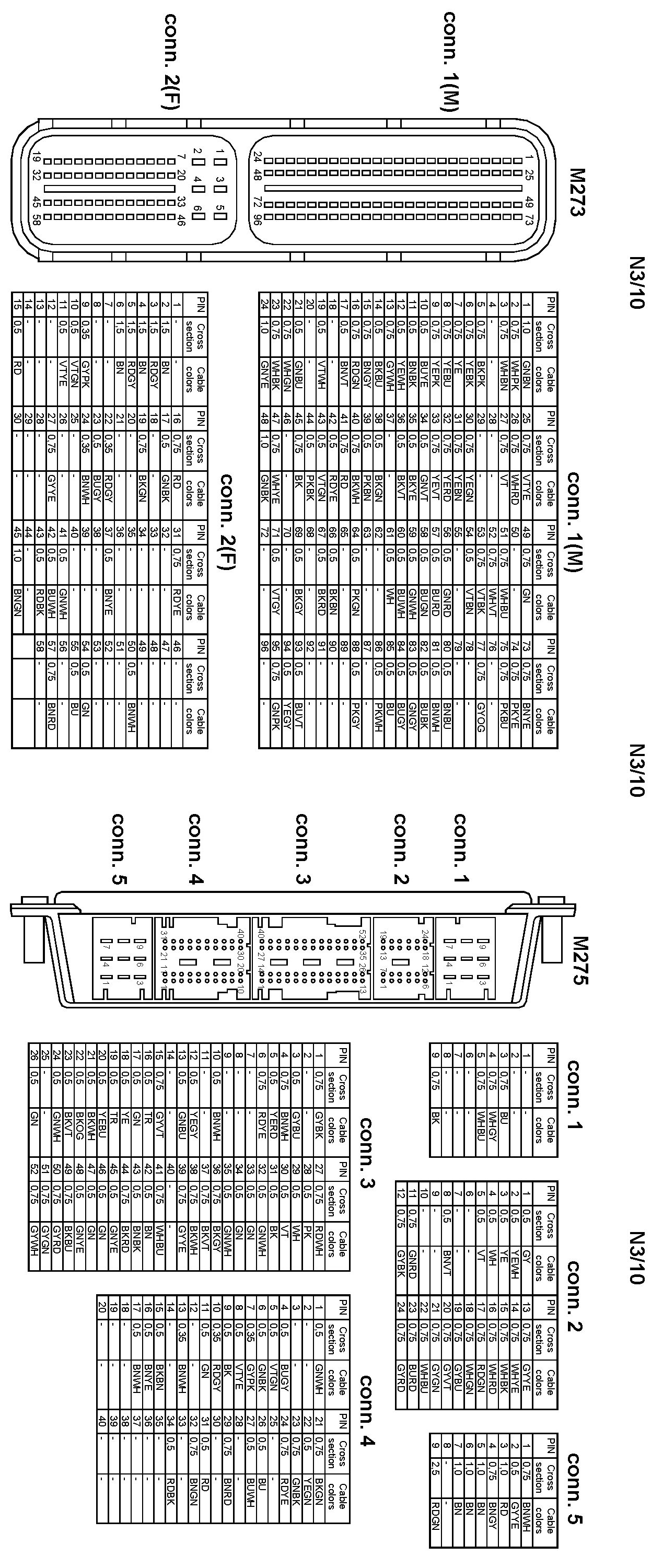

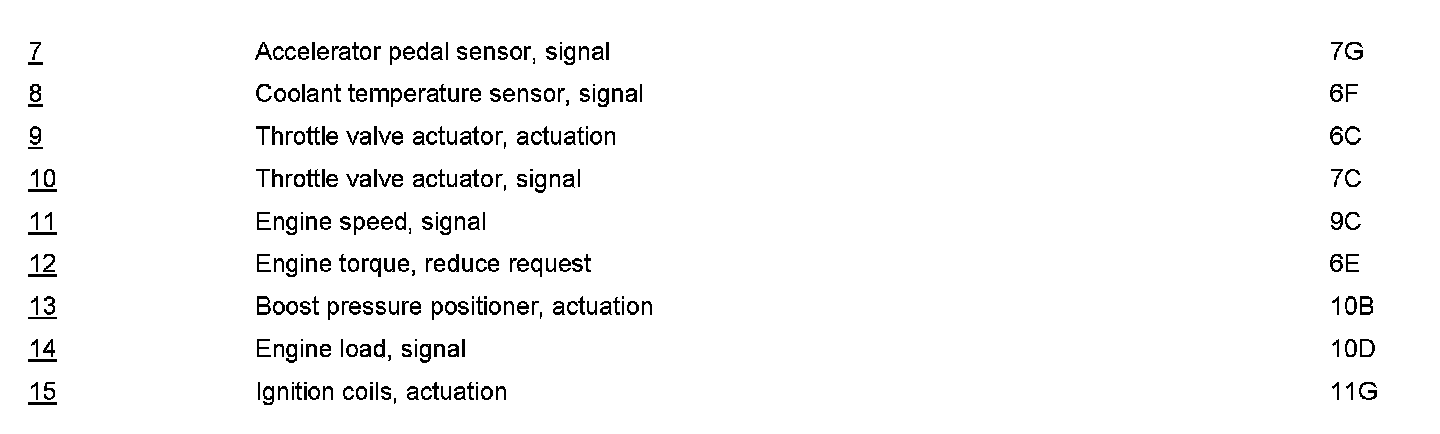

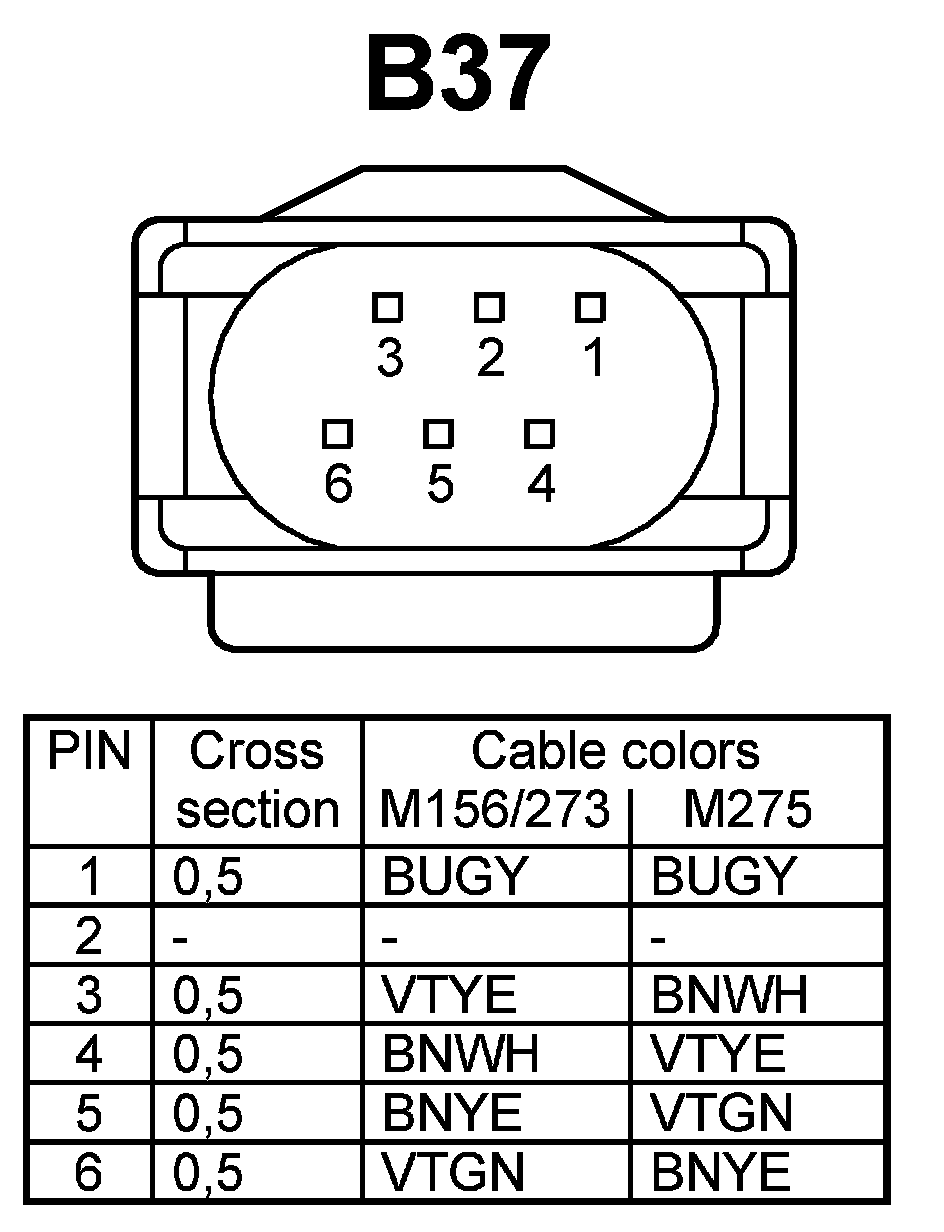

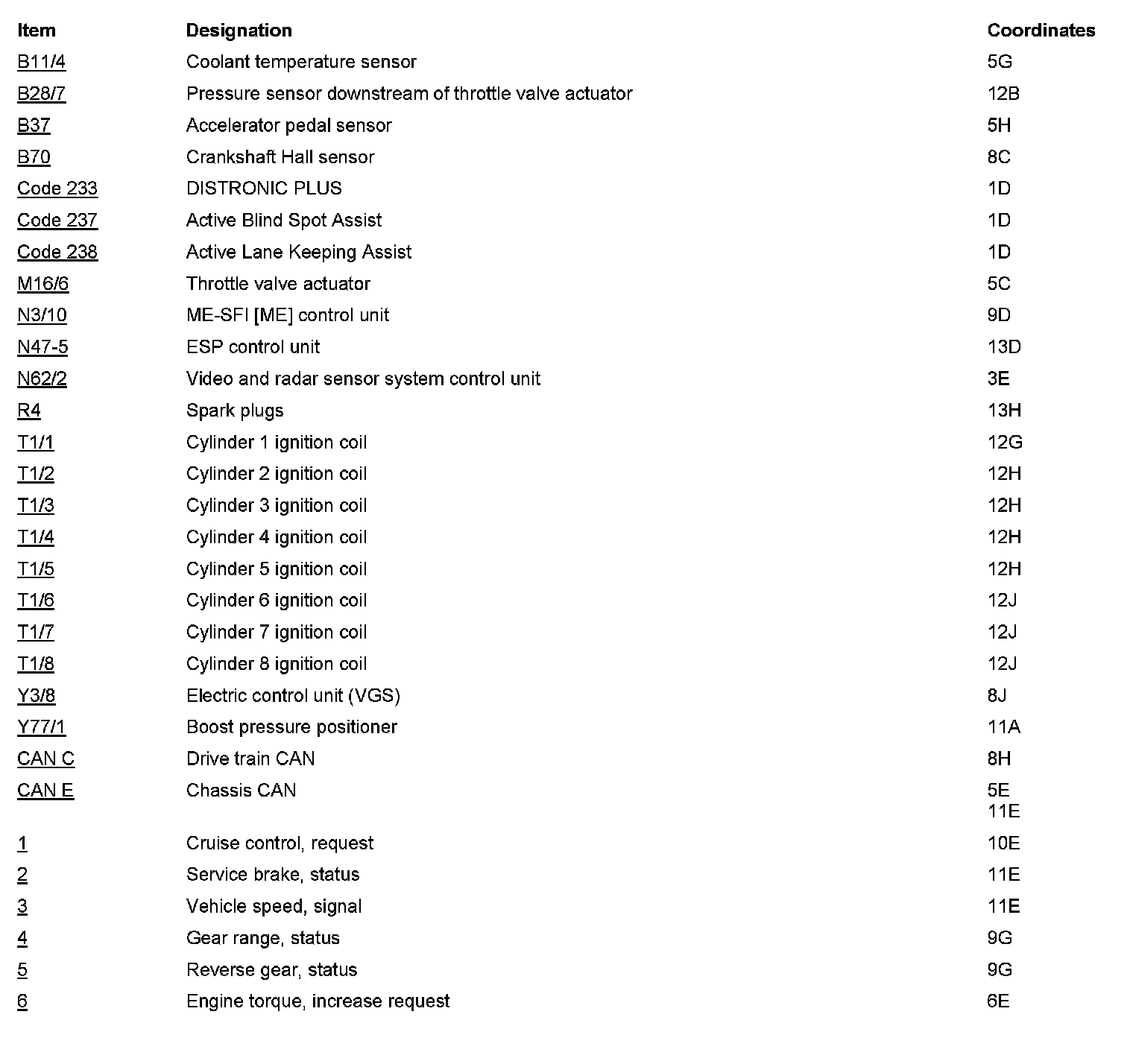

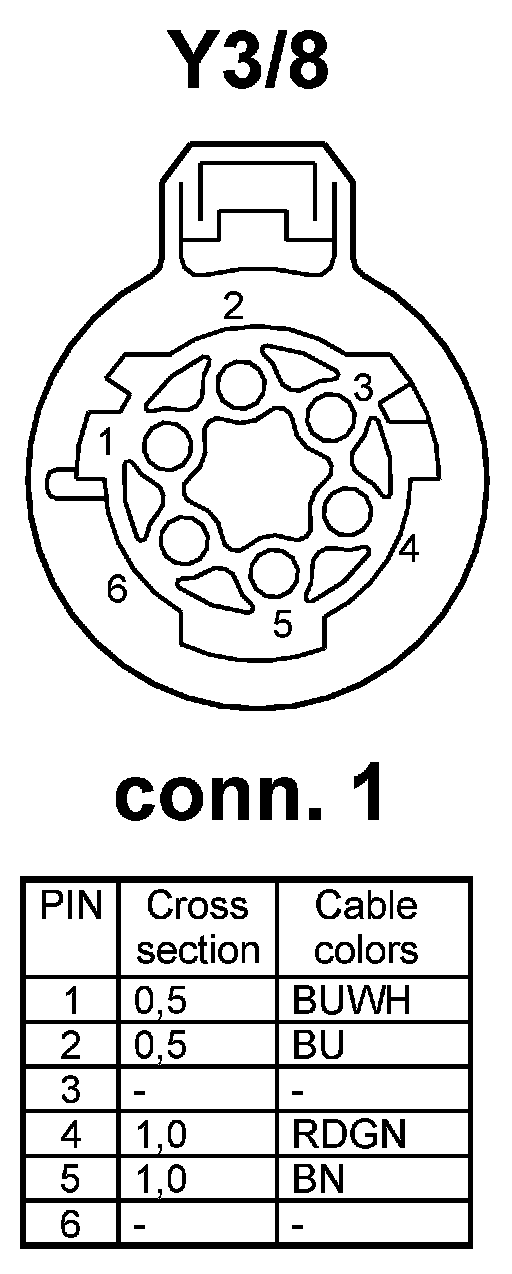

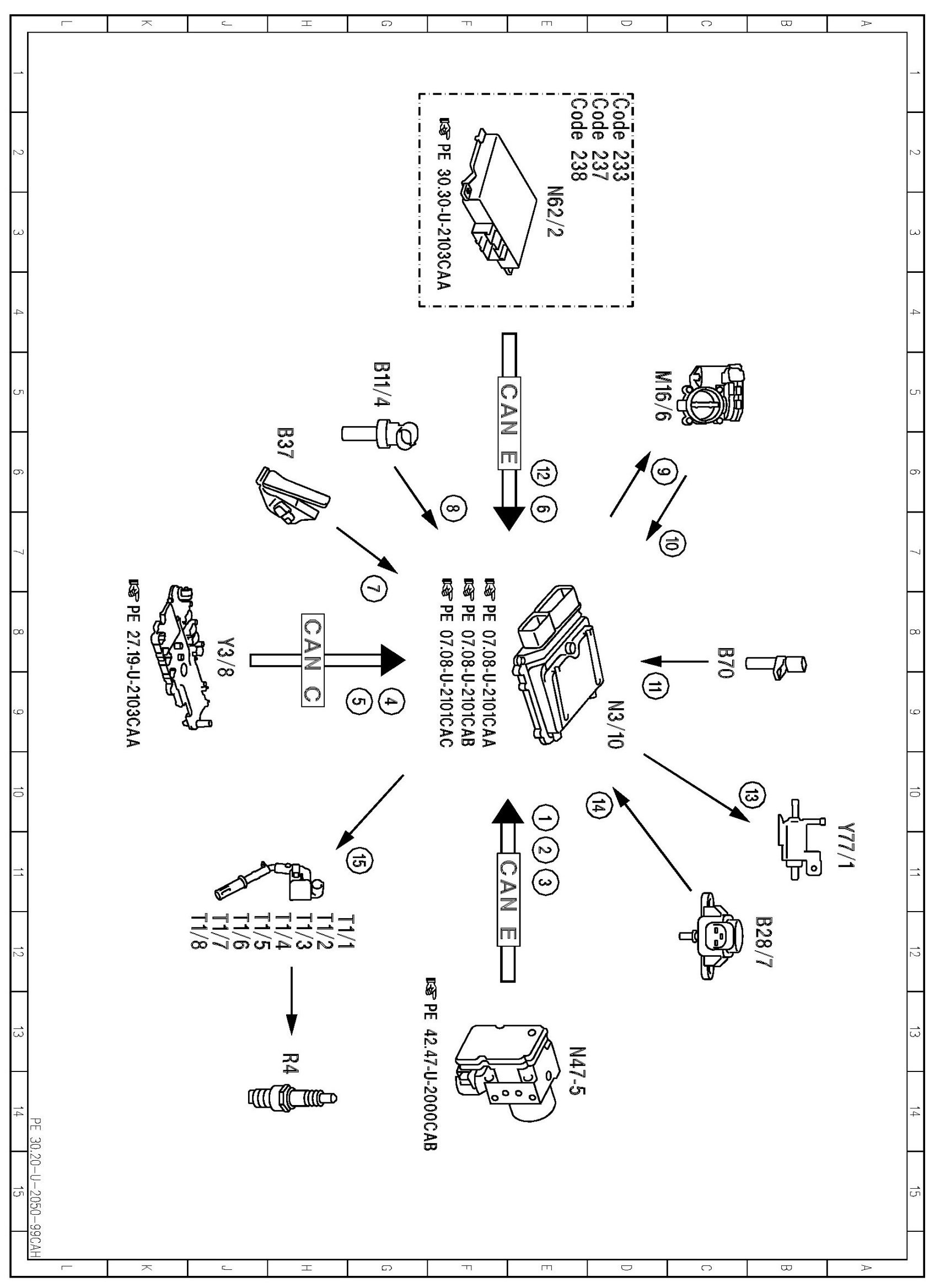

PE30.20-U-2050CAH Electrical Function Diagram For Electronic Accelerator Pedal



PE30.20-U-2050CAH Electrical Function Diagram For Electronic Accelerator Pedal

ENGINE 157, 278 in MODEL 216



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
