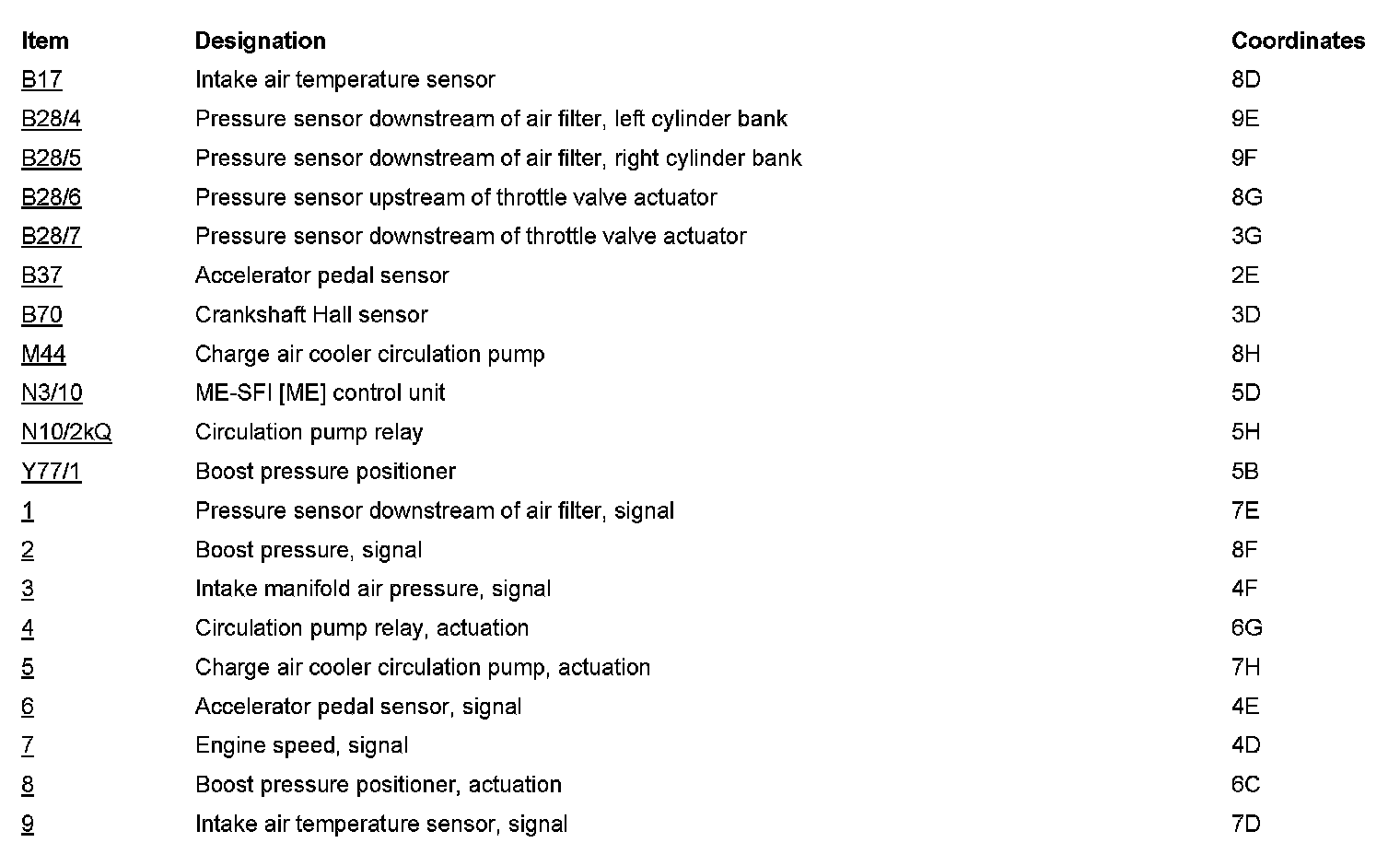

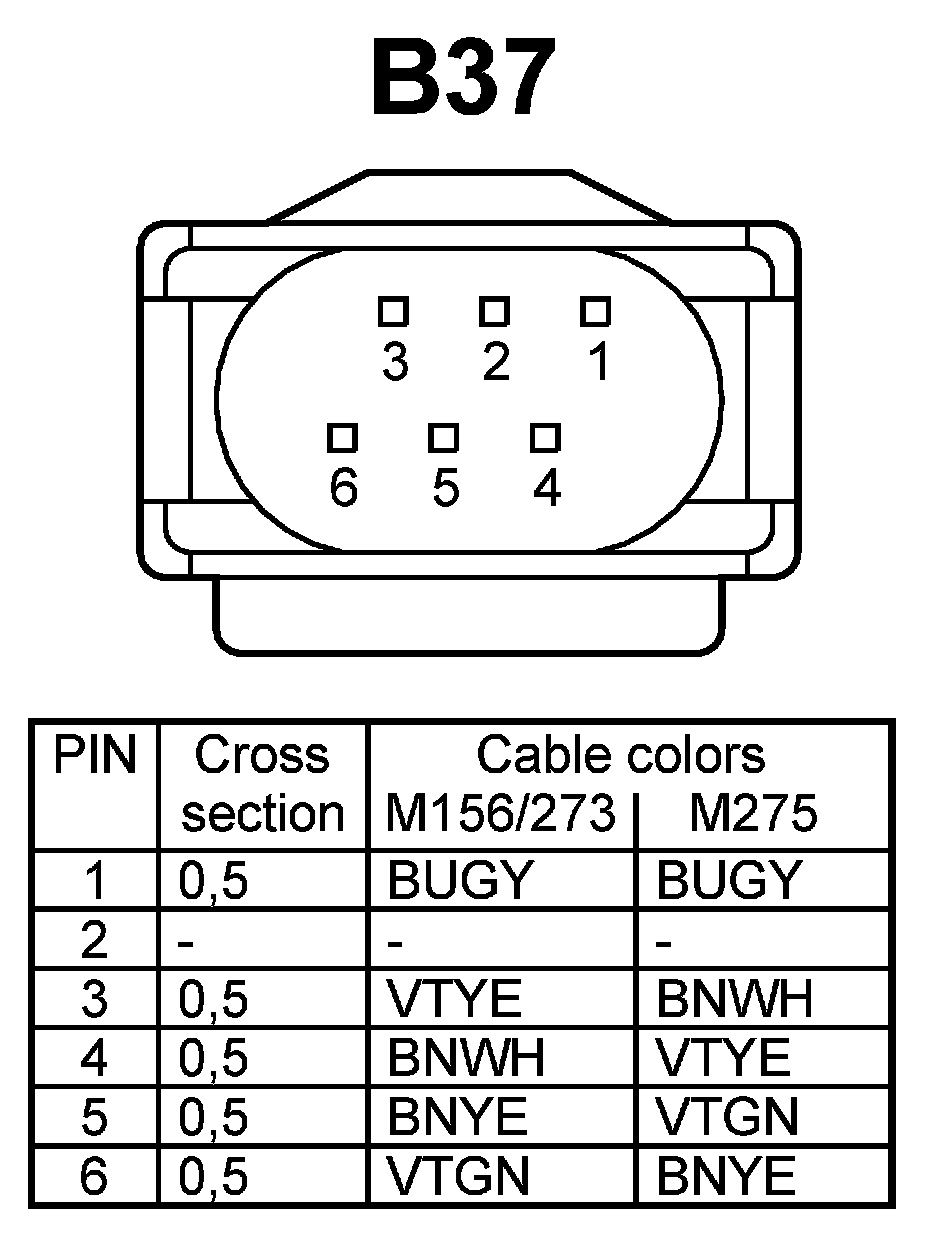

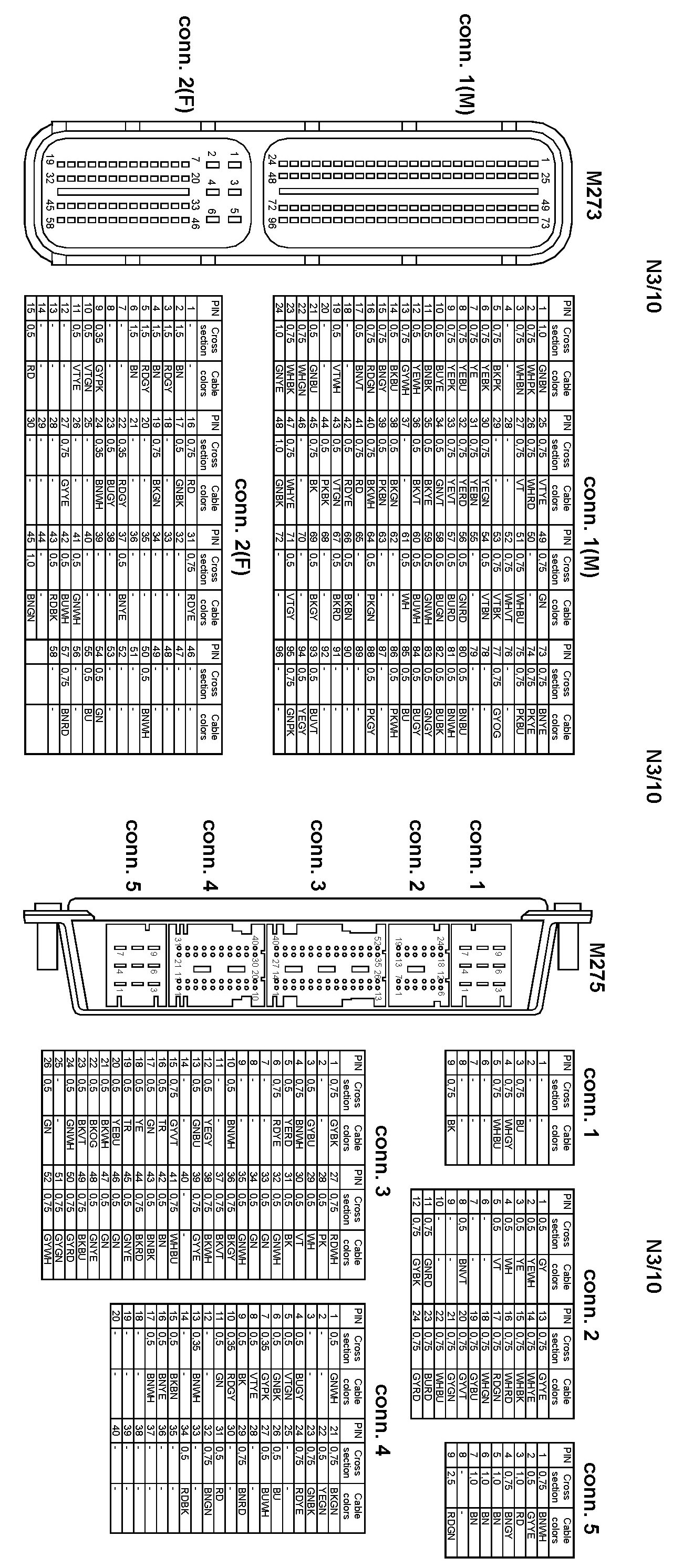

PE09.00-U-2050CAH Electrical Function Schematic For Charging



PE09.00-U-2050CAH Electrical Function Schematic For Charging

ENGINE 157, 278 in MODEL 216























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
