PE07.10-U-2720CAH Electrical Function Schematic For On-Board Diagnostic

PE07.10-U-2720CAH Electrical Function Schematic For On-Board Diagnosis

ENGINE 157, 278 in MODEL 216

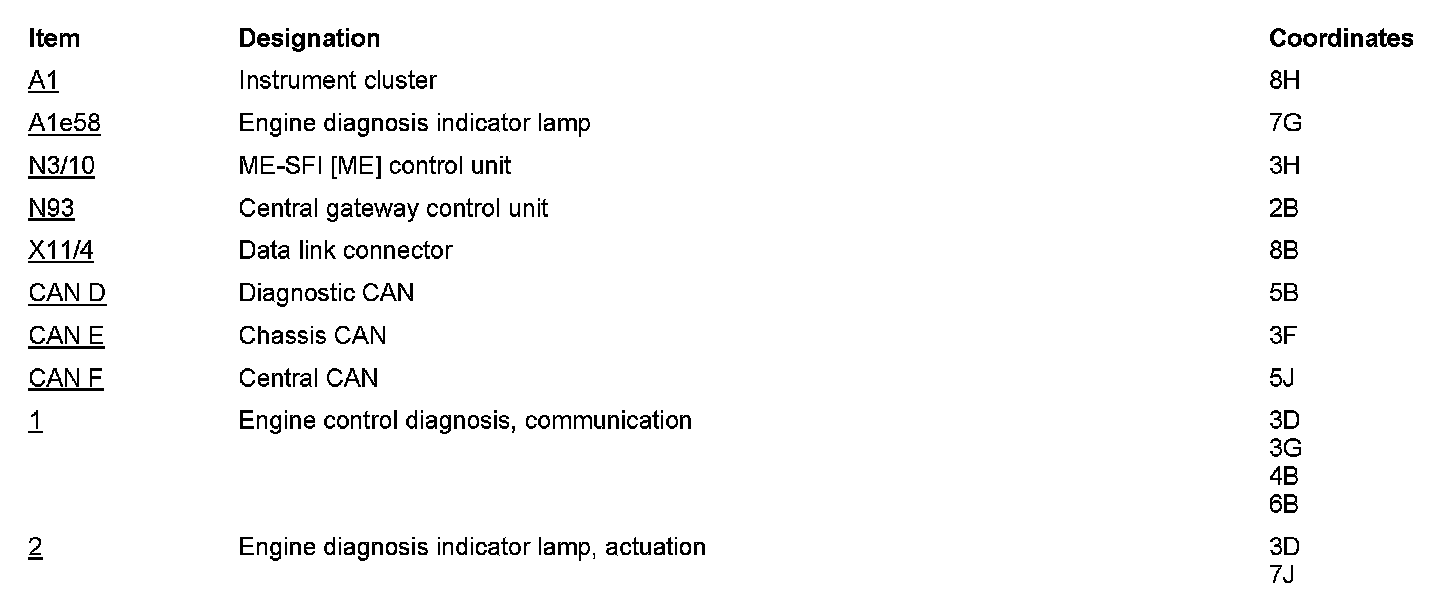

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
