PE07.10-U-2710CAH Electrical Function Schematic For Lambda Control

PE07.10-U-2710CAH Electrical Function Schematic For Lambda Control

ENGINE 157, 278 in MODEL 216

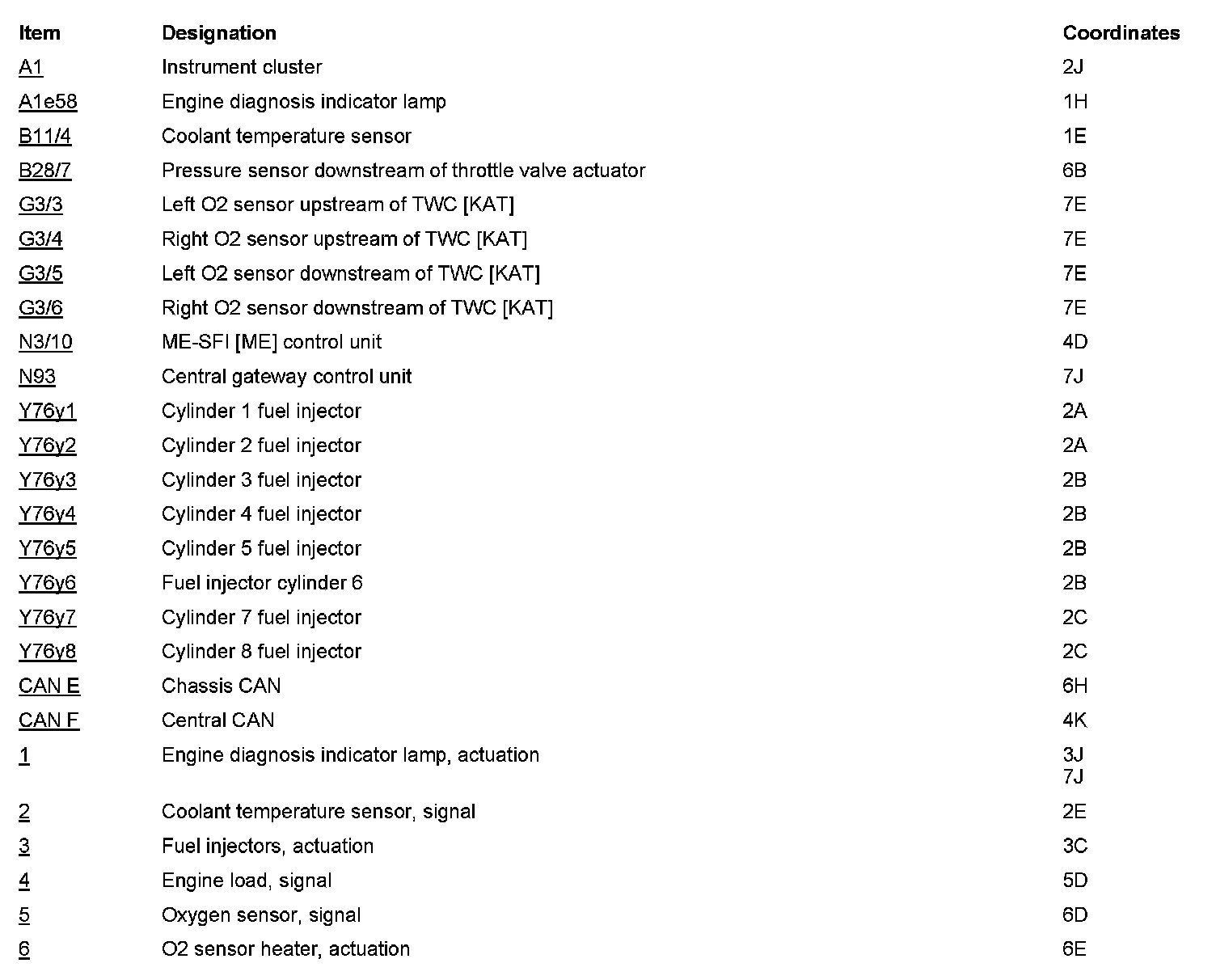

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
