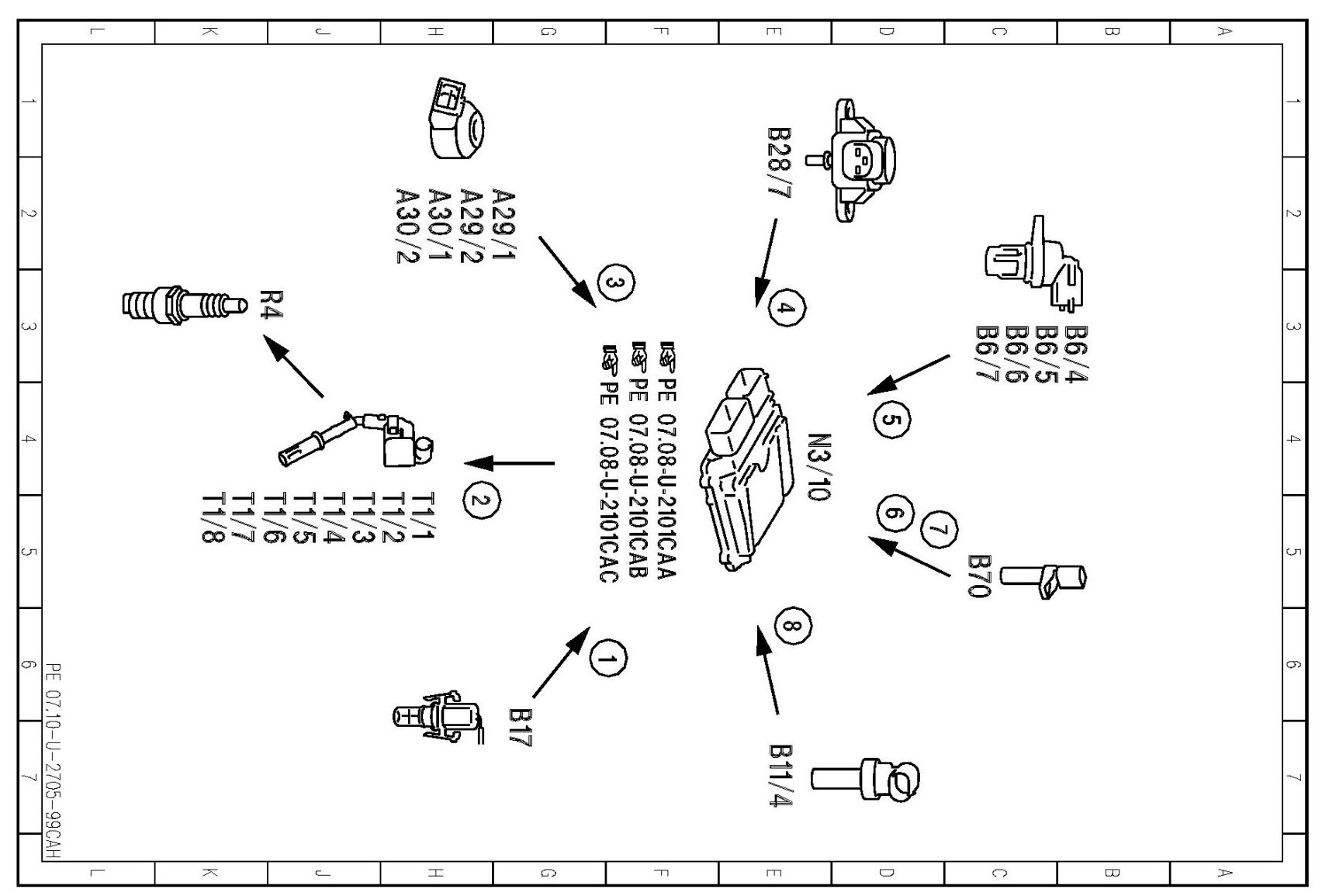

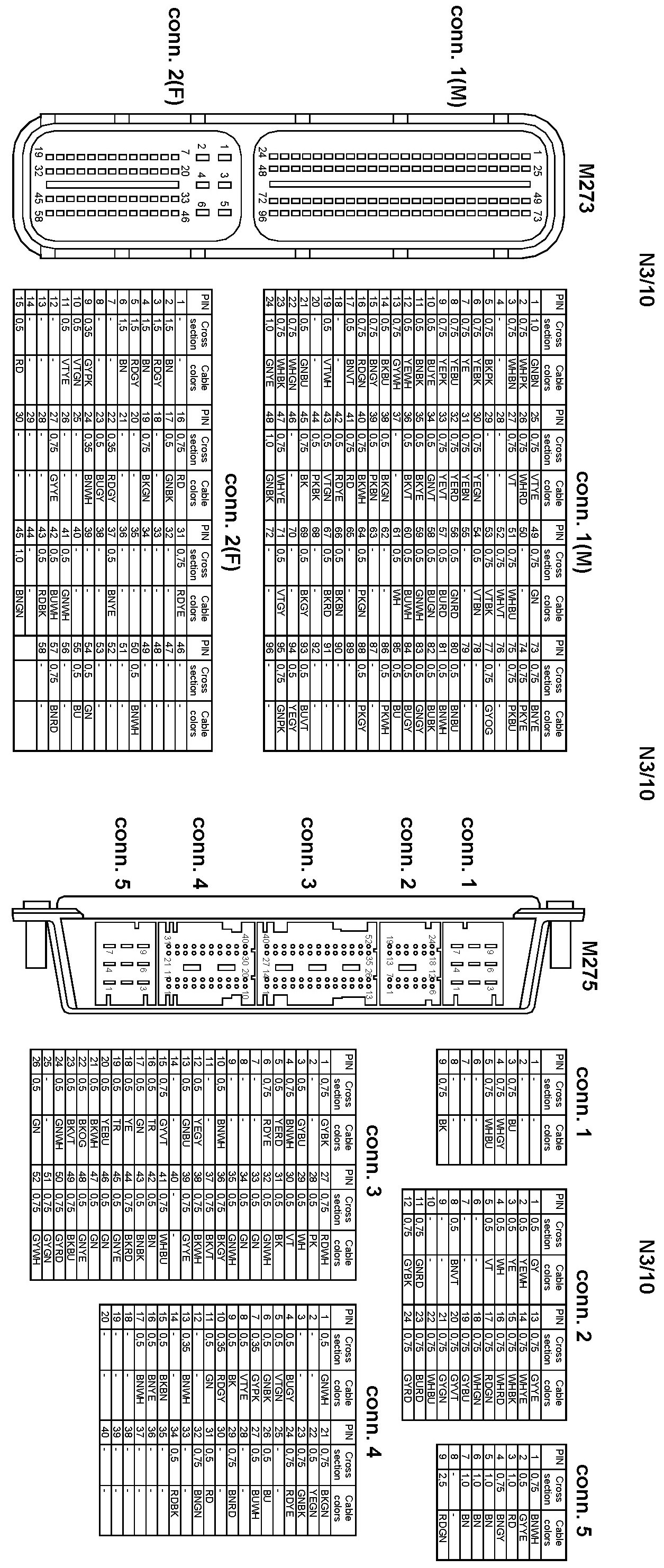

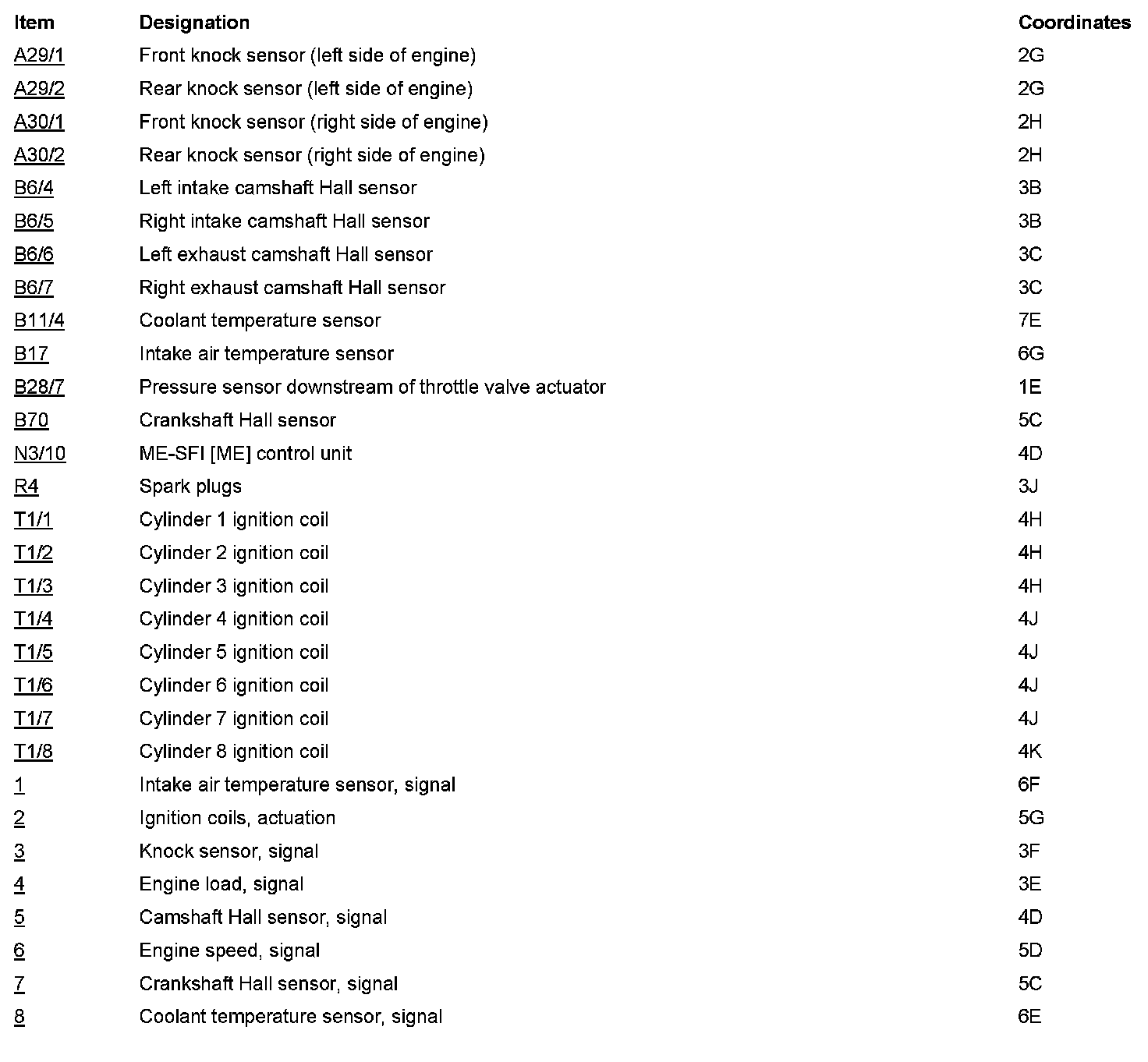

PE07.10-U-2705CAH Electrical Function Schematic For Ignition System

PE07.10-U-2705CAH Electrical Function Schematic For Ignition System

ENGINE 157, 278 in MODEL 216















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
