PE07.08-U-2101CAB Gasoline Direct Injection System Control Unit



PE07.08-U-2101CAB Gasoline Direct Injection System Control Unit

ENGINE 157, 278 in MODEL 216

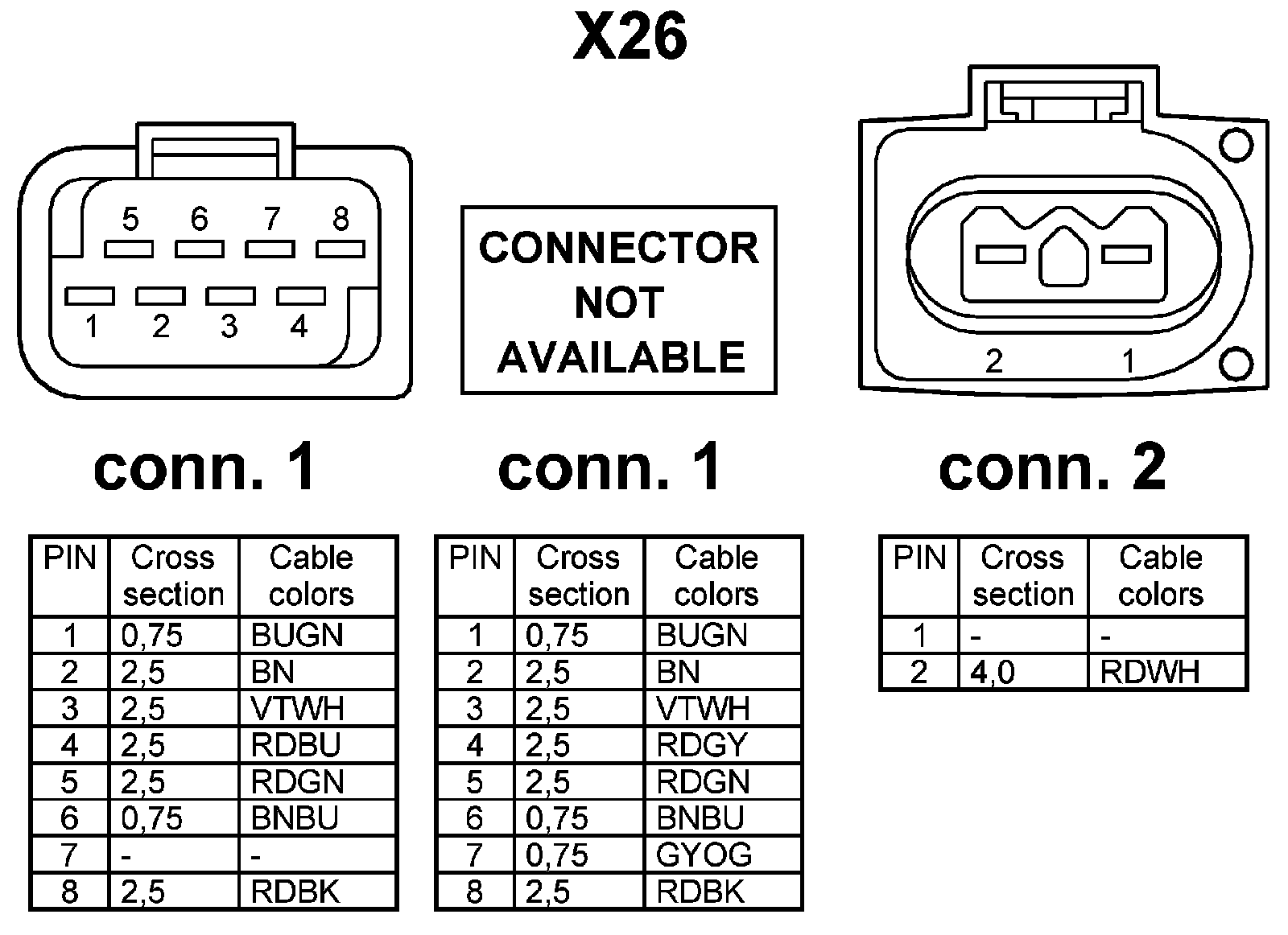

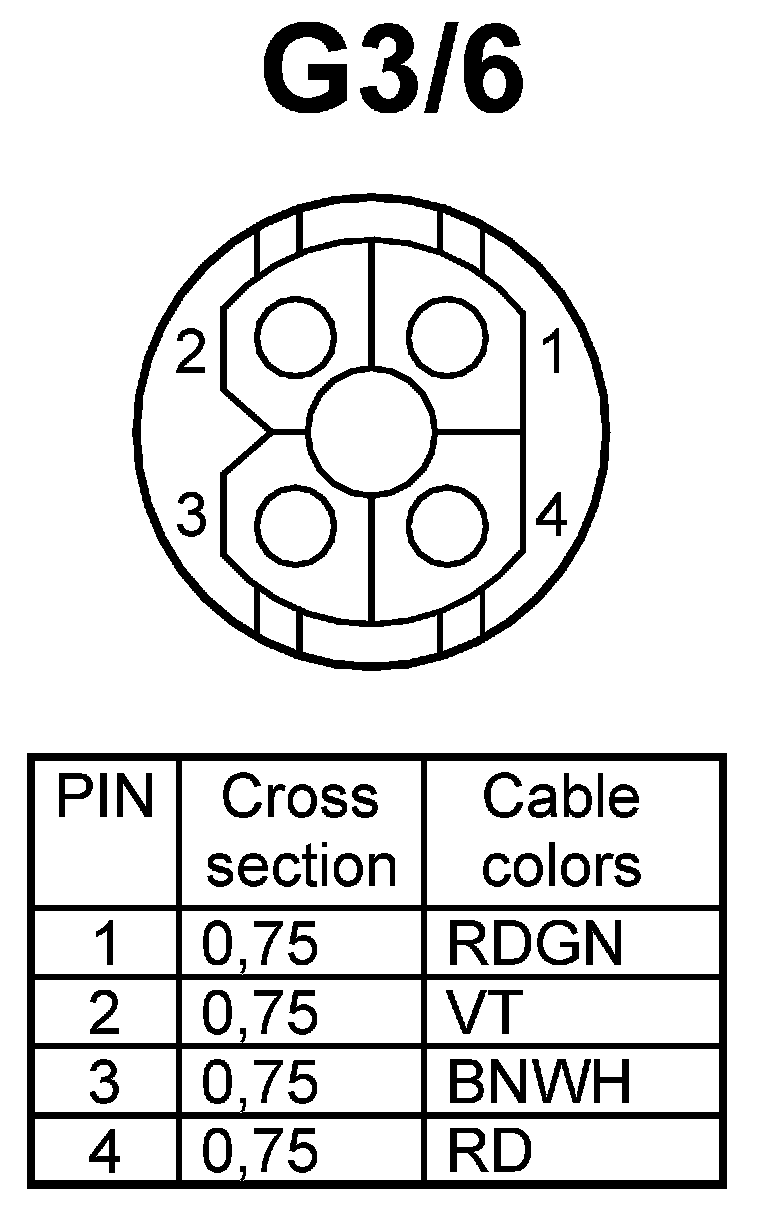

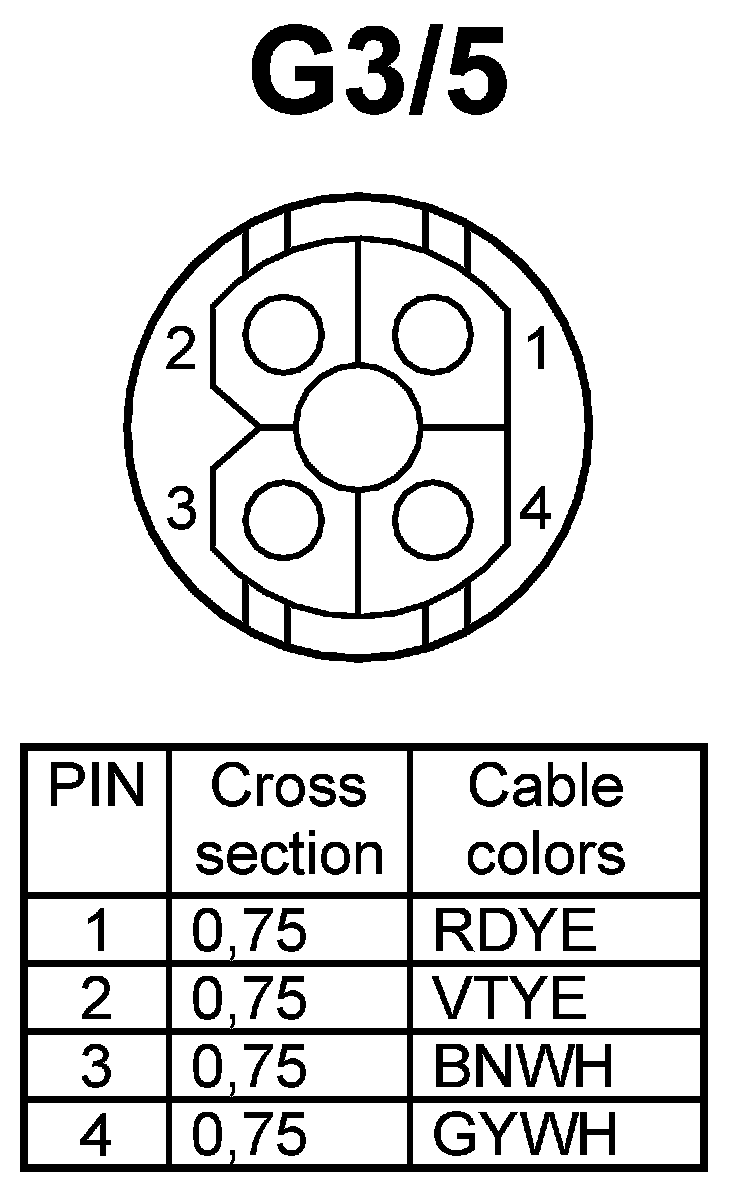

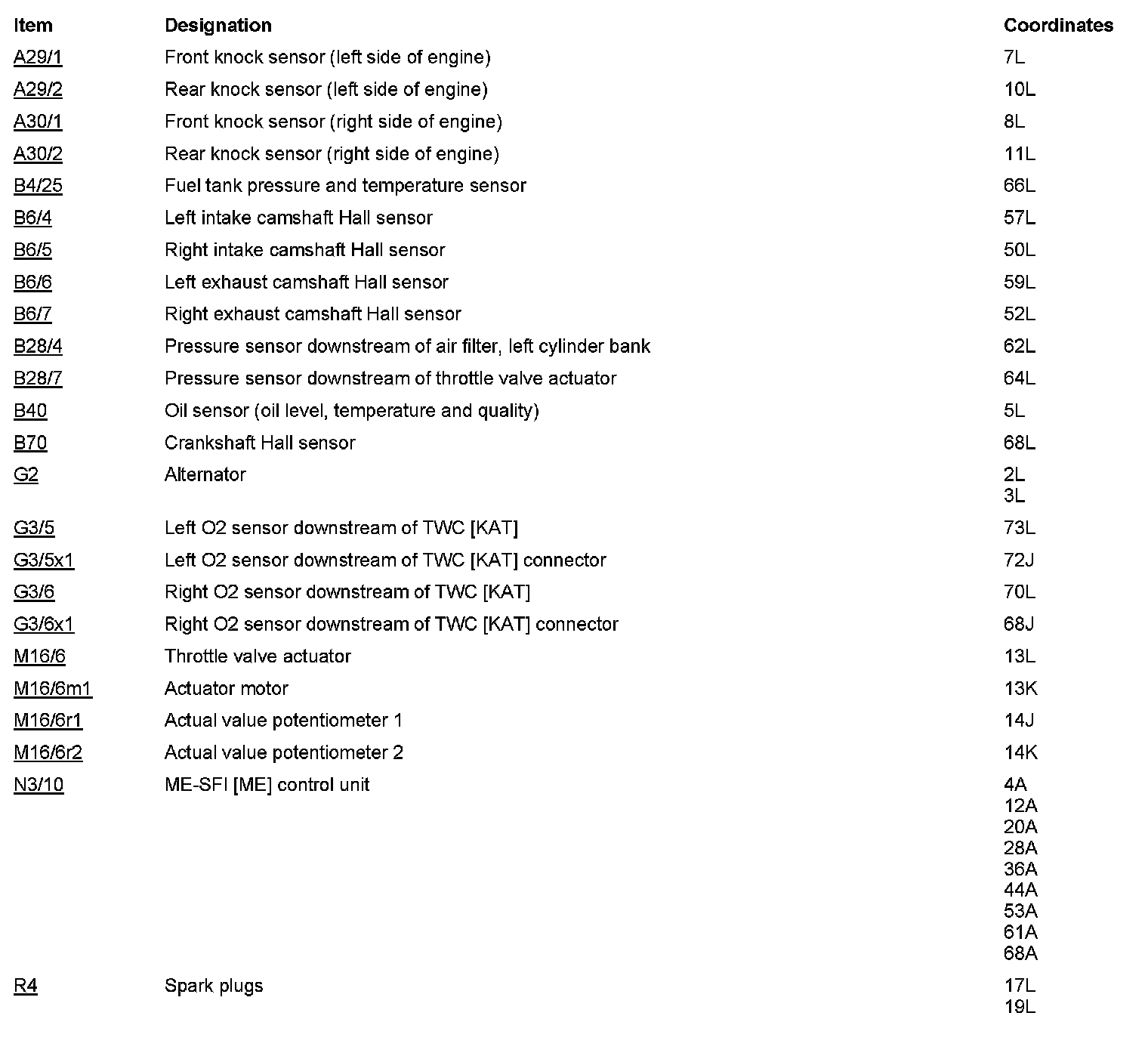

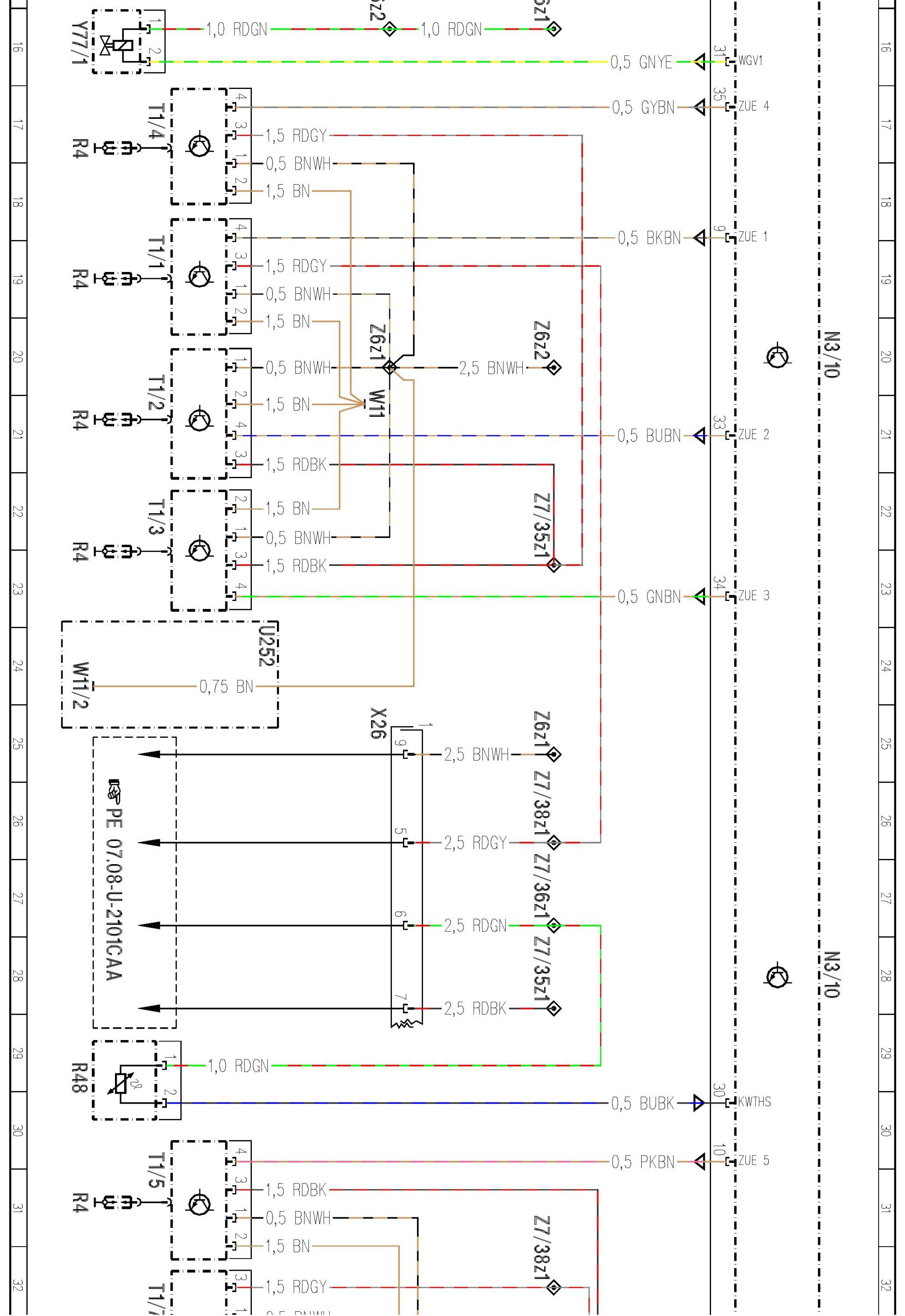

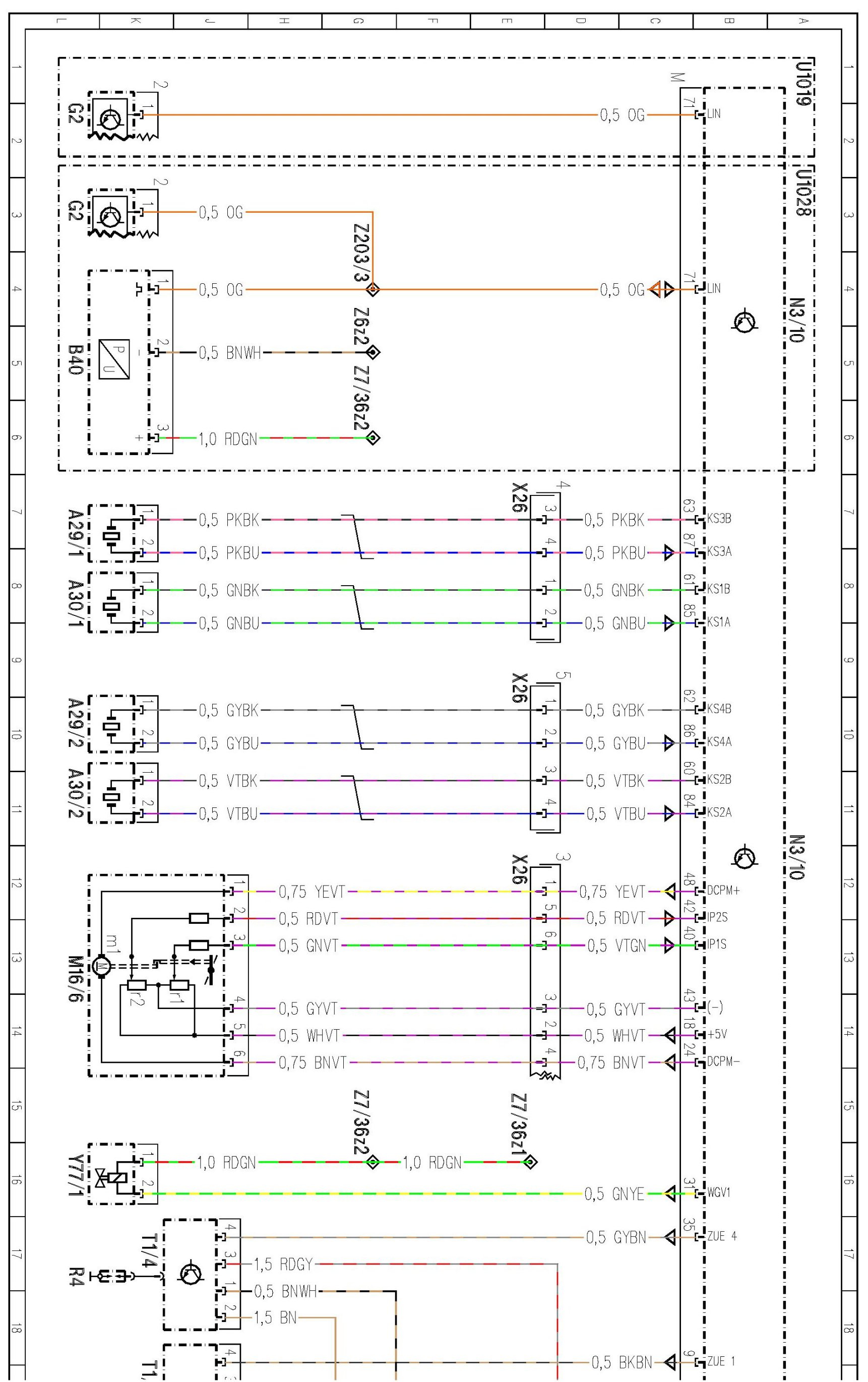

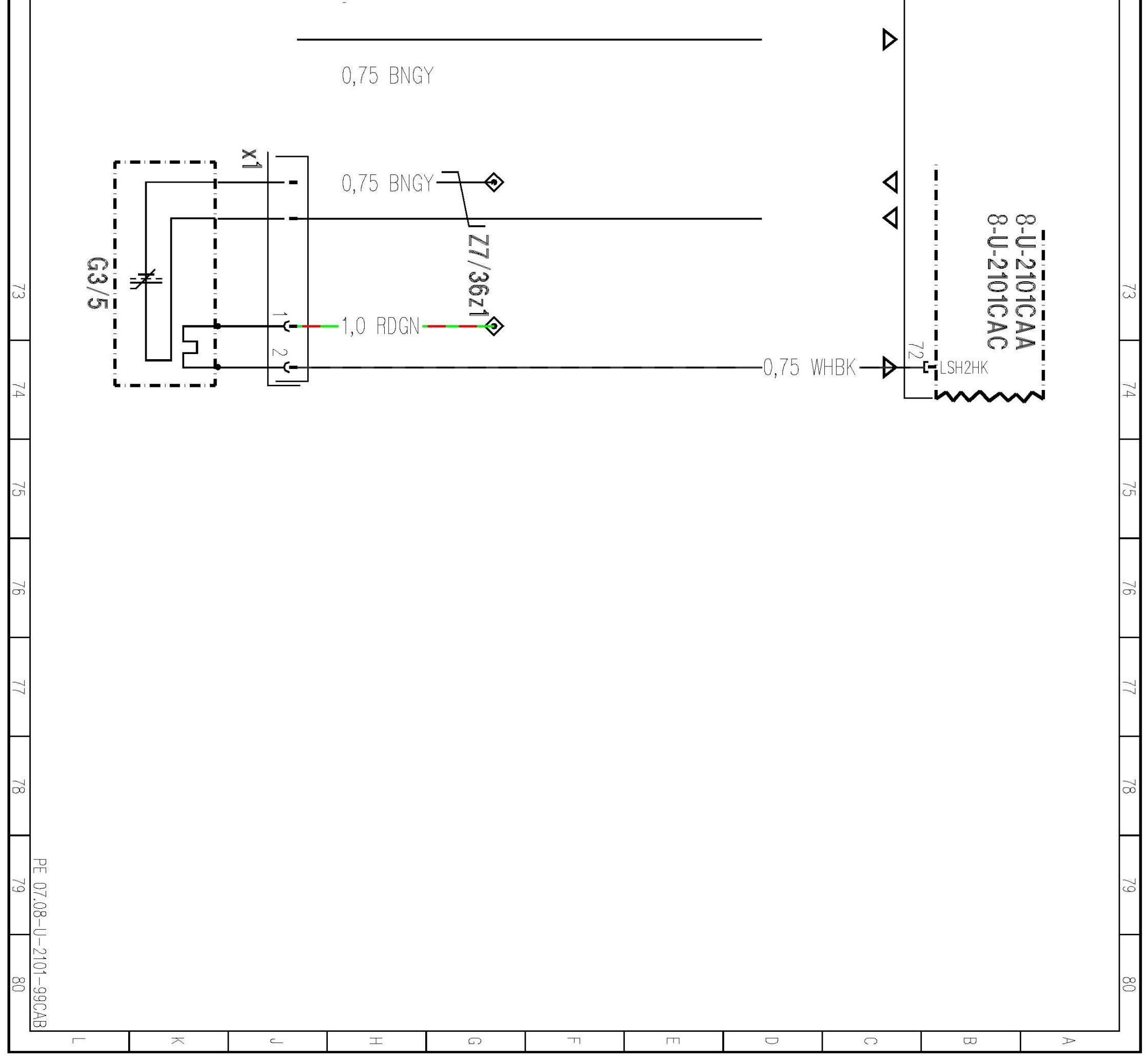

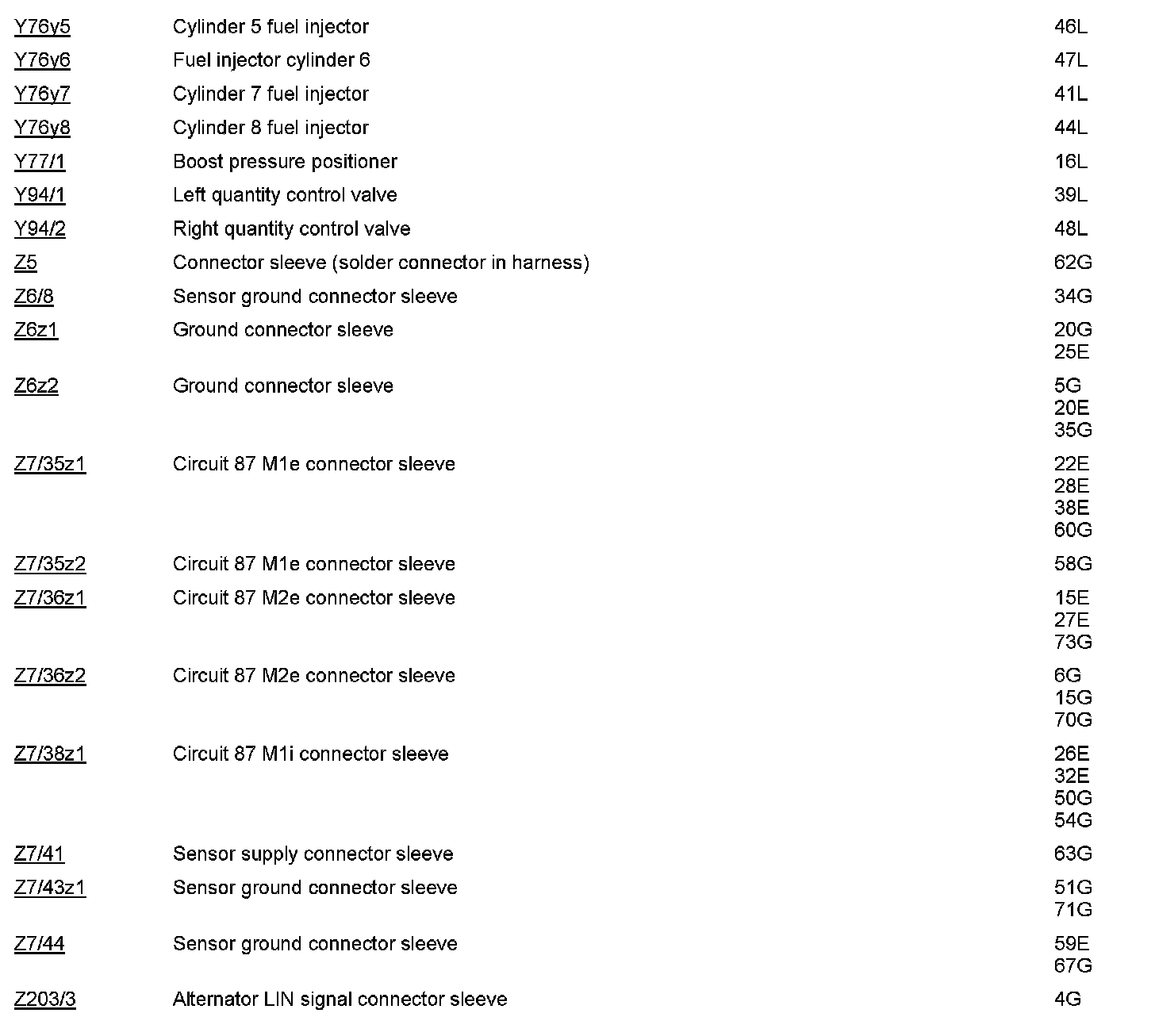

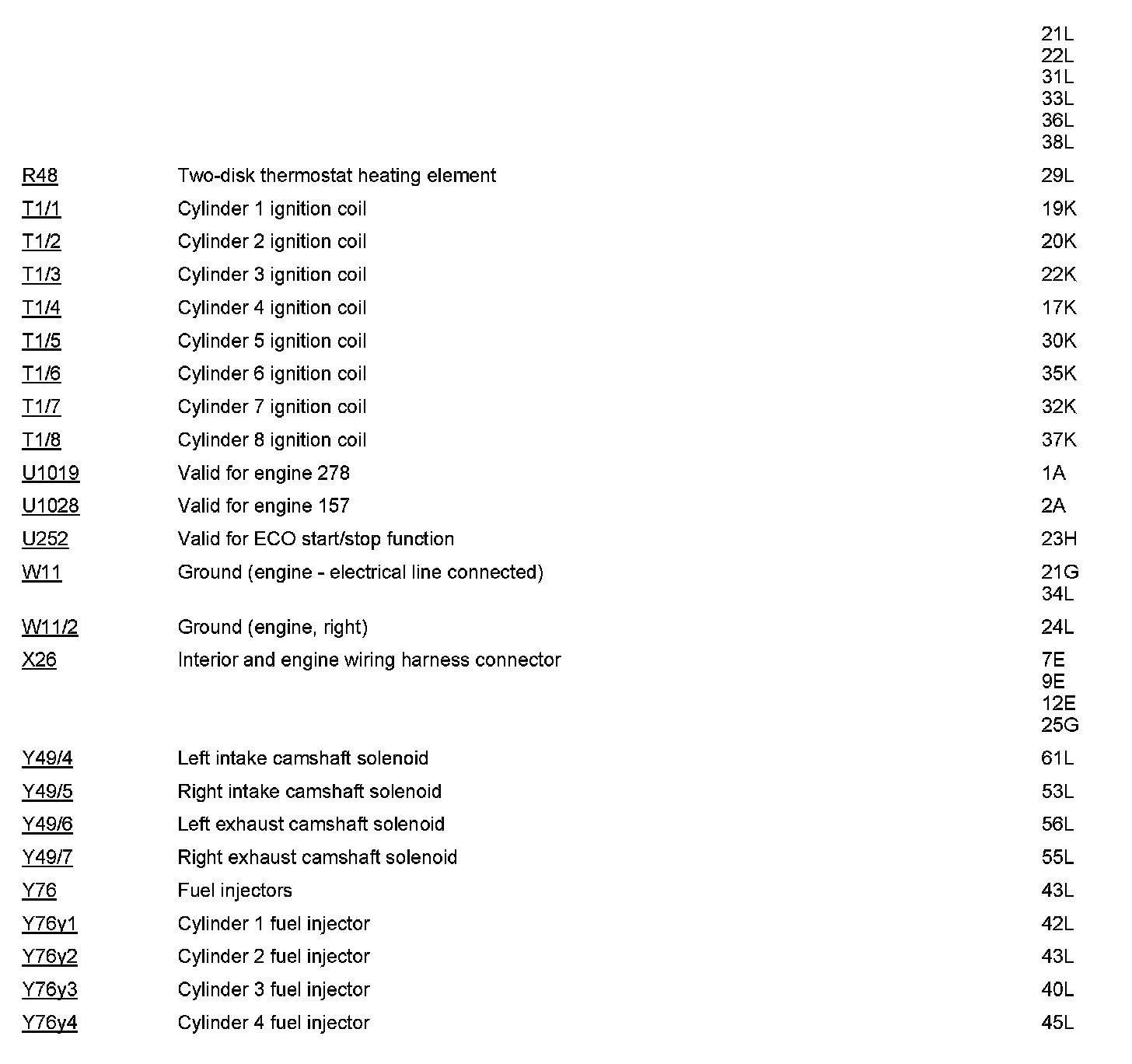

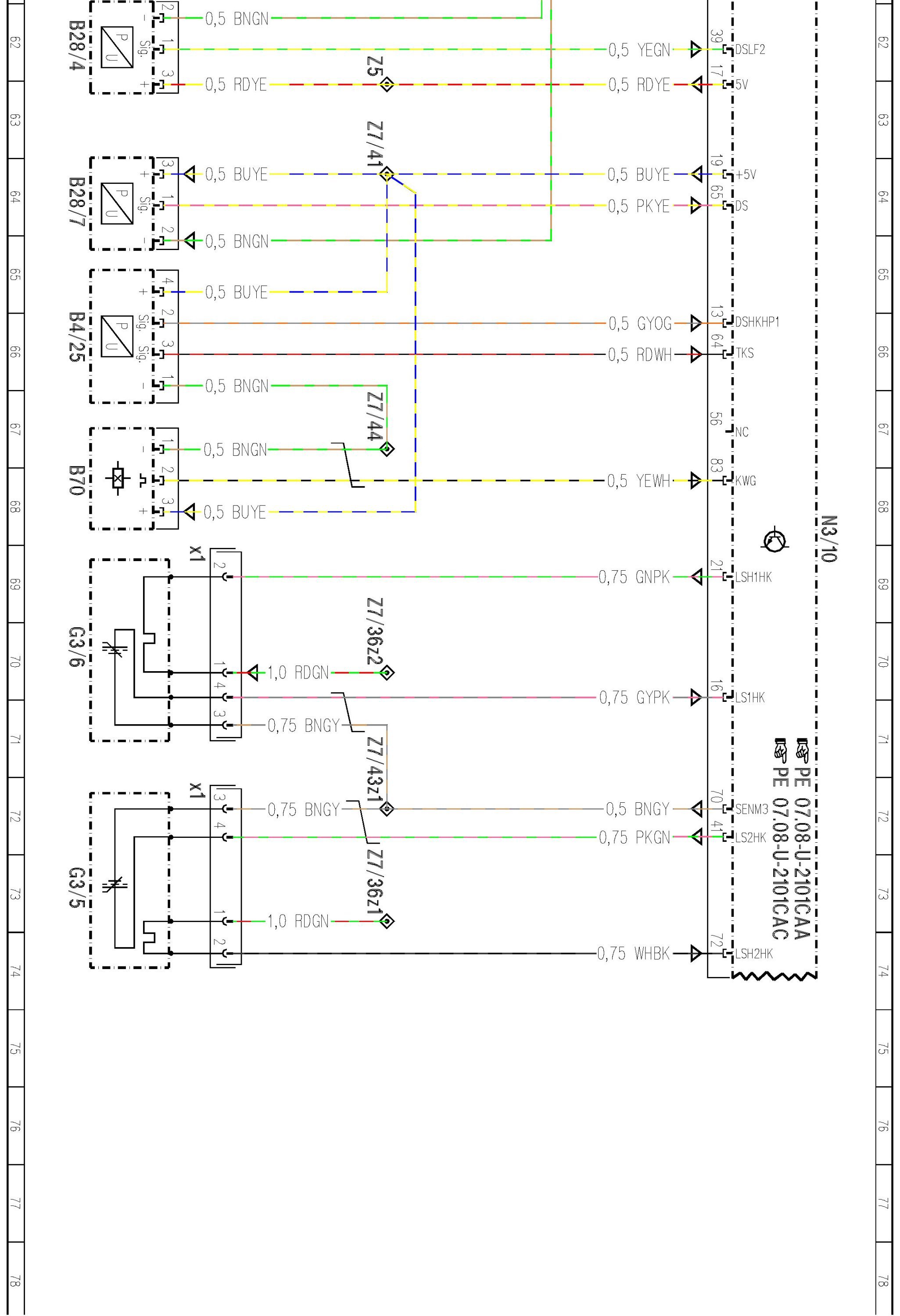

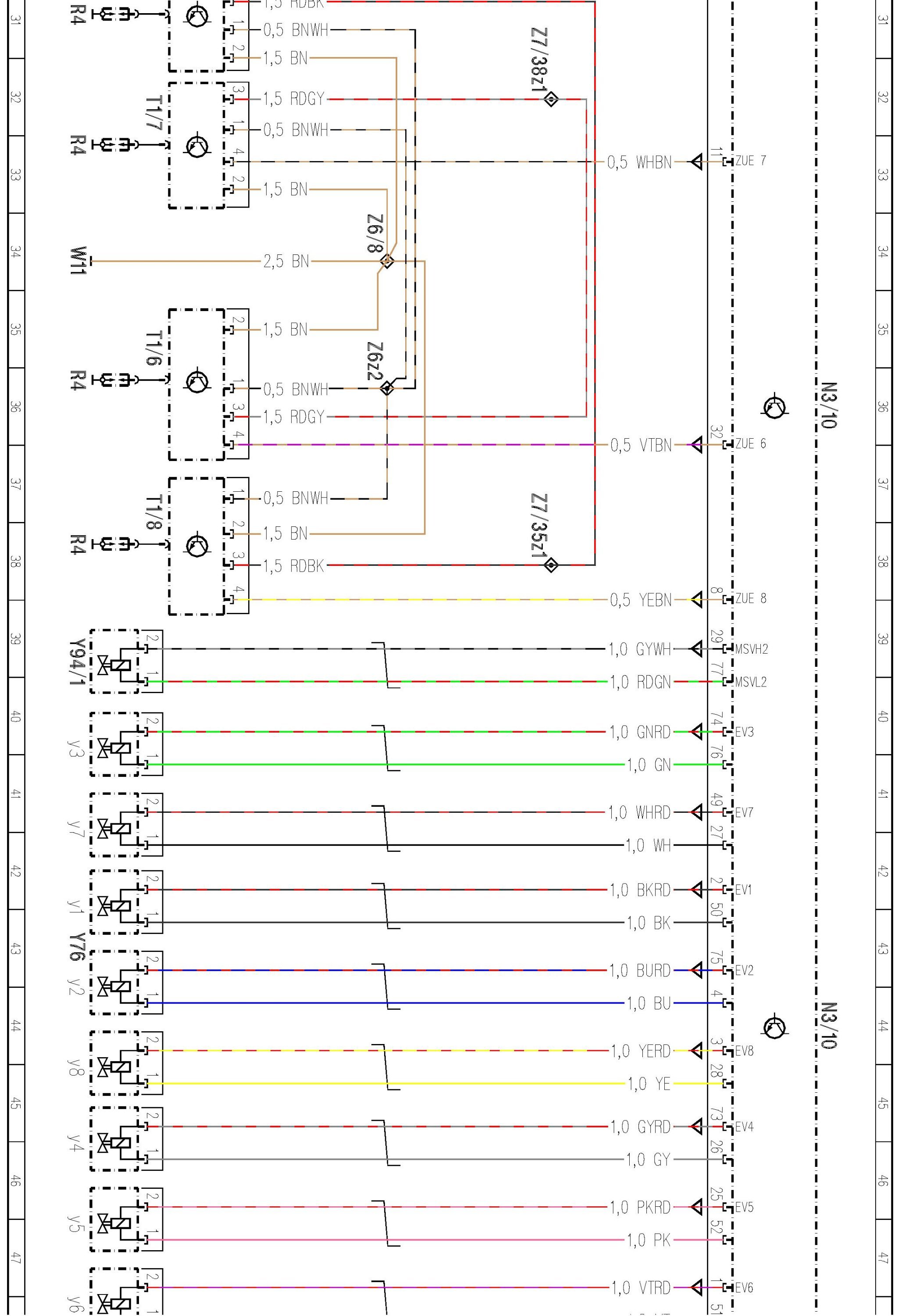

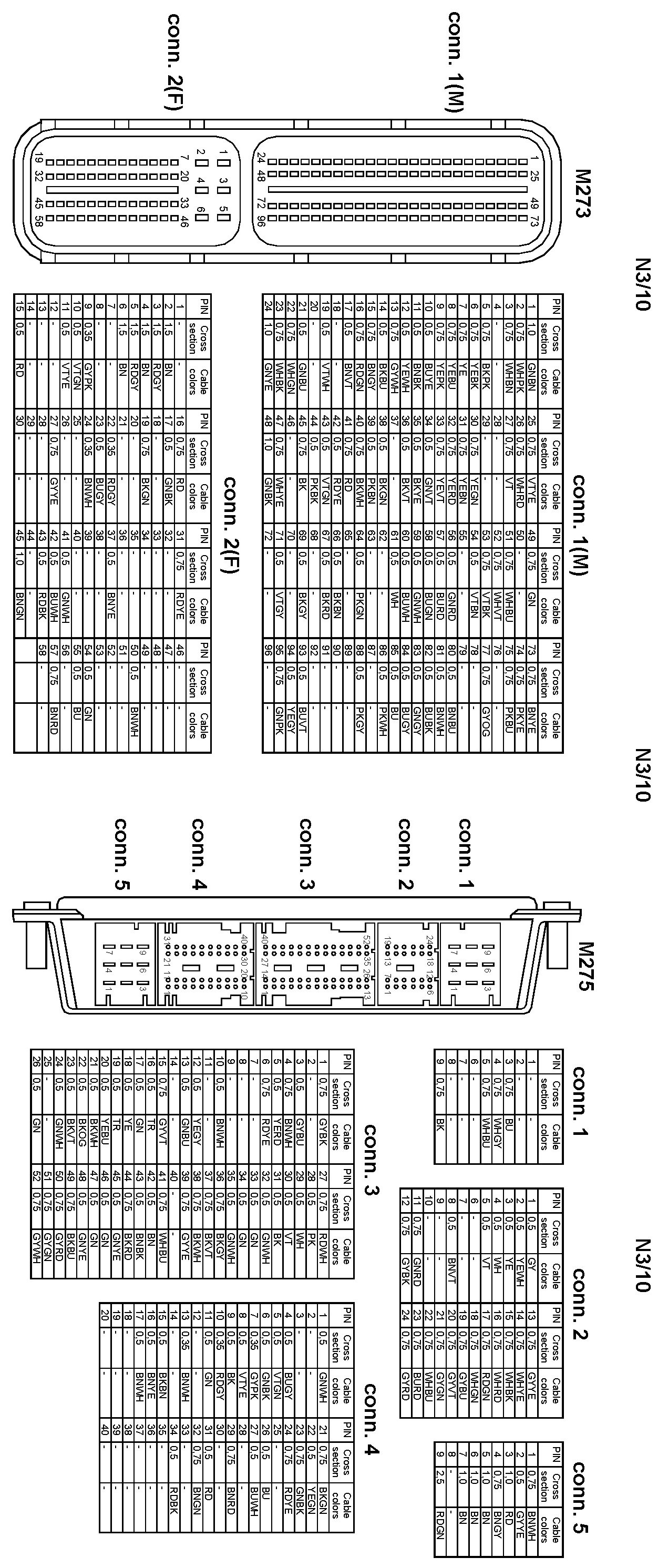

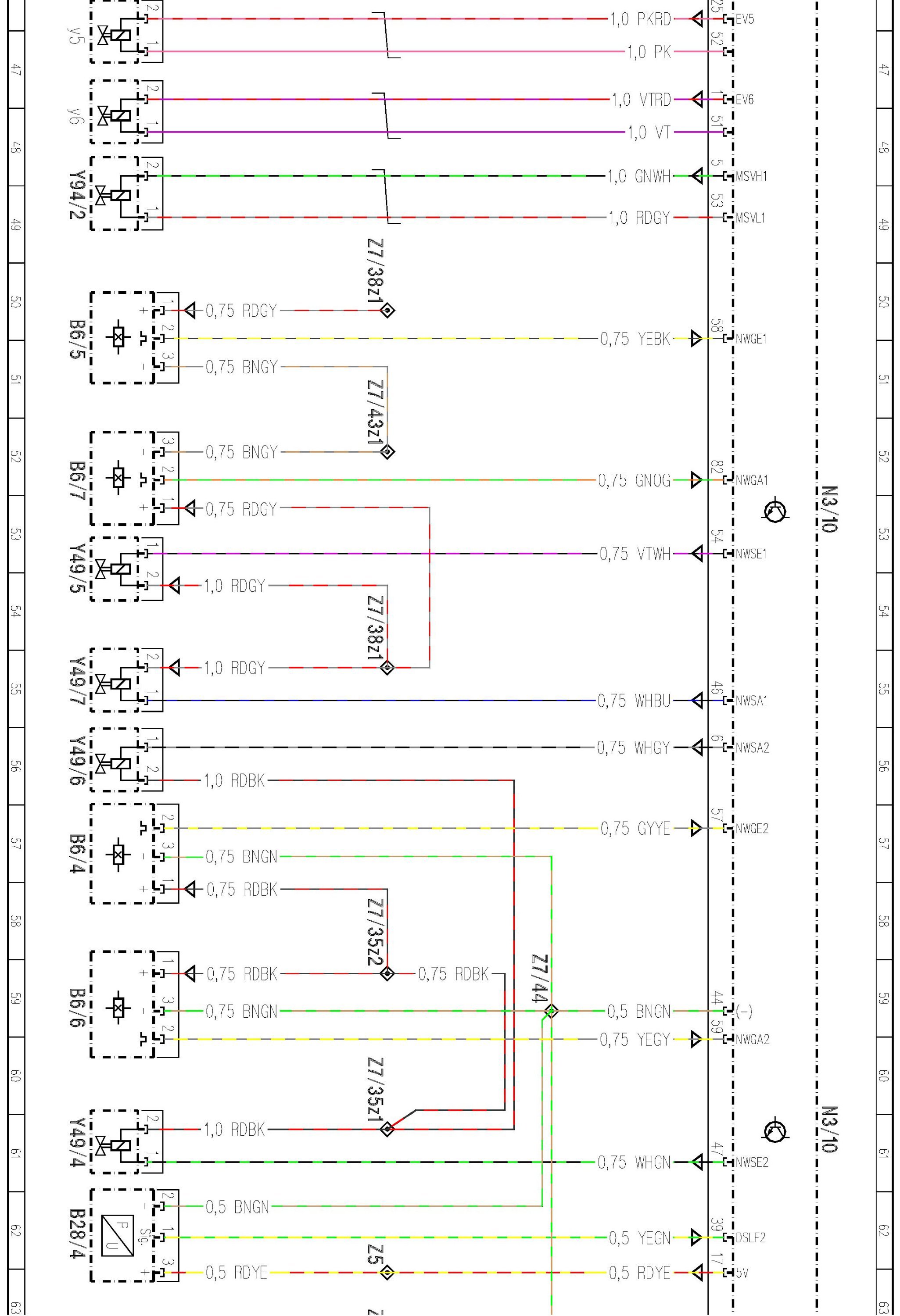

- Control unit N3/10, engine side, sheet 1























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
