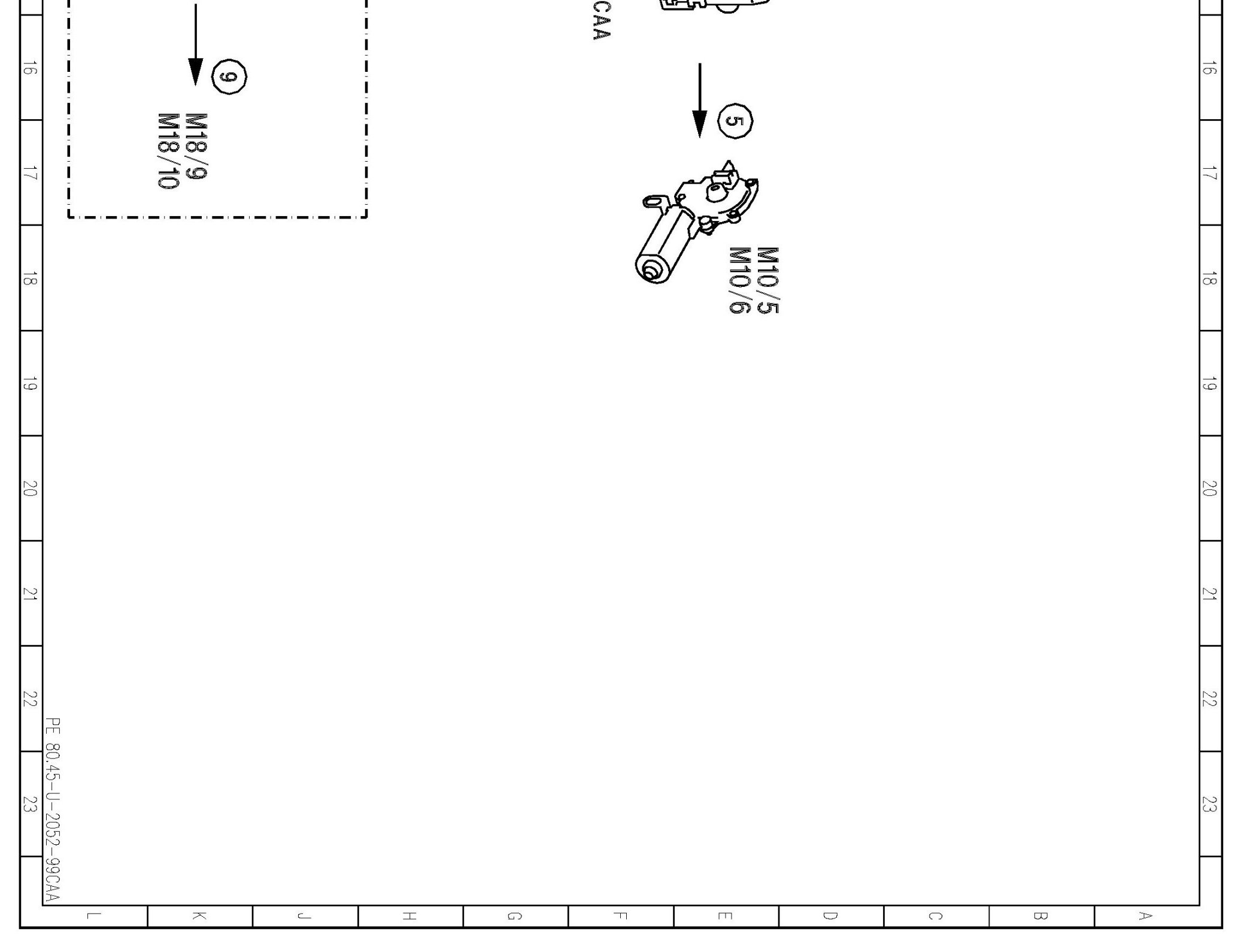

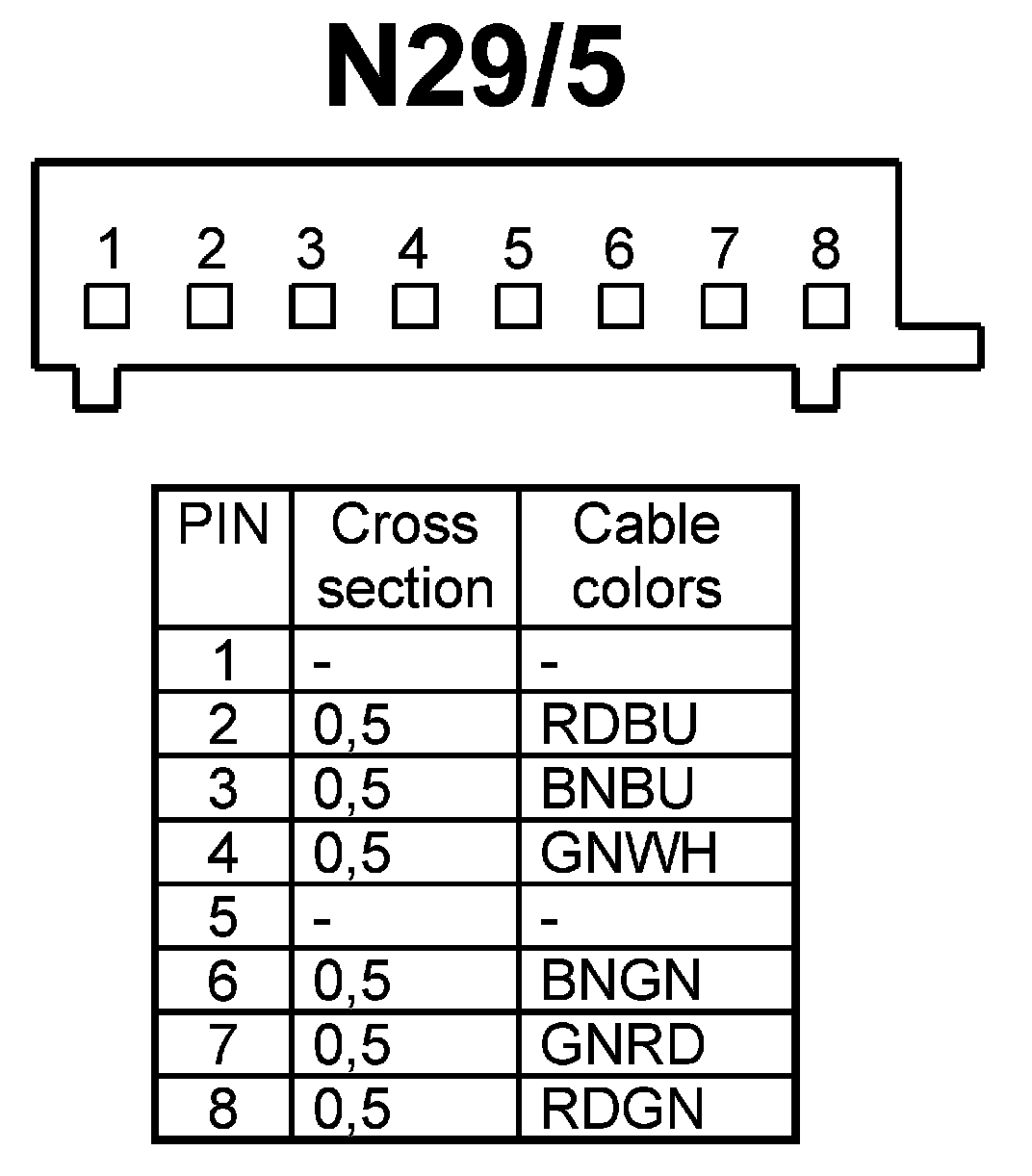

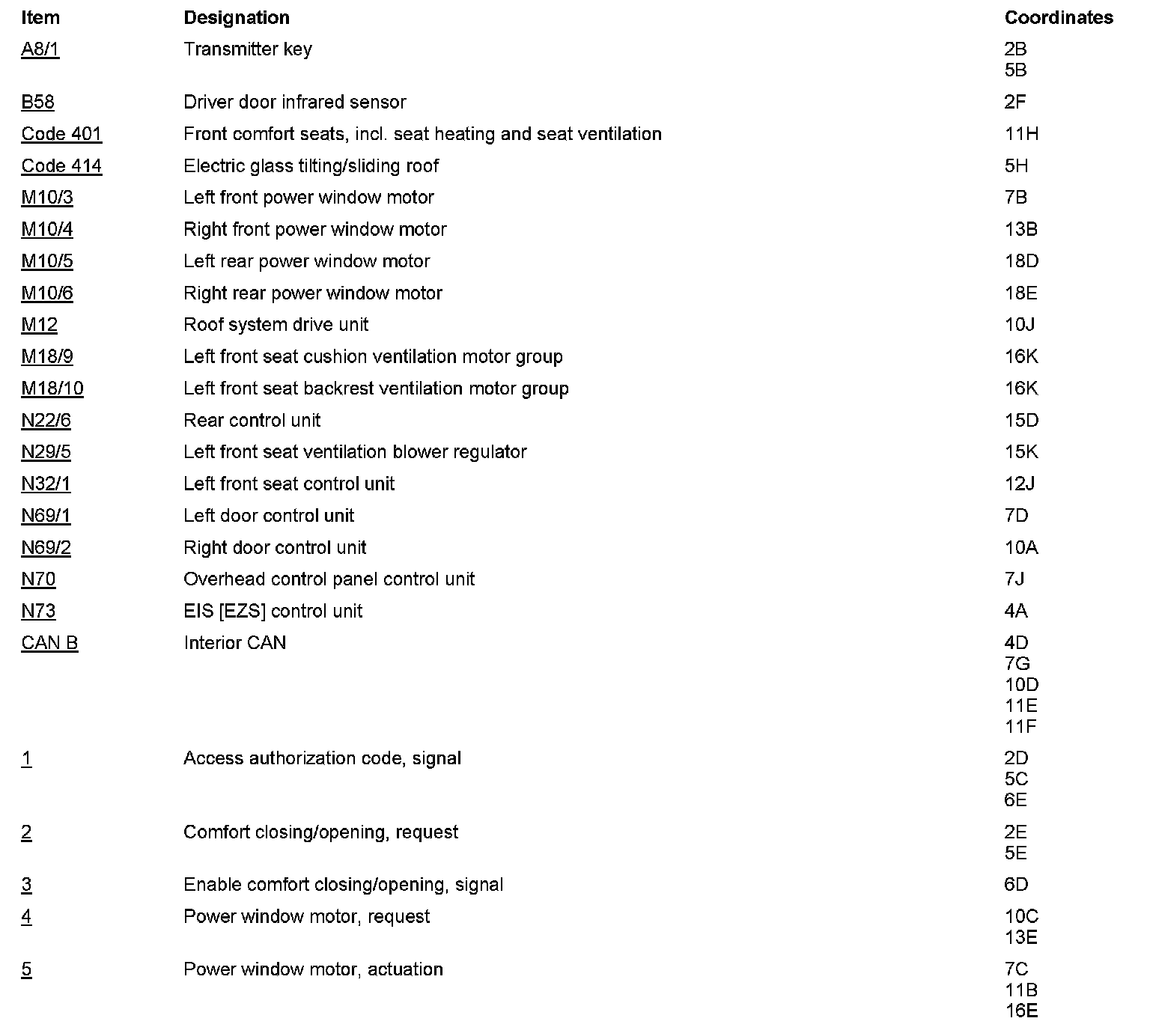

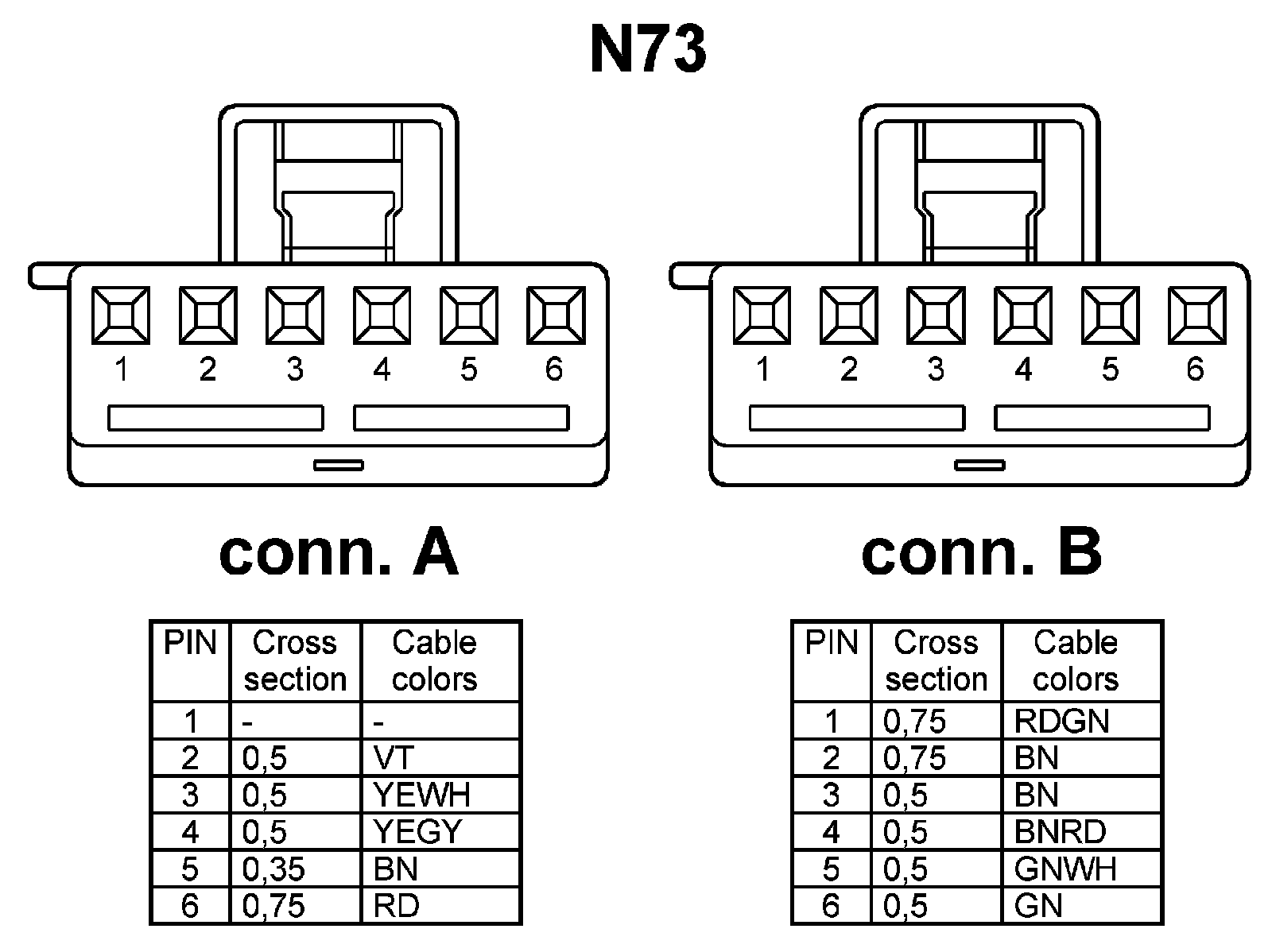

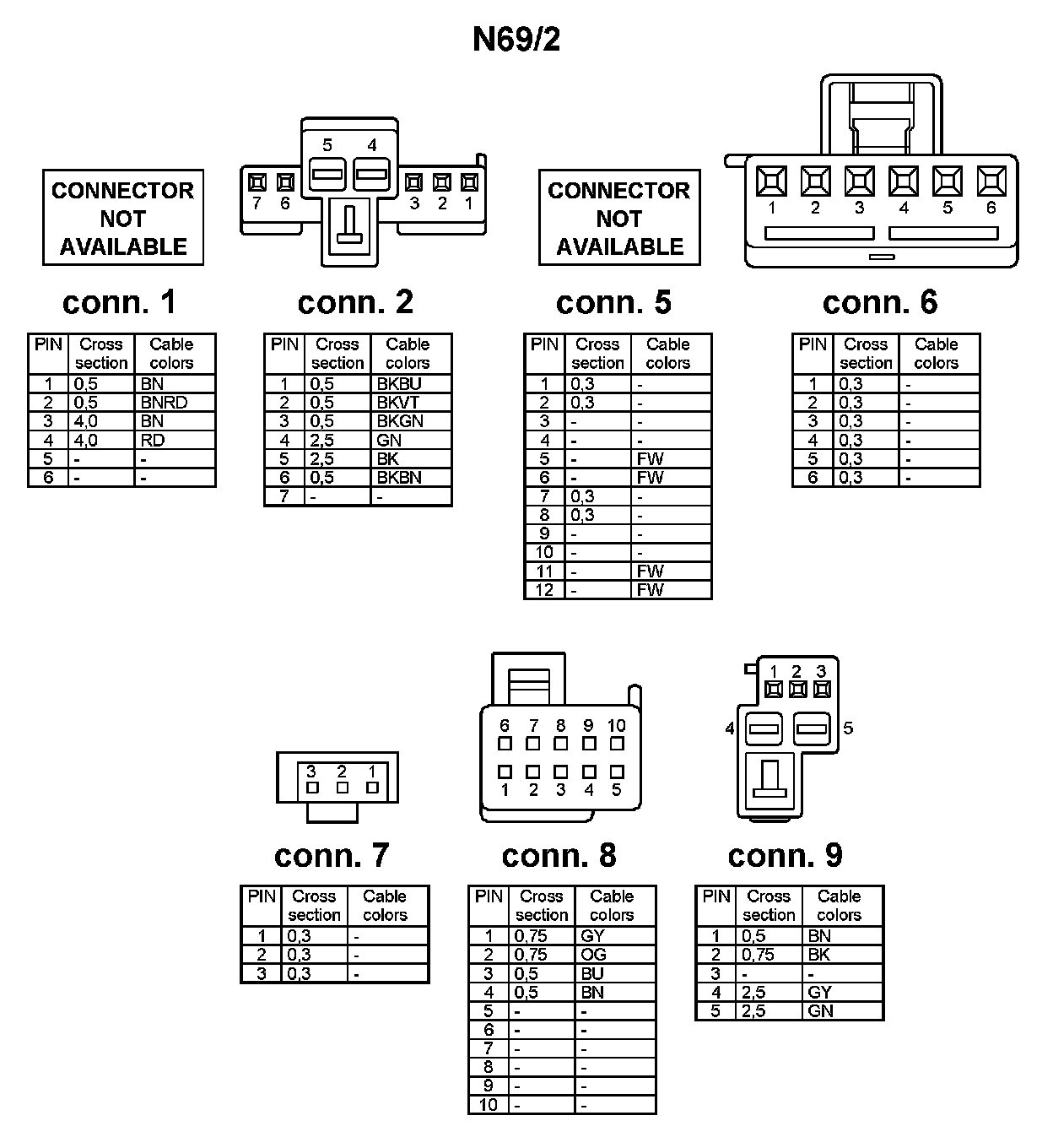

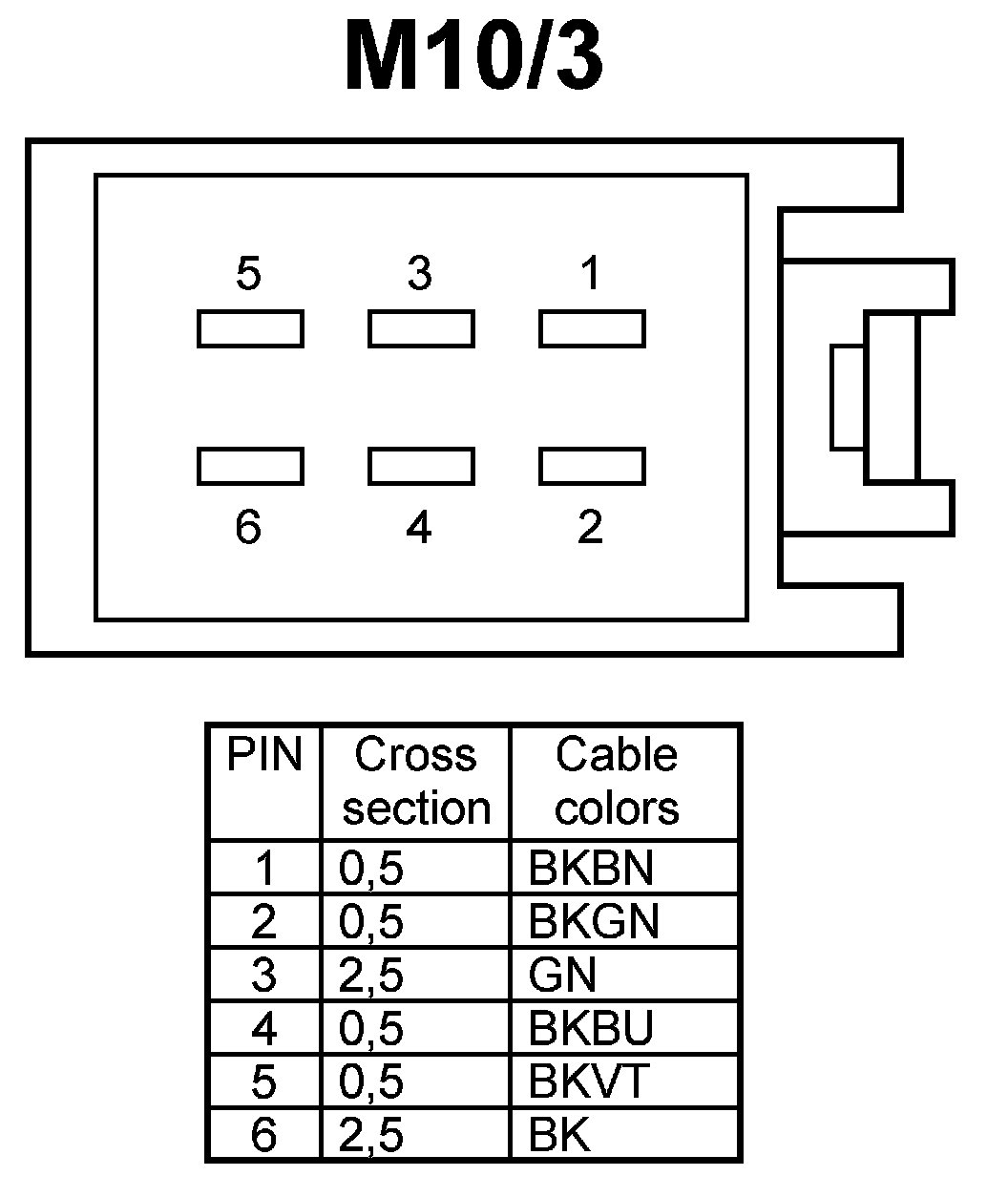

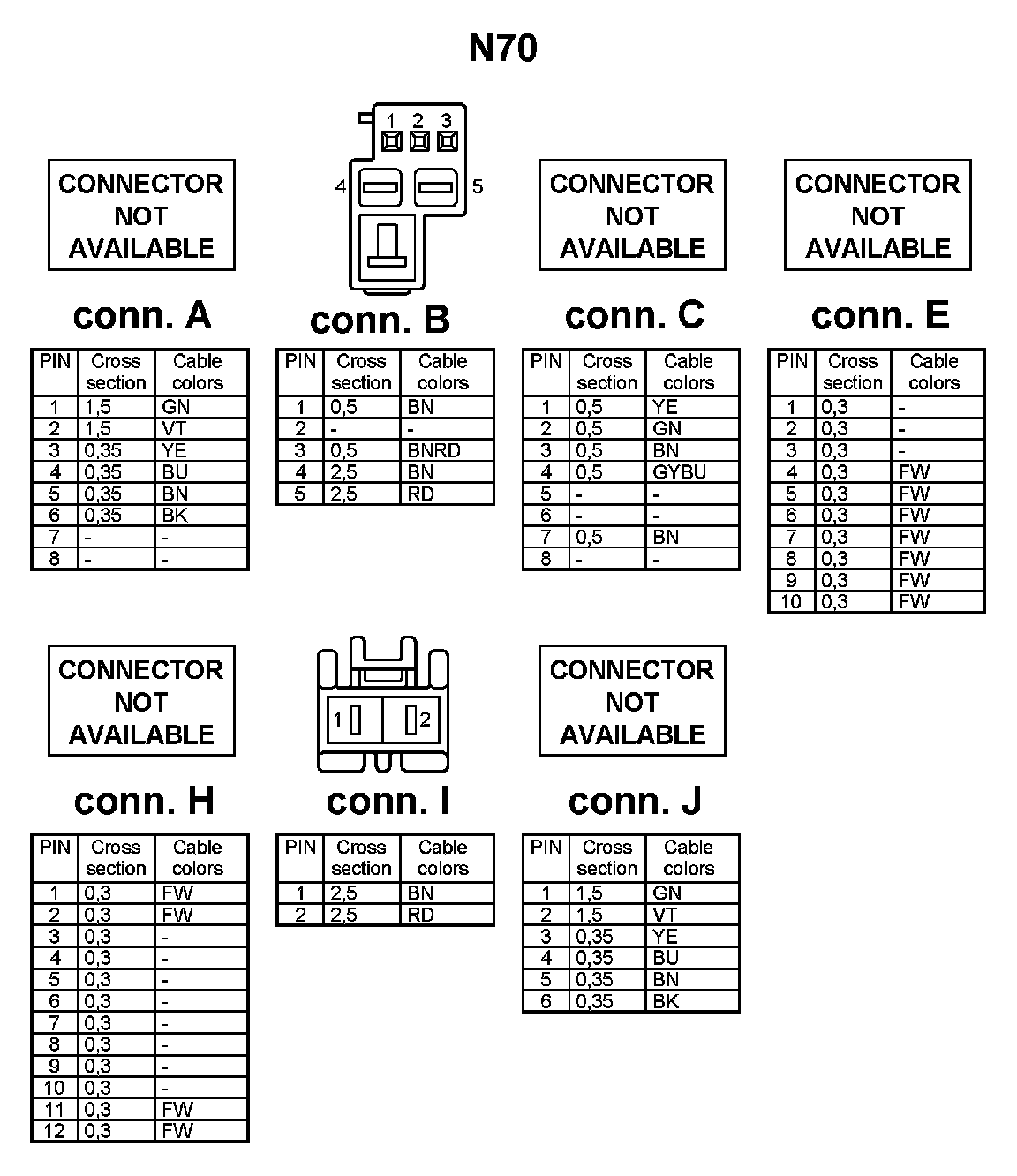

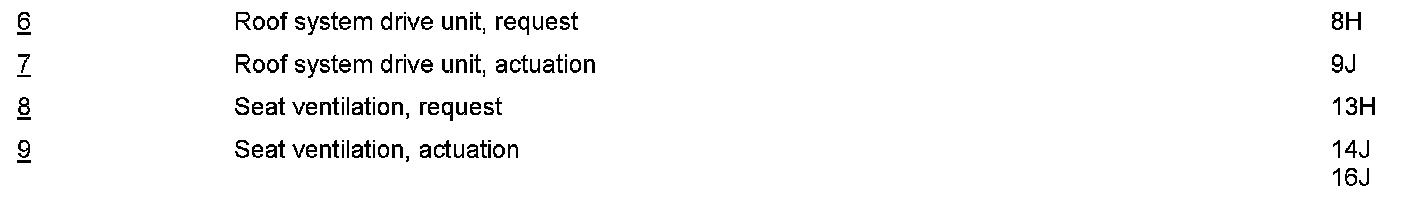

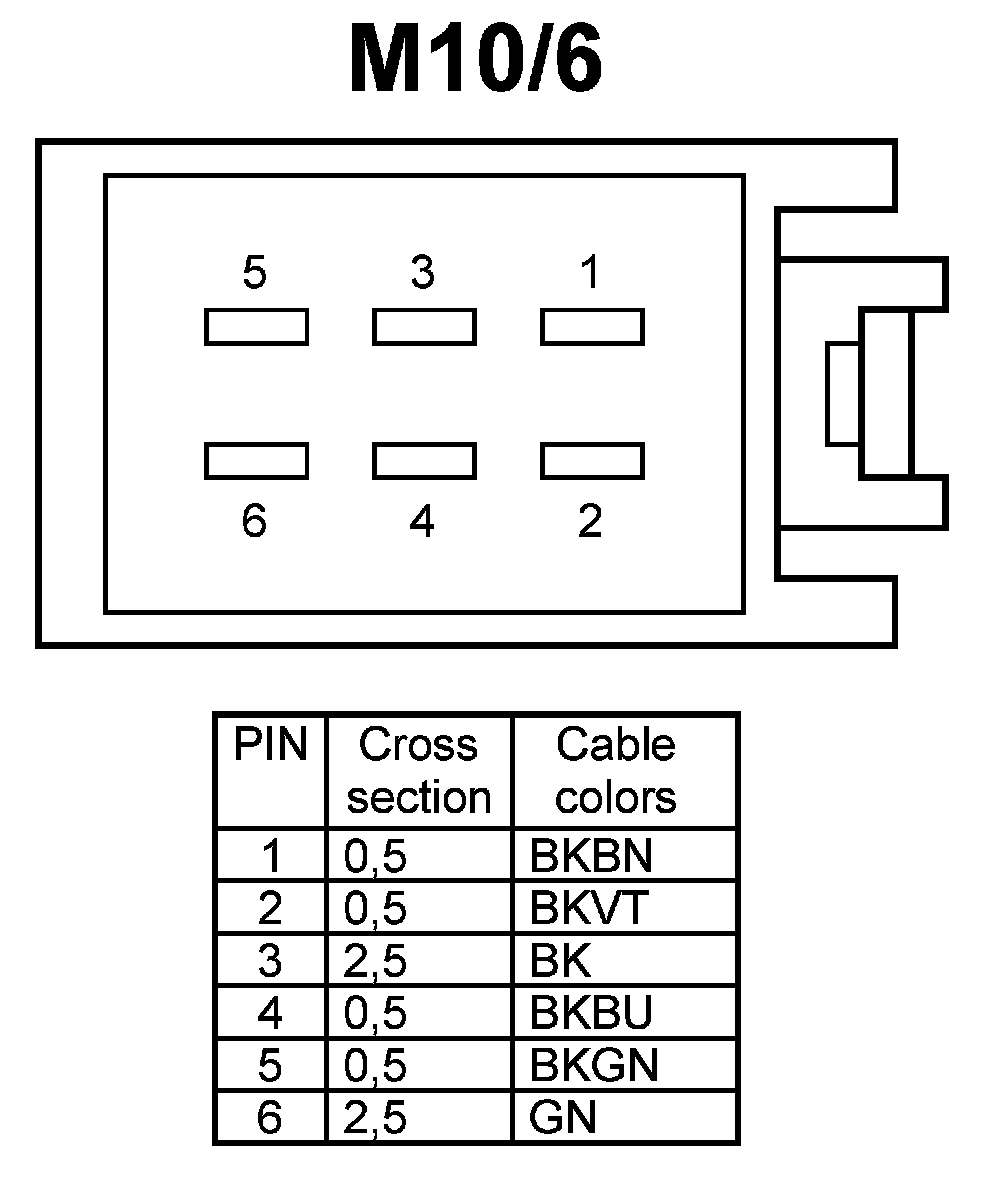

PE80.45-U-2052CAA Electrical Function Diagram For Comfort Opening/Closing Over Transmitter Key

PE80.45-U-2052CAA Electrical Function Diagram For Comfort Opening/Closing Over Transmitter Key

MODEL 216
- as of Model Year 2009



























































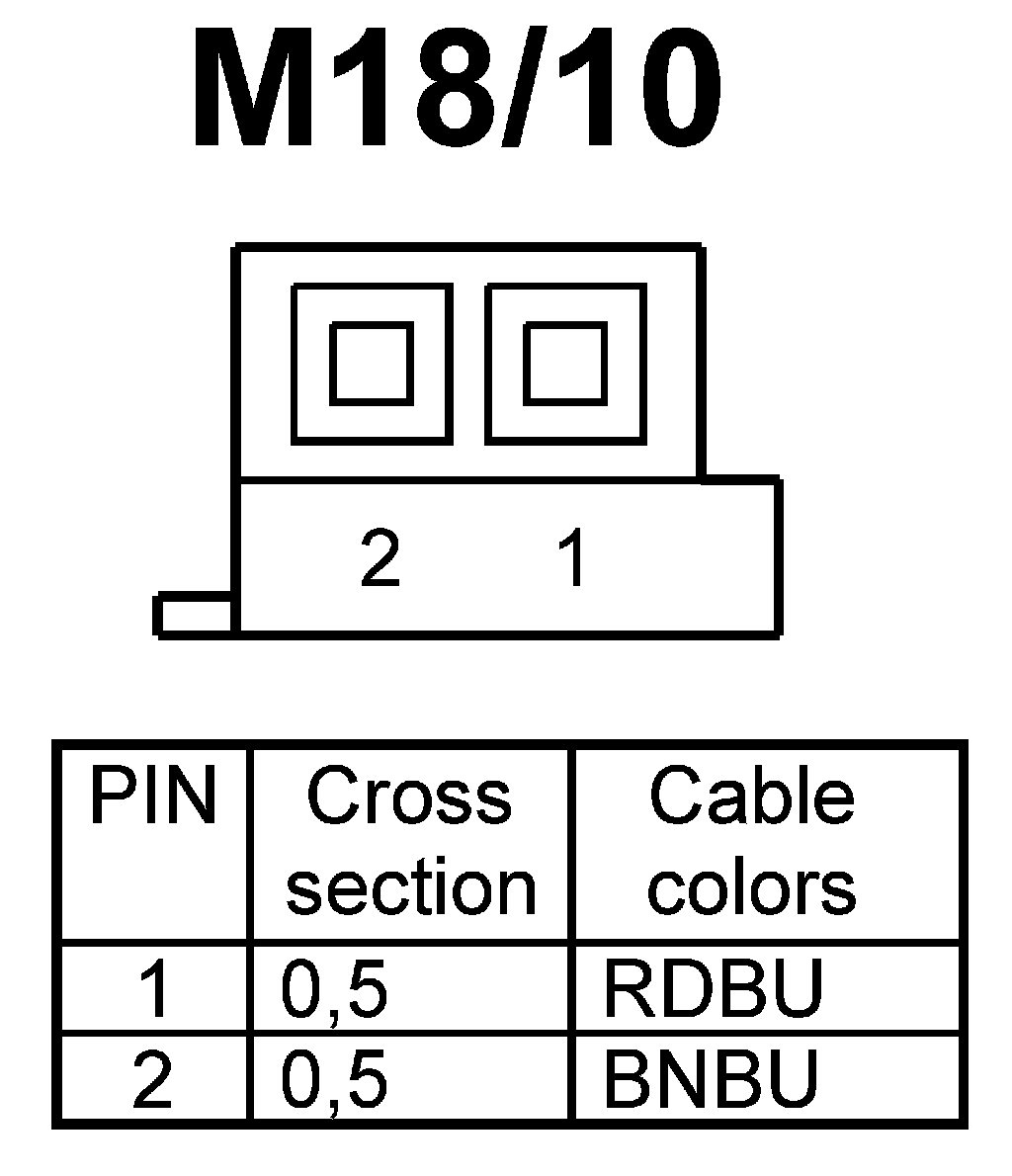

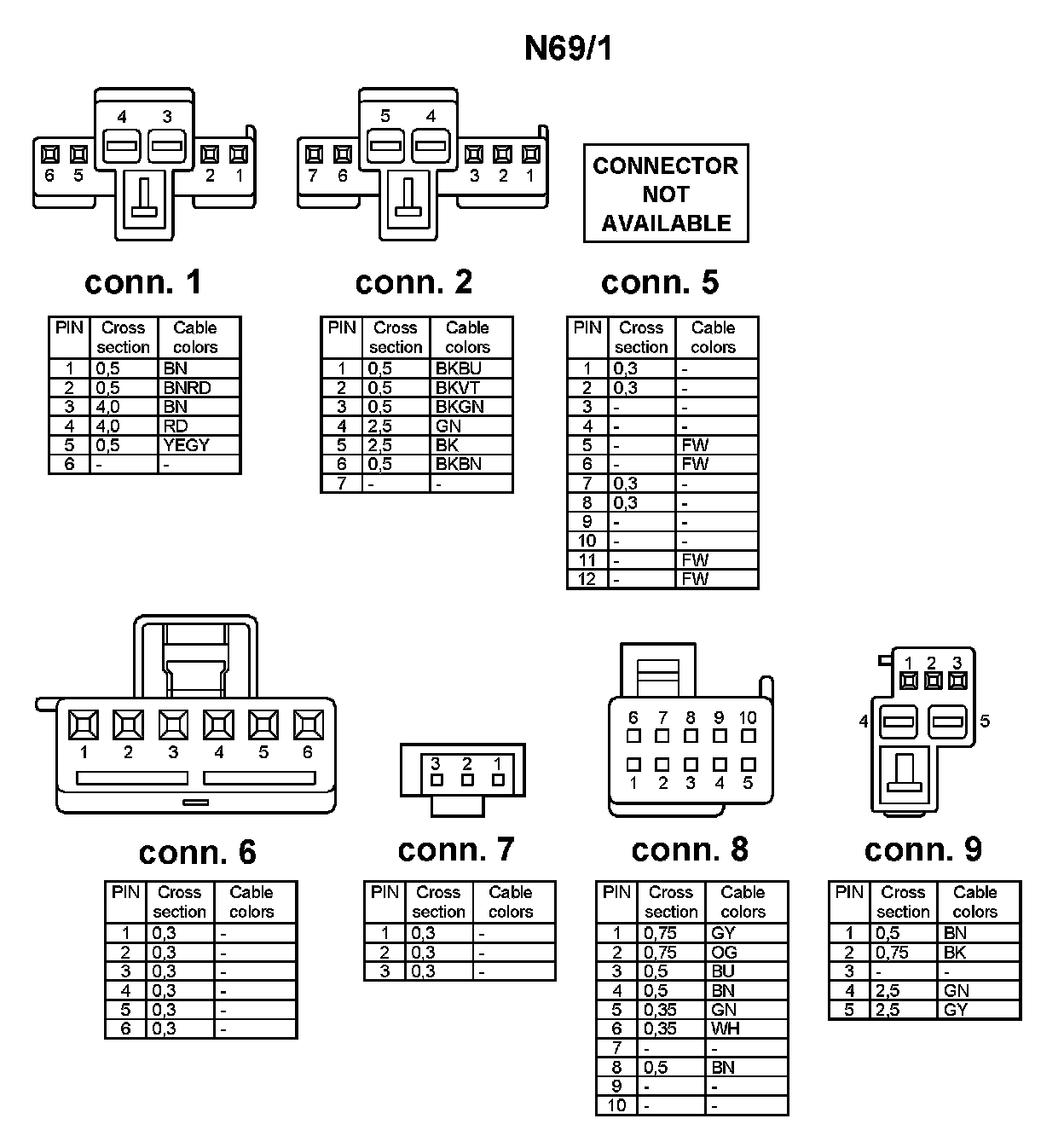

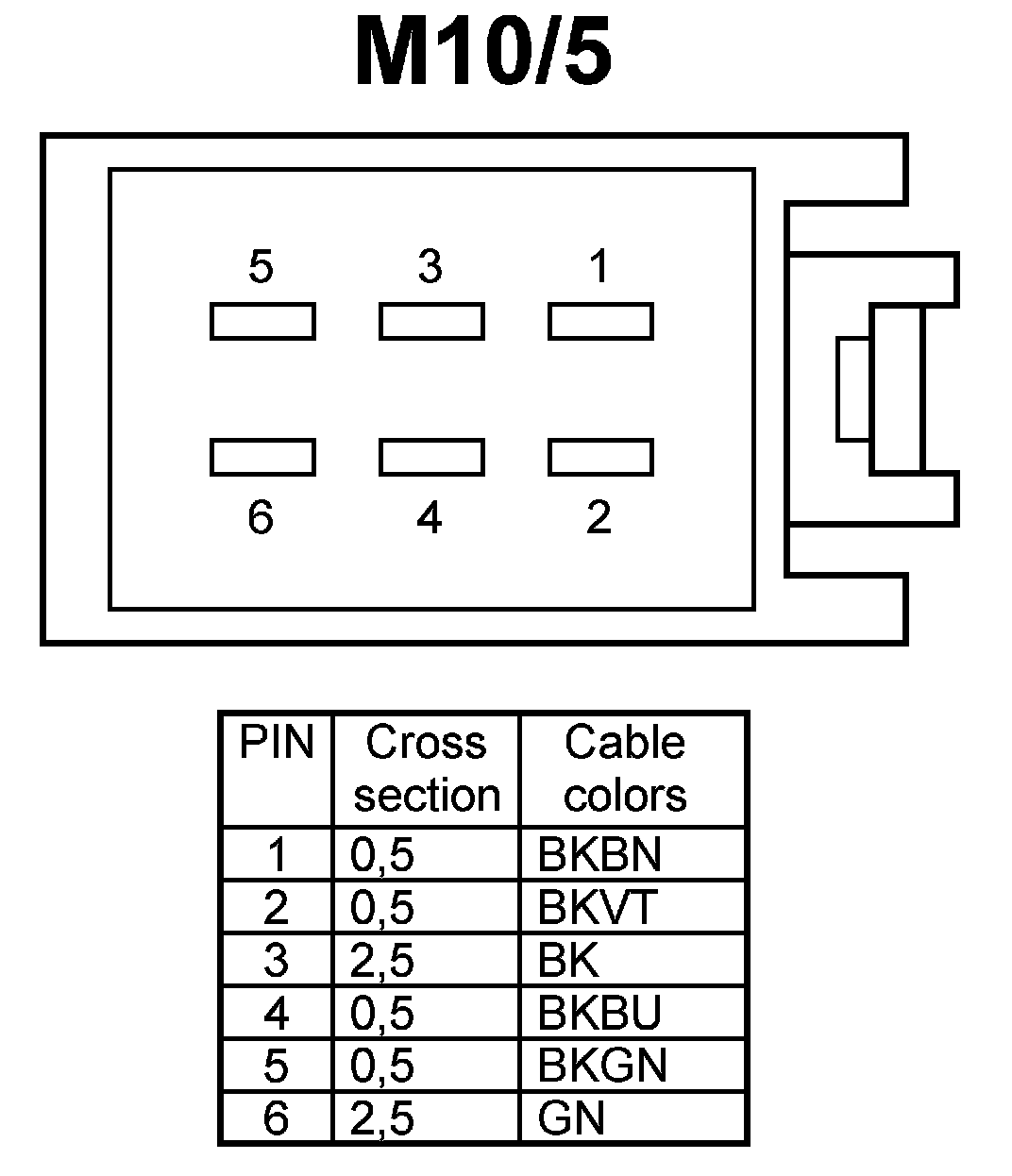

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
