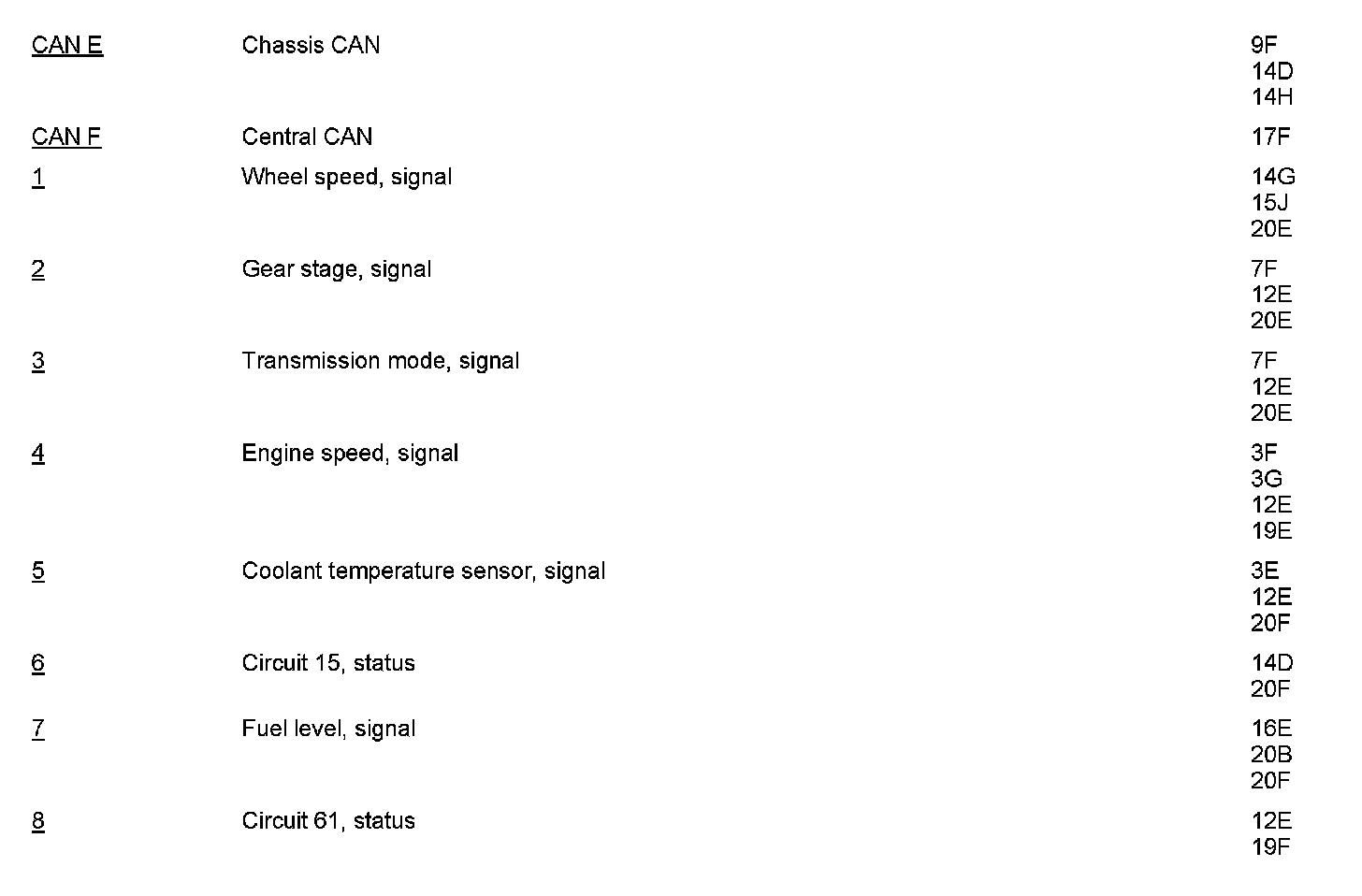

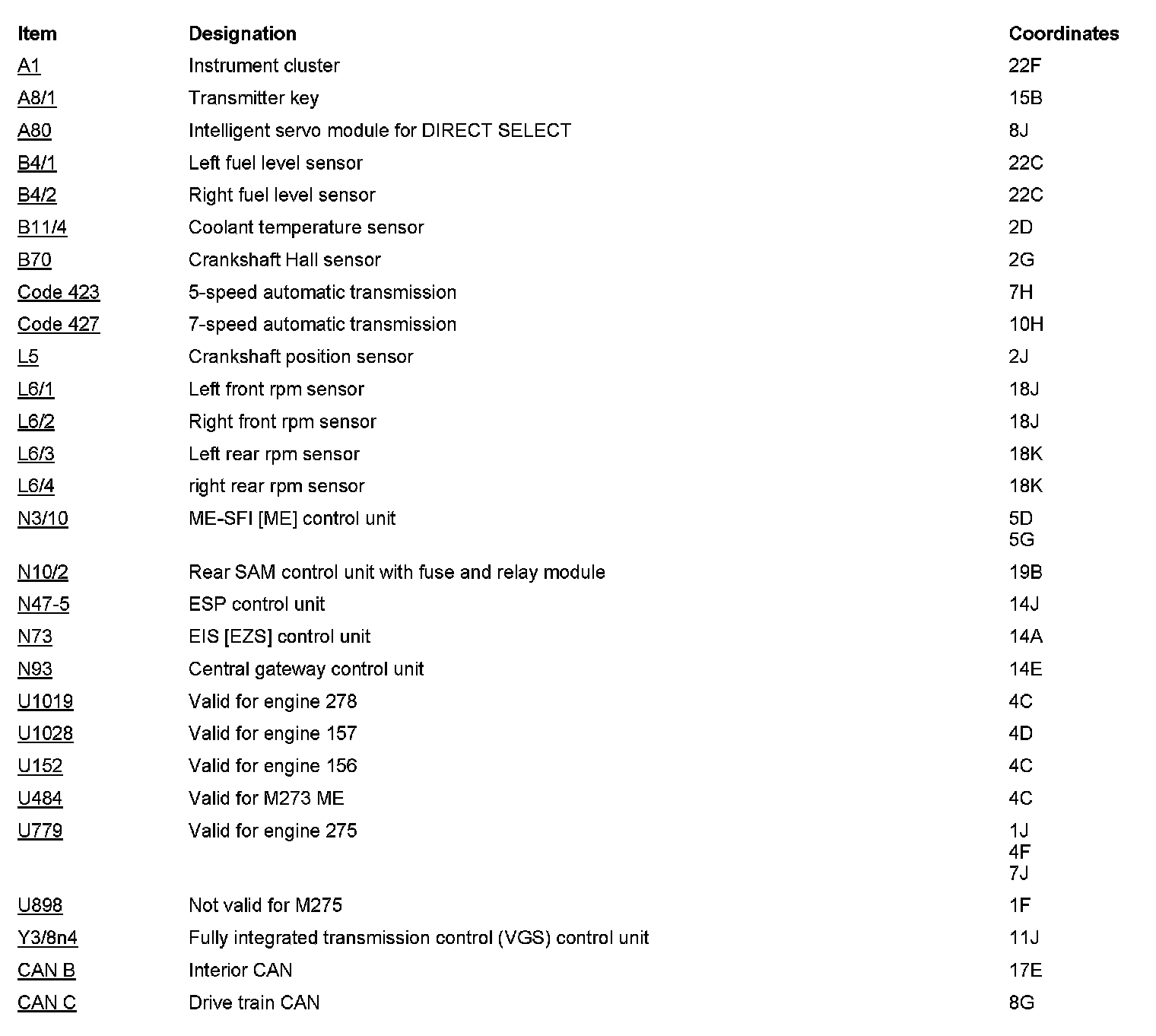

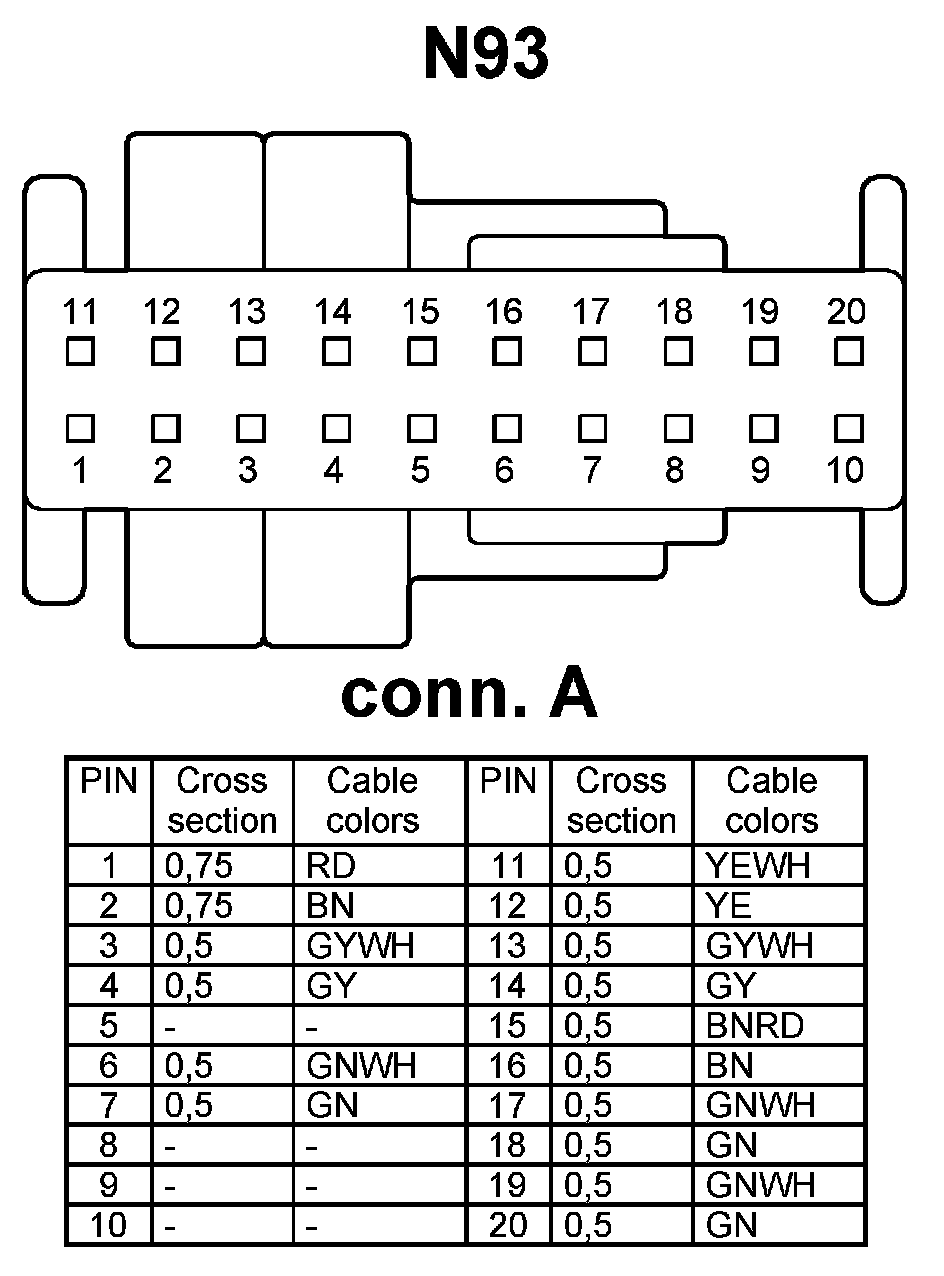

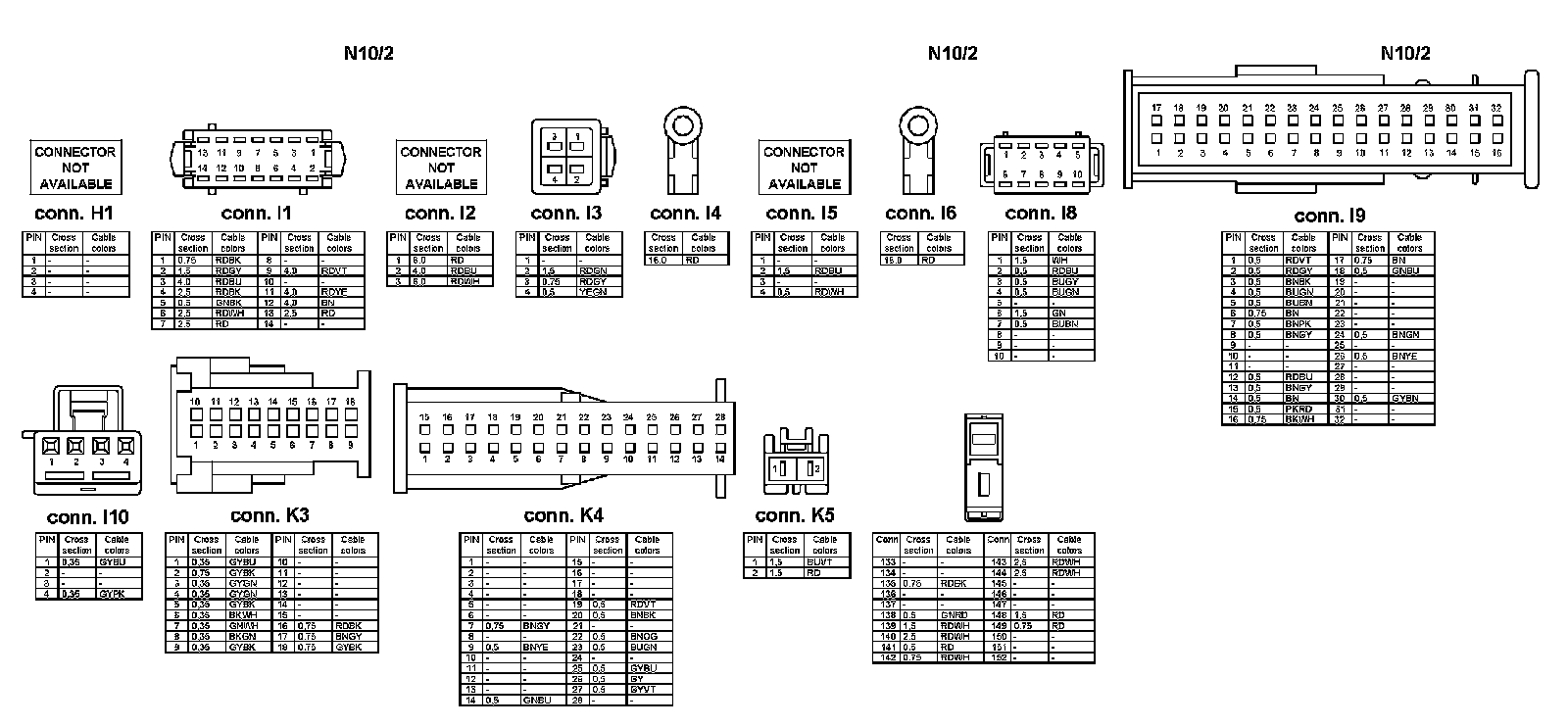

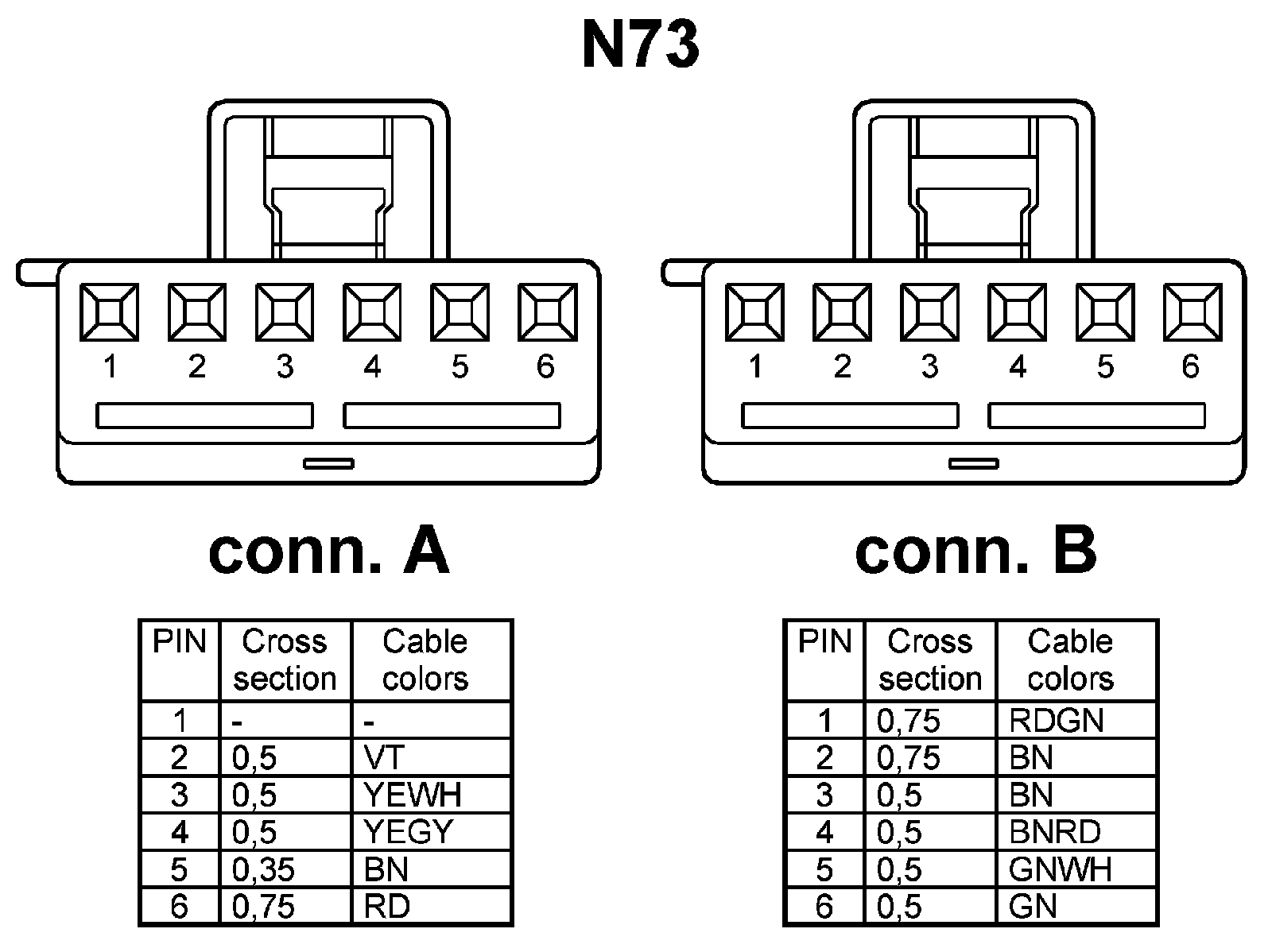

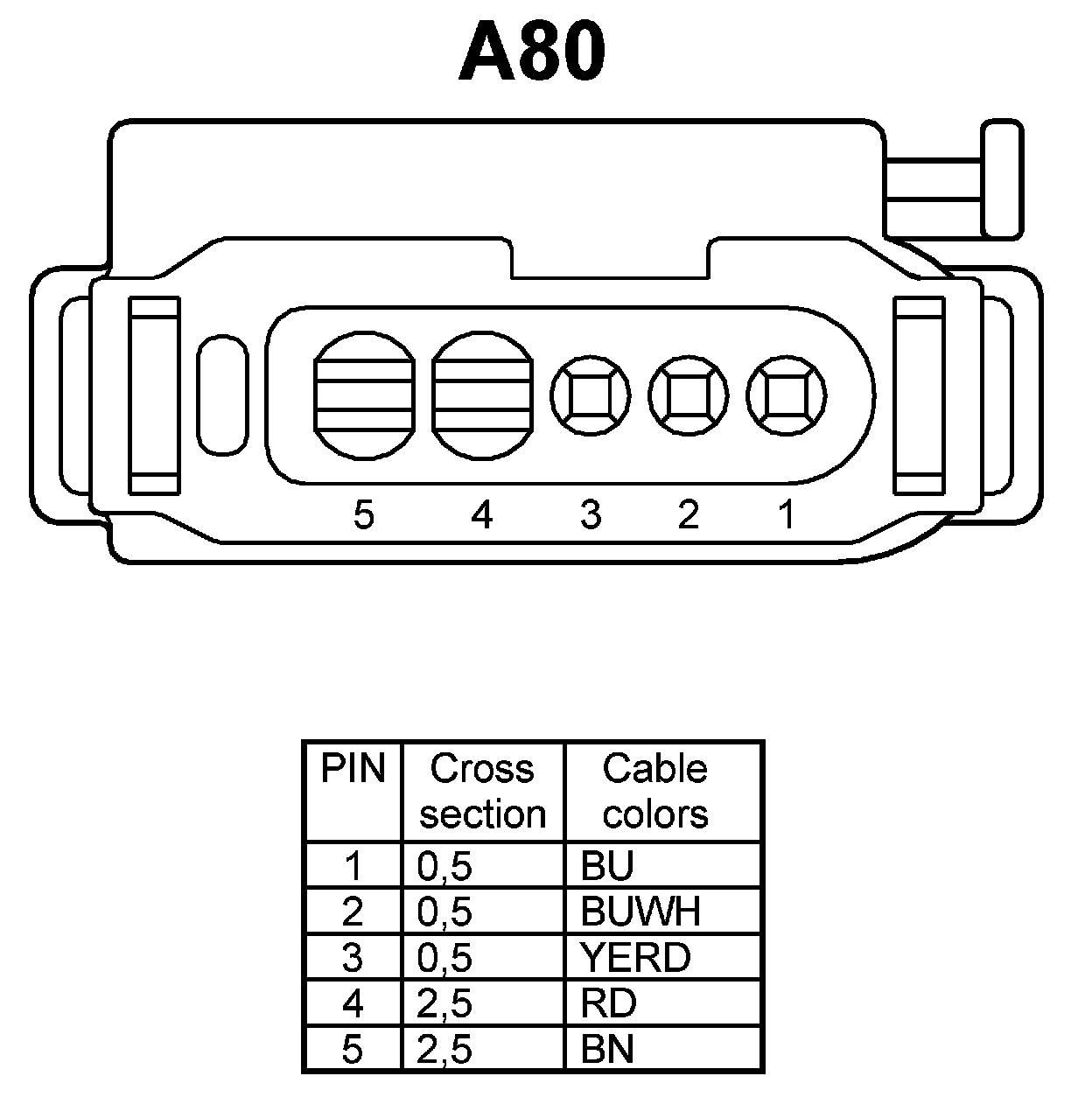

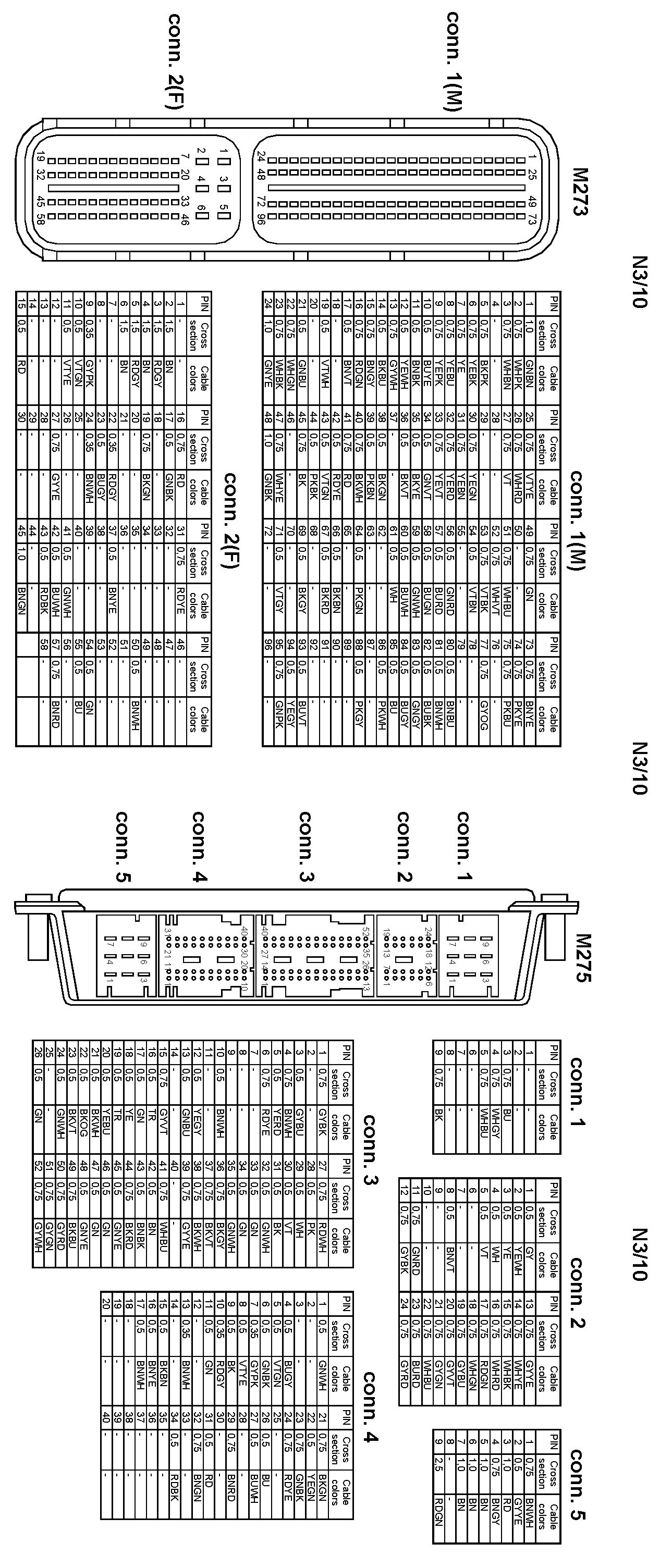

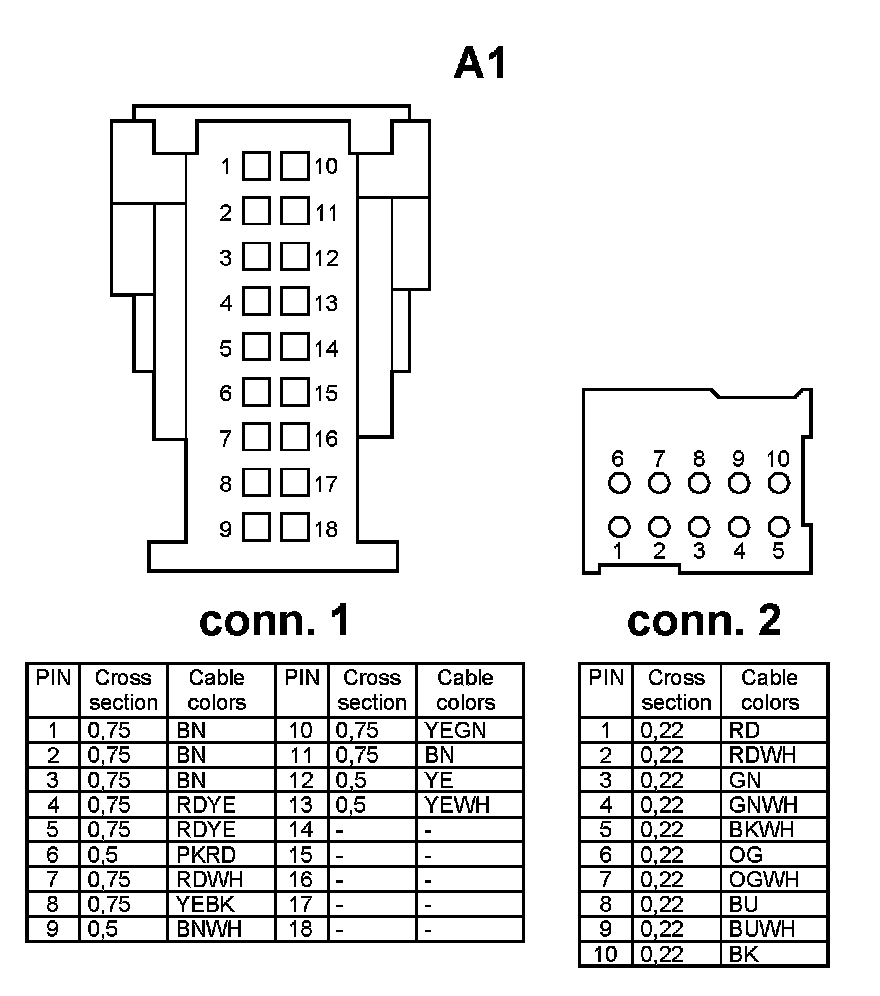

PE54.30-U-2055CAA Electrical Function Diagram For Instrument Cluster Operation Status Display



PE54.30-U-2055CAA Electrical Function Diagram For Instrument Cluster Operation Status Display

MODEL 216
- as of Model Year 2009











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
