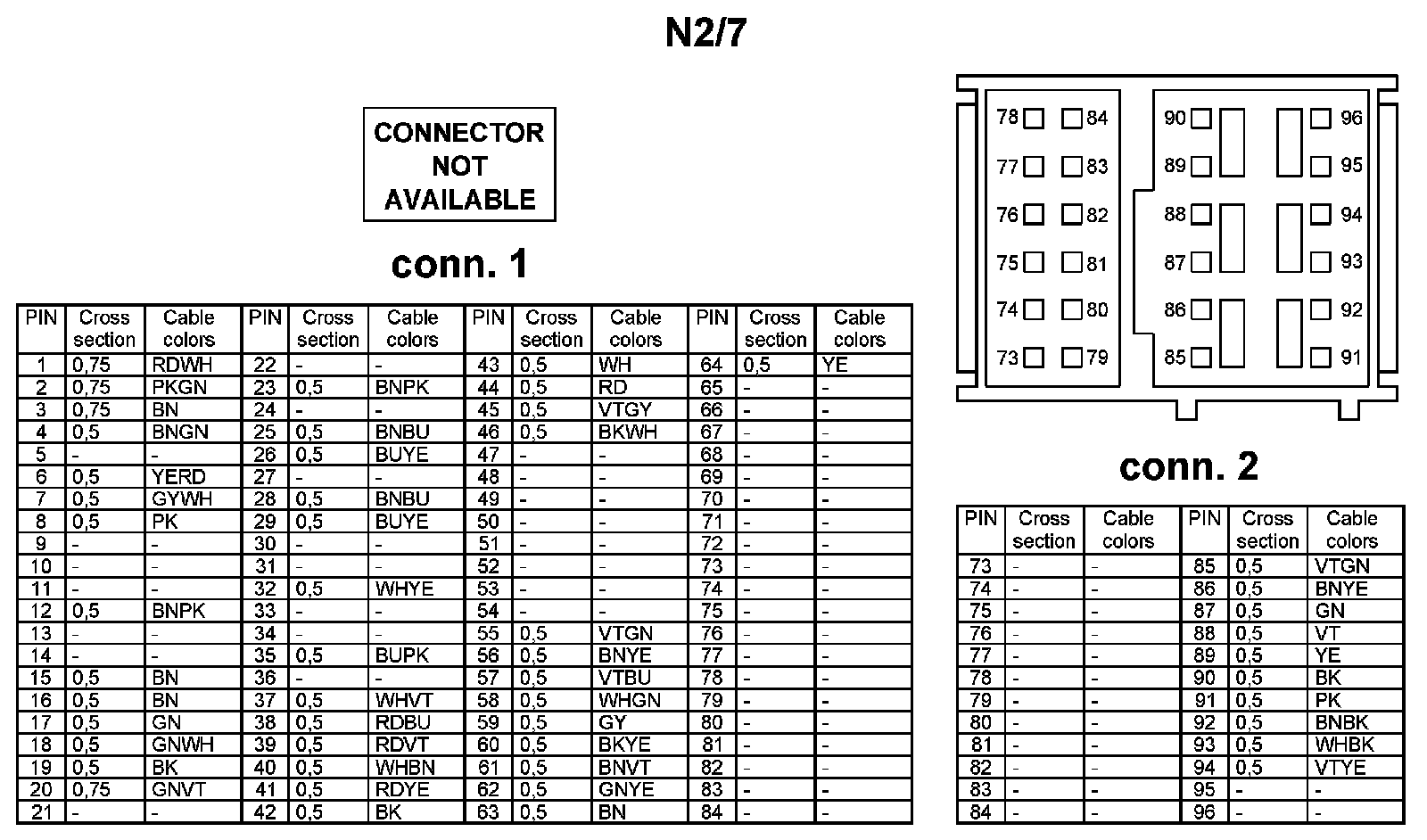

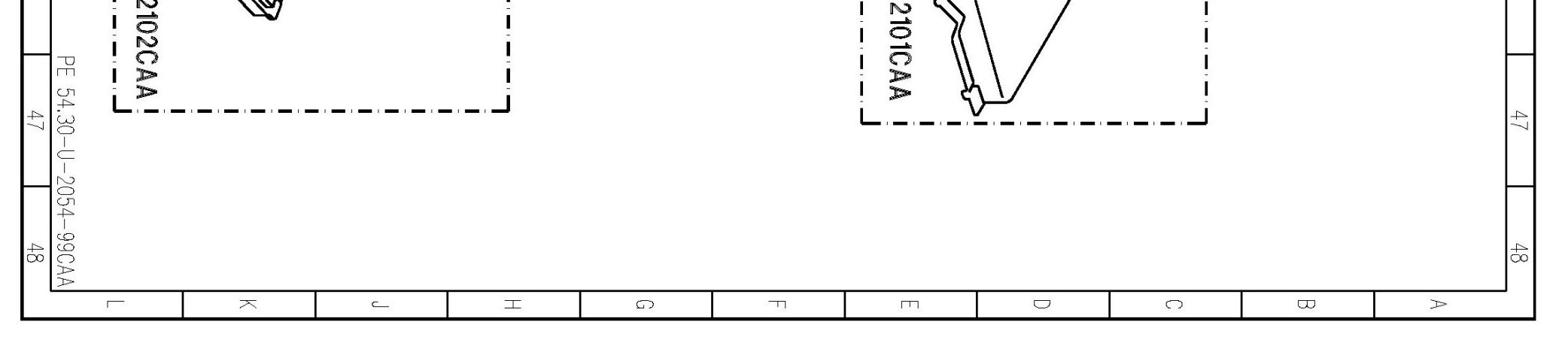

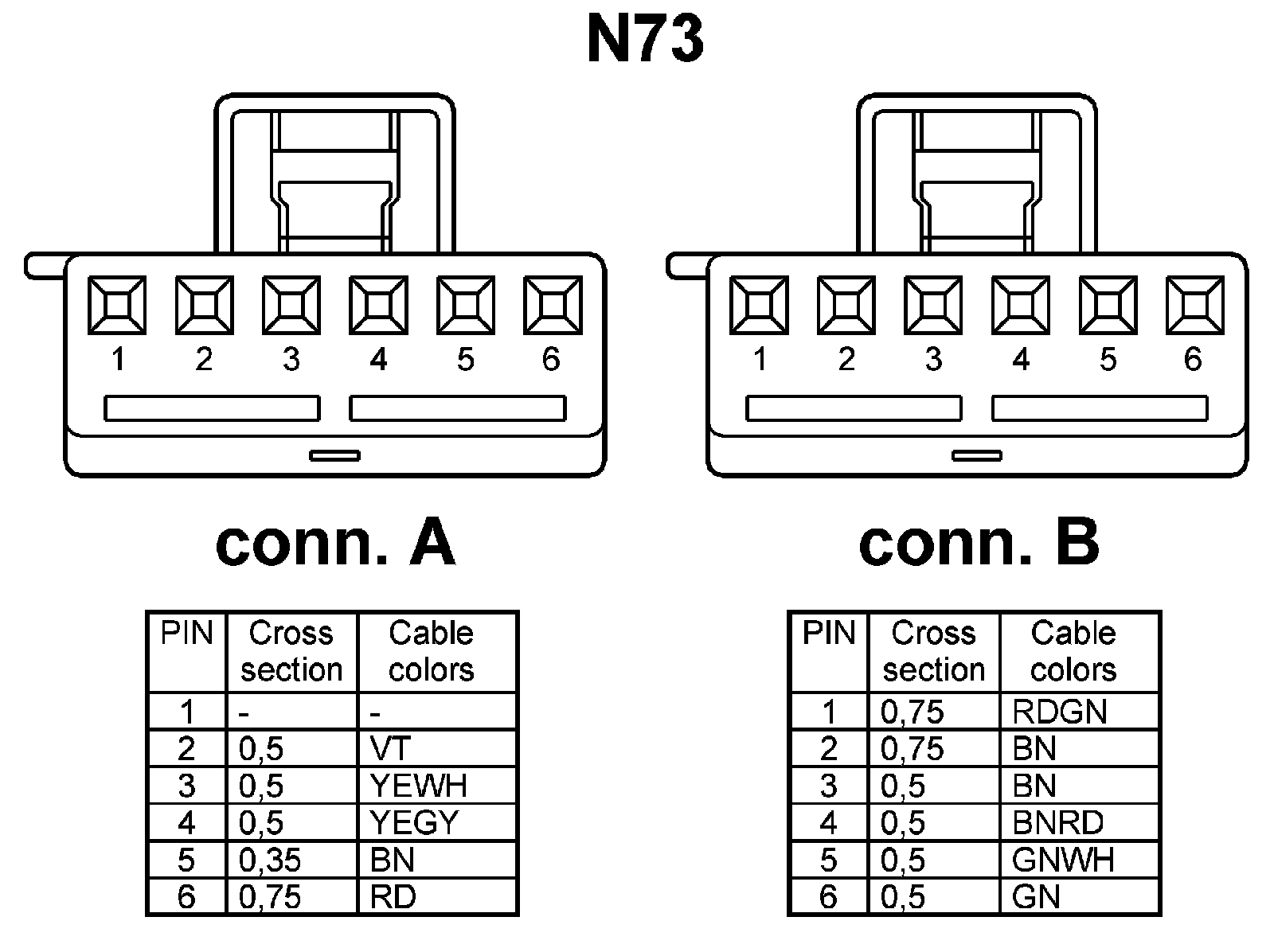

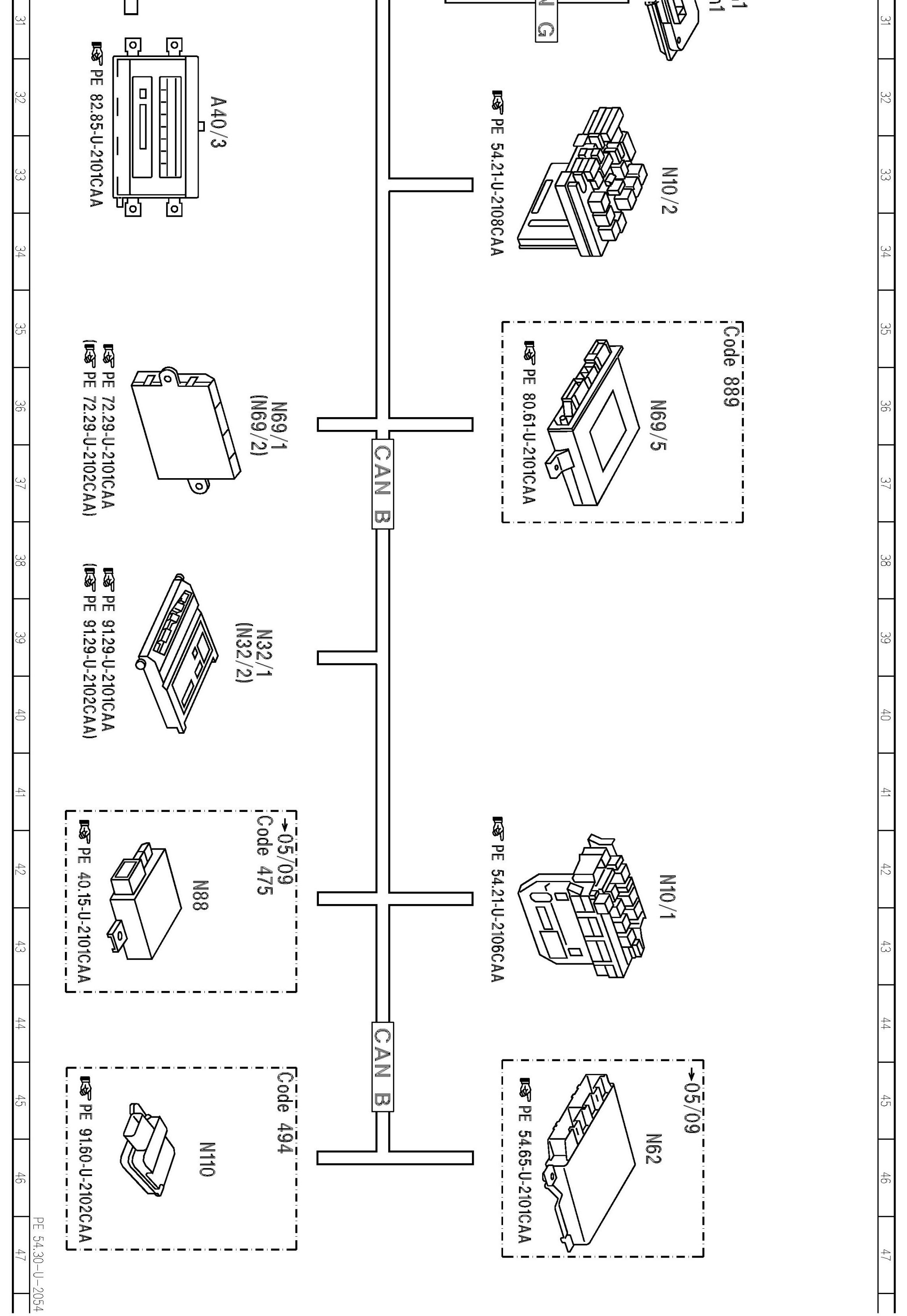

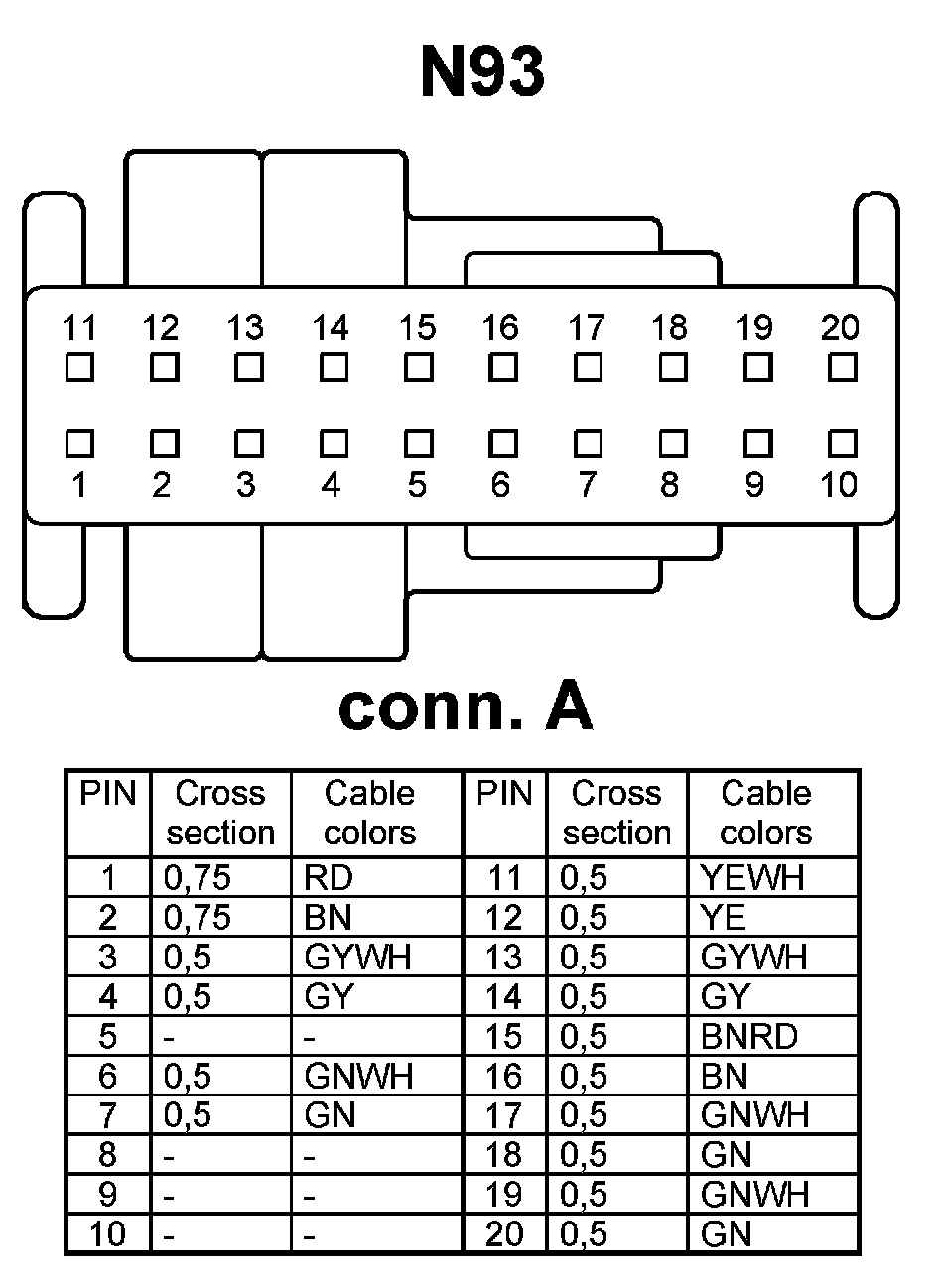

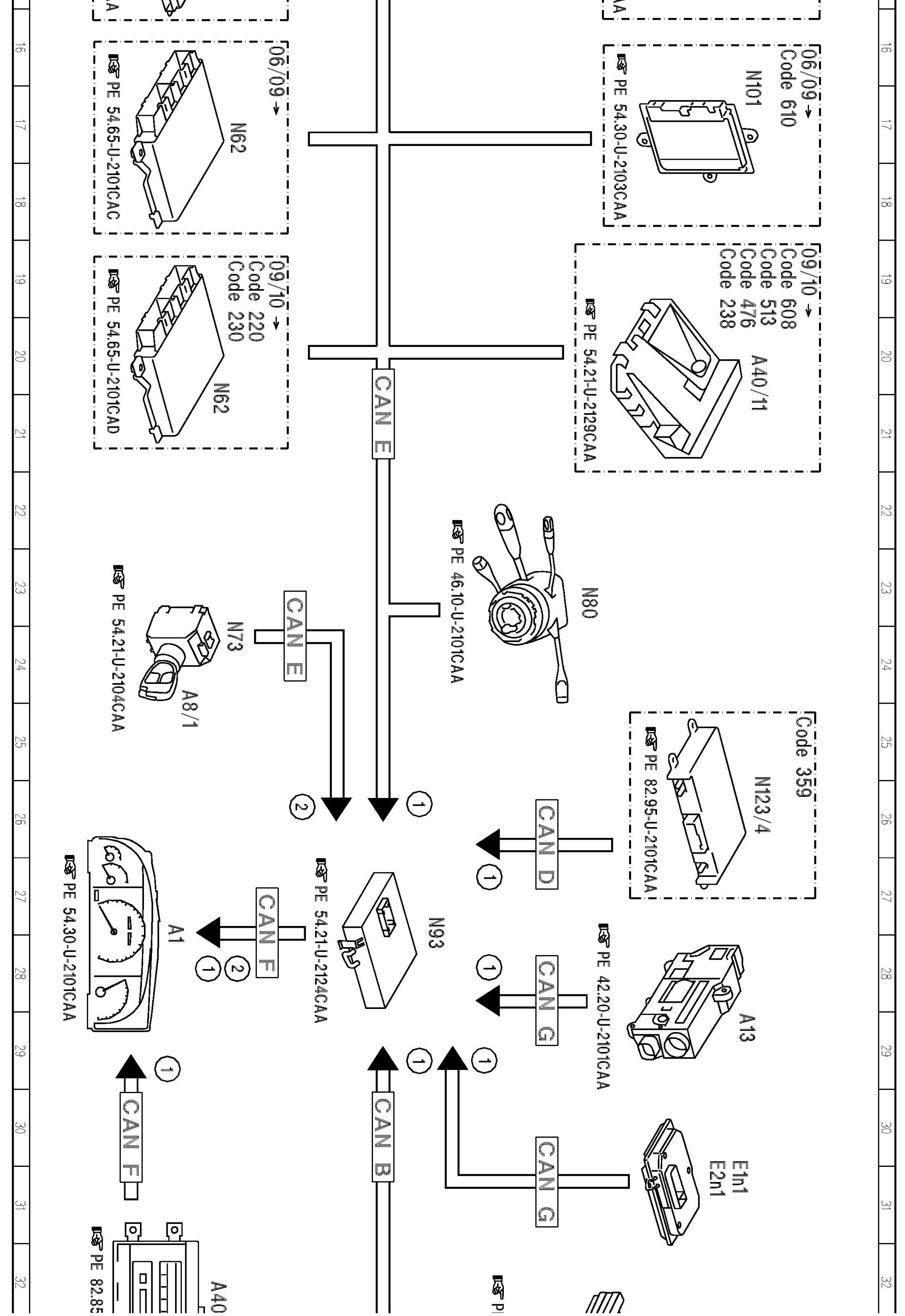

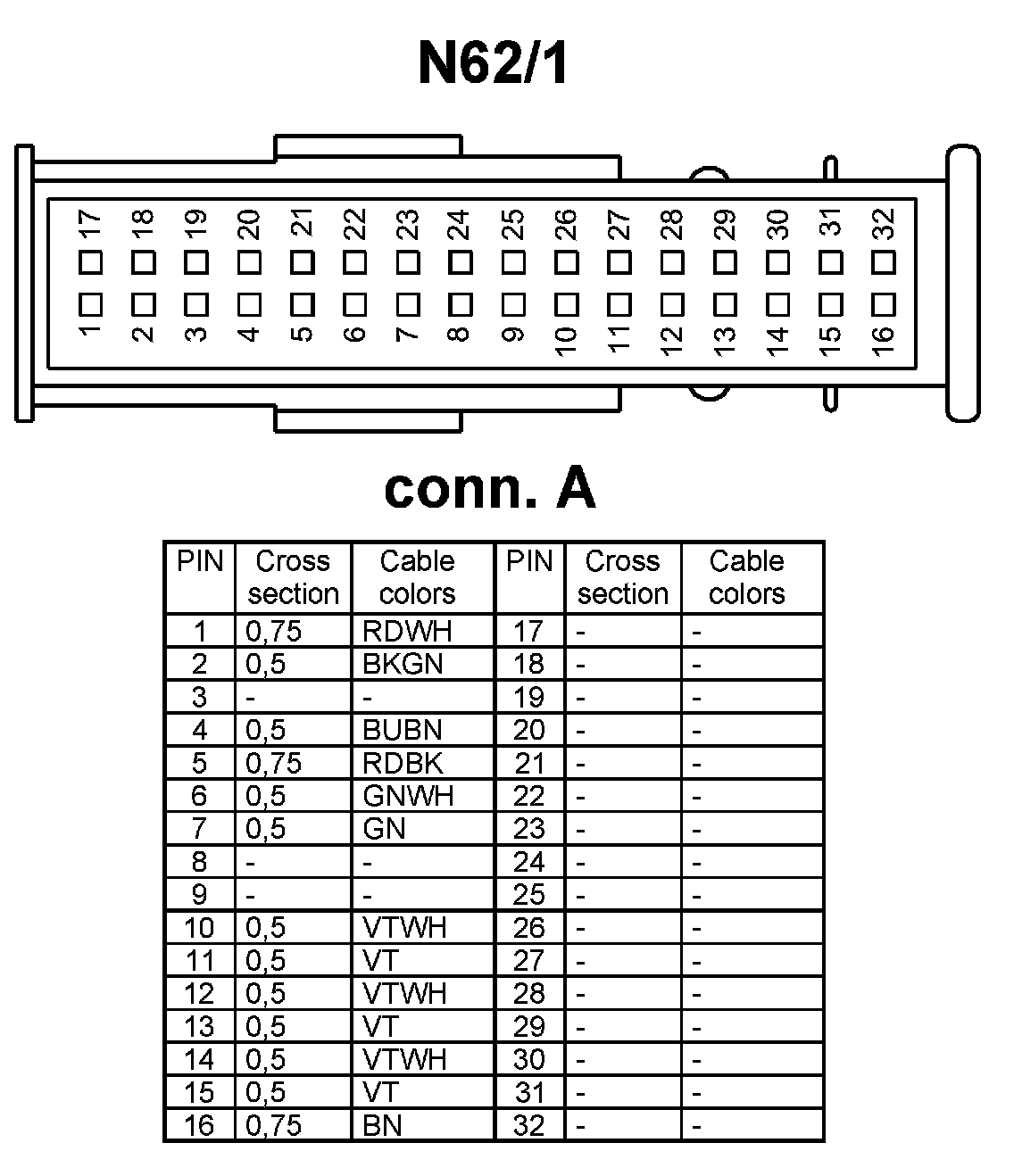

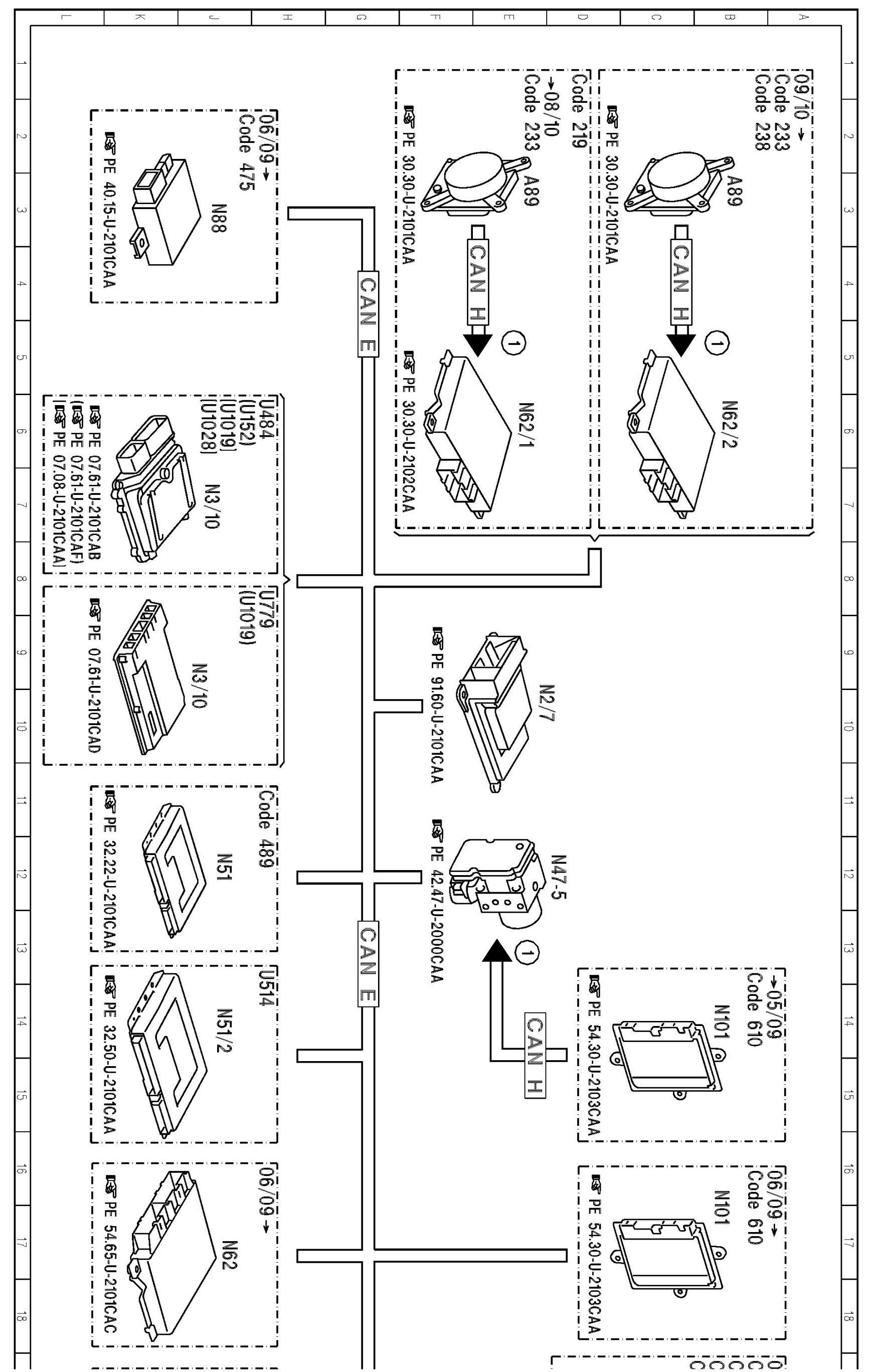

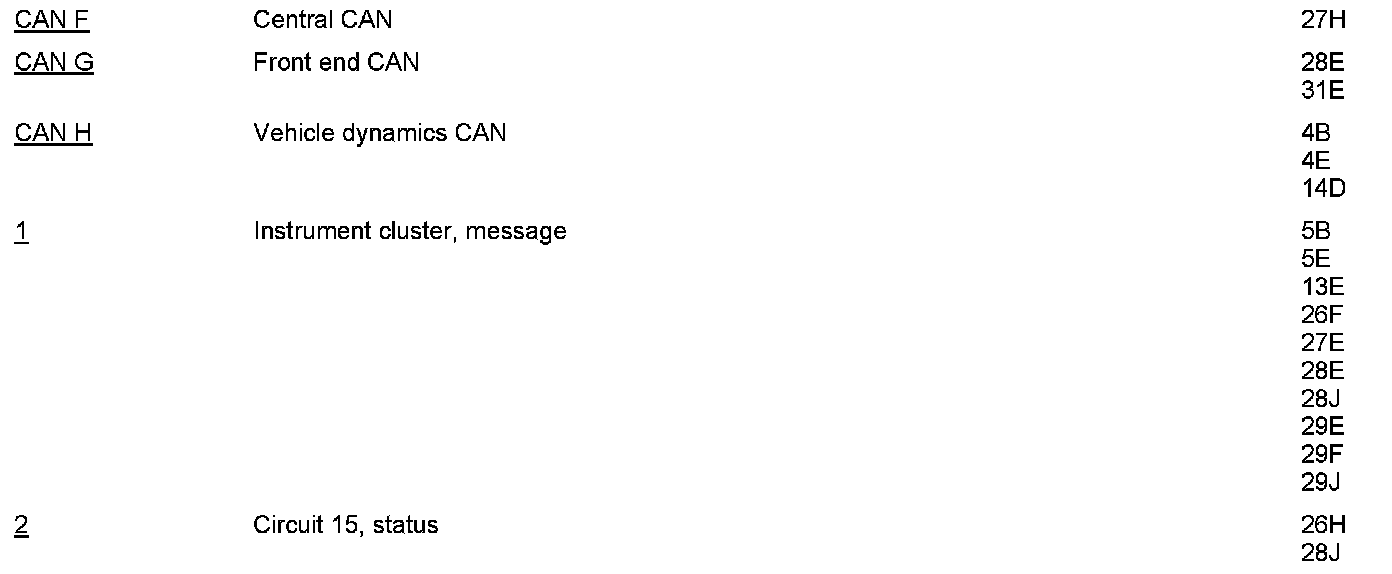

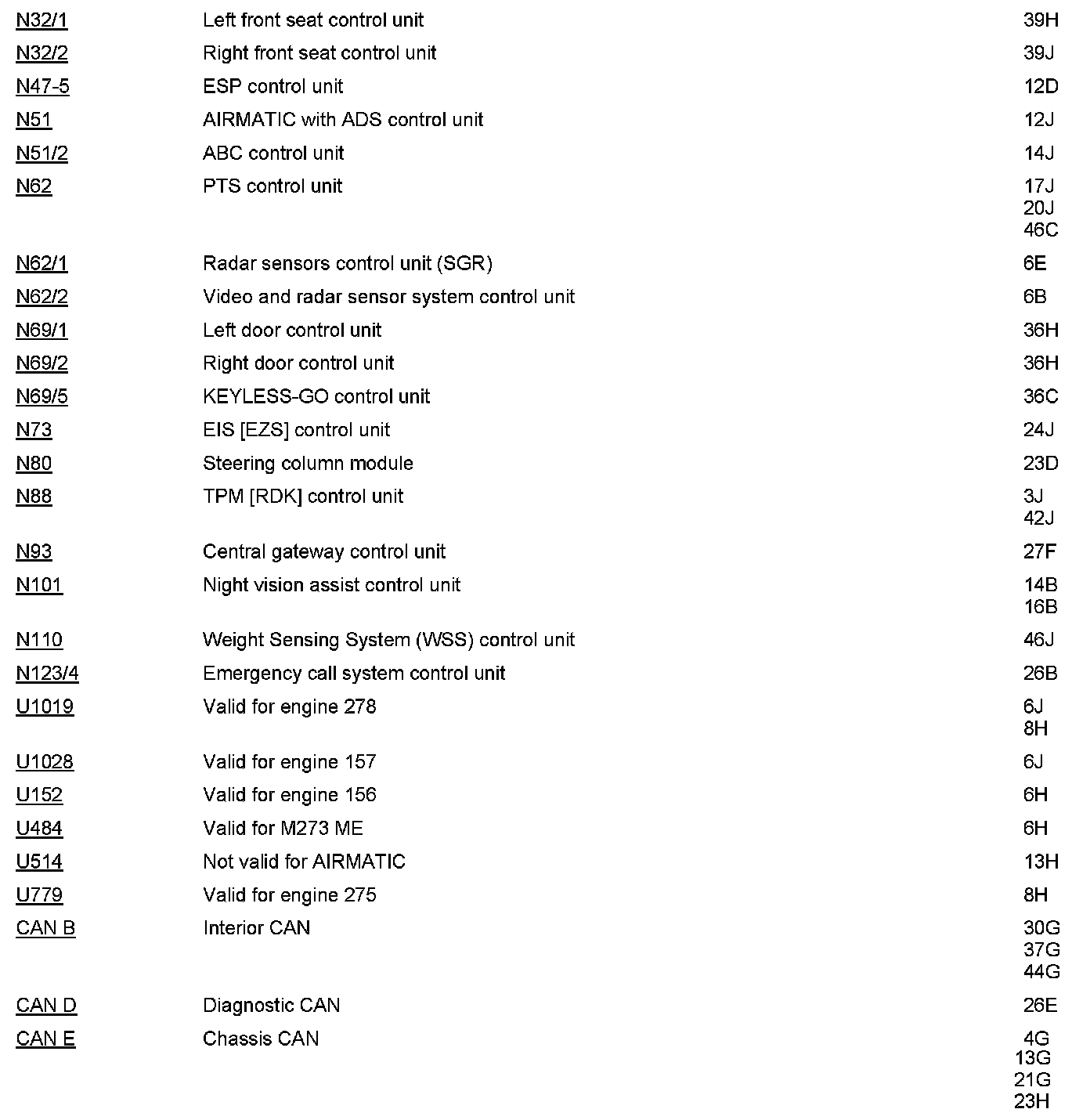

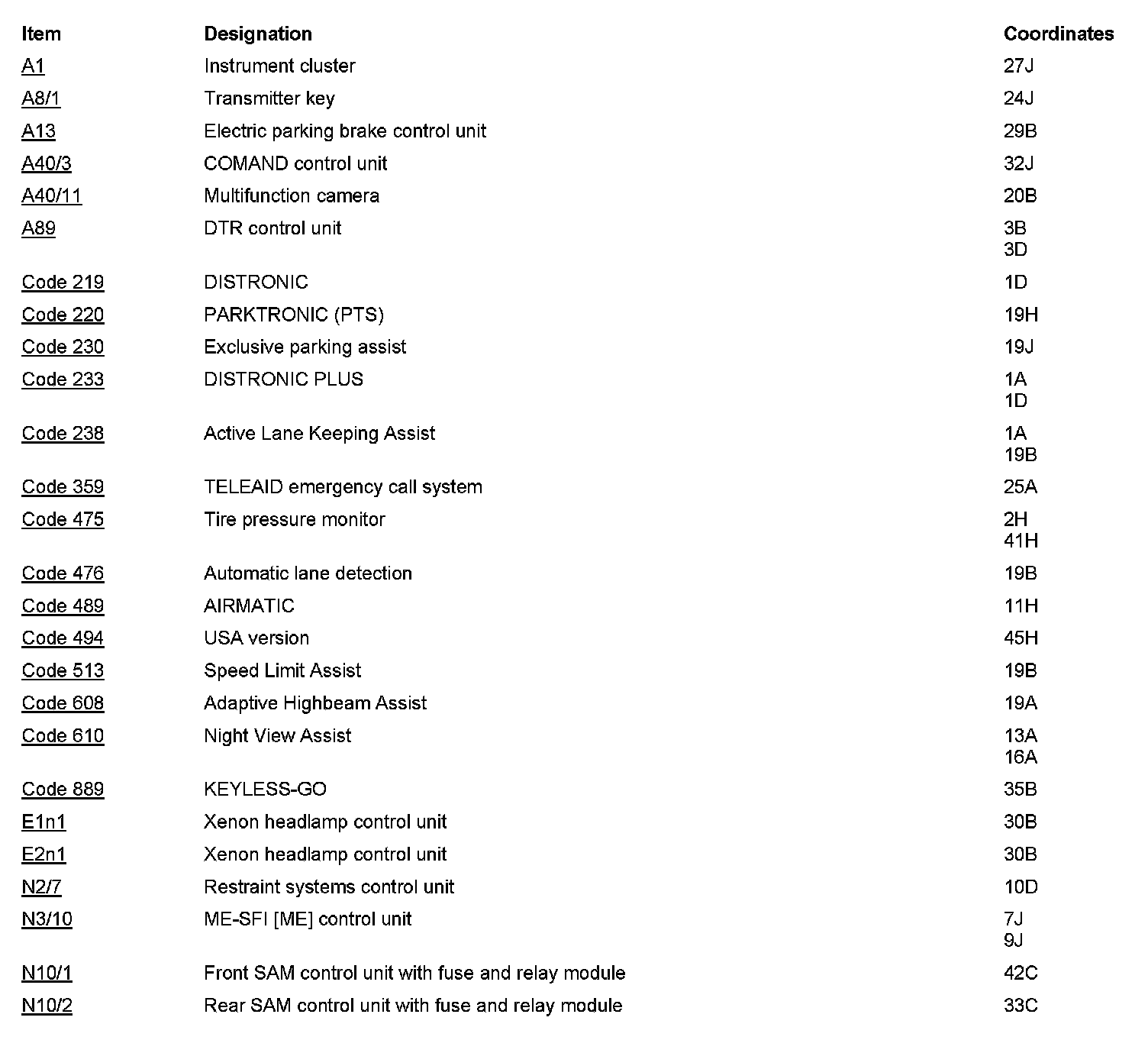

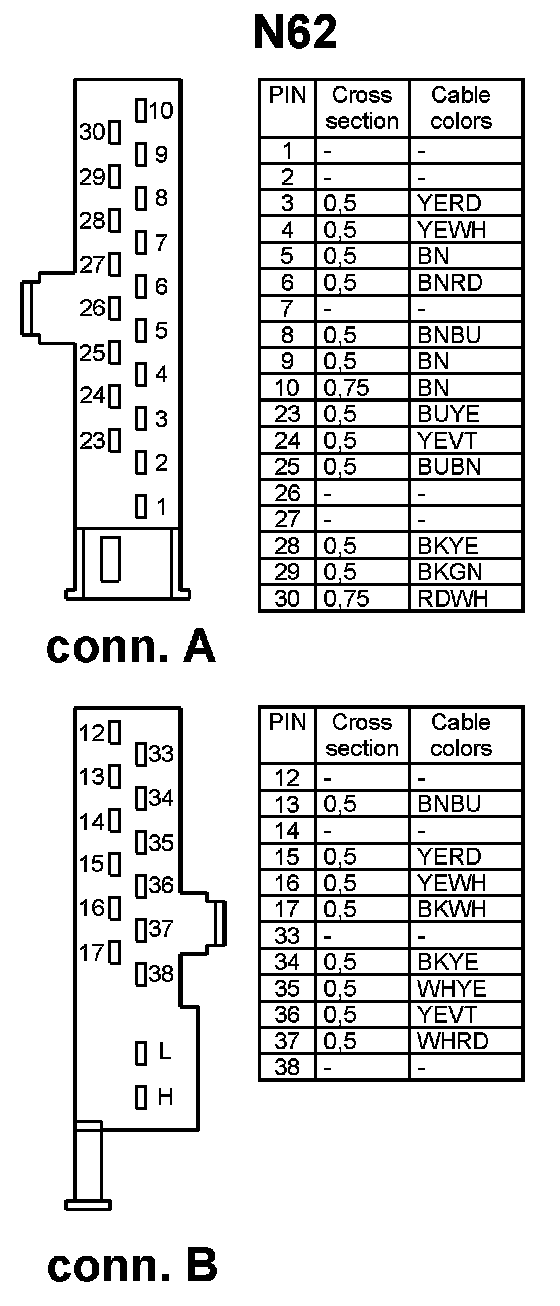

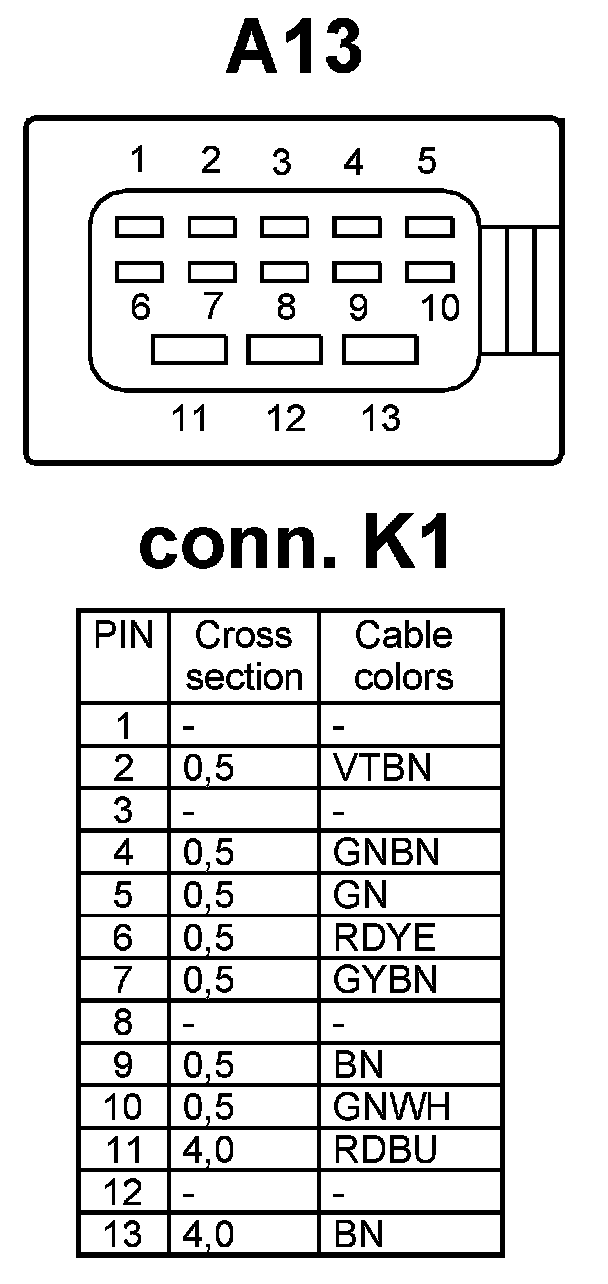

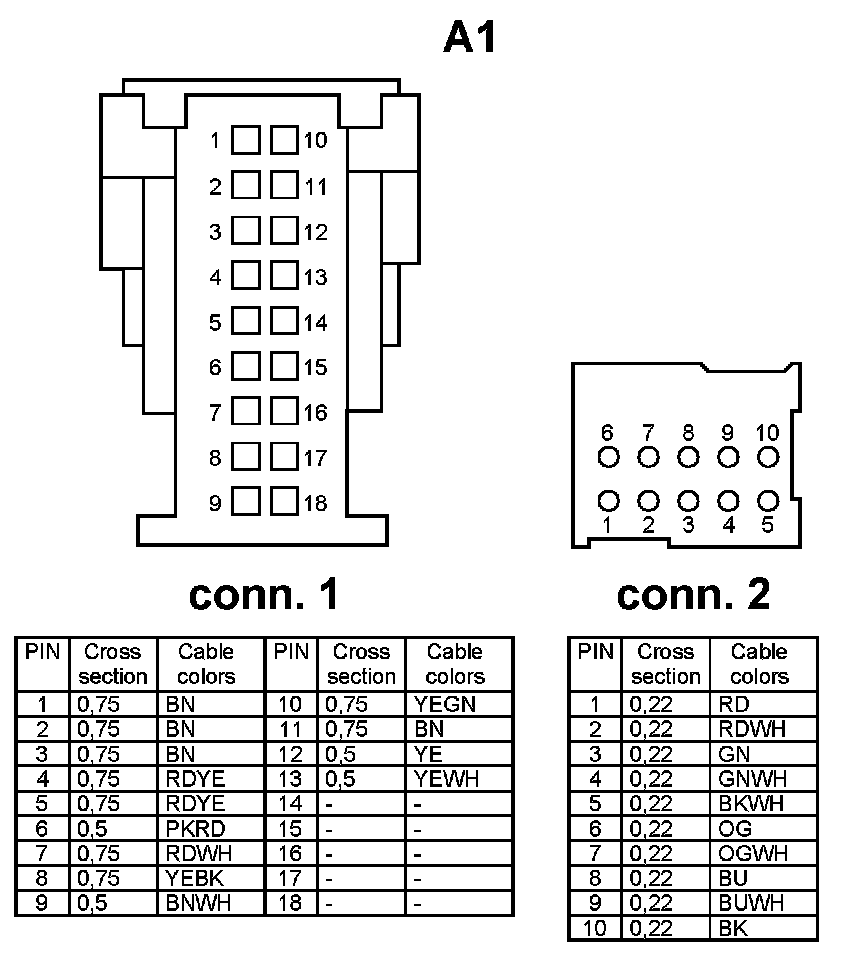

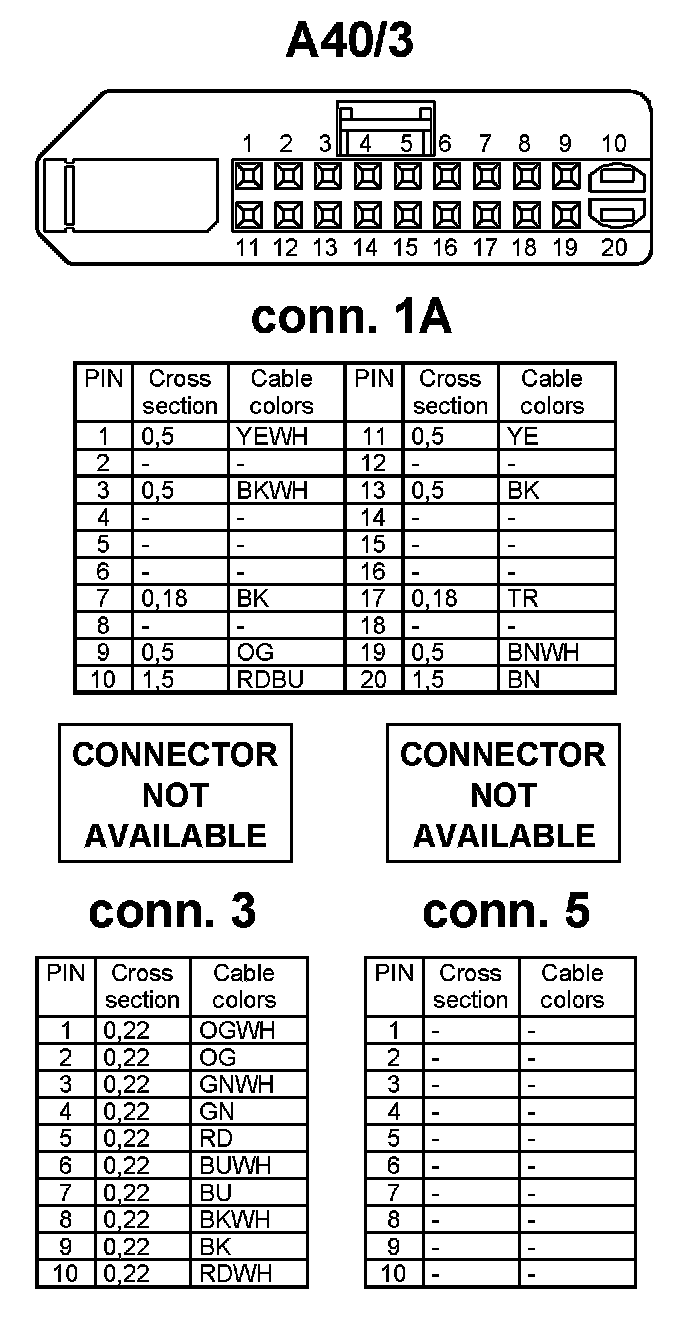

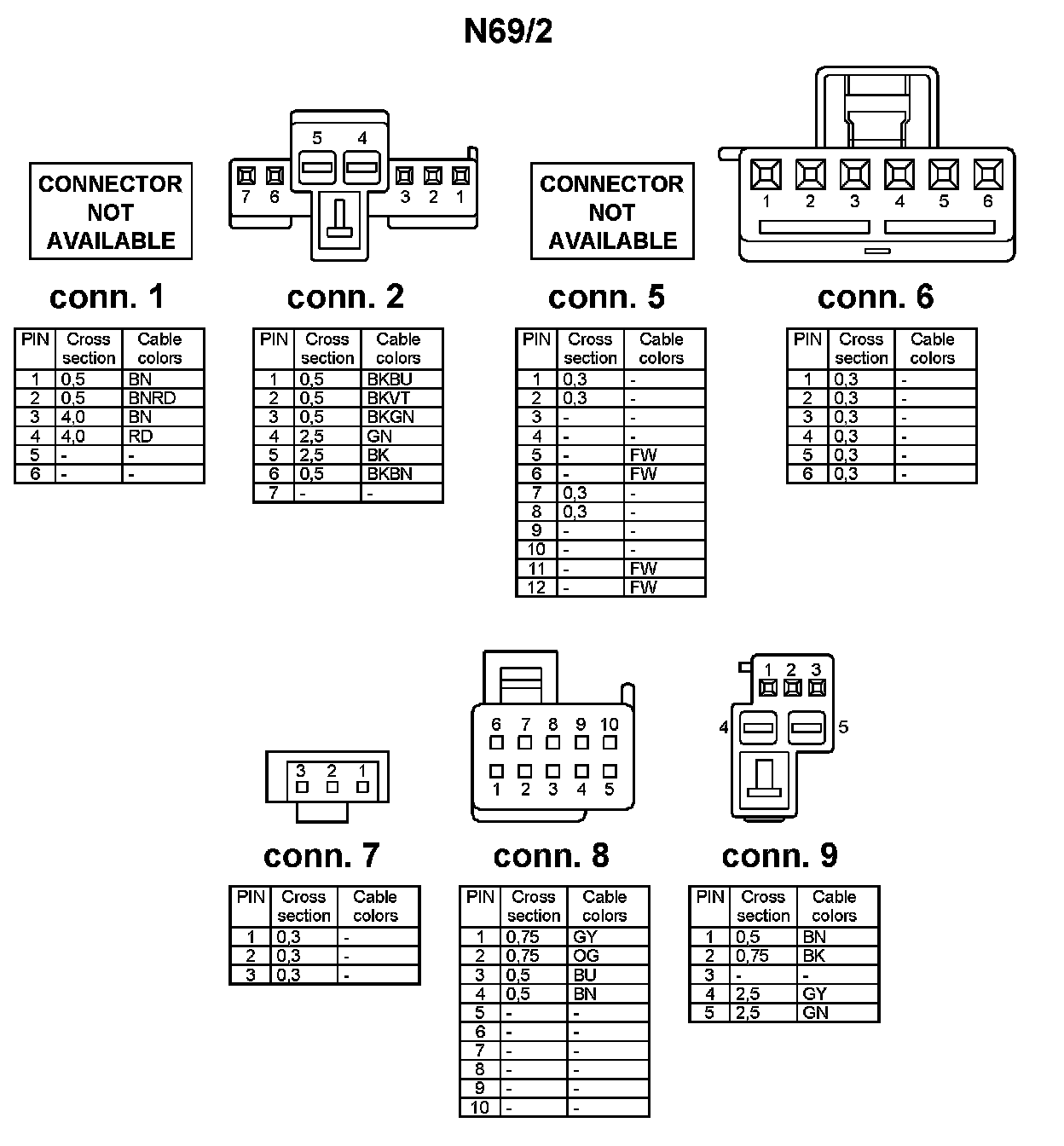

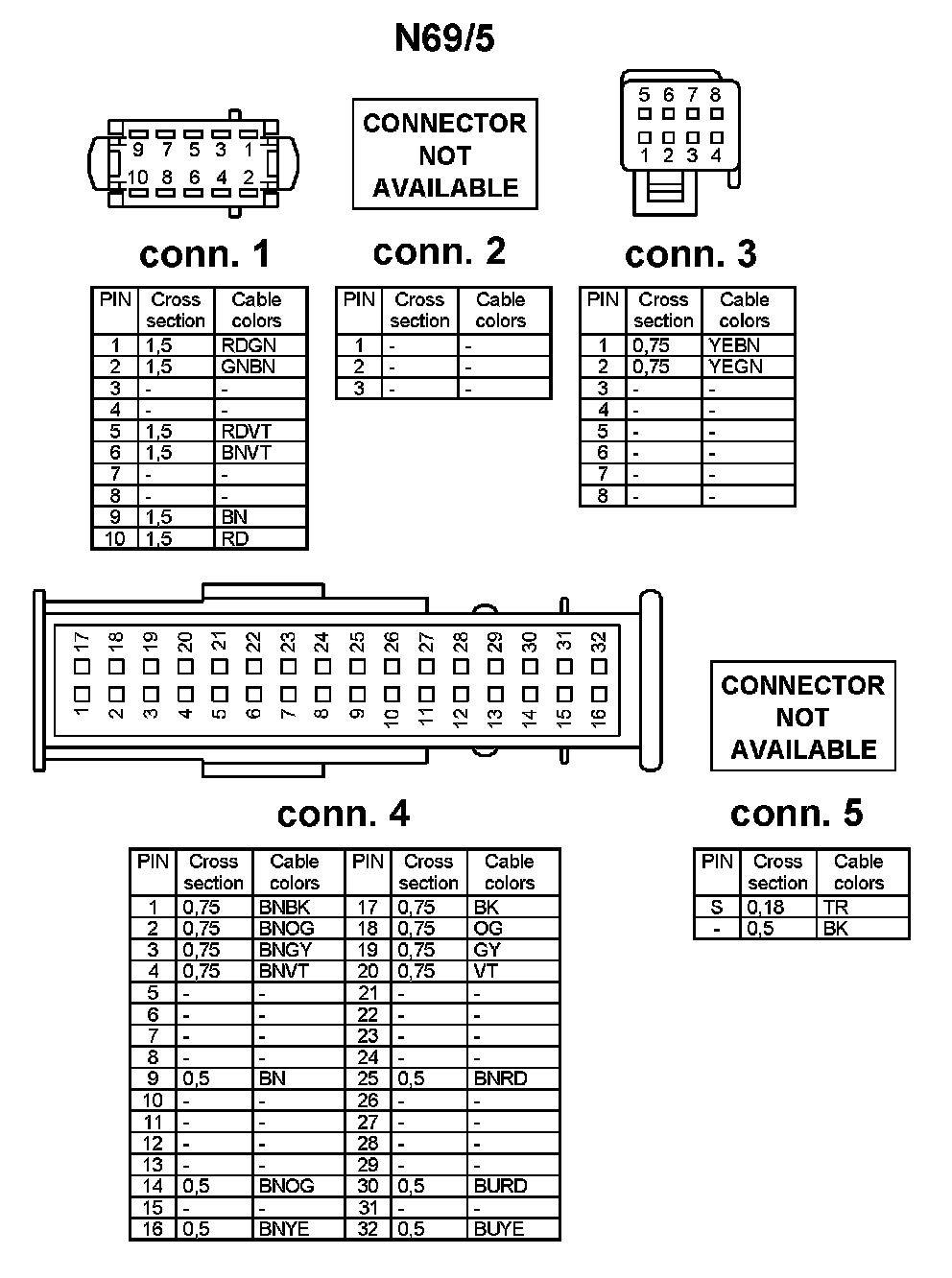

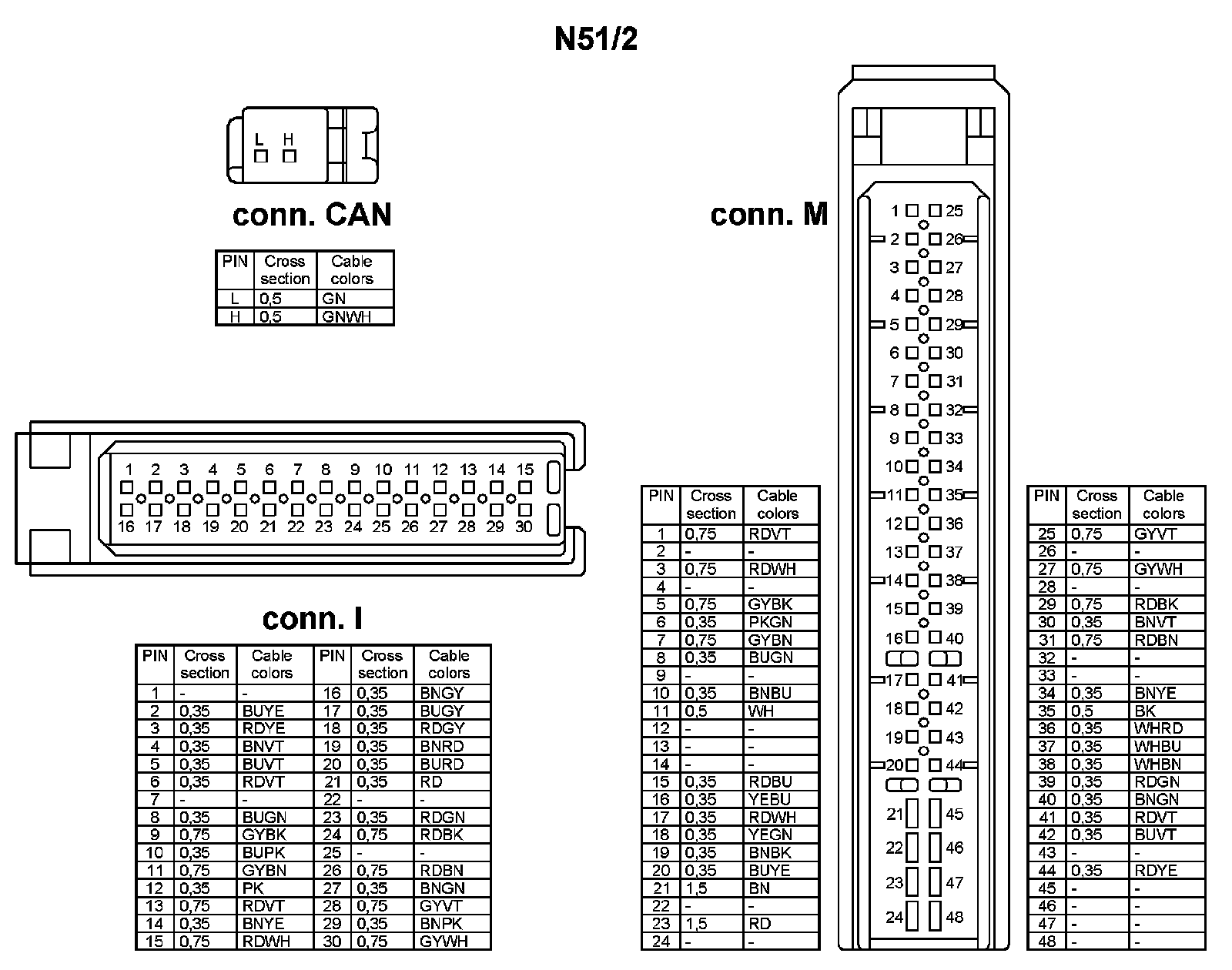

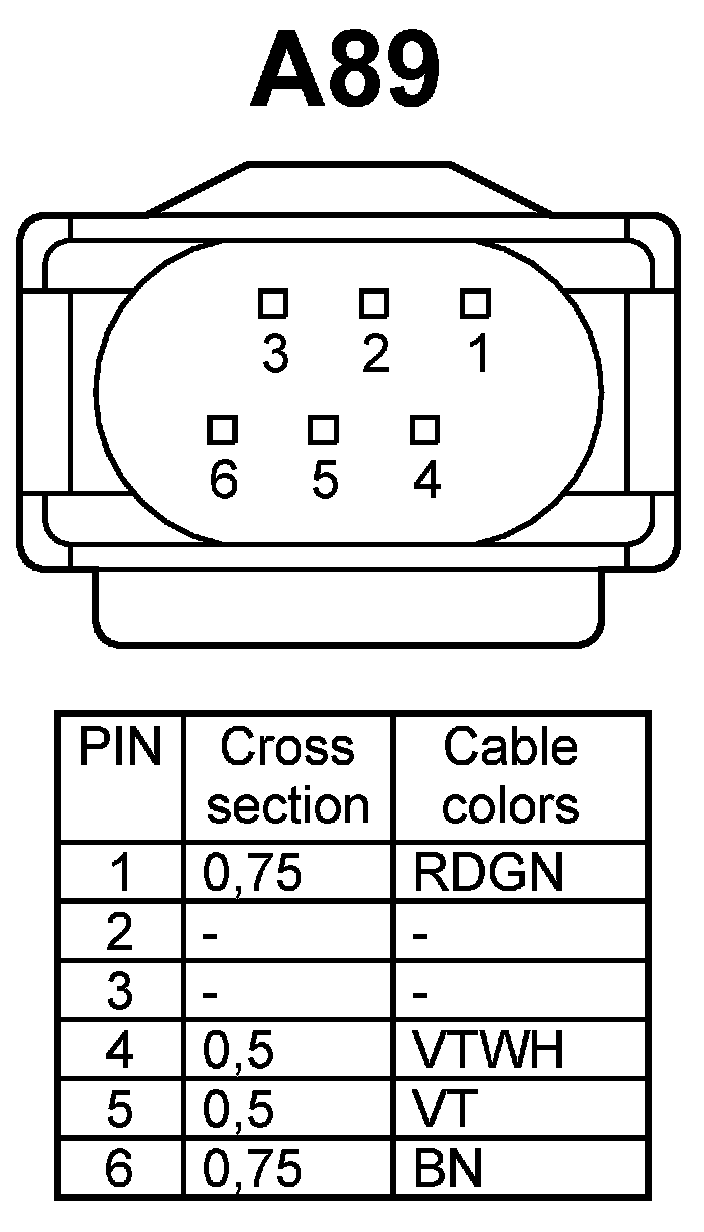

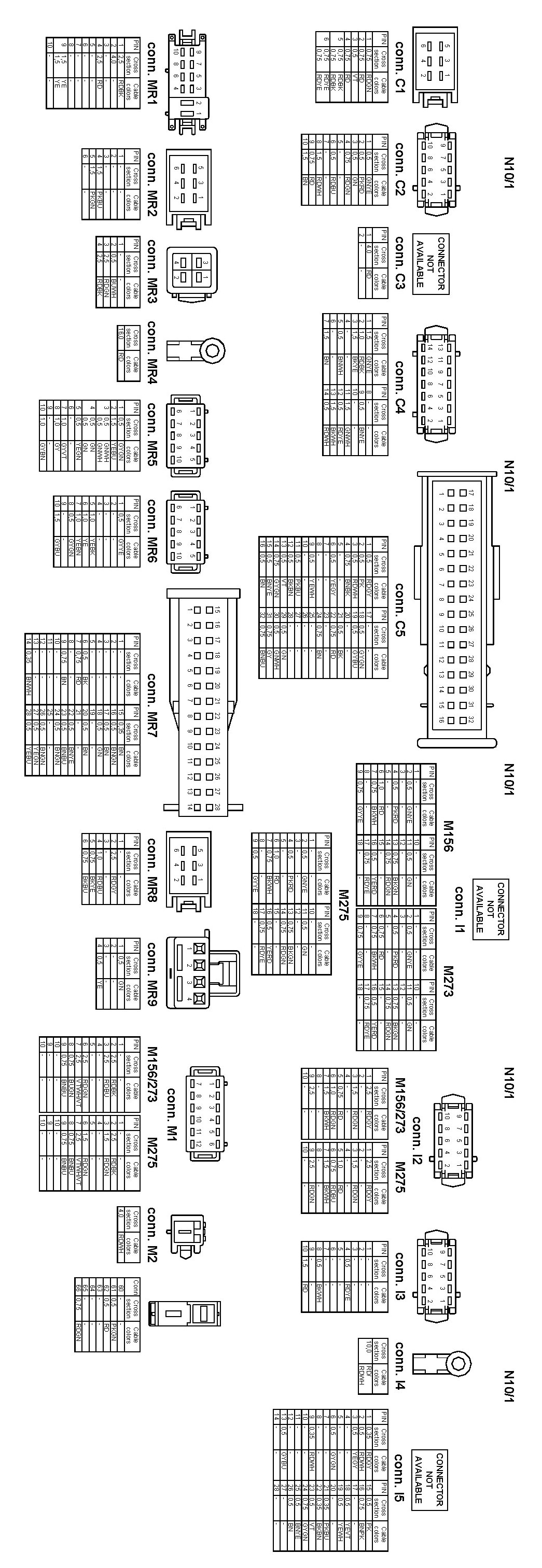

PE54.30-U-2054CAA Electrical Function Diagram For Instrument Cluster Control/Warning Message



PE54.30-U-2054CAA Electrical Function Diagram For Instrument Cluster Control/Warning Message

MODEL 216
- as of Model Year 2009











































































































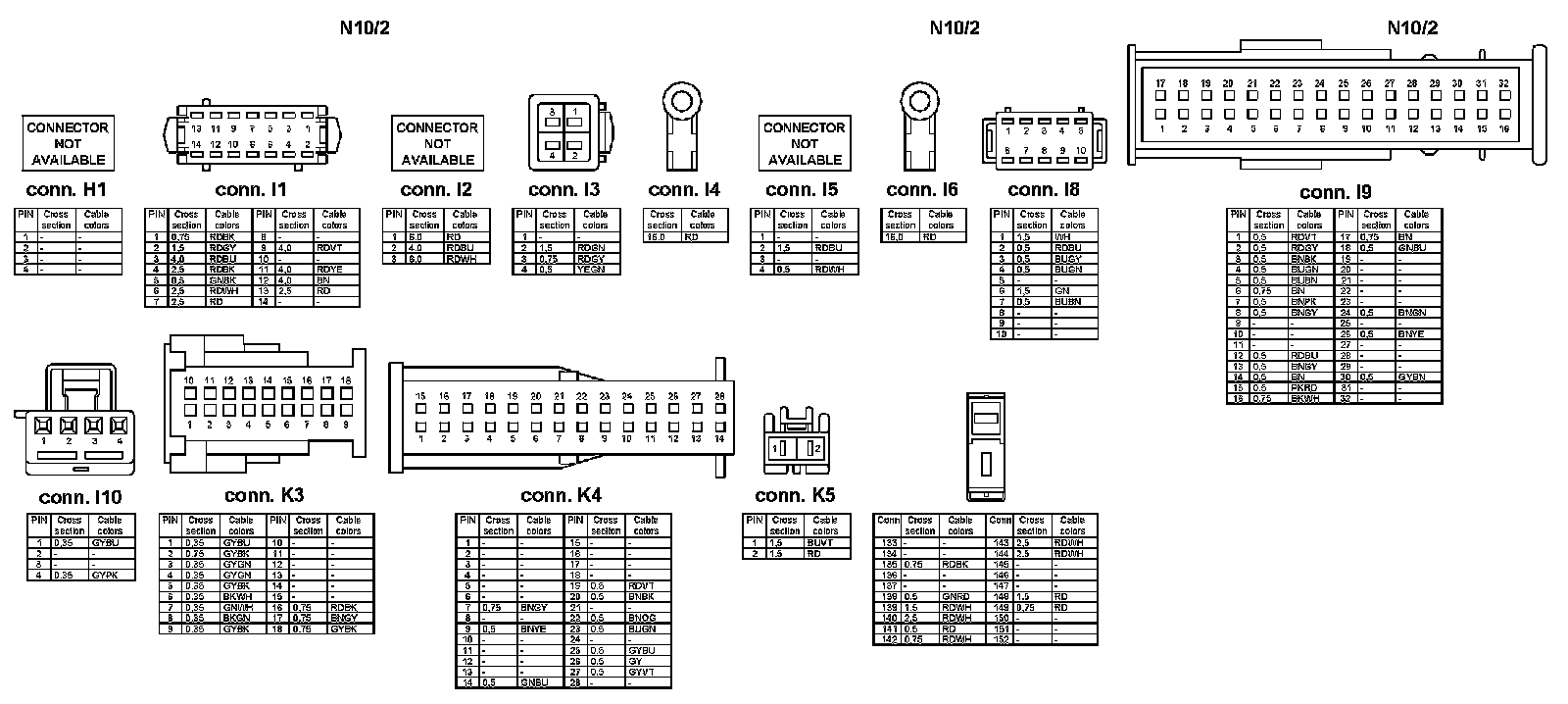

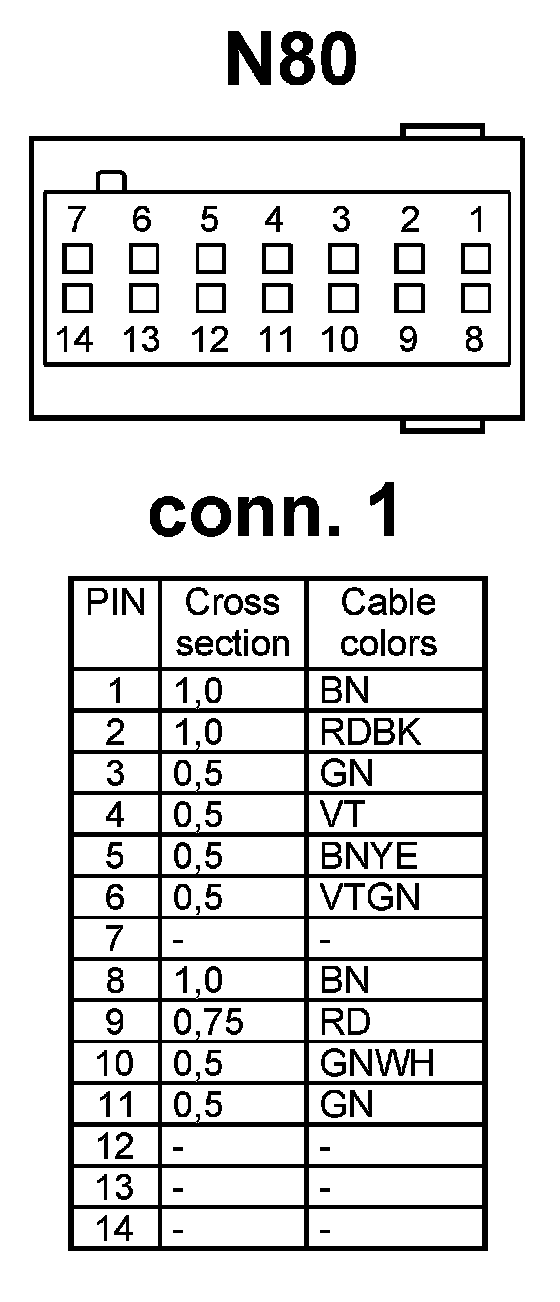

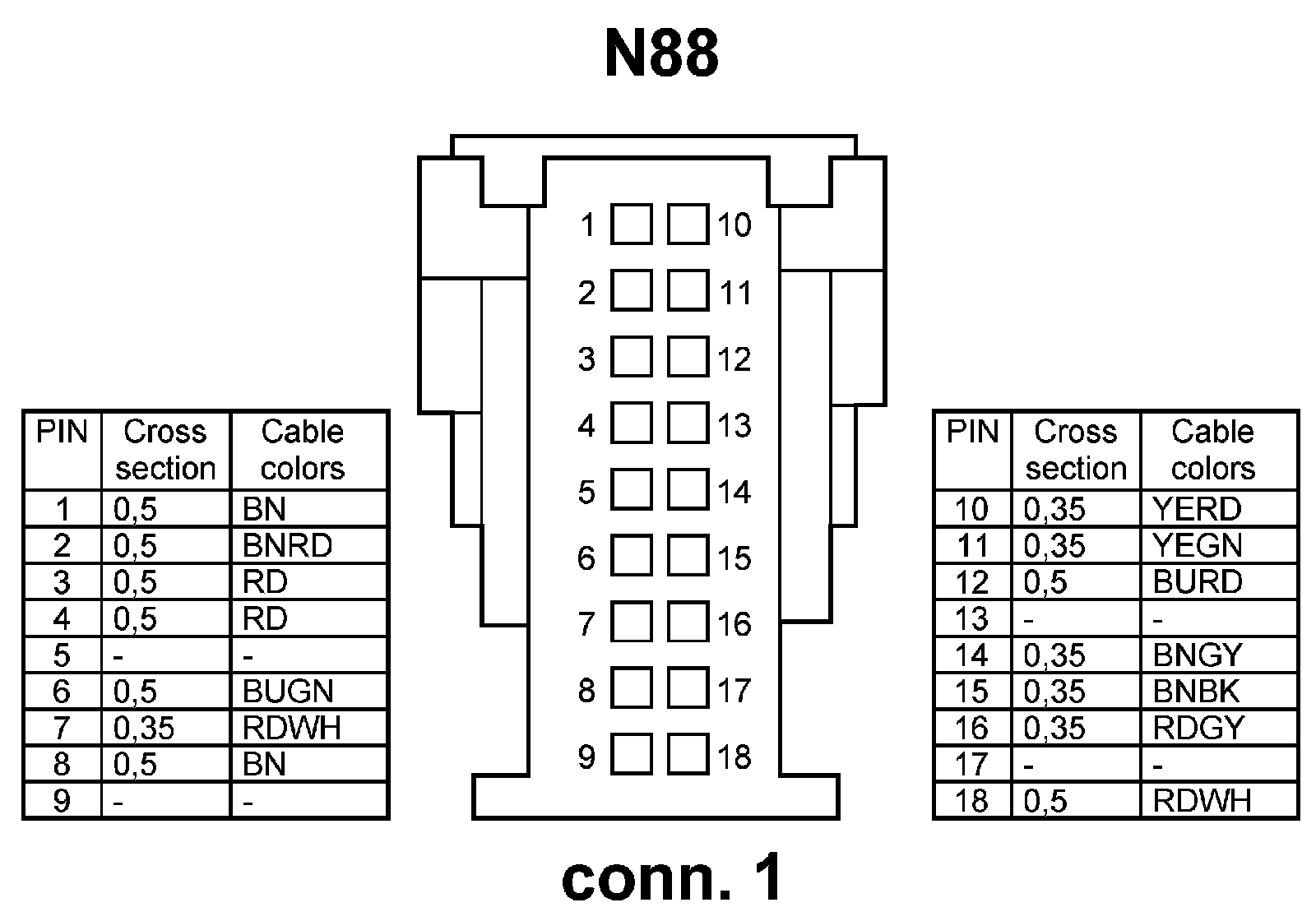

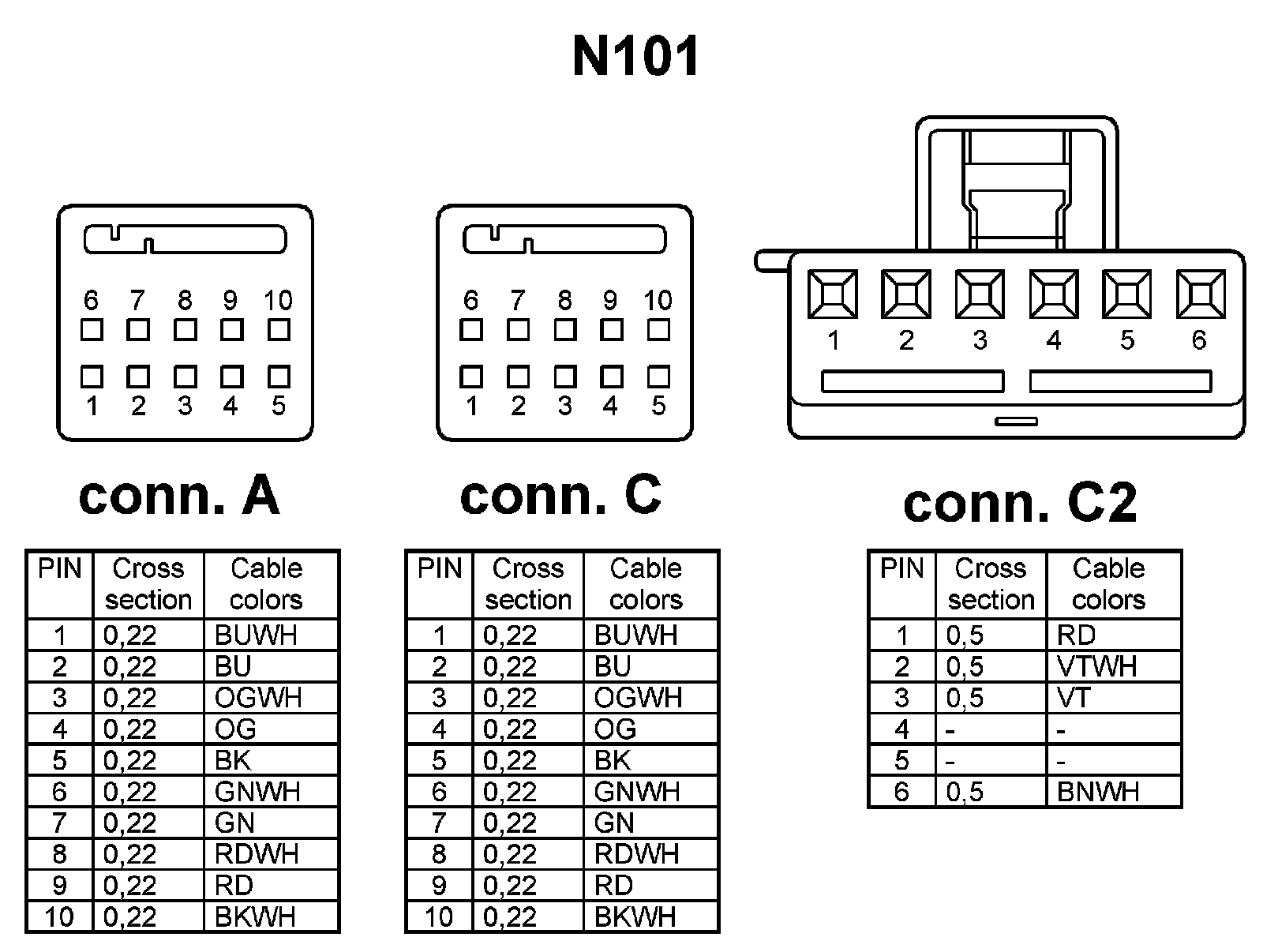

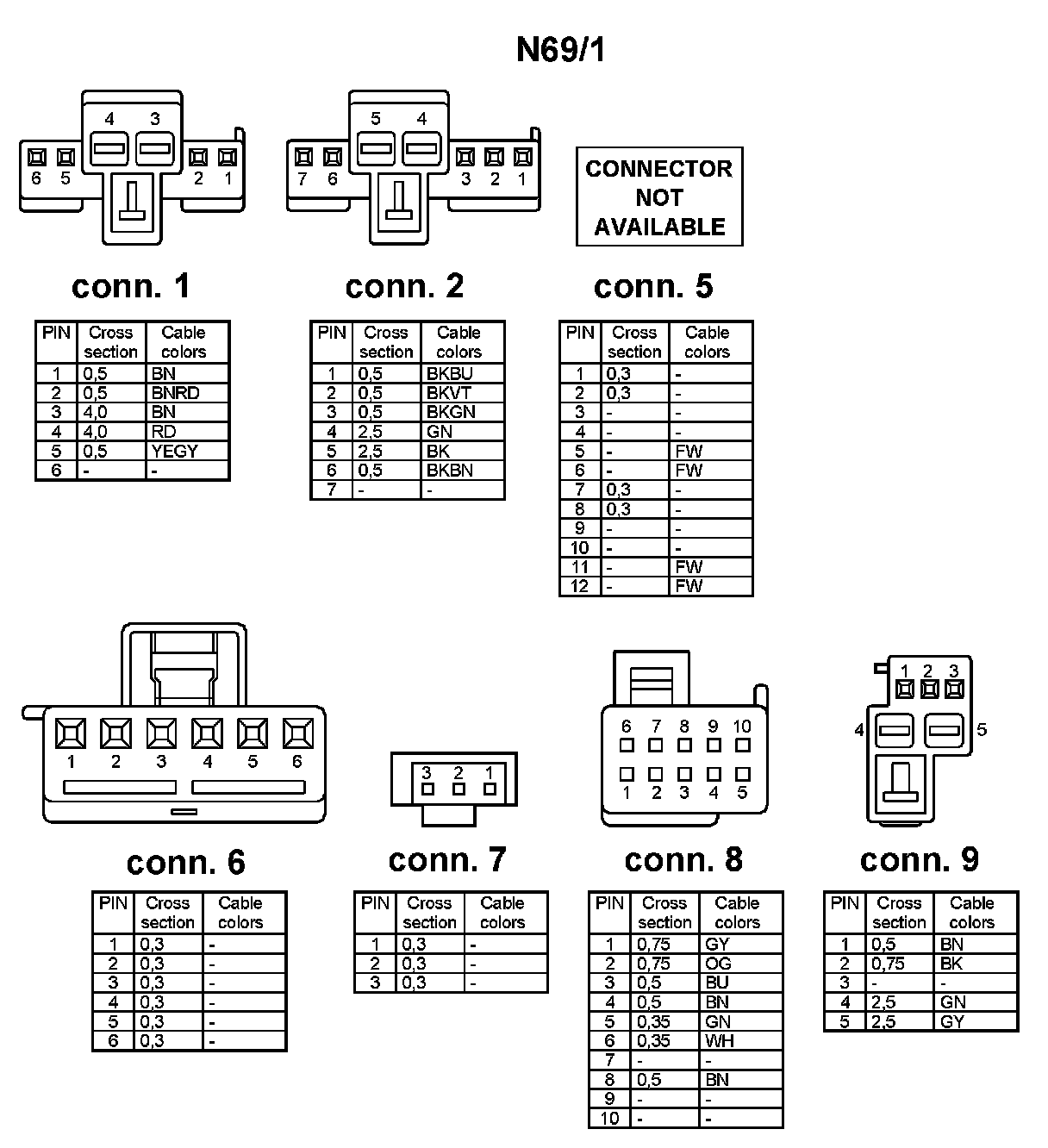

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
