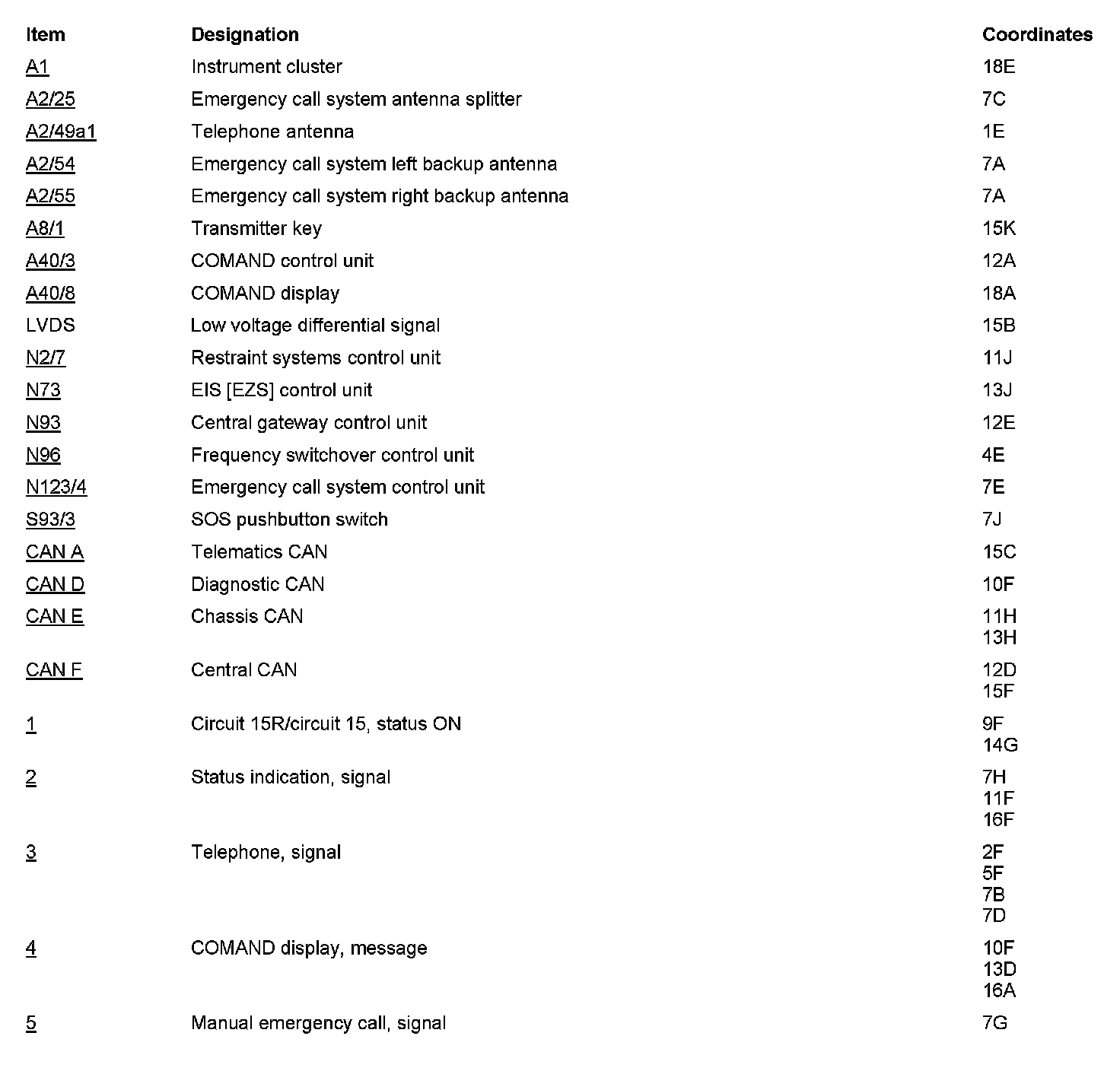

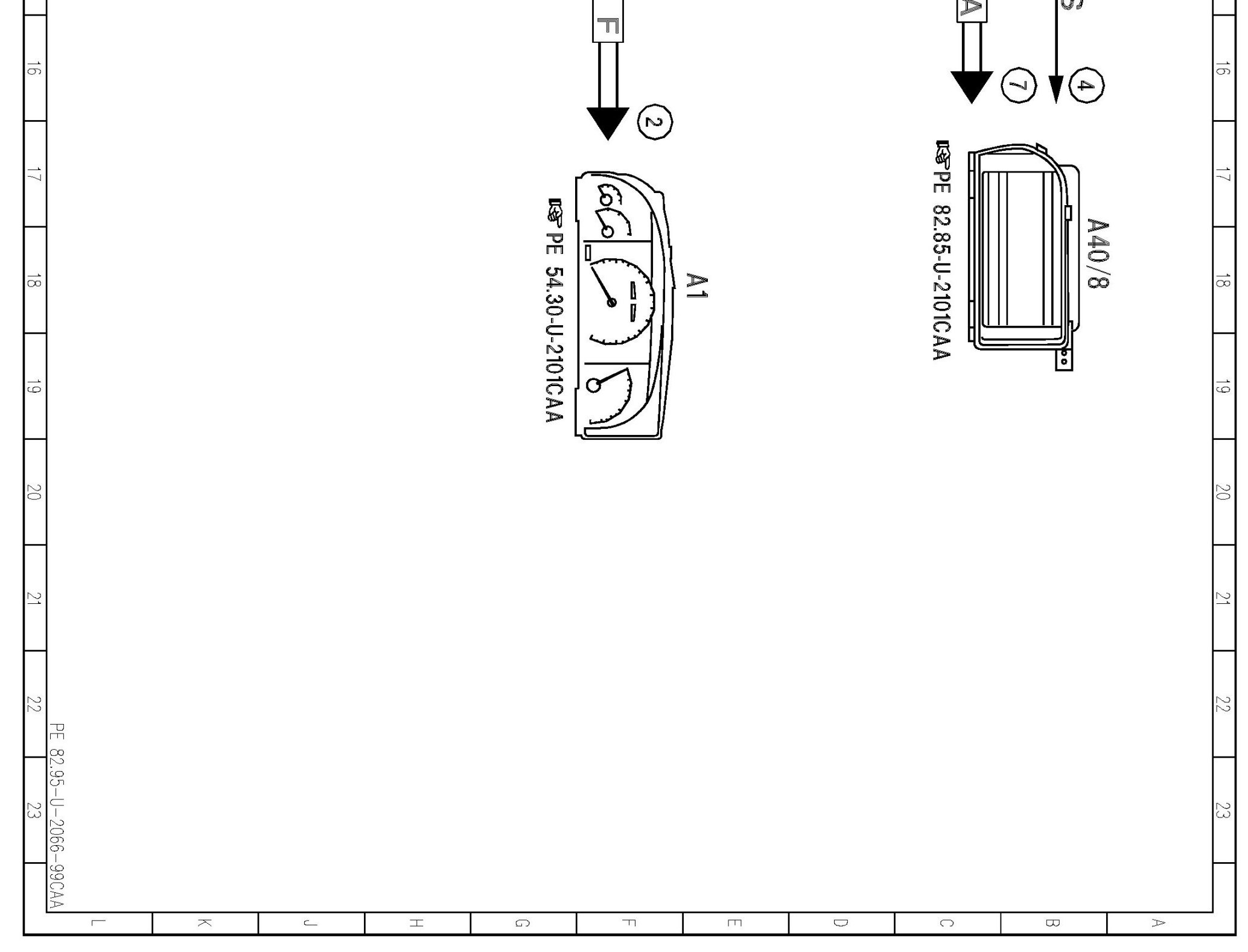

PE82.95-U-2066CAA Electrical Function Schematic For Manual or Automatic Emergency Call, Function

PE82.95-U-2066CAA Electrical Function Schematic For Manual or Automatic Emergency Call, Function

MODEL 216
- with CODE (359) TELE AID emergency call system
- as of Model Year 2009















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
