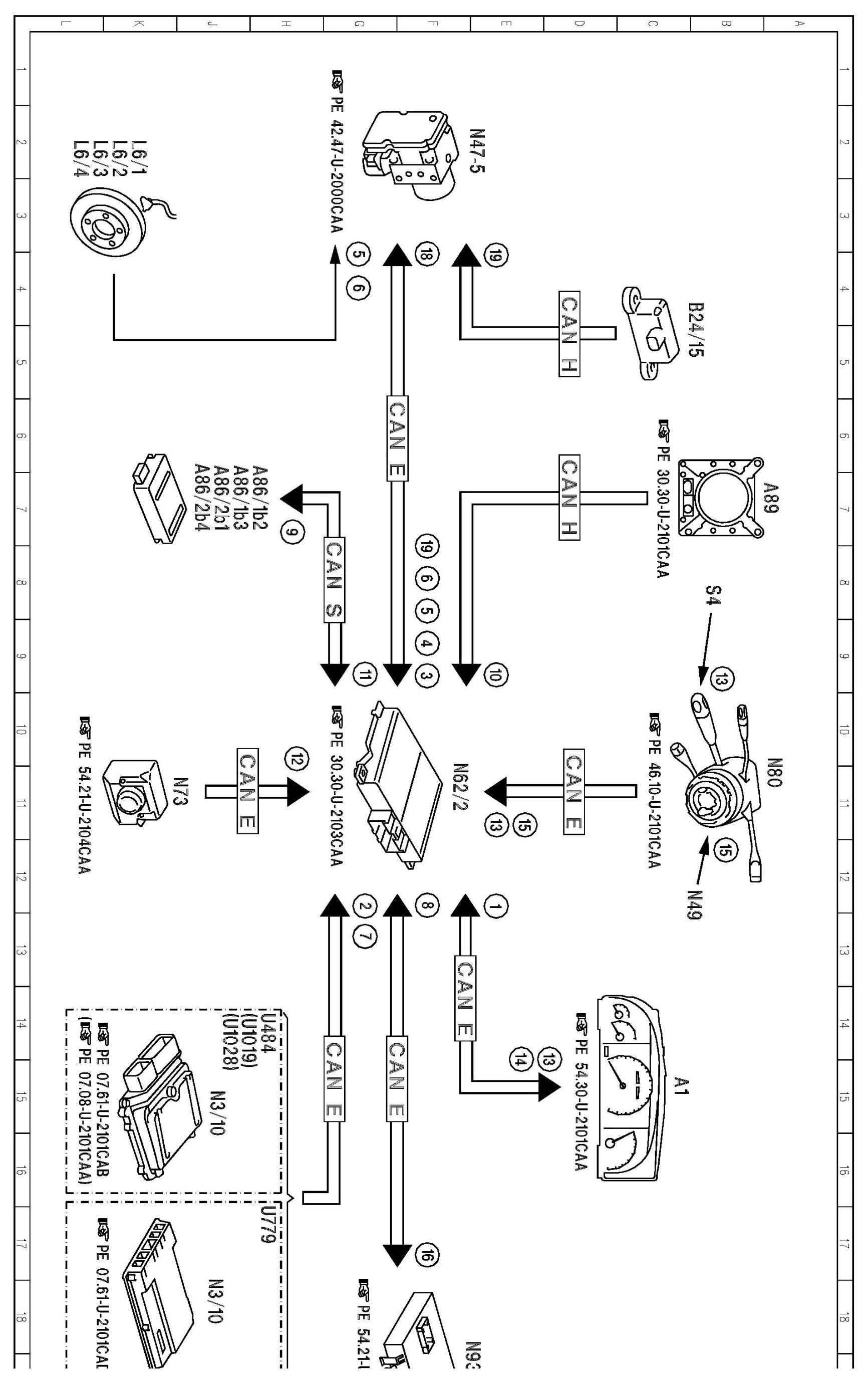

PE54.71-U-2051CAC Electrical Function Schematic For Blind Spot Assistant

PE54.71-U-2051CAC Electrical Function Schematic For Blind Spot Assistant

MODEL 216
- with CODE (237) Active Blind Spot Assist
- as of Model Year 2011



























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
